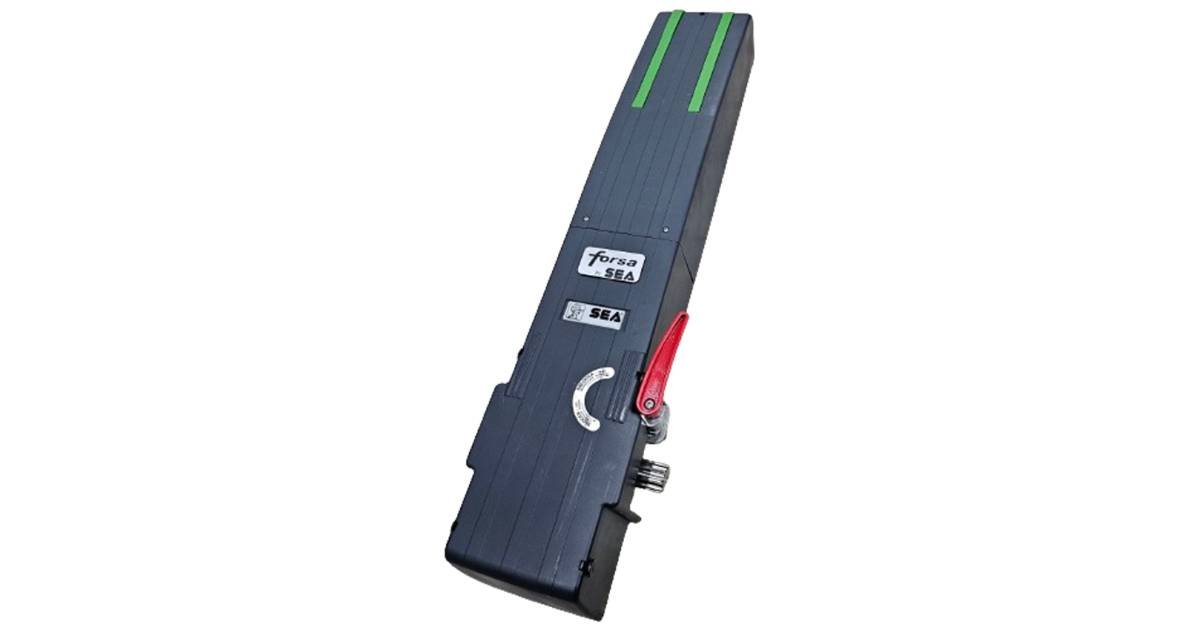

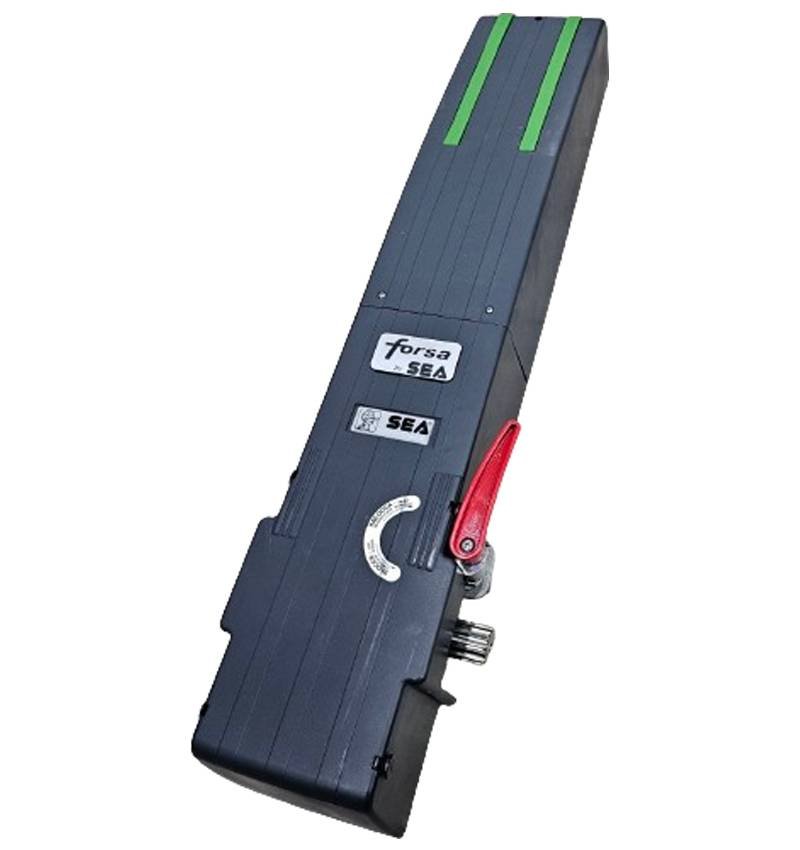

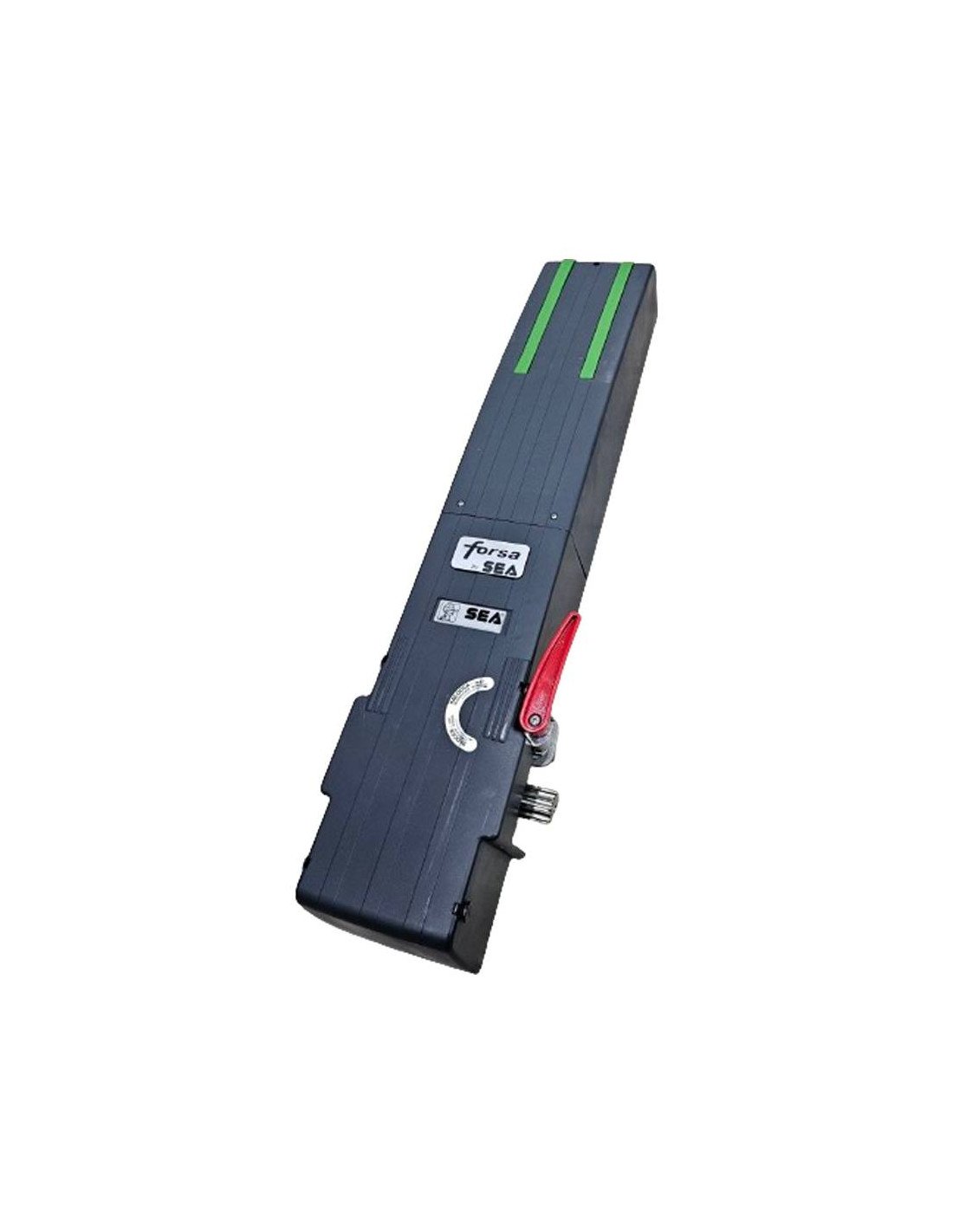

Engine Forsa ERG for tilting doors for residential use

Electromechanical motor Forsa Erg 24V for tilting doors of two residential counterweight leaves, designed to automate cancels up to 10 m² with maximum safety and control.

The Forsa Erg 24v It incorporates technology with Encoder and finishing microswitches in opening and closing, offering precise, smooth and reliable operation. It has an anti-explashing system, unlocking manual by cam lever and Integrated maneuver box, guaranteeing security and continuity of service even in case of current cut.

Main features

✔ Electromechanical motor 24 VDC

✔ Special for tilting doors of two bladed leaves

✔ Maximum door surface: 10 m²

✔ Integrated encoder for electronic obstacle detection

✔ Electronic career endings in opening and closing

✔ Anti-explashing system for greater security

✔ Speed reduction at the end of the tour

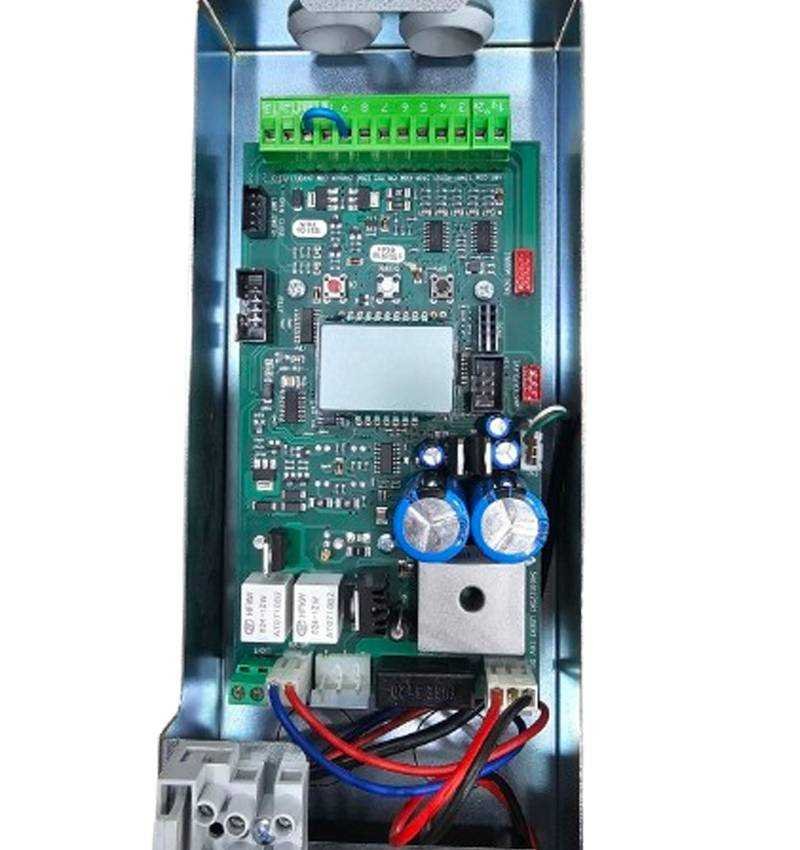

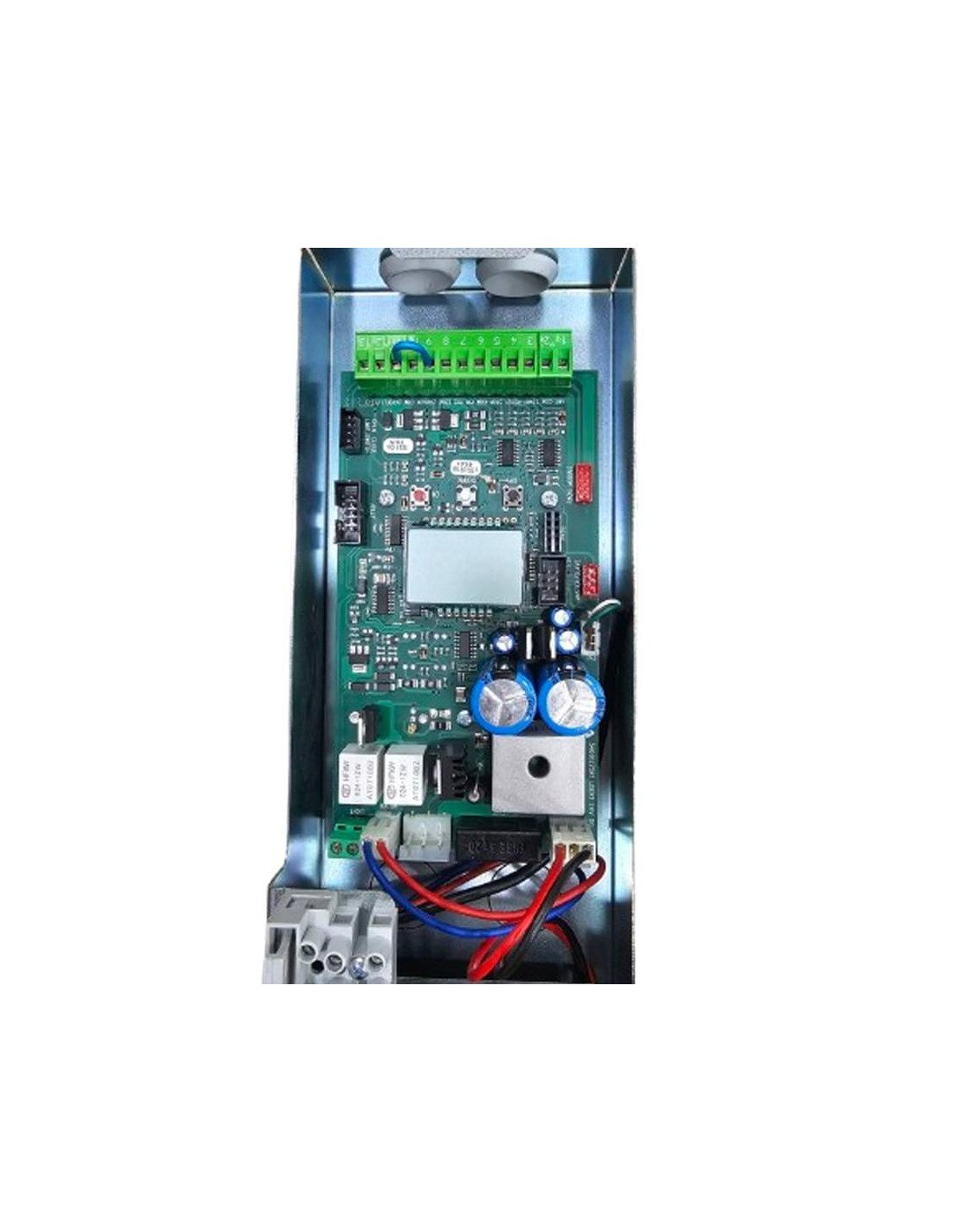

✔ Built-in maneuver box

✔ Integrated courtesy light

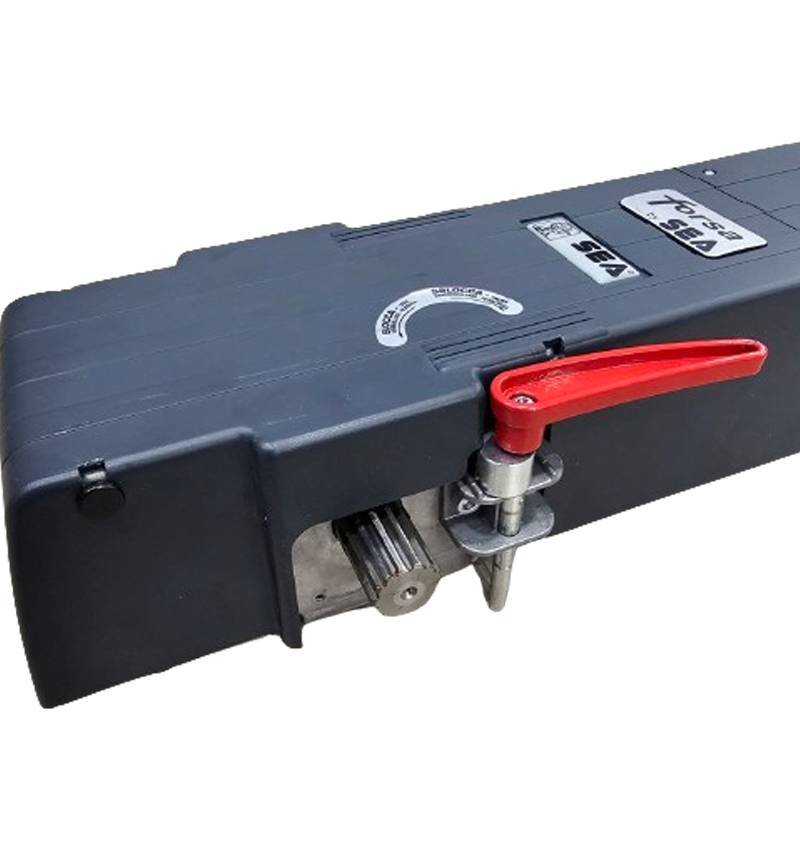

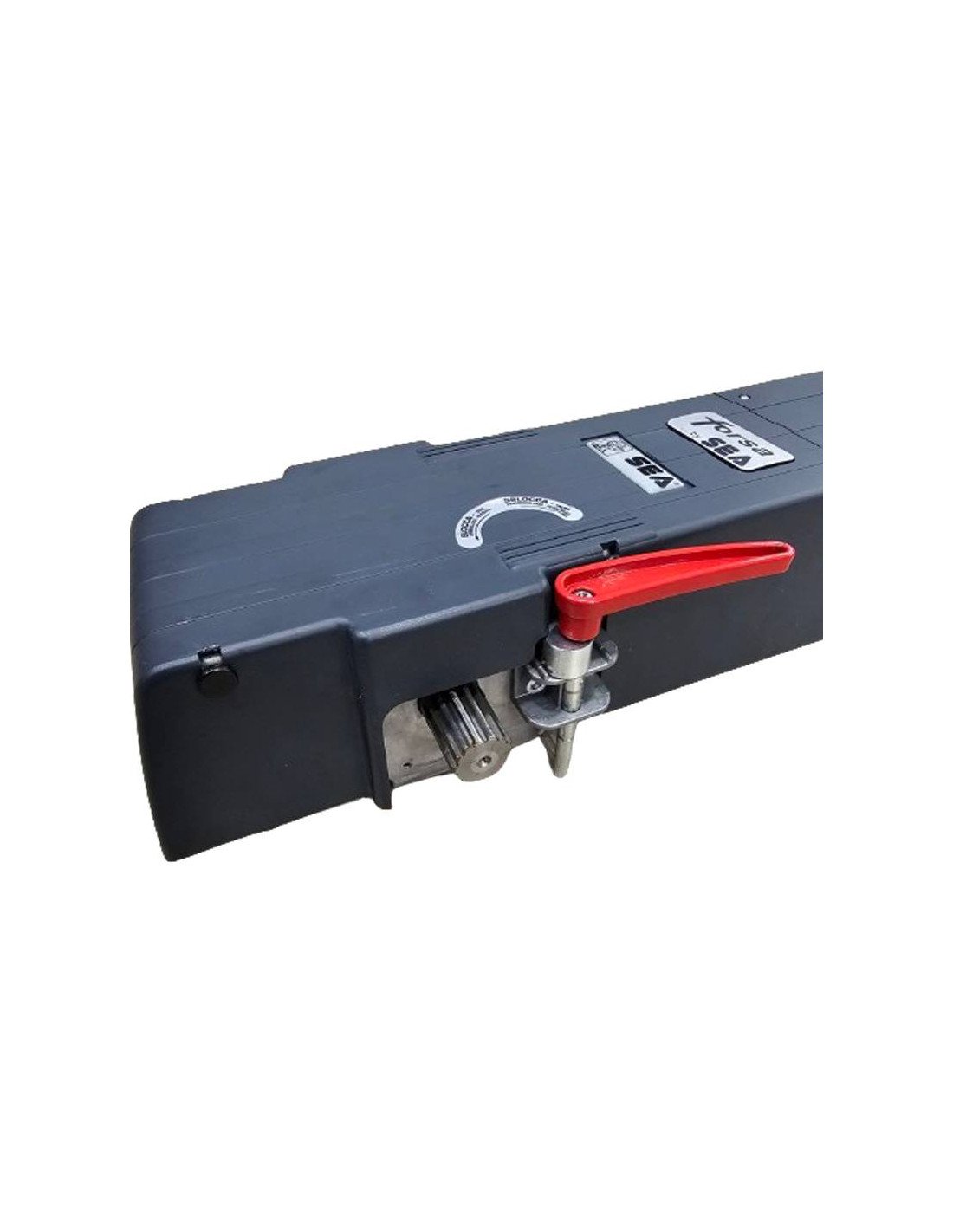

✔ User unlocking by cam lever in case of emergency

✔ Emergency opening before power failure

✔ 60 cm motor support included

Recommended applications

• Particular residential garages
• Single-family homes
• Two-sheet counterattors doors
• Frequently used facilities in domestic environments

Supply content

• 1 x Electromechanical Motor Forsa Erg with built-in box

Technical Characteristics Forsa Erg

• Feed: 230 VAC
• Absorbed: 200 W
• Hourly cycles: 30/40
• Operating temperature: -20 ° C to +55 ° C
• Weight: 9.5 kg
• Anti-employment protectionYes
• Degree: IP44
• Boot capacitor: 16 μF
• Race: Electronic
