Motor kit V2 Vega | Electromechanical Engine Able Dd Small

Electromechanical motor kit V2 VEGA 230VAC irreversible block tilting doors Residential up to 9m².

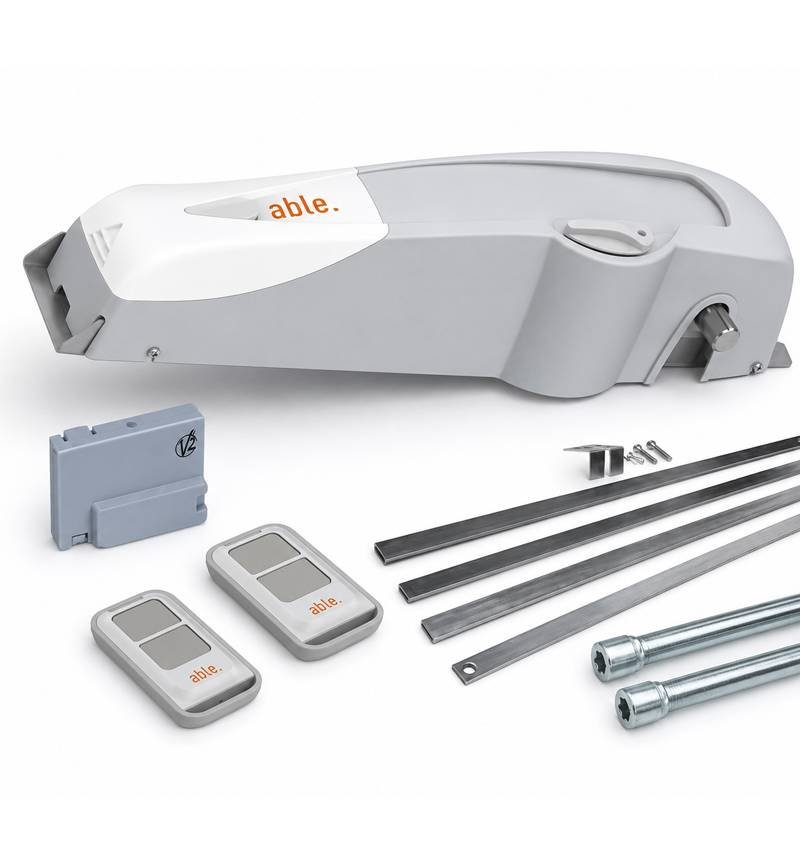

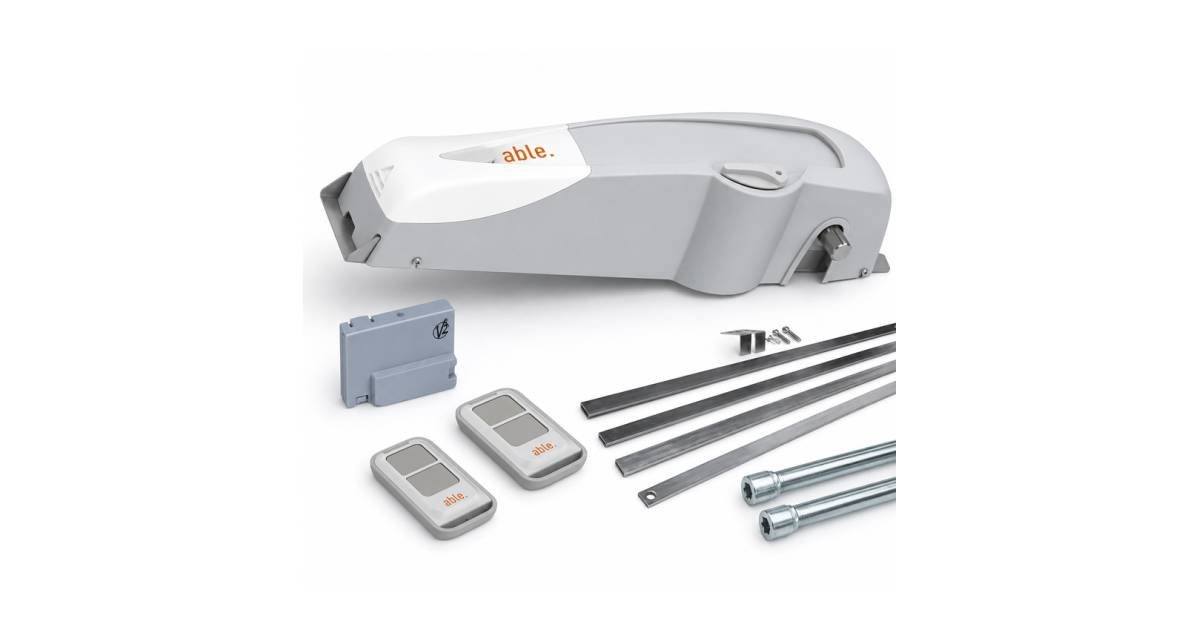

Kit content with telescopic bars:

• 1x 24y001: Electromechanical Motor DD Small 9000D 230V with built-in box
• 1x 162411: Pair of torque with 2m cap
• 1x 162401: Pair of straight telescopic fittings with iron bar
• 1x 11Y001: MR2 433 MHz plug-in receiver
• 2x 10y001: RollingCode 433 MHz transmitter

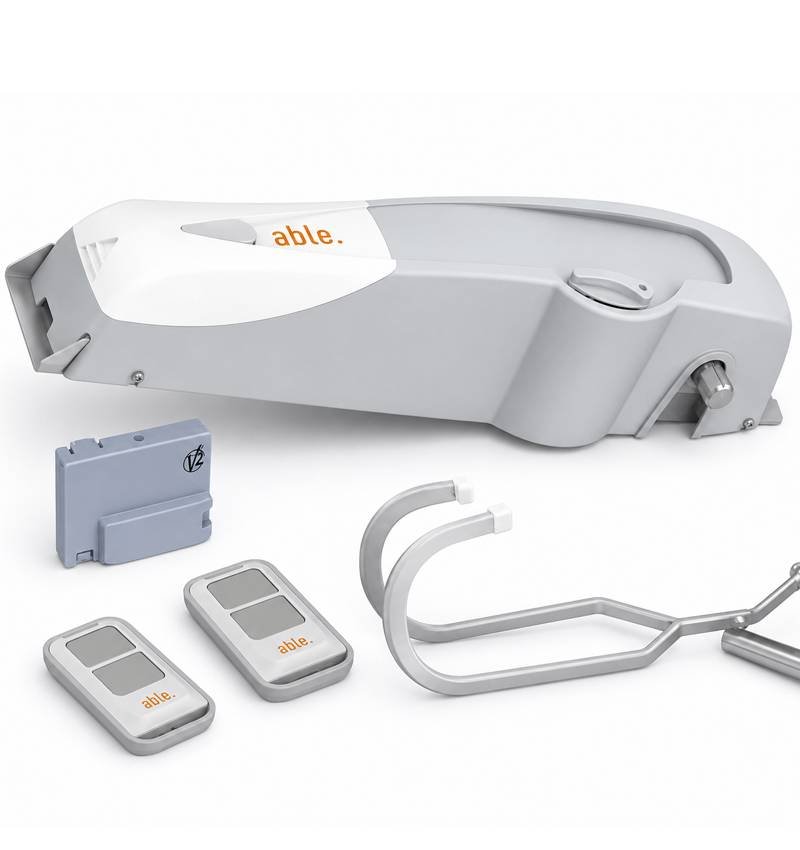

Content of the Kit with Saxo Hardware:

• 1x 24y001: Electromechanical Motor DD Small 9000D 230V with built-in box
• 1x 162415: Pair of curved telescopic arms with iron bar
• 1x 162401: Pair of straight telescopic fittings with iron bar
• 1x 11Y001: MR2 433 MHz plug-in receiver
• 2x 10y001: RollingCode 433 MHz transmitter

Features V2 VEGA (ABLE DD Small):

• Robust compact and mechanical design for optimal performance with all types of balanced doors

• Automatic learning of opening and closing times

• Adjustable cams to set as end-of-race switches or start a gradual start

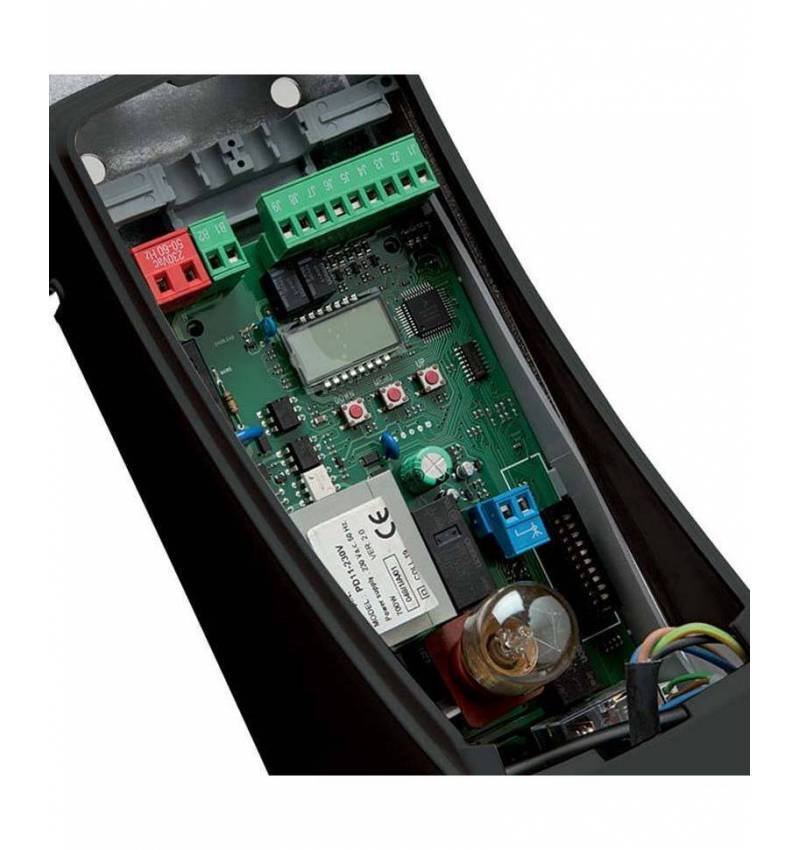

• Programming with 3 buttons and screen

• Plug-type adapter for modular radio receiver

• 1 photocell entrance with self-test function

• 1 Input for mechanical or resistive sensitive safety bands

• Exit for 24V flashing light or warning light

• Courtesy light output

• Cycle counter with customizable maintenance

• In accordance with the new low energy consumption regulations at EU2023 / 826

• Wi-Fi module for motor control through the application

Technical characteristics V2 VEGA (ABLE DD Small):

• Feed: 230VAC
• Gate: 9m²
• Absorption with load: 2.5A
• Maximum electric power: 575W
• Nominal motor speed: 1,6RPM
• Capacitor: 8UF
• Operating temperature: -20 +50 ºC
• Work cycle: 30%
• Degree: 20ip
• Motor weight: 9 kg
• Load max accessories 24V: 3W

Measures V2 VEGA (ABLE DD Small):

Manual

Manual Electromechanical Motor V2 Vega 230V
