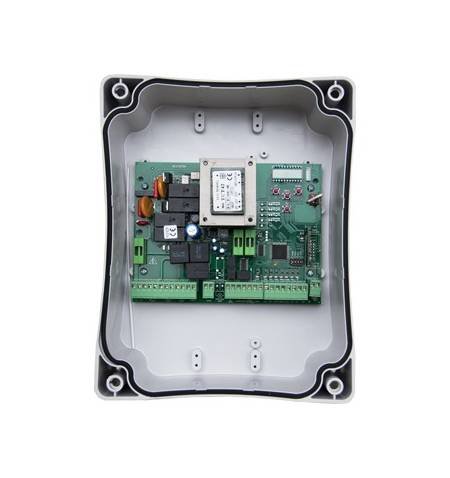

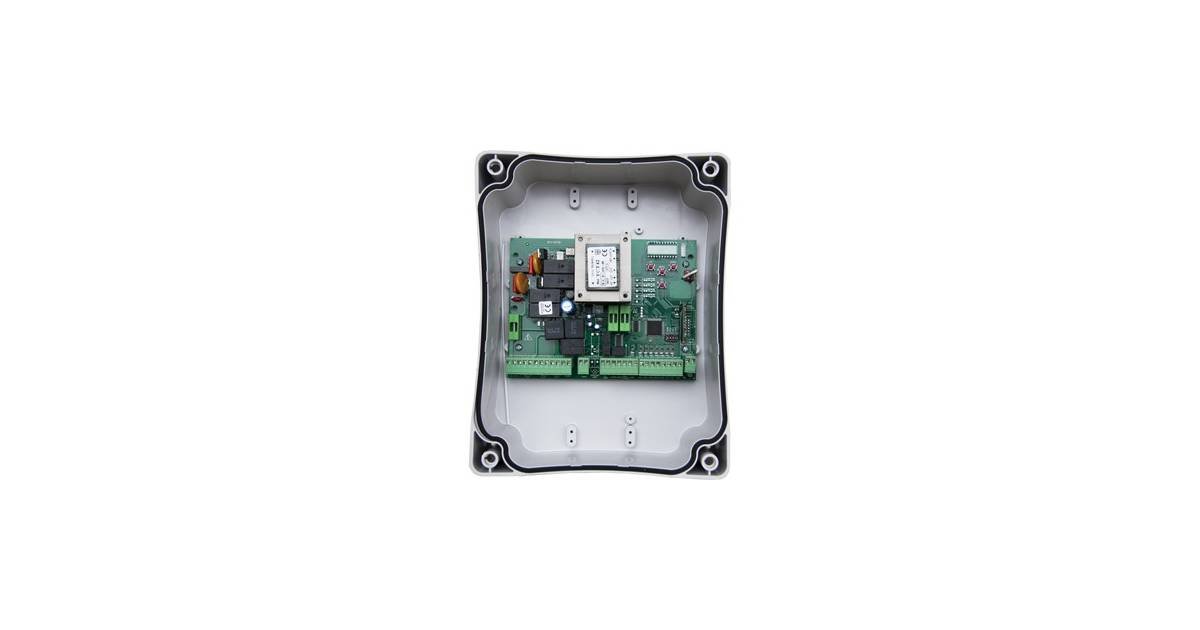

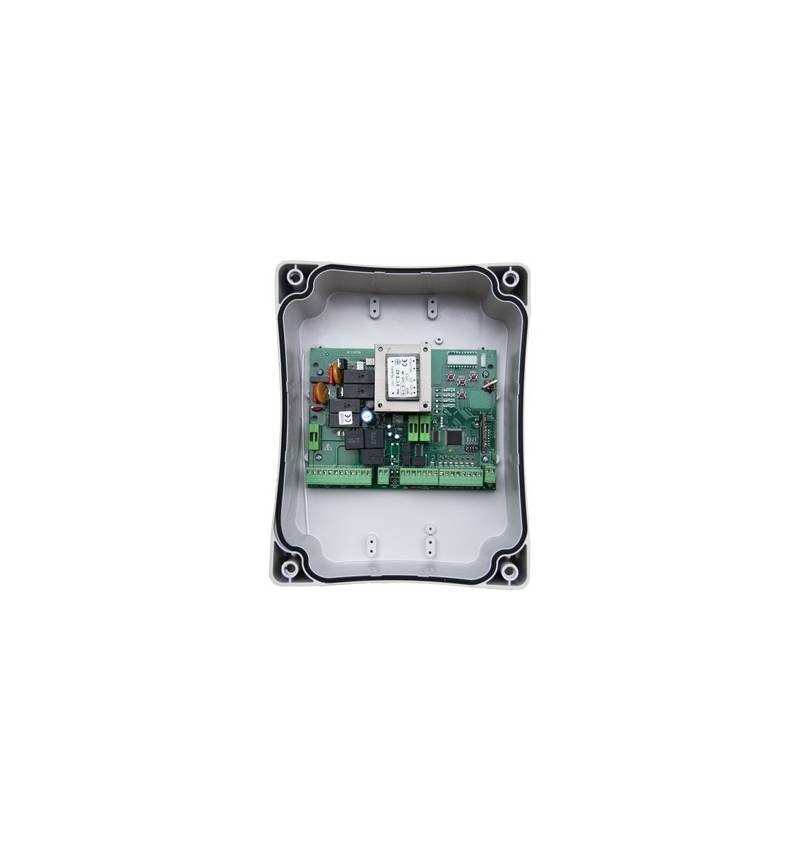

ALLMATIC control unit for one or two motors at 230 VAC. Selection of functions through a display.

Control panel with control of a transmitter via display. Bluetooth module connection not available.

Main features:

• Central with control of a transmitter via display.
• Memory and removable terminal rack.
• Electronic torque regulation.
• Learning up to 1000 remote controls.
• Selection of functions by display.
• Self-taught on the tour.
• Differentiable deceleration at opening and closing.
• Led status indication entries.
• Management of courtesy light/indicator open switch and electric lock by optional R2 card.
• Radio receiver module.

Inputs: button opens, button closes, button step by step, pedestrian button, stop button and 2 photocells.

Output: on-board flash circuit 230 Vac card, courtesy light/guide light canceled open, electric lock and power supply accessories (24 Vdc).

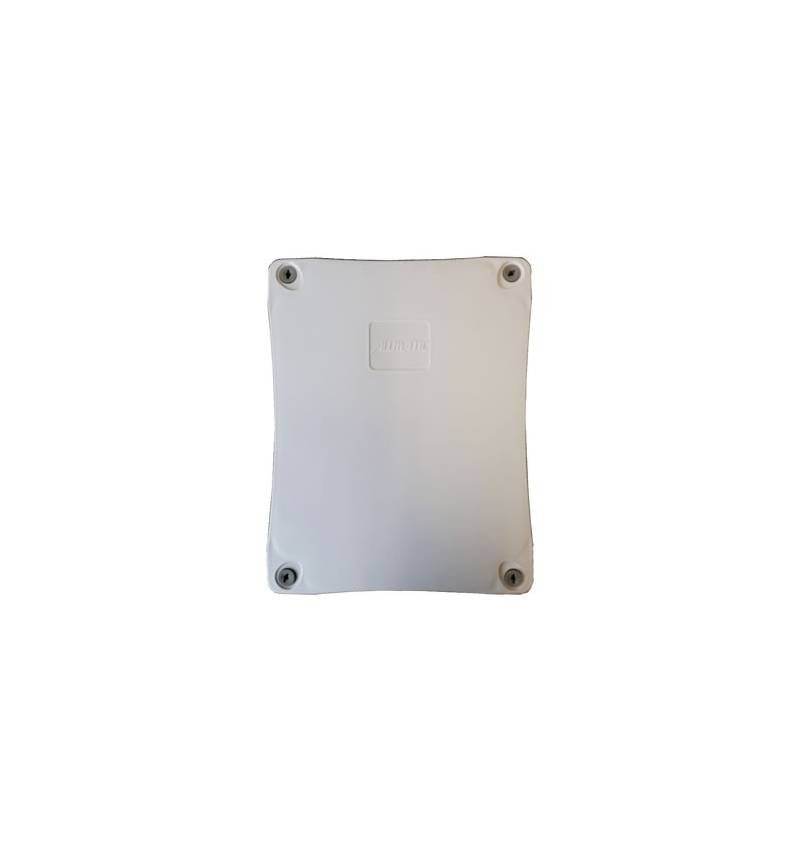

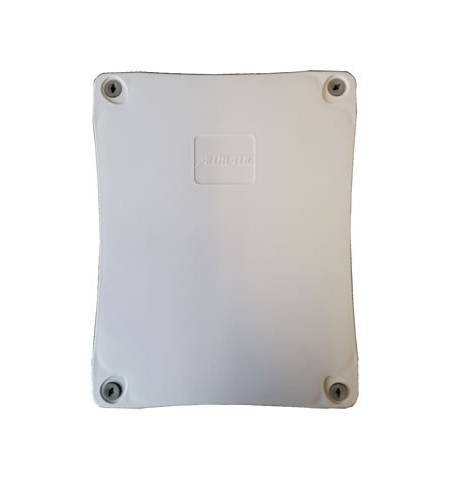

Dim, please. (mm) W x D x H = 145 x 180 x 85 BOX

MANUALS

• Presentation

• Instructions for use

• Instruction video BIOS2 ECO

Inputs: button opens, button closes, button step by step, pedestrian button, stop button, two photocells, safety band.

Output: on-board flash circuit 230 Vac card, courtesy light/witness light canopy open, electric lock 12 Vac 15VA and power supply accessories 24 Vac/dc.

Dim, please. (mm) W x D x H = 145 x 180 x 85 BOX
