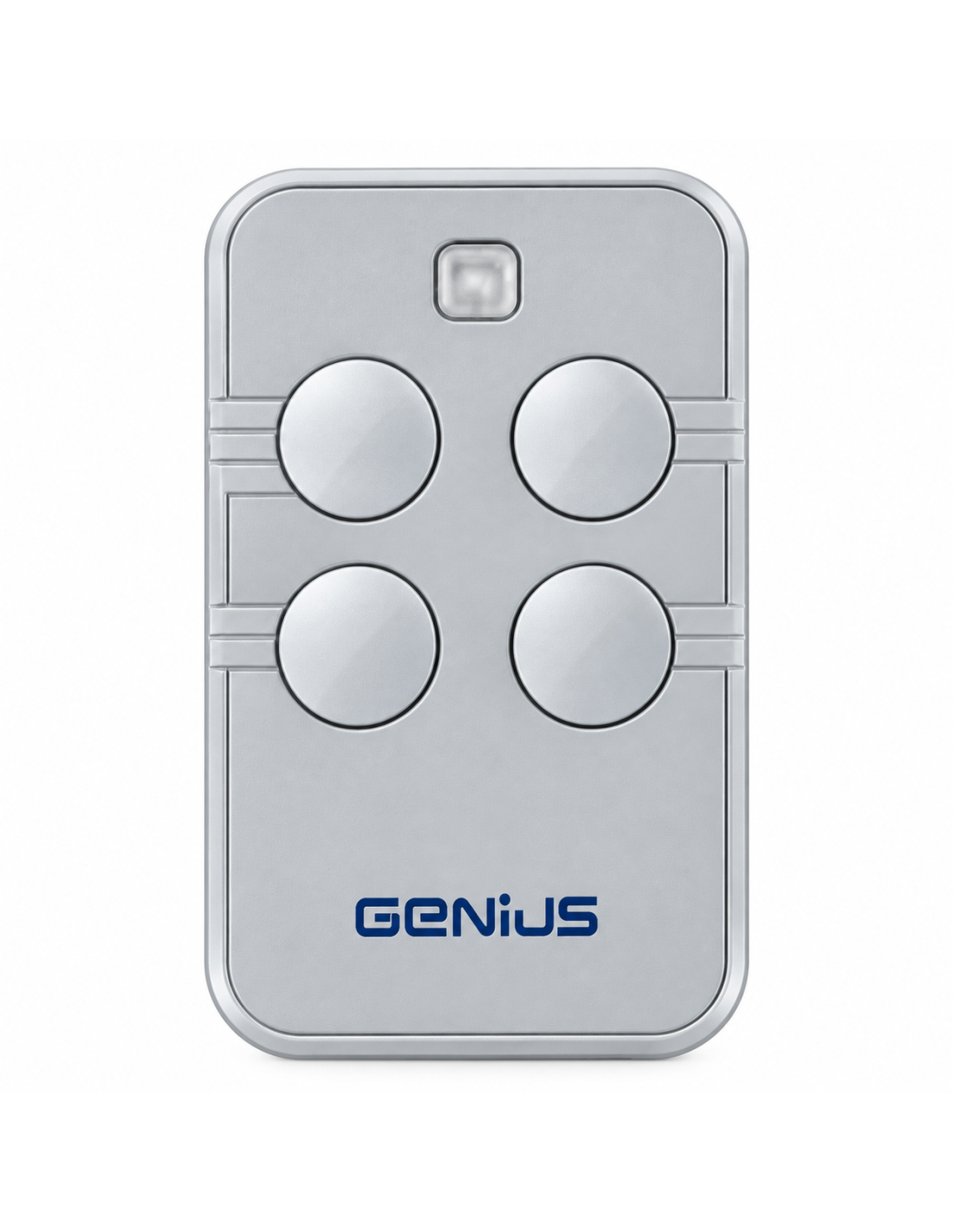

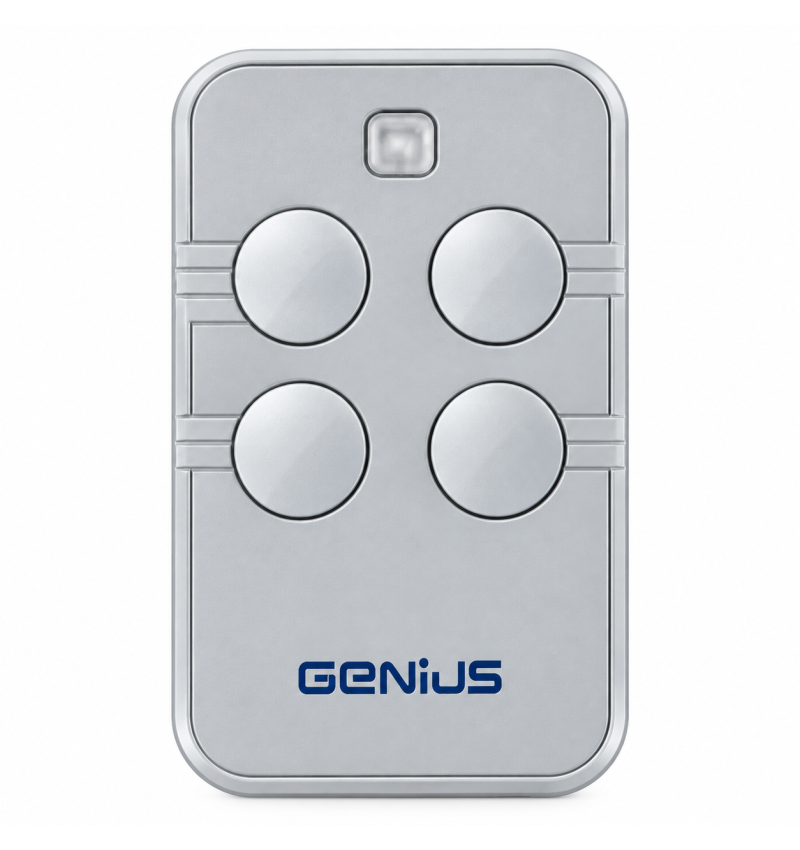

GENIUS KILO TX4 JLC 868 MHz 4 channels

GENIUS KILO TX4 JLC 868 MHz 4 channels

The Genius Kilo TX4 JLC 868 it is an original remote control for automations of doors, garages and garages equipped with a genius receiver compatible with System 868 MHz JLC.

Has 4 buttons / 4 independent channels, allowing controlling different automations or compatible functions from a single transmitter.

Use the coding system JLC - Jumping Learning Code, based on technology Rolling code. The transmitted code changes in each use and remains synchronized with the receiver, increasing safety against unauthorized copies.

In addition, the JLC system allows the self-learning of a new command from another control Genius JLC compatible, without the need to physically access the receiver in facilities that allow this procedure.

Product identification

Model: Genius Kilo TX4 JLC

GENIUS reference: 6100333

Trade reference: 84844604

✓ Original command Genius by FAAC.

✓ KILO TX4 JLC.

✓ 4 buttons / 4 channels.

✓ Transmission frequency 868.35 MHz.

✓ Coding system JLC - Jumping Learning Code.

✓ Safety technology Rolling code.

✓ Variable code in each transmission.

✓ Function of self-learning control command with compatible JLC transmitters.

✓ 4 buttons can be programmed individually.

✓ LED transmission indicator.

✓ Food through 2 3v Lithium Batteries CR2032.

JLC means Jumping Learning Code. This is the Rolling Code coding system used by Genius in this family of transmitters.

Each time the control is pressed, a different code than previously used, following an algorithm and maintaining the synchronization with the receiver.

For this reason, to ensure compatibility, it is not enough for two controls simply at the same frequency: the receiver must be compatible with the Genius 868 MHz JLC system.

The Kilo TX4 has 4 individually programmable buttons.

Depending on the receiver and installation, they can be used to control different functions, for example:

✓ Main door.

✓ Second door or automation.

✓ Pedestrian opening.

✓ Other functions available in a compatible multi-channel receiver.

Yes. One of the characteristics of the Genius JLC system is the possibility of transferring authorization from a inter-operative control to another JLC control compatible.

This can allow you to memorize a new transmitter without direct access to the receiver, provided that an authorized compatible control is available and the installation does not have programming restrictions.

The Genius Kilo TX4 should be used with 868 mHz Genius receptors compatible with JLC coding.

Among the receivers used by Genius with this system are, according to generation:

✓ Genius JA335 – 868 mHz JLC receiver.

✓ Genius 6100075 - 2-channel receiver 868 MHz JLC.

Important: Check frequency and coding

Before placing the order, verify that the existing control or receiver of its installation works with the system Genius 868 MHz JLC.

A command that has a similar casing or working at a close frequency it does not have to be compatible. The frequency and coding system must match.

Do not confuse with other Kilo versions

Within the Genius Kilo range there are transmitters with different frequencies and number of channels.

This product corresponds specifically to Kilo TX4 JLC of 4 channels and 868.35 MHz, reference Genius 6100333.

The transmitter works by 2 3v Lithium Batteries CR2032. When the scope of the command decreases significantly, check the status of the batteries and replace them respecting the polarity indicated by the manufacturer.

■ 1 × original control Genius Kilo TX4 JLC 868 MHz 4 channels.
