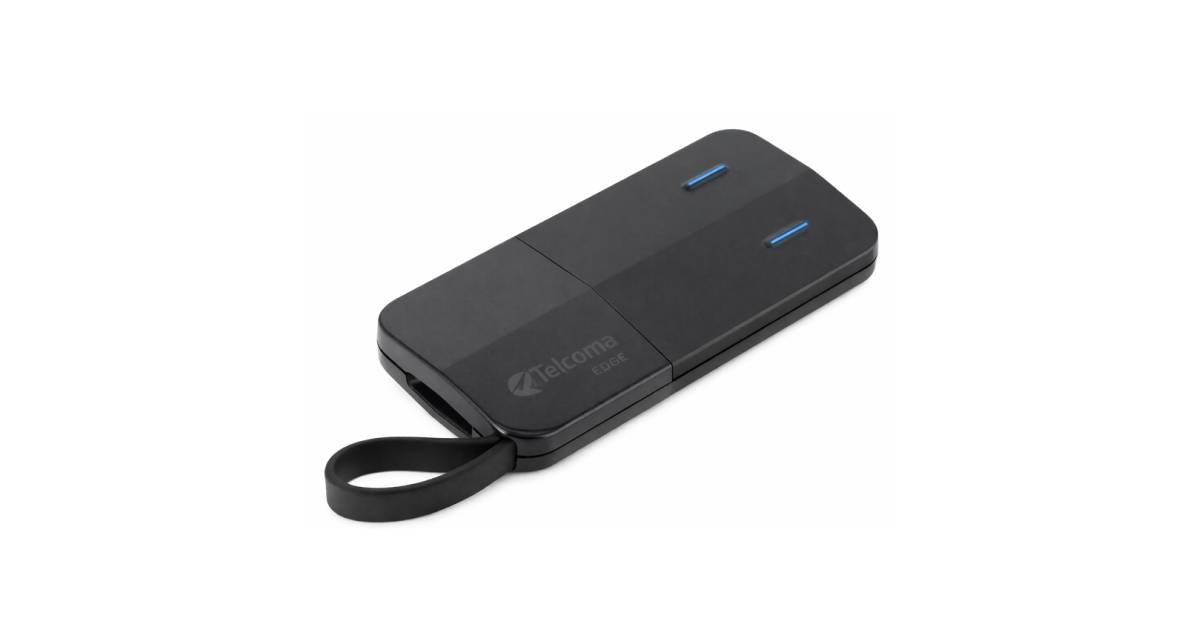

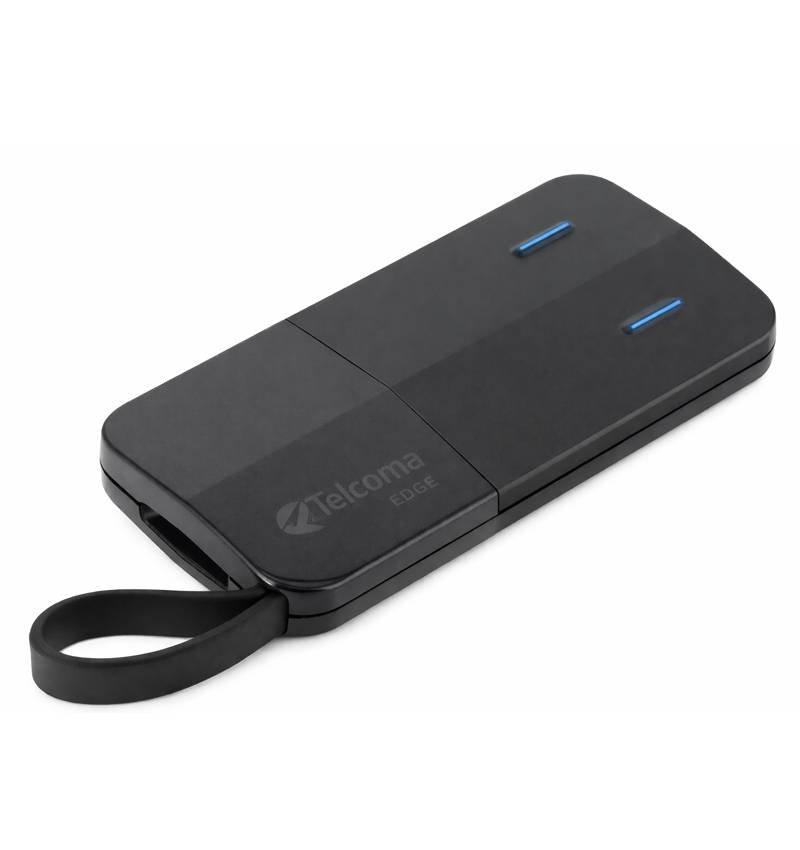

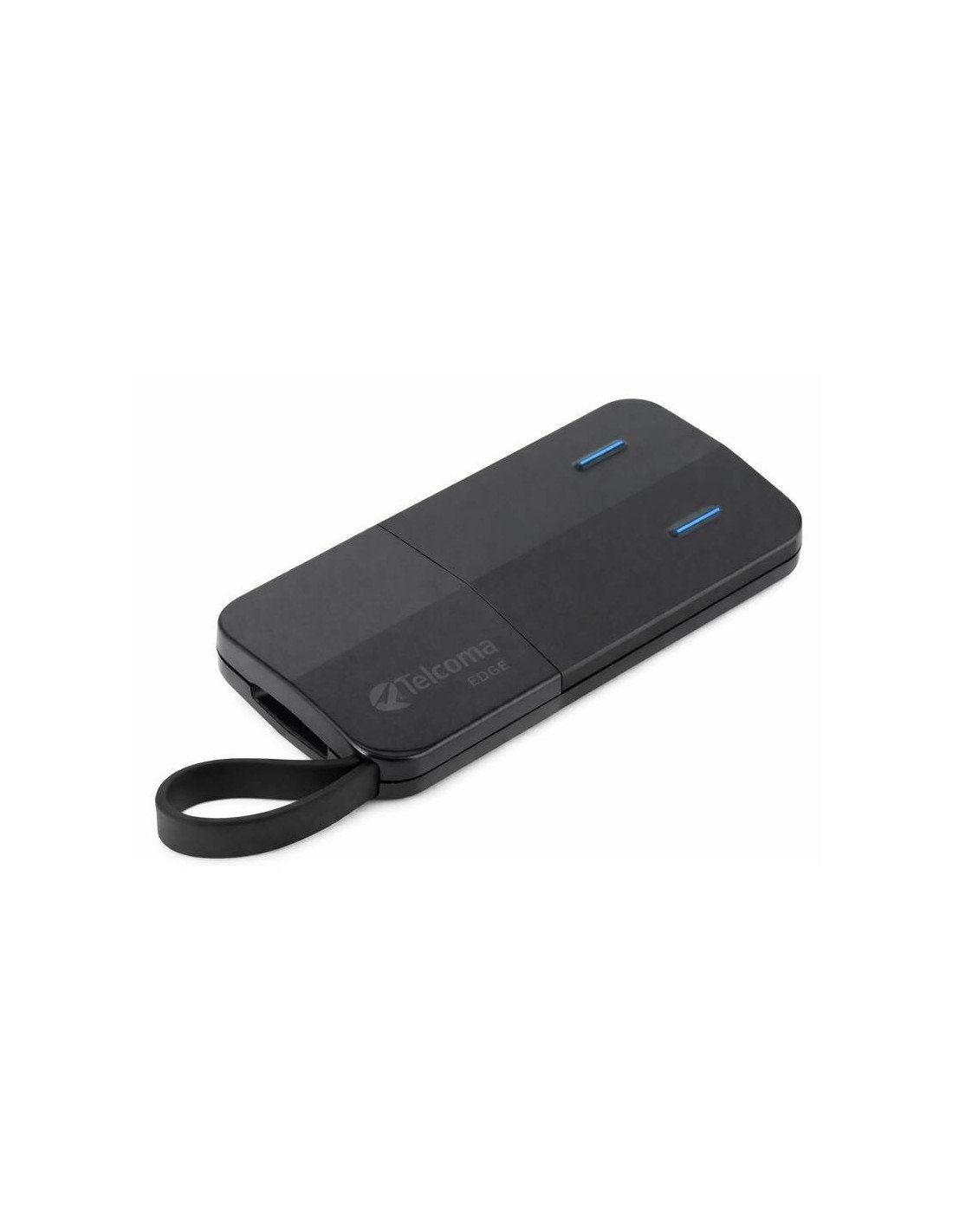

Garage crew Telcoma EDGE two channel rolling code 433.92 MHz.

This emitter comes with the standard code, so it won't work in garages where an installer has put in a custom code. It is 100% compatible with the receivers and receiver cards of this website Tecnoparking. Activation can be done by the receiver button or a pre-programmed control.

The main feature distinguishing this control model from the other models Telcoma it's the color of the buttons.

Note that in the EDGE2 model the buttons are blue as opposed to the NOIRE (grey buttons) and FM (green buttons) model

In the following photograph you can clearly see the difference between the three models.

This remote control can pass your code to another new command by pressing the buttons so having a working transmitter, you do NOT need to go to the door receiver or cancel to discharge it.

The procedure is as follows:

1. Press and hold button 2 of the new control.
2. Press 4 times the 1 button on the new control without releasing the 2 button.
3. The LED will blink slowly.
4. Place the already coded control (old control) in the position shown in the figure and, without releasing the button 2 of the new control, press the button of the old control that we want to pass to the new transmitter, and hold it pressed until you observe that the LED of the new control remains fixed.
5. At this point stop pressing the new control button and observe that the LED blinks faster.
6. Press the button we wish to use on the new transmitter.
7. The LED will remain fixed for a second and then turn off.
8. The new remote control Telcoma Edge 2 is programmed and ready to go.
