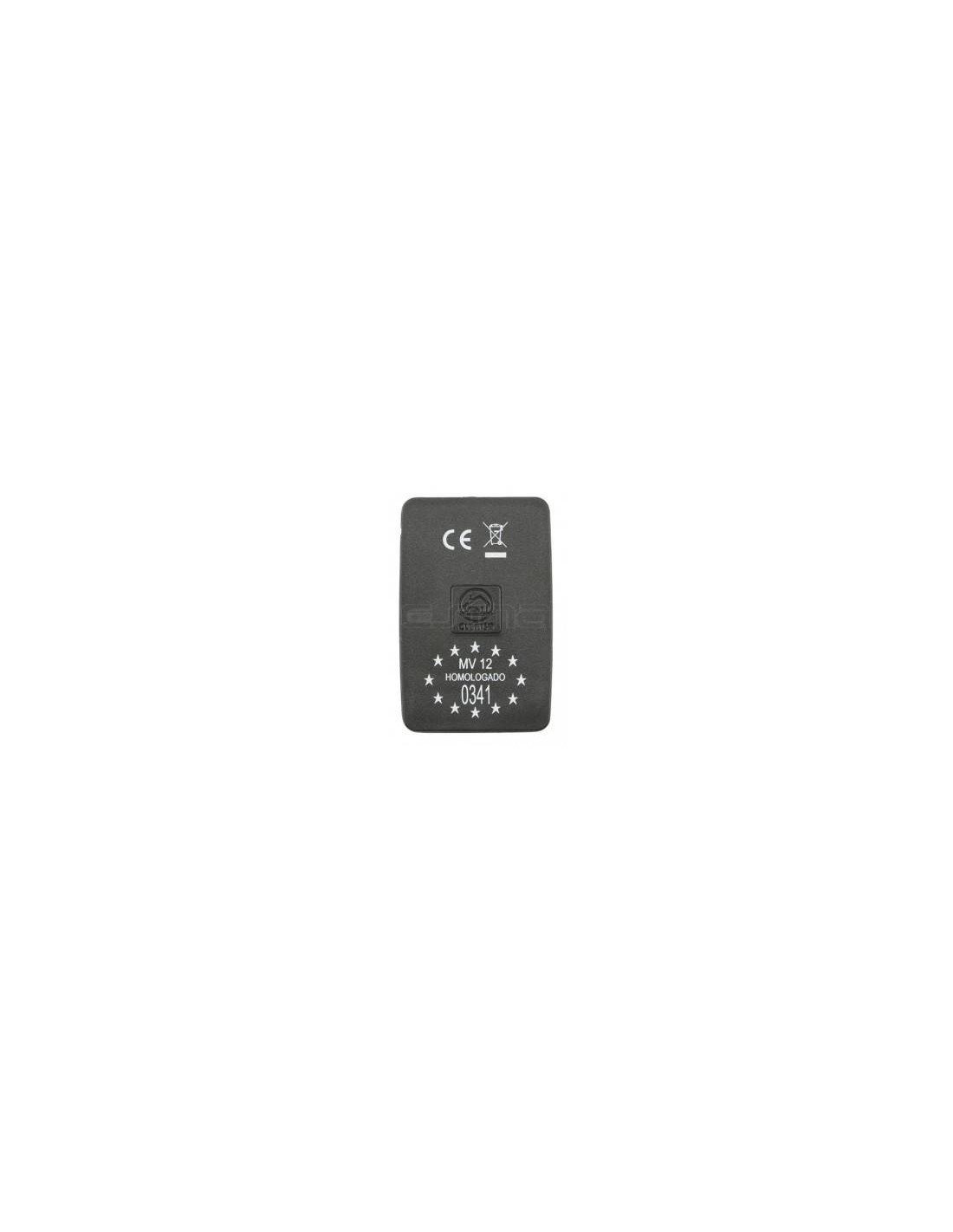

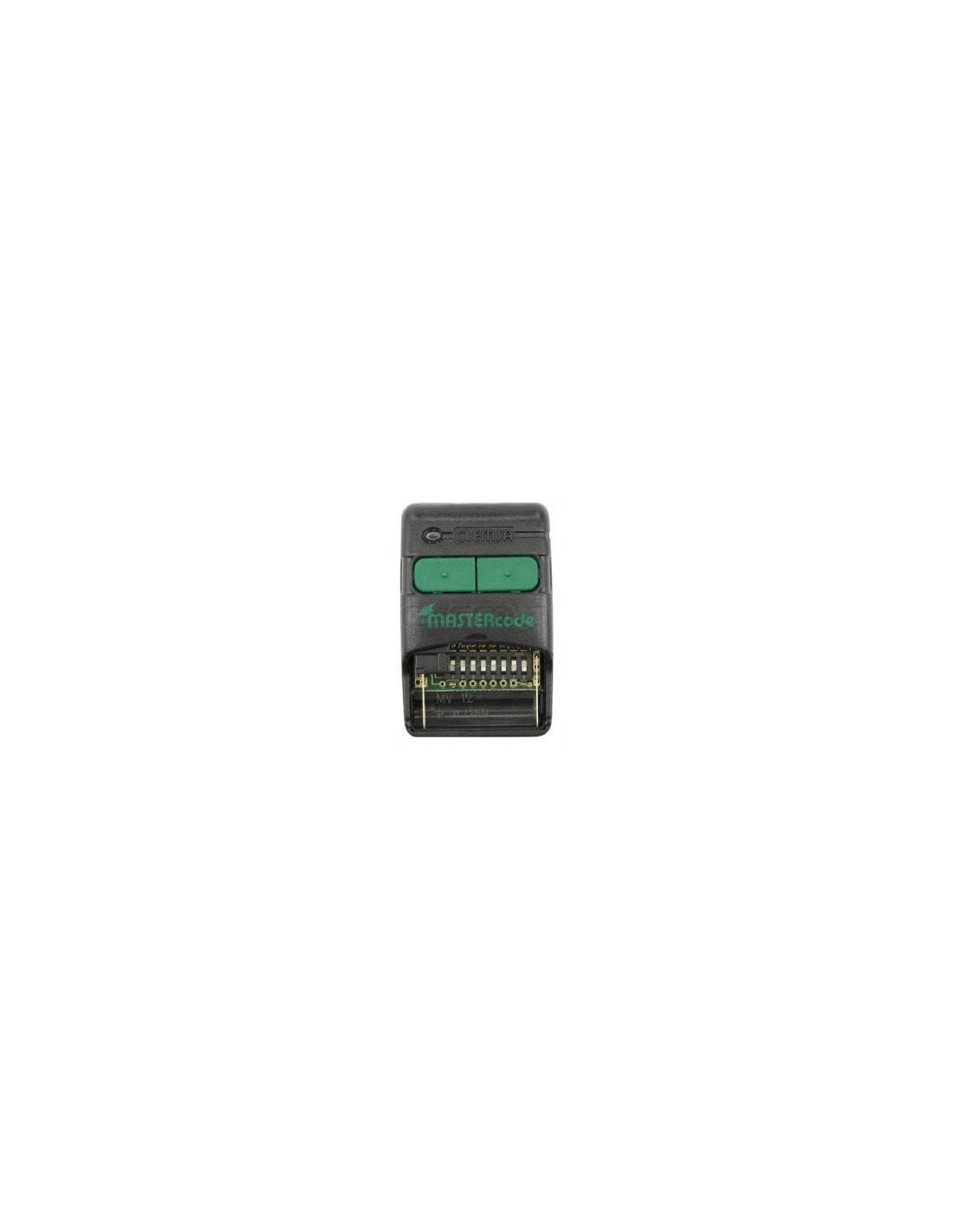

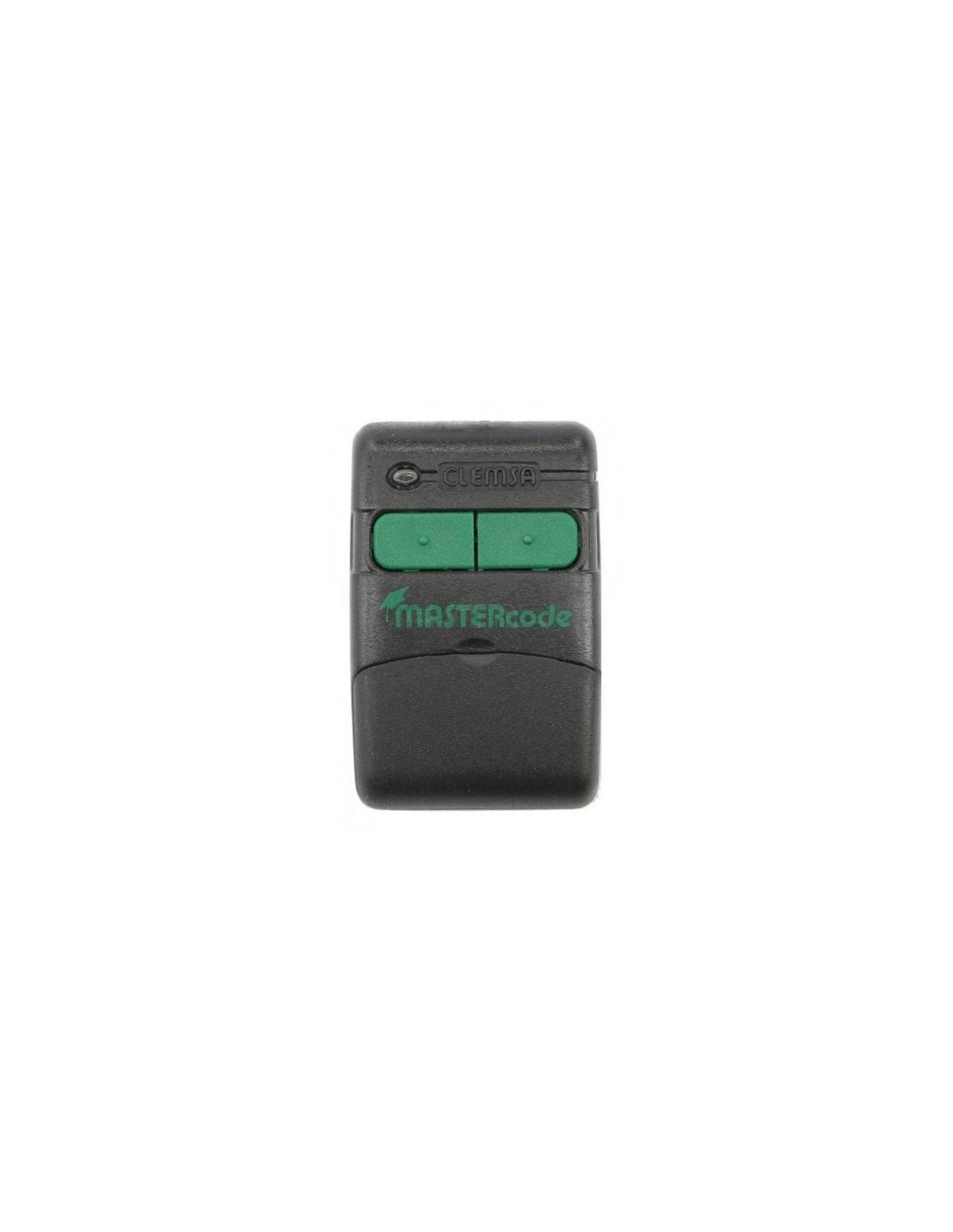

Garage crew Clemsa Mastercode self-learning with two buttons. The frequency of this emitter is 433.92 MHz with a trinary coding of eight micro dip switches.

The new MV12D transmitter is capable of duplicate by confrontation, so that the installer can record the customization without the programmer, then the combination of the 8 micro dip switches must be introduced.

PROGRAMMING COMMAND MASTERCODE

There are three models of Mastercode receivers for control Clemsa THE FOLLOWING:

The first model is powered at 230VAC and has two versions

Clemsa In the case of vehicles of categories M1 and N2

The model Mastercode RV 42 has two channels, the receiver board goes inside a watertight box with IP 54 suitable to place it outside.

The RV 44 model has four relays to operate up to two automatic or electrical devices.

The second model is powered at 12-24VAC/DC and connected by cable

Clemsa MasterCode RMV 2 U

The Mastercode RMV 2 U model has two channels and is connected by cable to the control panel, has 12/24 VAC/DC power input and two relay outputs.

The third model is powered at 24 VAC/DC and connected directly to the board

Clemsa Master code RMV 2

The Mastercode RMV 2 model has two channels and is plugged into the CLEMSA manoeuvre box by the four-pin connector.

MANUAL

Instruction manual Clemsa Master code MV12D
