KIT Operator FORSA NEPTIS 120 Brushless to automate pedestrian swinging doors
KIT Operator FORSA NEPTIS 120 Brushless to automate pedestrian swinging doors

KIT Operator FORSA NEPTIS 120 Brushless to automate pedestrian swinging doors

KIT22017
€840.00
VAT excluded

1.016,40 €

Tax incl.

KIT Operator FORSA NEPTIS 120 Brushless to automate pedestrian swinging doors. What. With an internal opening guide and a digital function selector.

NEPTIS operators are designed to drive residential pedestrian beating doors such as private homes, offices, commercial premises, etc., as well as community doors such as lobbies or building doors to neighborhood communities.

NEPTIS is designed for doors of large dimensions and/or weight, as well as doors for public, community, commercial or emergency use.

Type of arm

Quantity Unit discount You Save
3 5% €126.00


We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain Except bulky



FORSA NEPTIS 120 Brushless Operator KIT for automating pedestrian swing doors. With interior opening guide and a digital function selector.

NEPTIS operators are designed to motorize pedestrian swing doors for residential use such as private homes, offices, commercial premises, etc., as well as community doors such as lobbies or doors of buildings to communities of neighbors.

NEPTIS is designed for large and/or heavy doors, as well as for doors for public, community, commercial use or emergency exits.

The actuator has all the necessary elements to incorporate accessories that do not require physical contact, such as contactless buttons, remote controls, or proximity key fobs.

CHARACTERISTICS

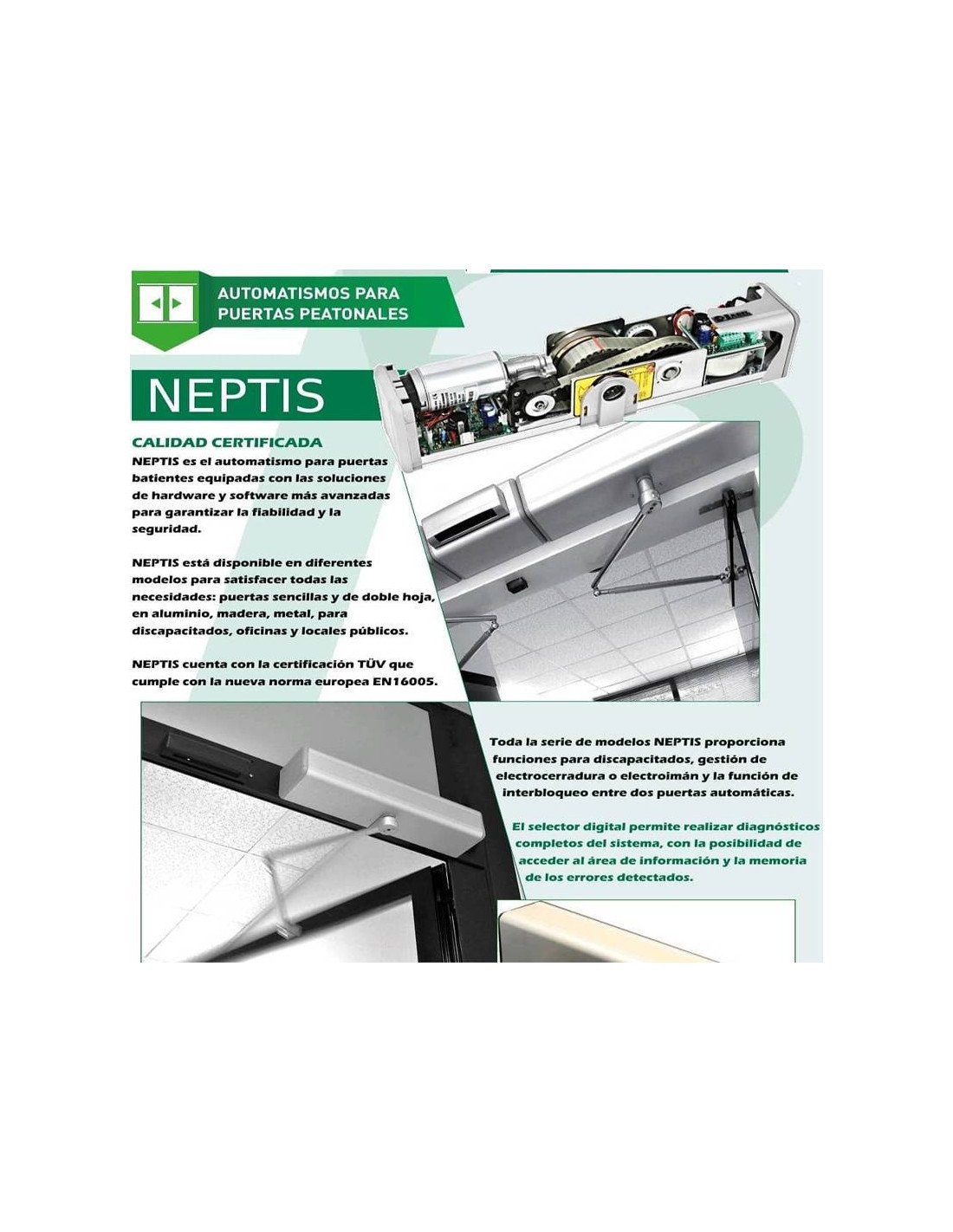

NEPTIS is the automation for swing doors equipped with the most advanced hardware and software solutions to guarantee reliability and safety. NEPTIS is available in different models to meet all needs: single and double-leaf doors, in aluminium, wood, metal, for the disabled, offices and public premises. NEPTIS is TÜV certified to comply with the new European standard EN16005

The entire NEPTIS model series provides functions for the disabled, electrolock or electromagnet management and the interlocking function between two automatic doors.

SPECIFICATIONS

  • Power supply: 115/230Vac +/-10%, 50-60 Hz
  • Power: 120W
  • Power supply: 24Vdc, 1A
  • Motor: 24Vdc
  • Operator dimensions: 550 x 110 x 120 mm (LxWxD)
  • Battery-operated dimensions: 750 x 110 x 120 mm (LxWxD)
  • Weight: 9.5 kg
  • Degree of protection: IP31
  • Ambient temperature: -15ºC +50ºC
  • Frequency of use: continuous
  • Bumper and anti-crush safety: encoder-controlled
  • Reacting to an obstacle: reversing the gear
  • Opening time for 95°: 4 - 12 seconds adjustable
  • Closing time for 95°: 5 - 15 seconds adjustable

KIT CONTENTS

  • 1 pc BAT770LET: NEPTIS 120KG Brushless Operator
  • 1 unit BAT700DT or BAT700ET: Arm opening inside or outside to choose
  • 1 pc VIDE701: Eterna-next digital selector

MANUAL

Operating manual FORSA NEPTIS

Technical data sheet FORSA NEPTIS

VIDEO NEPTIS OPERATION

VIDEO NEPTIS FUNCTIONS & SETTINGS

VIDEO NEPTIS CONFIGURATION 2 SHEETS
