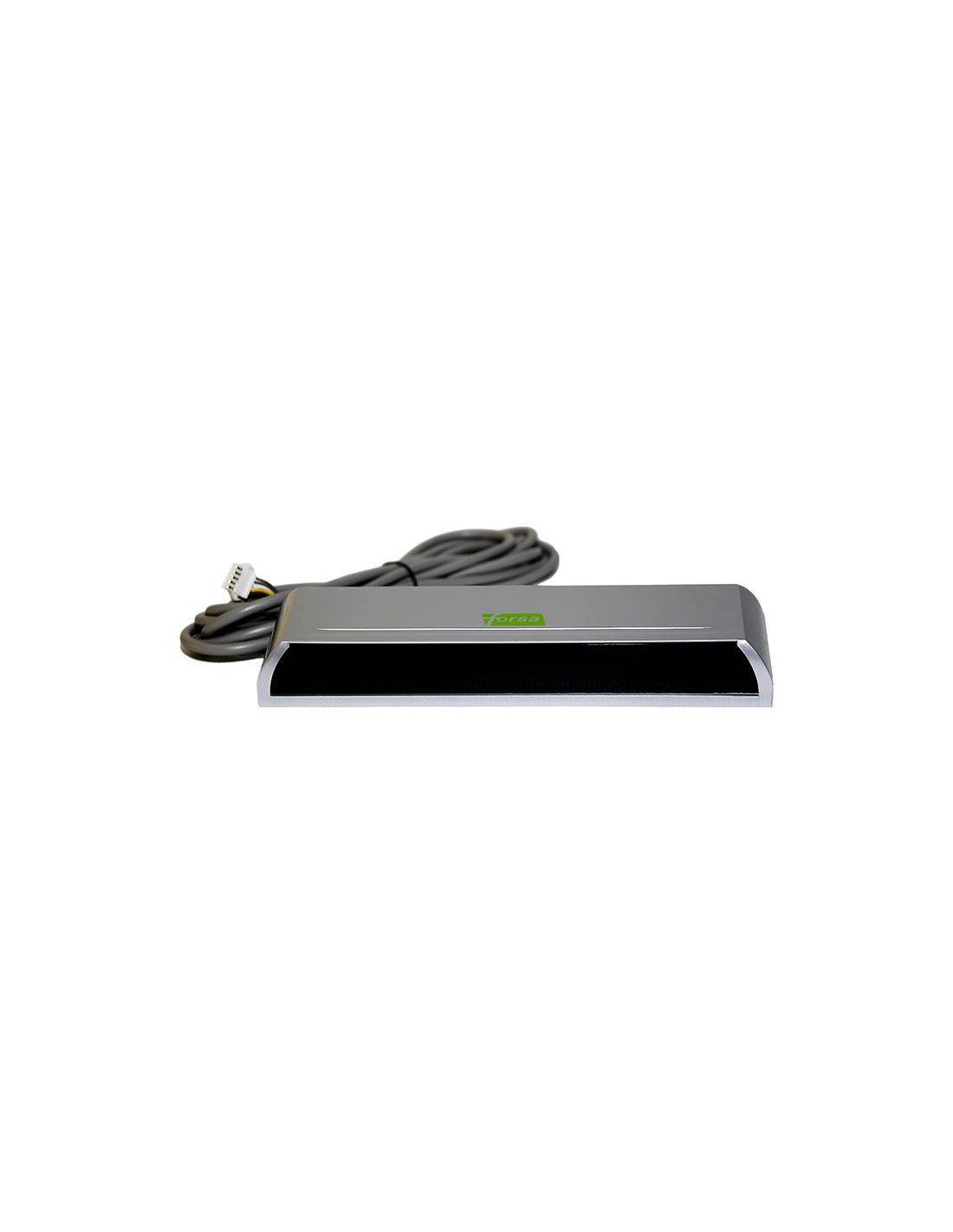

Infrared radar Forsa New EVOLUS/NEPTIS Dual technology with sensitivity adjustment.

TECHNICAL CHARACTERISTICS

• The model: New Butterfly/Neptis
• Color: Silver
• Mounting heightMaximum of 10 feet
• Area of detection: 4 rows in presence and motion detection mode
• Detection technique: Active infrared reflection technique
• Adjust the detection angle: 4o adjustable to 1o each click (background/left)
• Food: 12 to 30V AC/DC
• Current intensityMax. 160 mA (at 12 V ac)
• Indicator of function: green (on hold), red (first line of active detection), orange (other line of detection).
• ExitFor the purposes of this Regulation, the following definitions shall apply:.
• Relay delay time: 0.5 sec
• Temperature range: -20oC to +55oC
• Weight: 200 g

MANUAL

Instruction manual Forsa PHOT800K
