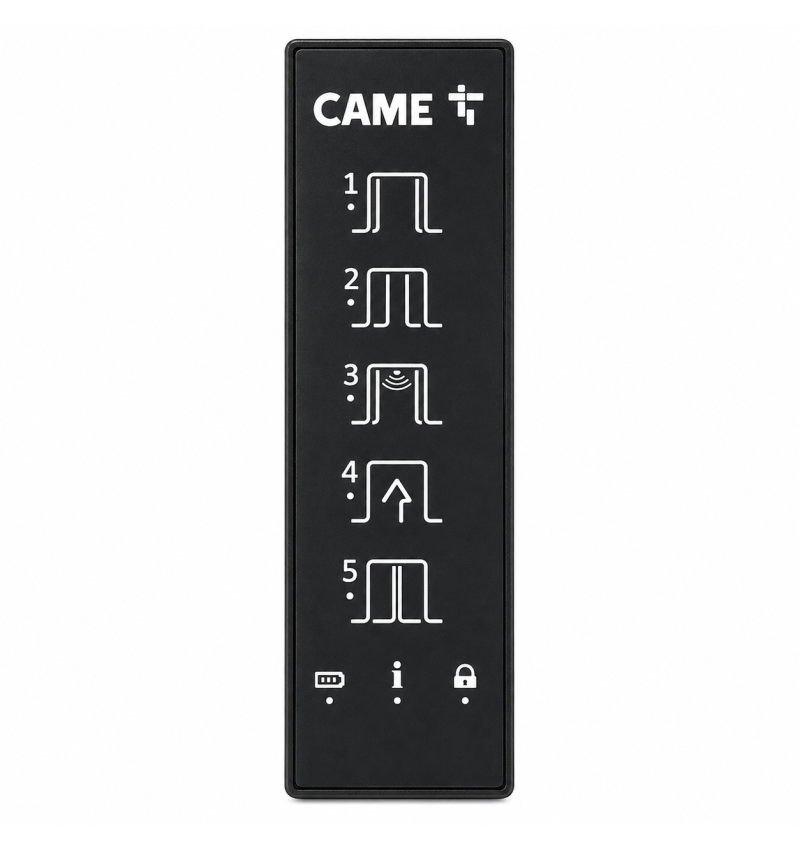

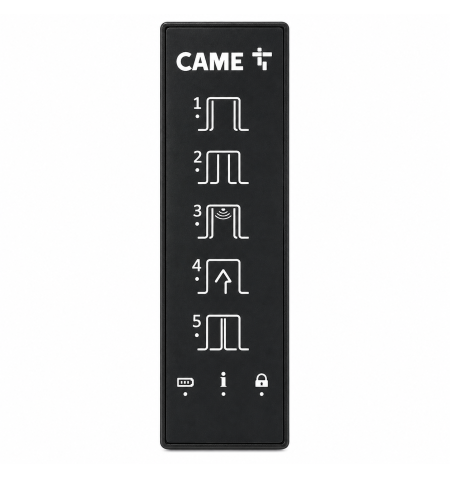

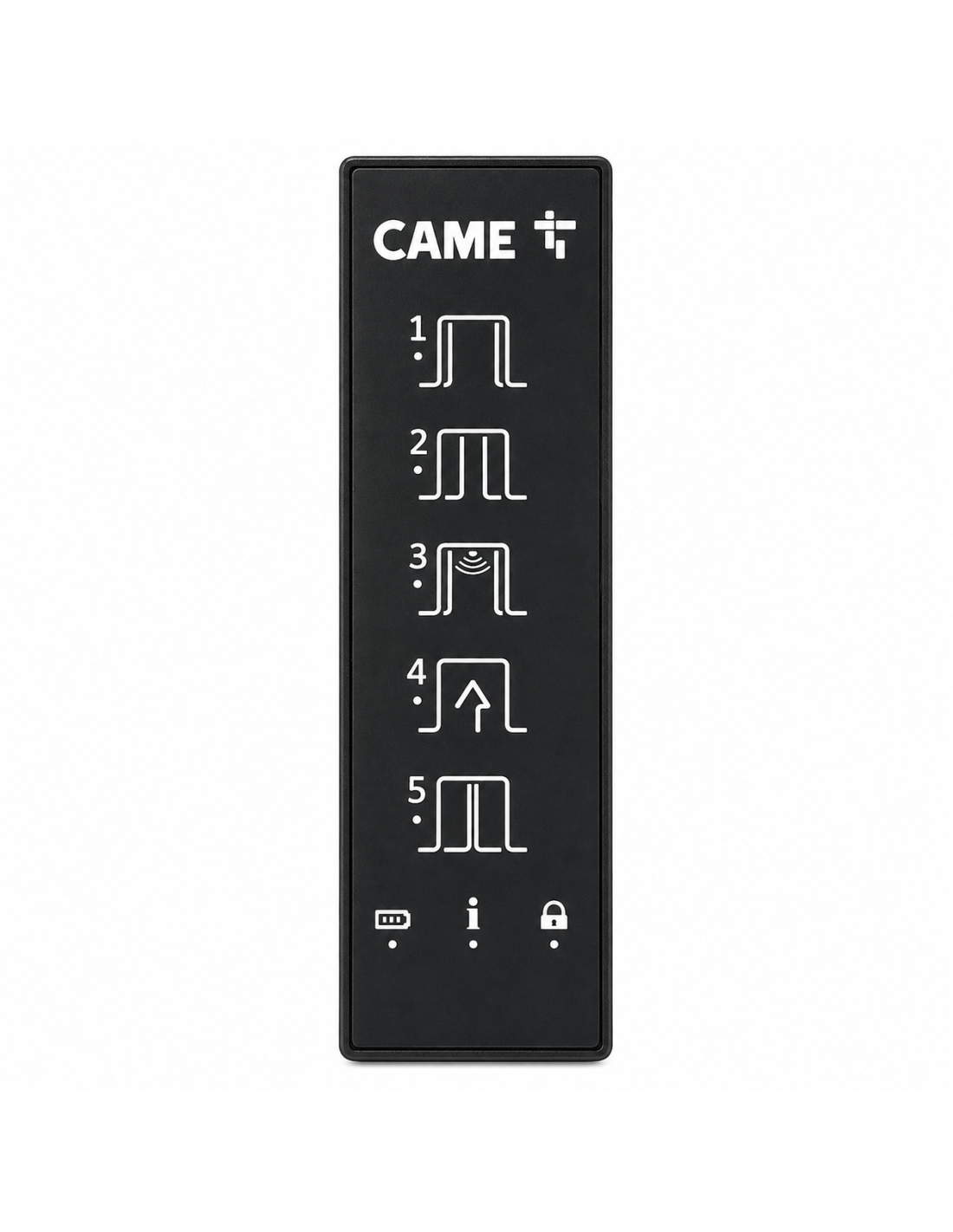

Function selector with door keyboard CAME Fluo (818XA-0075)

CAME 818xA-0075 is a function selector with numeric keypad designed to manage automatic pedestrian doors of the FLUO range. It allows you to easily select the main operating modes of the door and protect access to the configuration using a numerical code.

Its tactile interface, compact and intuitive facilitates daily control of automation CAME to Sliding doors and pedestrian swing. In addition, it shows warnings related to the battery, maintenance and possible system anomalies.

Main functions

• Door permanently open: It keeps the leaves open continuously.
• Partial automatic opening: Reduces the passage available on sliding doors or allows you to use a single sheet on swing doors with two automatisms.
• Bidirectional automatic operation: It allows full opening from both ways of passage.
• Monodirectional automatic operation: Enables automatic opening only in a sense.
• Door permanently closed: It keeps the door closed and, if there is a locking device, also blocked.
• Manual operation: It allows you to release the manual movement of the swing doors when the function is configured.
• Reset of automation: It allows to start the self-diagnosis and learning of the travel points.

Numeric keypad control

The selector incorporates a Numeric touch keyboard It allows to restrict its use to authorized personnel. It can be configured to stay accessible, activate temporarily by pressing the logo CAME Or unlock through a code.

• Storage 50 numeric codes.
• Configurable codes up 5 figures.
• Temporary activation of the selector for 10 seconds after entering a valid code.
• Possibility of configuring a master code to manage new codes.

Signage and diagnosis

The CAME 818xa-0075 informs visually on the state of automation and facilitates the detection of incidents:

• State of food: Indicates whether the door works through the electrical network or with the auxiliary battery.
• Battery warning: Point out if the battery is discharged or disconnected.
• Maintenance notice: Report when it is necessary to carry out the periodic maintenance of the door.
• Signaling alarms: It allows to identify electronic, mechanical, safety or engine temperature devices.

Technical characteristics

Installation and compatibility

The selector must be connected from its terminals 0-1-hour -l Even the corresponding terminals of the electronic control of the door. For installations with a distance greater than 10 meters, a Two-pair cable twisted.

The connection cable is not included. Before acquiring the product, it is recommended to check that automatism CAME Fluo and its electronic table have the corresponding connection.

The selector must be used by authorized personnel. When installed in an area accessible to the public, it is recommended to protect its functions through a numerical code.
