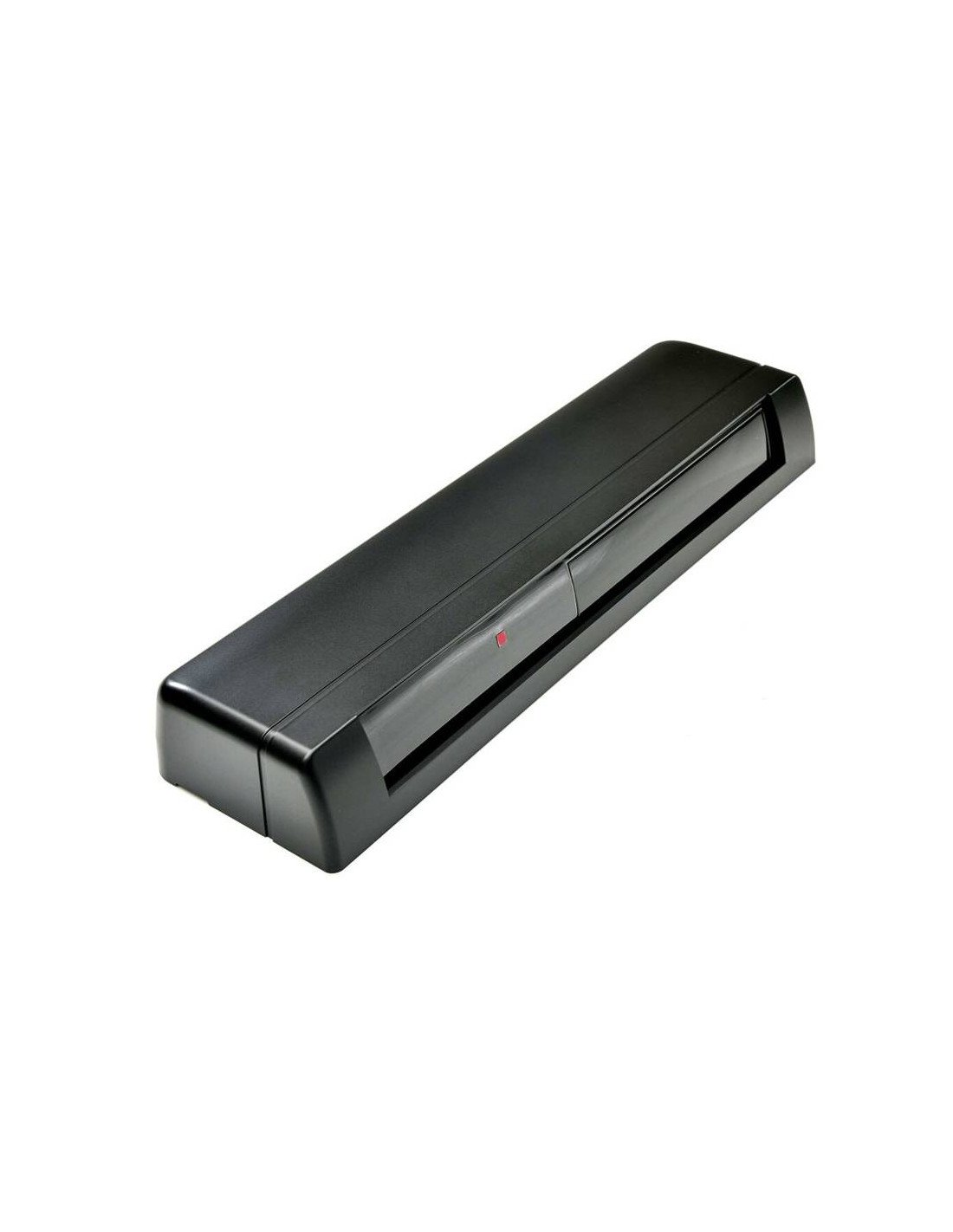

Infrared radar 3H-IR14C Dual technology with safety 3m maximum height, 4 dual relay outputs certified according to EN 16005 standard.

Automatic activation of sliding doors and pedestrian safety sensor. Small in size, with a precisely adjustable sensing area.

CHARACTERISTICS

Compact sensor housing

The smallest combined door activation and safety sensor on the market at 210 mm (W) x 59 mm (H) x 28.5 mm (D)

Pedestrian Safety

Double-row infrared safety curtain protects pedestrians from dangerous door movements

Presence timer settings prevent doors from closing in static pedestrians

Claim version EN16005 available with monitored security

Reduction of building energy losses

Precisely adjustable sensing area reduces false door activations in busy urban environments

Profitable

A sensor can be used as a door activation + door lock safety sensor or simply as an open door security sensor

Extremely easy to install

SPECIFICATIONS

• Model 3H-IR14C: Dual Relay + Safety Activation with Supervised Safety
• Detection Method: Active Infrared Detection
• Installation Height: 2000 mm to 3000 mm (6.5 ft to 10 ft)
• Sensor dimensions: 210 mm (width), 59 mm (height), 28.5 mm (depth)
• Presence Timer: 2s, 30s, 1min and Infinity
• IP Rating: 54
• Power supply: 12 - 24V AC/DC ± 10%
• Power consumption: AC12V- 1.3[VA] (max); DC12V- 65[mA] (max.); AC24V- 1.5[VA] (max.); DC24V-35[mA] (max)
• Operating Temperature: -20°C to +60°C, (-4°F to 140°F)
• Weight: Approx. 180g
