Security Radar MEDVA OPTEX OA-FLEX-T

Infrared detection radar 6 lines and 2 Relés outputs

OA-FLEX T: Advanced Safety and Technology

The OA-FLEX T model complies with the latest European regulations, EN 16005, and has been subjected to rigorous testing by the German organization TÜV, obtaining its certification. Thanks to the activation of BLUEZONE technology, this sensor provides an extra level of security that even exceeds the requirements of the standard.

Special Version for Lighting Environments

For applications in hospitals and kitchens, where hygiene is key, there is a contact-free activation version: FLEX AIR T.

Infrared Technology for Safety and Activation

The OA-FLEX series uses active infrareds to combine security and activation on a single device. Thanks to the exclusive OPTEX presence detection technology, this series guarantees optimal protection at the door threshold, in addition to a wide range of motion detection coverage for activation.

Improved protection with BLUEZONE

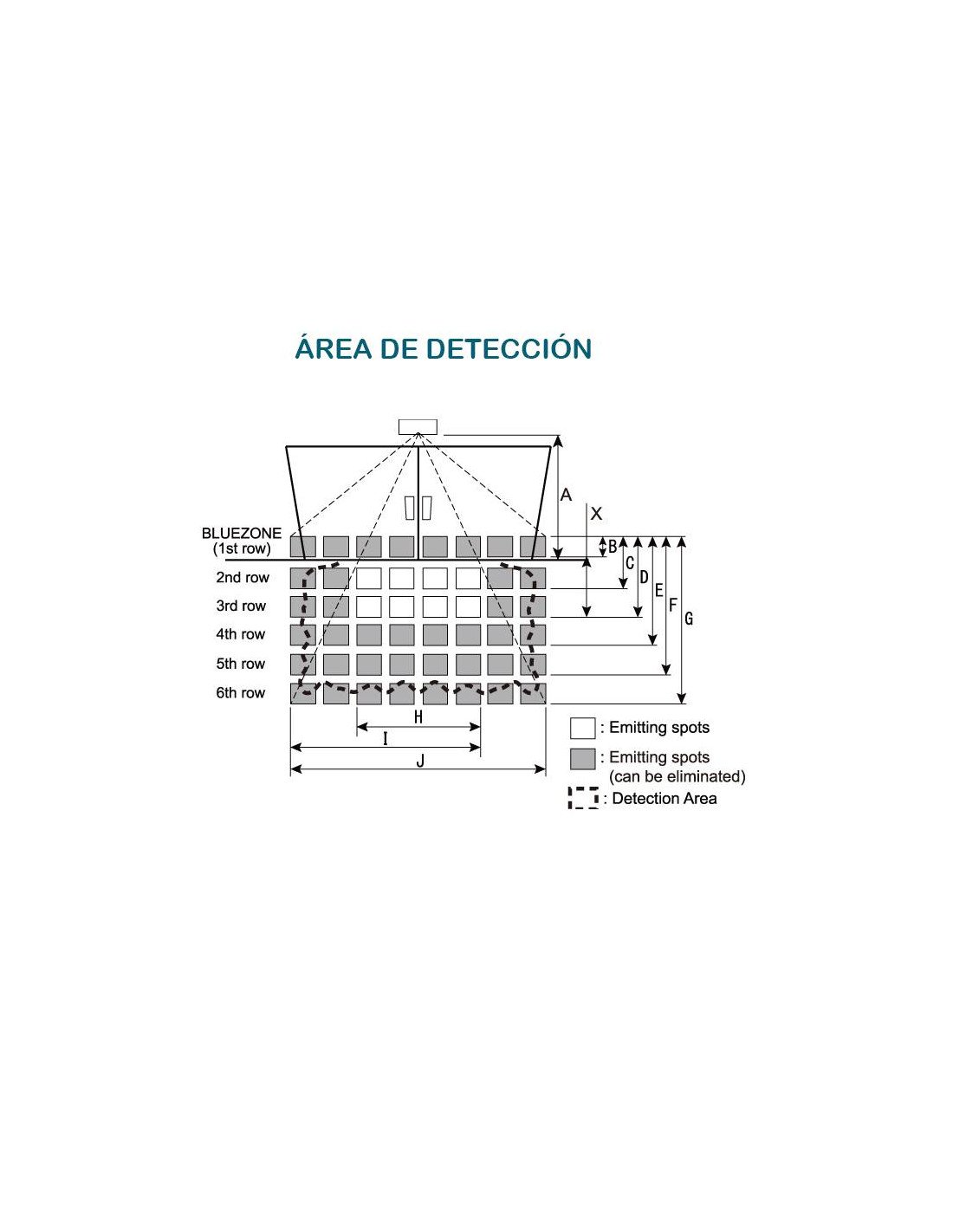

The OA-FLEX T is equipped with three presence detection zones: two facing the door and an additional BLUEZONE facing the threshold. When the doors begin to open, the BLUEZONE is activated immediately, adding an extra layer of active infrareds.

If a person or object remains in the threshold area while the presence timer is activated, the doors will remain open. As soon as the area is clear, the system will proceed to automatic closure. In addition, the BLUEZONE detects the movement of the doors and deactivates automatically when necessary.

Activation through Contact button

The OA-FLEX AIR T model incorporates a smaller activation area. It can be installed on the doors or on a nearby wall, working as a contactless switch. When activated, the sensor executes its normal function, offering total security and adjustable activation areas.

Quick and Simple Installation

The design of the OA-FLEX T allows an agile and smooth installation. Thanks to its intuitive mounting switches and accessories, the sensor can be configured quickly to adapt to any application and accurately define your detection area.

Guarantee and Quality Guaranteed

OPTEX automatic door sensors are designed to deliver reliable and durable performance. In addition, they have a total replacement warranty of 3 years, ensuring the tranquility and confidence of users.

OPTEX OA-FLEX-T
