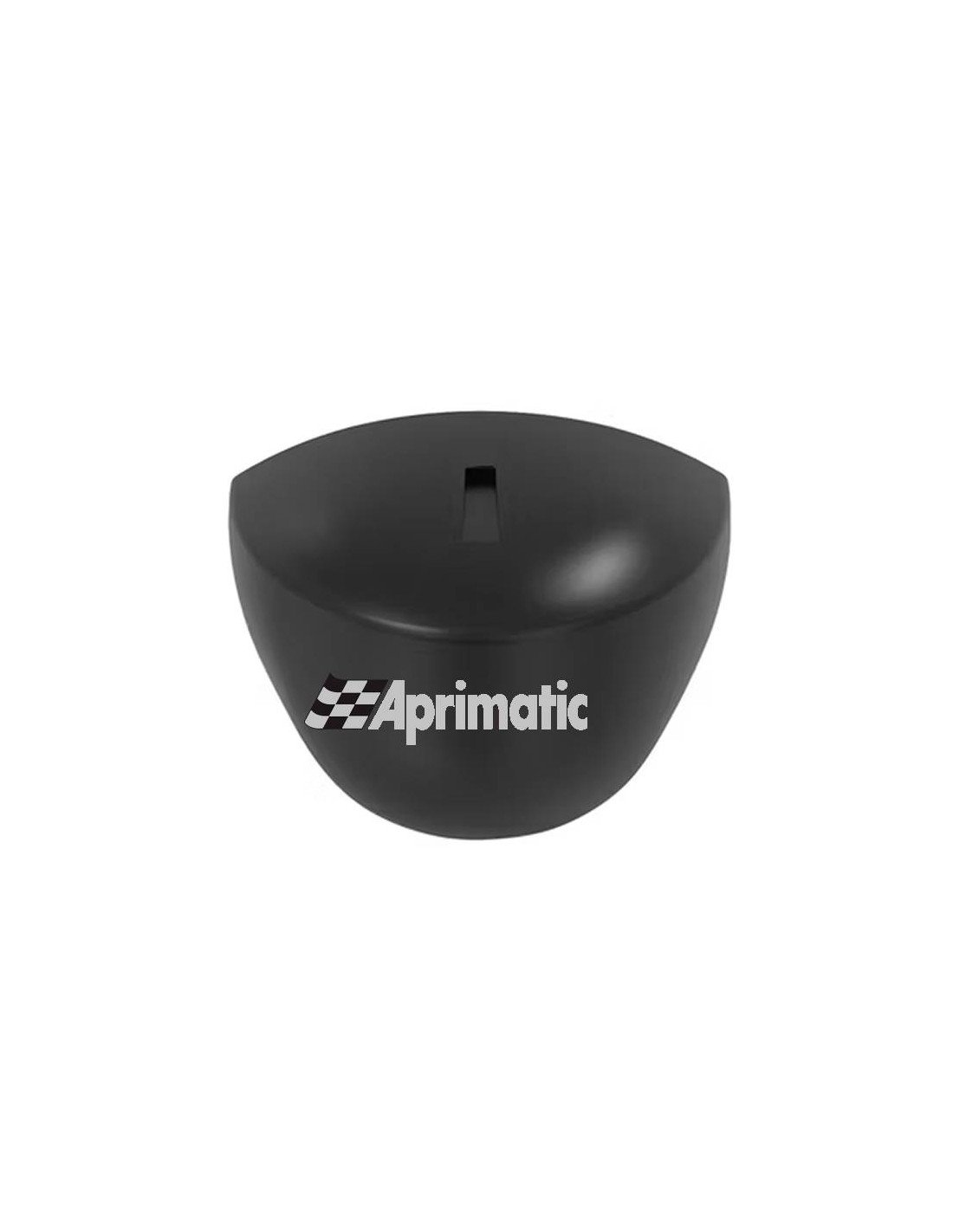

Radar Aprimatic DM44 unidirectional

Security Radar Aprimatic DM44 for detect the presence opening on automatic glass doors with microwave detection with a maximum height of 3 meters.

Radar functions Aprimatic DM44

✓ Detection: detects the presence of people in its detection area for the opening of automatic glass doors or pedestrian battens.

✓ Security: prevents the door from closing when detecting the presence of someone on the path of the leaves. In this way collisions, beatings and accidents are prevented. "

Radar features Aprimatic DM44

• Frequency emitted: 24,150 GHz
• Power emitted: ≥20 d8m EIRP
• Power density emitted: ≤5 mW/cm2
• Screening mode: Movement
• Power supply: 12V to 24V dc +30% / -10%
• Max energy consumption. ≥2W
• Max current output. output: Solid state relay (no potential, no polarity)
• Coordinate max. exit: 100 mA
• Mounting height: From 1.8m to 3m
• Protection index: IP54 (IEC/EN 60529)
• Temperature range: From -20oC to +55oC
• Dimnesions: 80mm (width) x 60mm (high) x 55 (depth)
• Tilt angle: 0o to 90o vertical / -30o to +30o lateral
• Material: ABS & polycarbonate
• Weight: 70gr
