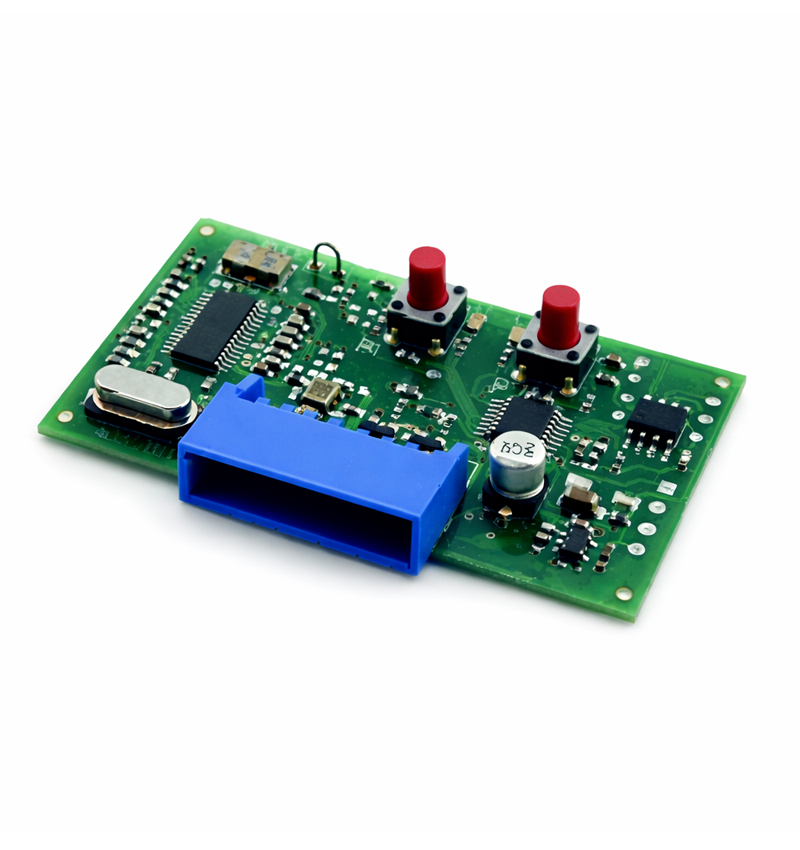

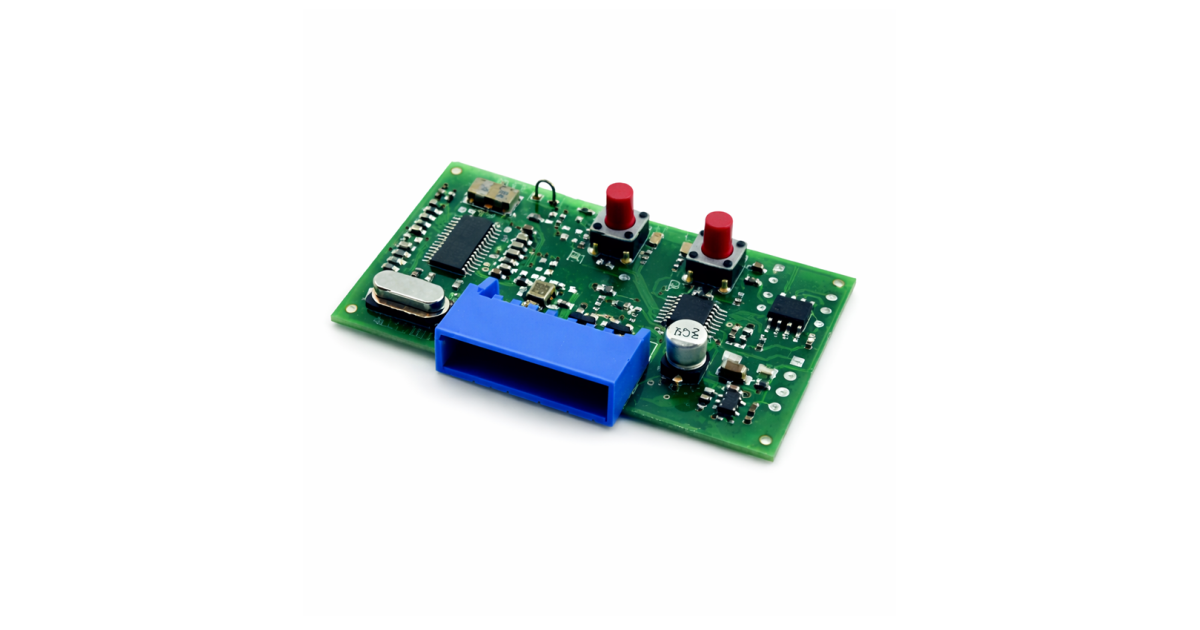

Other, of circular cross-section Aprimatic RX2R for Apricode

Receptor Apricode which allows a very high degree of security for remote access control The RX2R and RX2C receiver is able to operate with Apricode commands in three different modes:

• Self-coding

Each controller transmits its own code engraved in the factory and therefore it is necessary to register one by one all the commands in the receiver.

In this mode of operation it is possible to memorize up to 250 quadrant commands. The association of each pusher of each controller with each receiver channel is free, for example you can associate channel 2 of the receiver with the pusher 1 of the command and vice versa.

• Mode 1 (Common Access)

This mode is used in collective access facilities. Access to the enclosure is allowed to all the transmitters recorded in this mode, with the same identification code. The first recorded command determines the code assigned to all others, that means that it is enough to memorize a single command. Also in this mode the association between receiver channels and command pushers is free.

• Mode 2 (Urban Access)

This mode is used in the facilities of particular access to houses within urbanisations, whose access is made through a common door. Channels 1 and 3 operate for the opening of access to the urbanization (accesses common to all neighbors) and channels 2 and 4 for access to the homes part

The receiver Aprimatic RX2R supports the following engines that have T240 Apricode manoeuvre frame:

• Aprimatic ONDA 400
• Aprimatic ONDA 600
• Aprimatic ONDA 805
• Aprimatic AT120
