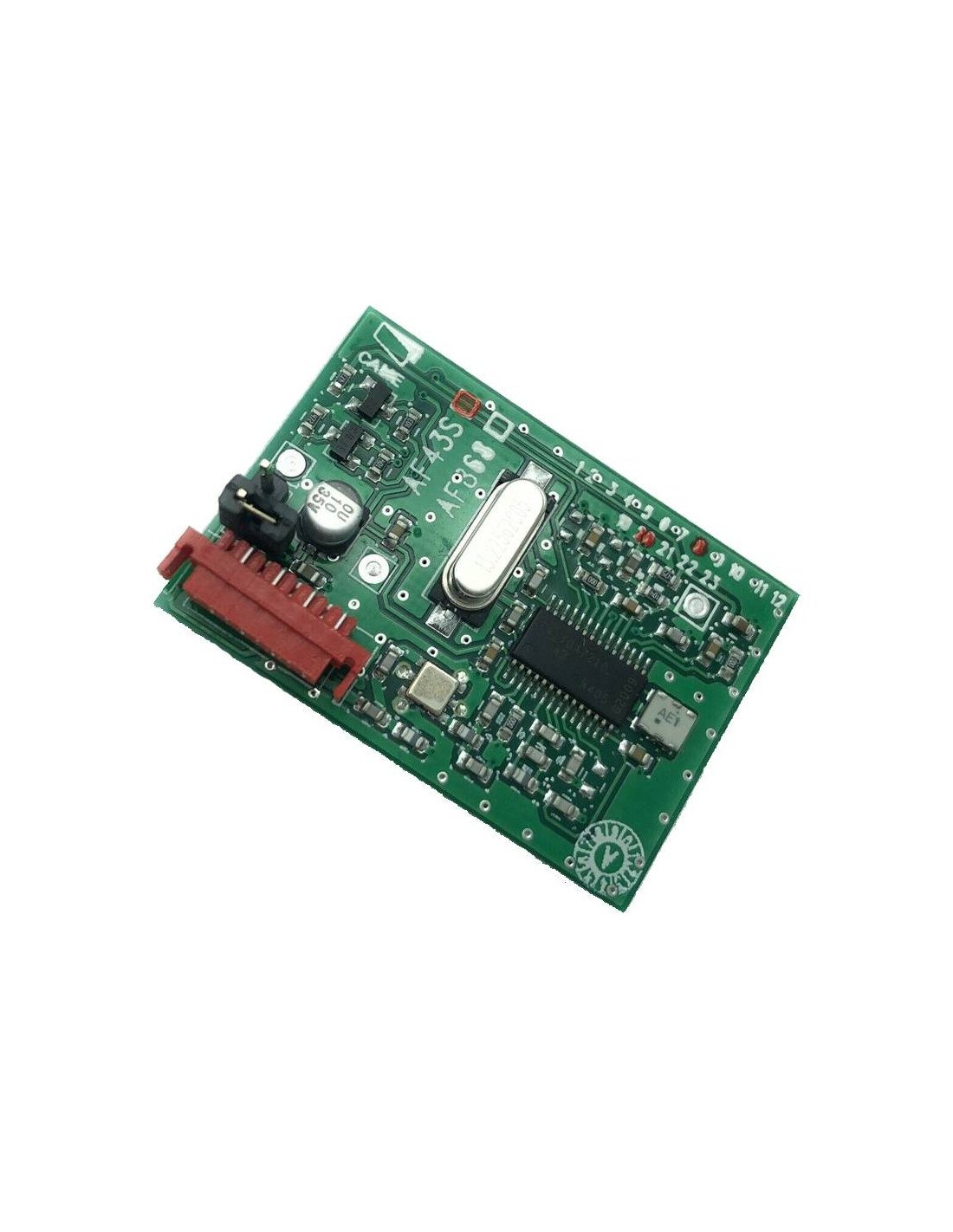

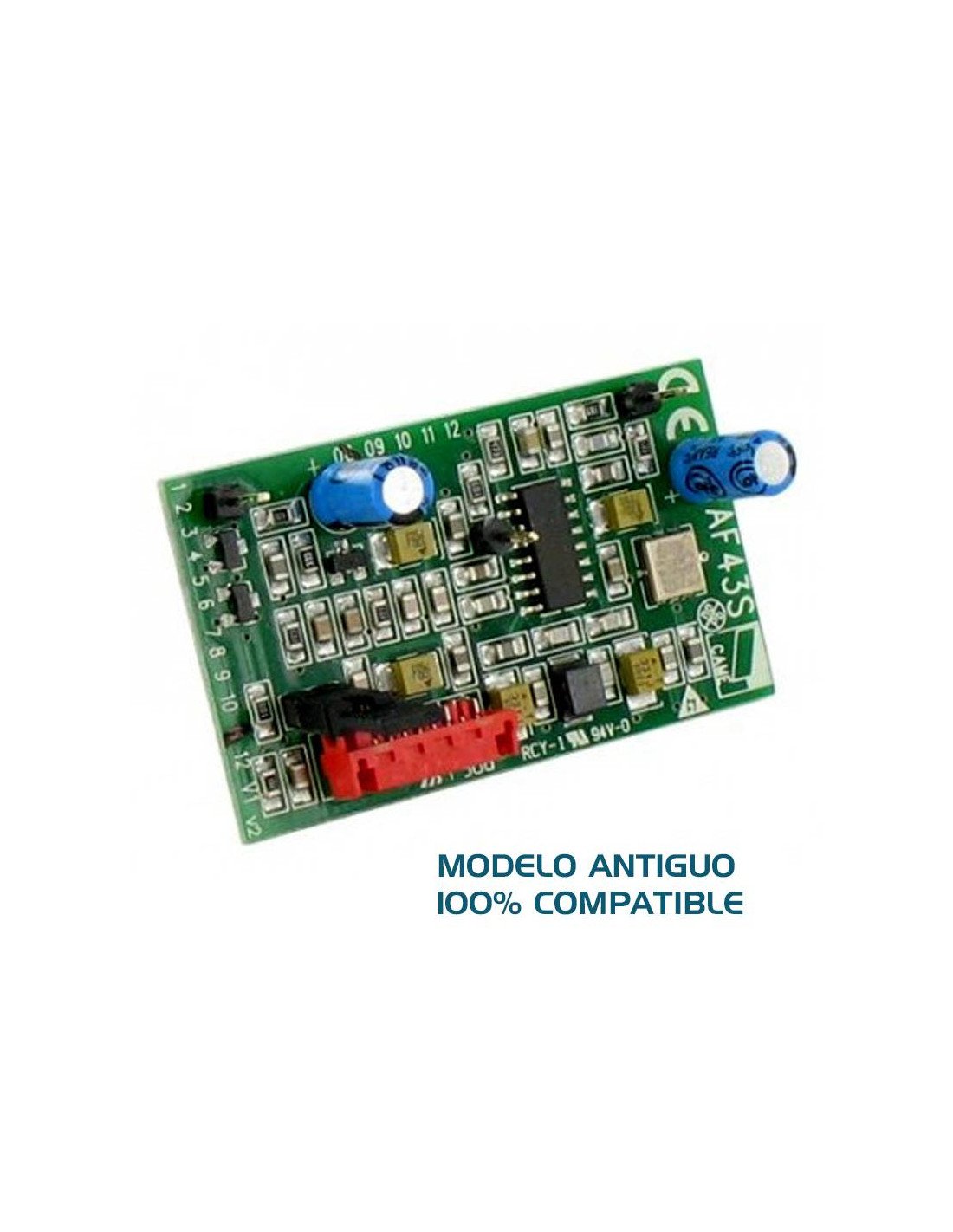

Plug-in receiver card CAME reference AF43S for fixed code 433,92 MHz, compatible with the command TOP-432EE & TOP-434EE.

CHARACTERISTICS

• It is compatible with the TOP (RollingCode) - TOP (FixCode) - ATO - TAM - TWIN transmitters
• Up to 25 controls (maximum capacity for RollingCode)
• Frequency: 433.92 MHz
• Compatible with controls CAME THE TOP, THE TAM, THE TWIN.

TECHNICAL CHARACTERISTICS

• Feed (V±10%) 5
• Absorbed current (mA) 5,5
• Type of coding ASK
• Operating temperature (°C) -20 ÷ +55
• Sensitivity (dBm) -107
