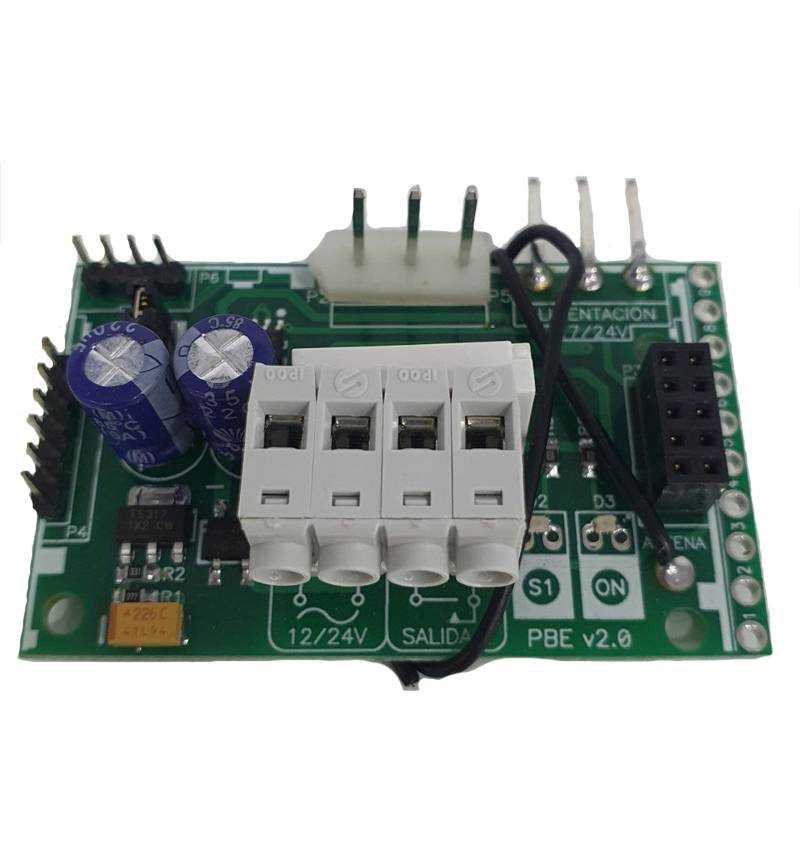

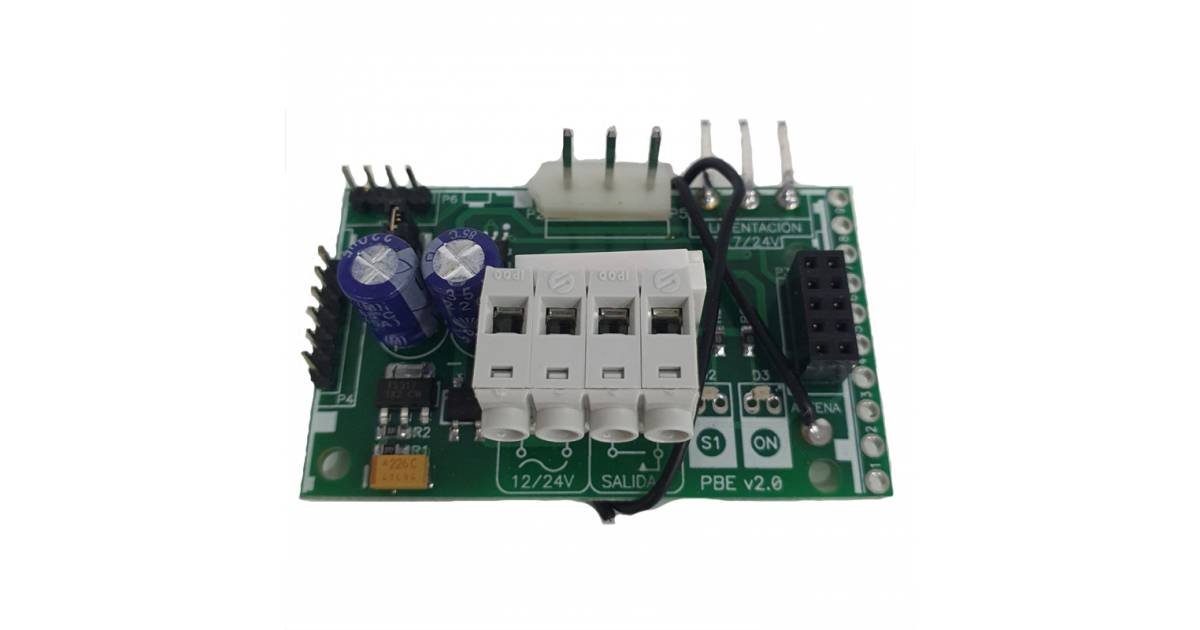

Electronic board 12/24V that allows us converting a plug-in receiver into a wired output for use in most frames with alternating button output.

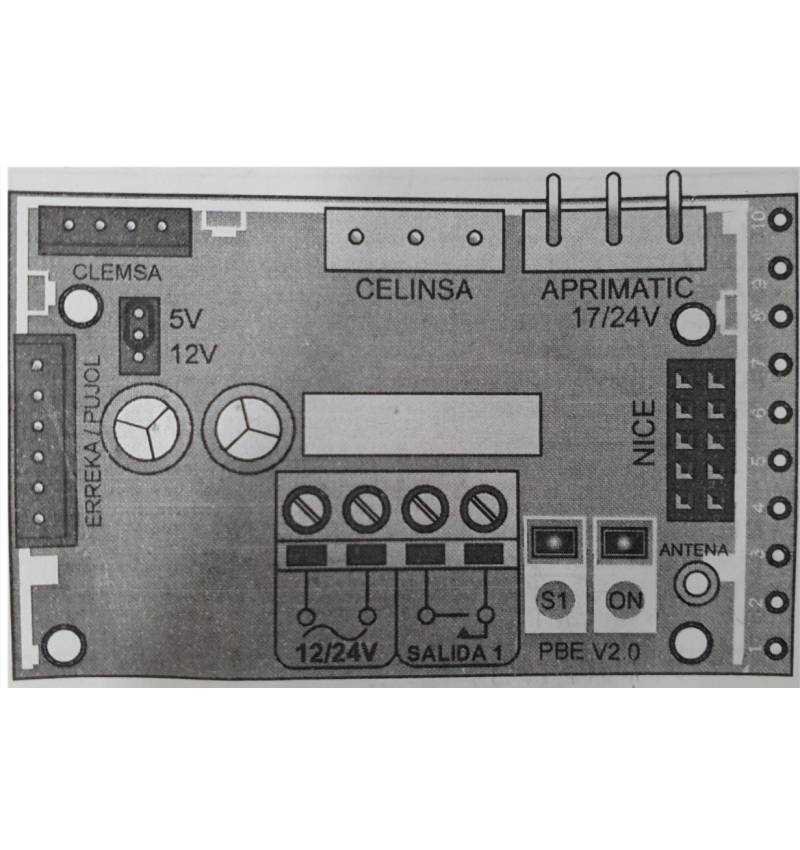

The converter has the following connectors:

• Plug-in card connector Nice OXY
• 6 pin connector (JCM, Erreka, AERF, Pujol)
• 4 pin connector (Clemsa It 's a mutant

TECHNICAL CHARACTERISTICS

• Power supply: 12 to 24 Vac/dc
• Relay contact: normally open
• Maximum load output 1 relay: 5 Amps
• Output activation time 1: the same as the receiver connected.
• Simultaneous operation of several receivers simultaneously: yes
• Light on: powered plate
• Light-signalling device S1: pulse output activated
• Measures 40x65x25 mm
• Bridge: 5 or 12V selection for receivers Clemsa
• Note: receivers of Aprimatic operate from 17V
