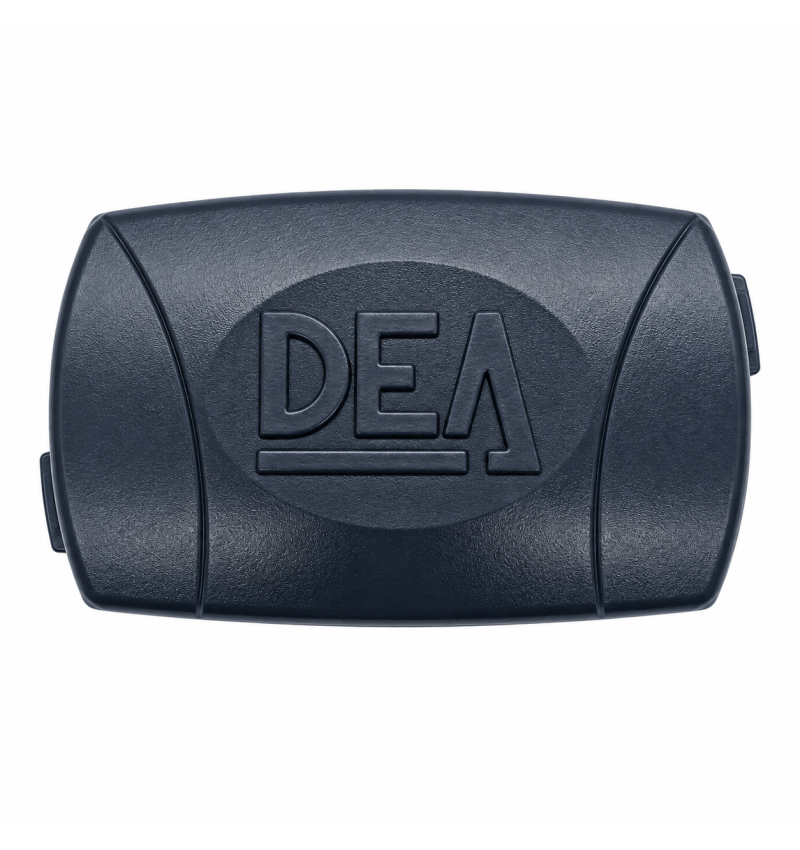

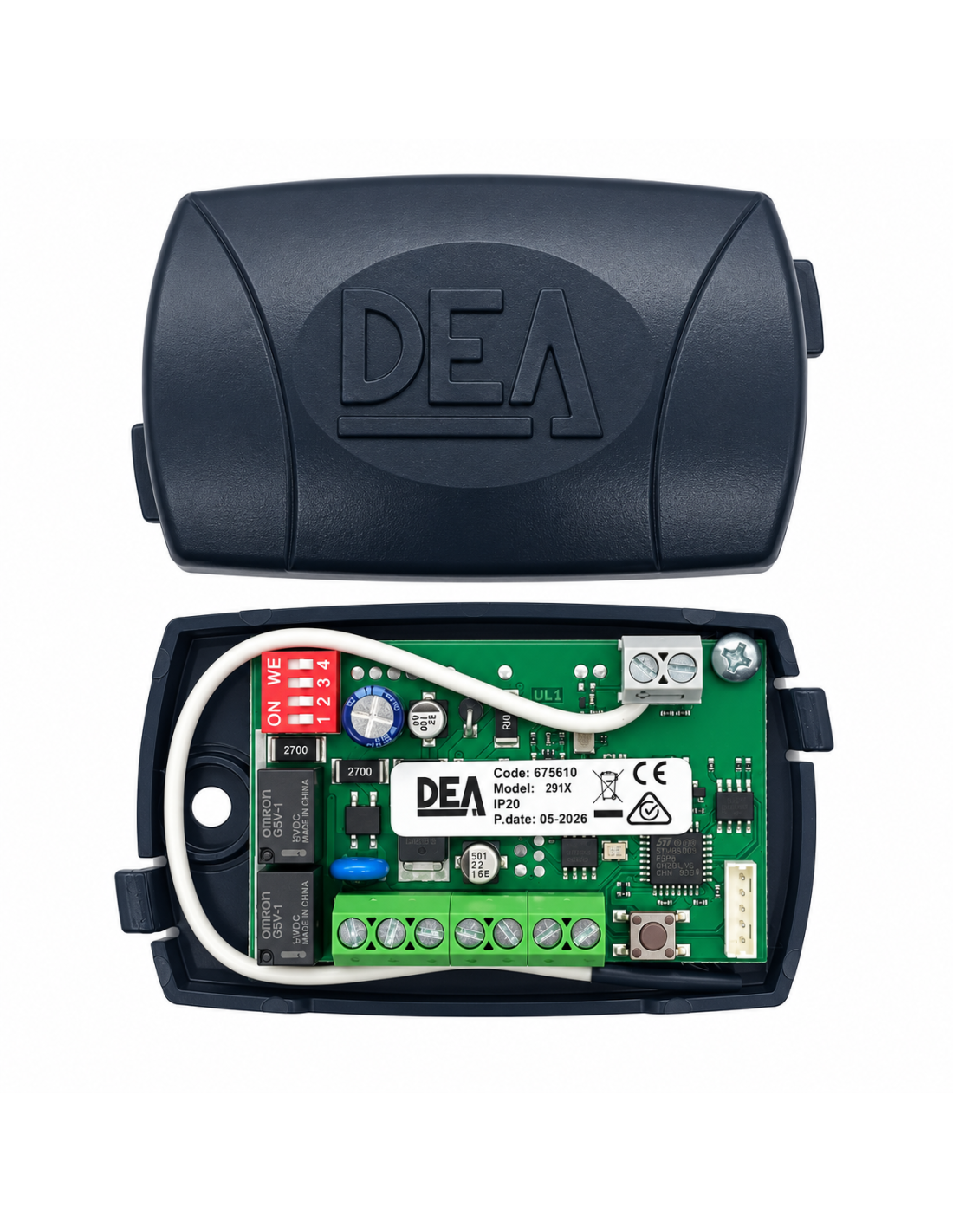

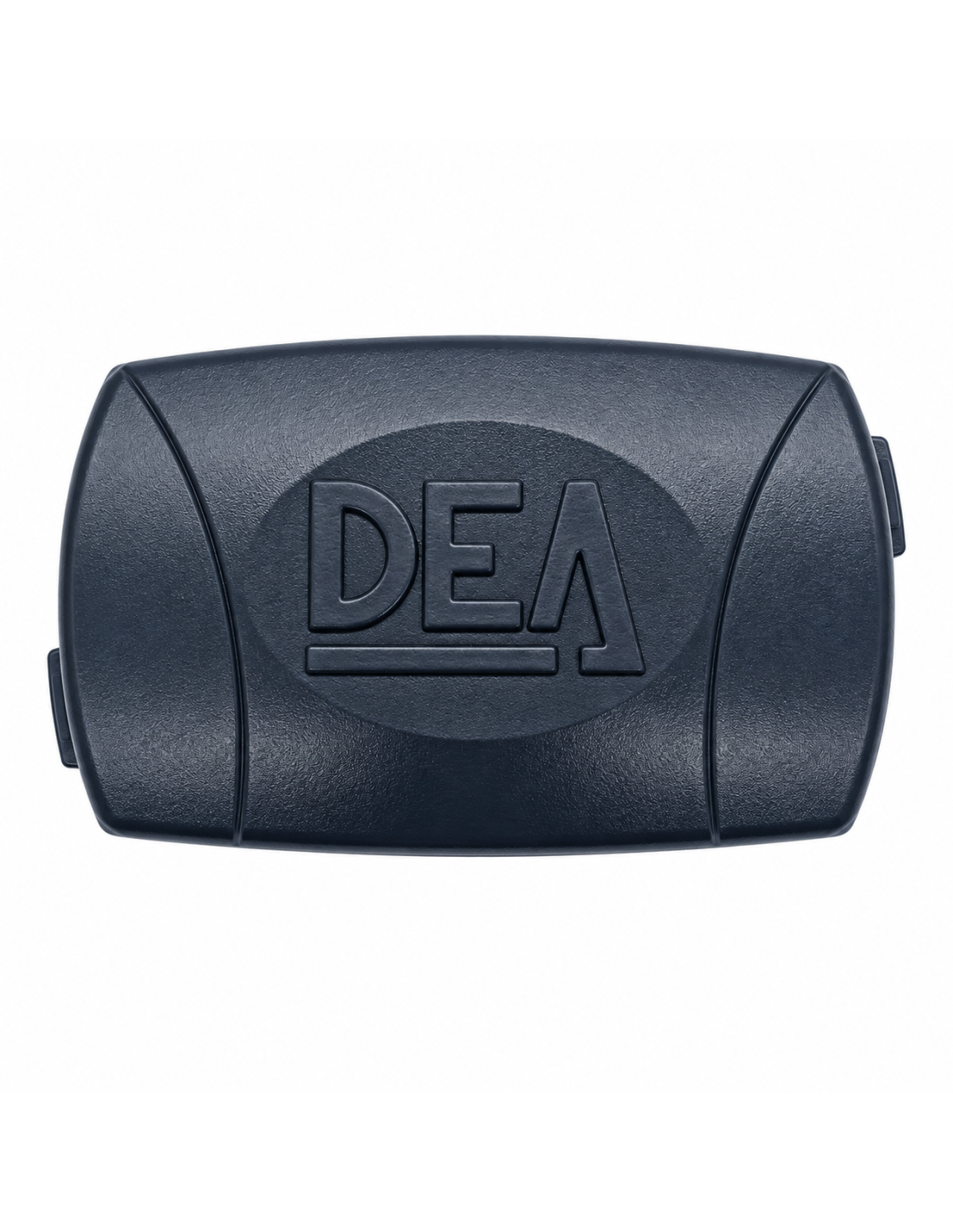

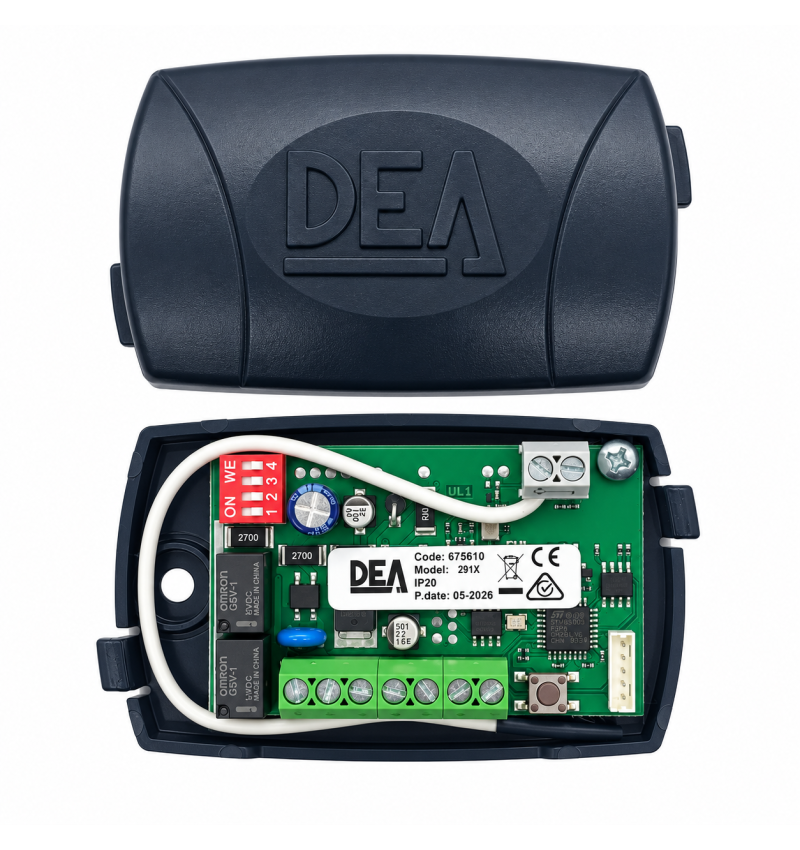

The DEA 291X / 433, code 675610, is an external radius receiver of two channels compatible with the GTX2 and GTX4 of 433 MHz. Allows you to add or renew the control by remote controls in automations of doors and gates, it supports up 1,000 transmitters And it offers independent assignment of the buttons for each transmitter and each relay.
Frequency
433 MHz
Outputs
2 channels
Capacity
Up to 1,000 transmitters
This receiver is indicated to work with the following DEA transmitters in its version of 433 MHz:
DEA GTX2
Command of 2 channels at 433 MHz.
DEA GTX4
Control of 4 channels at 433 MHz.
Attention: Check that the command is the version of 433 MHz. The controls that work on another frequency are not compatible with this receiver.
| Feature | Specification |
|---|---|
| Brand | Dea System |
| Model | 291x / 433 |
| Code | 675610 |
| TYPE | Wiring radio receiver |
| Frequency | 433 MHz |
| Compatible | DEA GTX2 and GTX4 of 433 MHz |
| Number of channels | 2 |
| Memory capacity | Up to 1,000 transmitters |
| Feed | 12-24 V AC / DC |
| Maximum contact capacity | 0.5 A / 30 V DC |
| Box included | DEA 100F for interior |
Thanks to its two independent relays, the receiver can be used to control two different functions, for example the total opening and the pedestrian opening of a door, or two different automatisms, provided that the installation has compatible control entries.
Its feeding 12-24 V AC / DC facilitates integration into numerous maneuver tables. The connection and programming must be done according to the receiver's manual and the electrical diagram of the automatism.
Important before buying
Compatible with GTX2 and GTX4 of 433 MHz. The frequency on its own does not guarantee the compatibility with controls from other brands or different coding systems. The included box 100f is indicated for interior; A suitable envelope should be used for outer mounting, such as the corresponding Box / A solution.
Do you have compatibility doubts? Send us a photograph of the current control and the plate or receiver installed to help you identify the proper solution.
