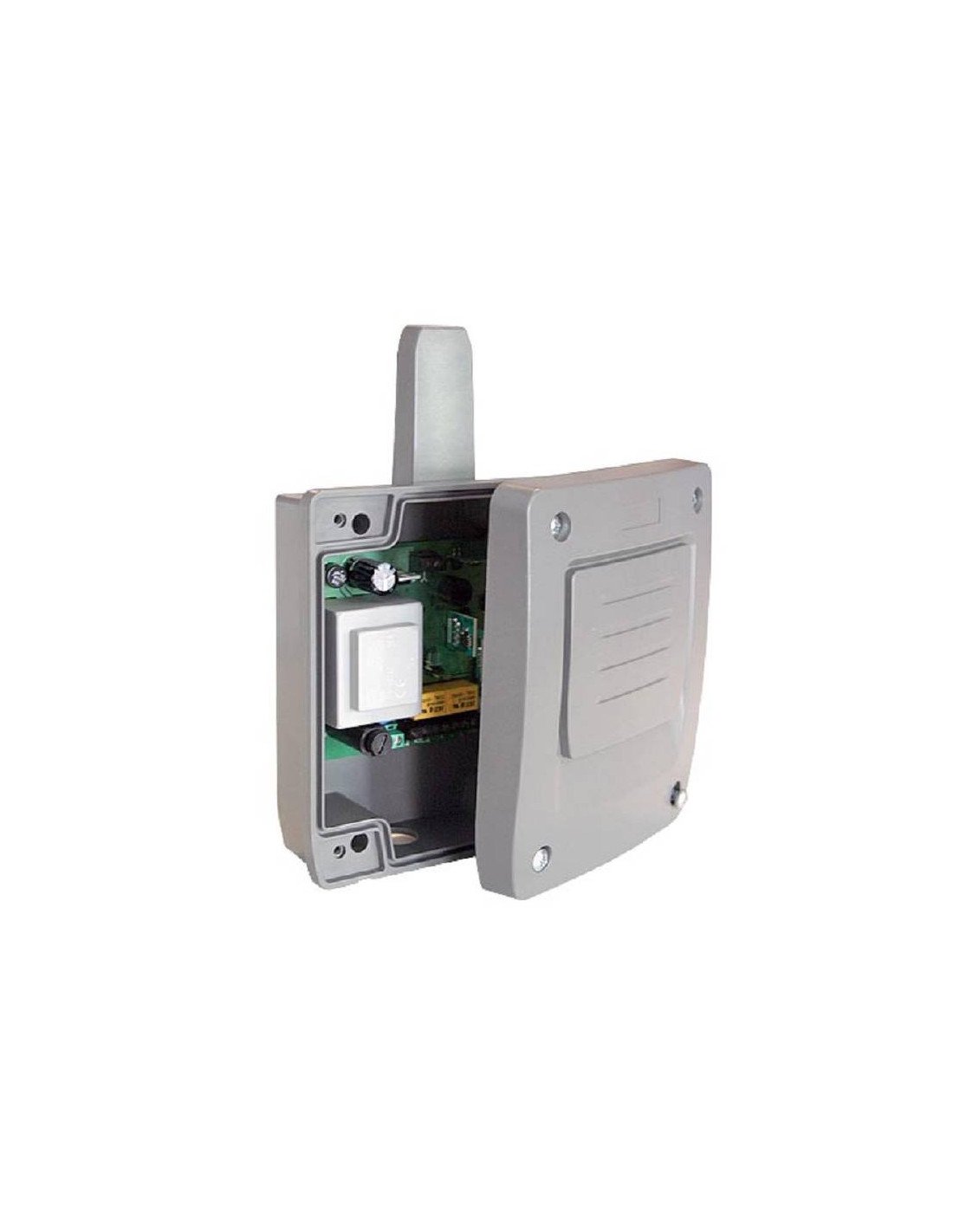

FORSA CCA-868 500 U. control unit is an access control system for 500 users with an integrated receiver. It allows recording 868 MHz transmitters, as well as bi-technology transmitters. It includes the connection of proximity readers for the management of cards and keys.

Thanks to the display, you can register and deregister devices recorded in the memory, it also includes input for event cards, for greater management capacity in access control.

TABLE OUTLINE

1. Power supply 230 V.

2. LED activation channel 1.

3. Connector card eevents.

4. Antenna connection

5. Power Luminous Spots

6. Programming Push Button

7. Memory Card Connection

8. Expansion card connectors

9. BUS-LIN (+,-,L)

10. Relay Output (Channel) 1

SPECIFICATIONS

• Working frequency: 868.35 MHz
• Coding: High Security Changing Code
• Memory: 500 codes
• Channels: 1 (expandable to 4)
• Operating temperature: -20°C to +85°C
• Relay contacts: 1 A
• Power supply: 230 V
• Panic alarm function: Configurable on relay 4
• Alarm function: Only available with proximity elements with alarm function
• Access control input connection: BUS-L (maximum 2 readers without power)
• Idle/Operating Power Consumption: 23 mA / 42 mA
• Watertightness: IP54 (with IP65 cable gland)
• Case dimensions: 140 x 220 x 55 mm
