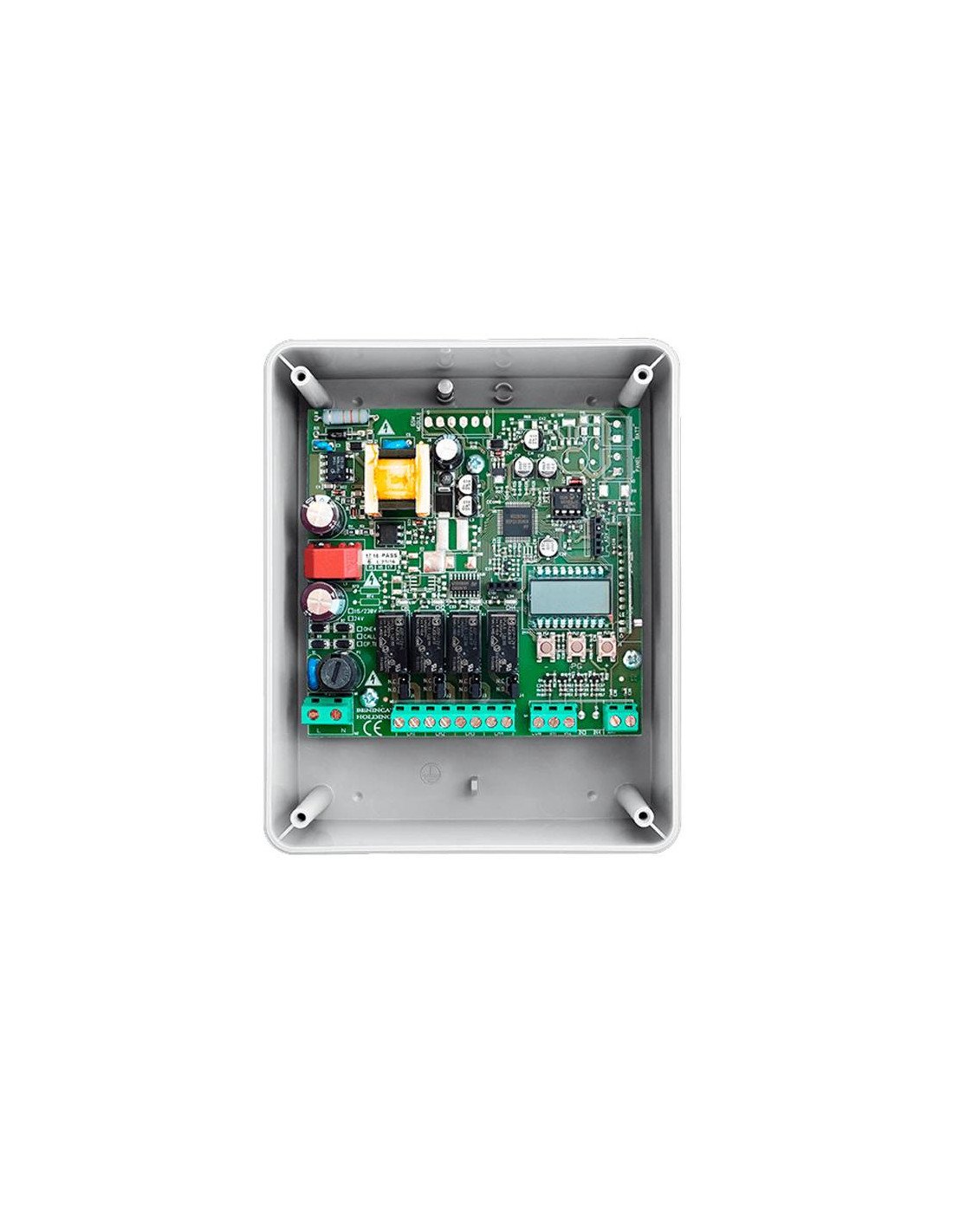

4 channel receiver Beninca ONE.4WB with power supply with extended switching range (90÷255 Vac) with triple coding, Advanced Rolling Code, Rolling Code and Fixed Code. ARC encryption ensures maximum security thanks to the length of the transmitted code (128 bits) and the high number of possible combinations.

The first associated transmitter configures the encoding type accepted by the receiver.

Compatible with the Advantouch programmer that allows easy and quick management of computers characterized by many services, as well as updating the firmware of the receiver.

It has two wired inputs, 4 250V 5A relay outputs and 512-code removable EEprom memory.

Possibility to configure the contact type to be used in inputs (NO or NC).

The type of switching of the output relays can be programmed as impulsive, bi-stable or timed.

Possibility to set a password on the screen to ensure maximum security against manipulation by third parties.

The new rEcn función function enables you to query and view the positions occupied by the stored transmitters which can therefore be deleted individually easily and quickly.

Operating logic «SAFE», activatable for application in alarm installations: channel 1 is activated by prolonged pressure for more than 3 seconds

TECHNICAL CHARACTERISTICS

MANUAL

Instruction manual Beninca ONE.4WB
