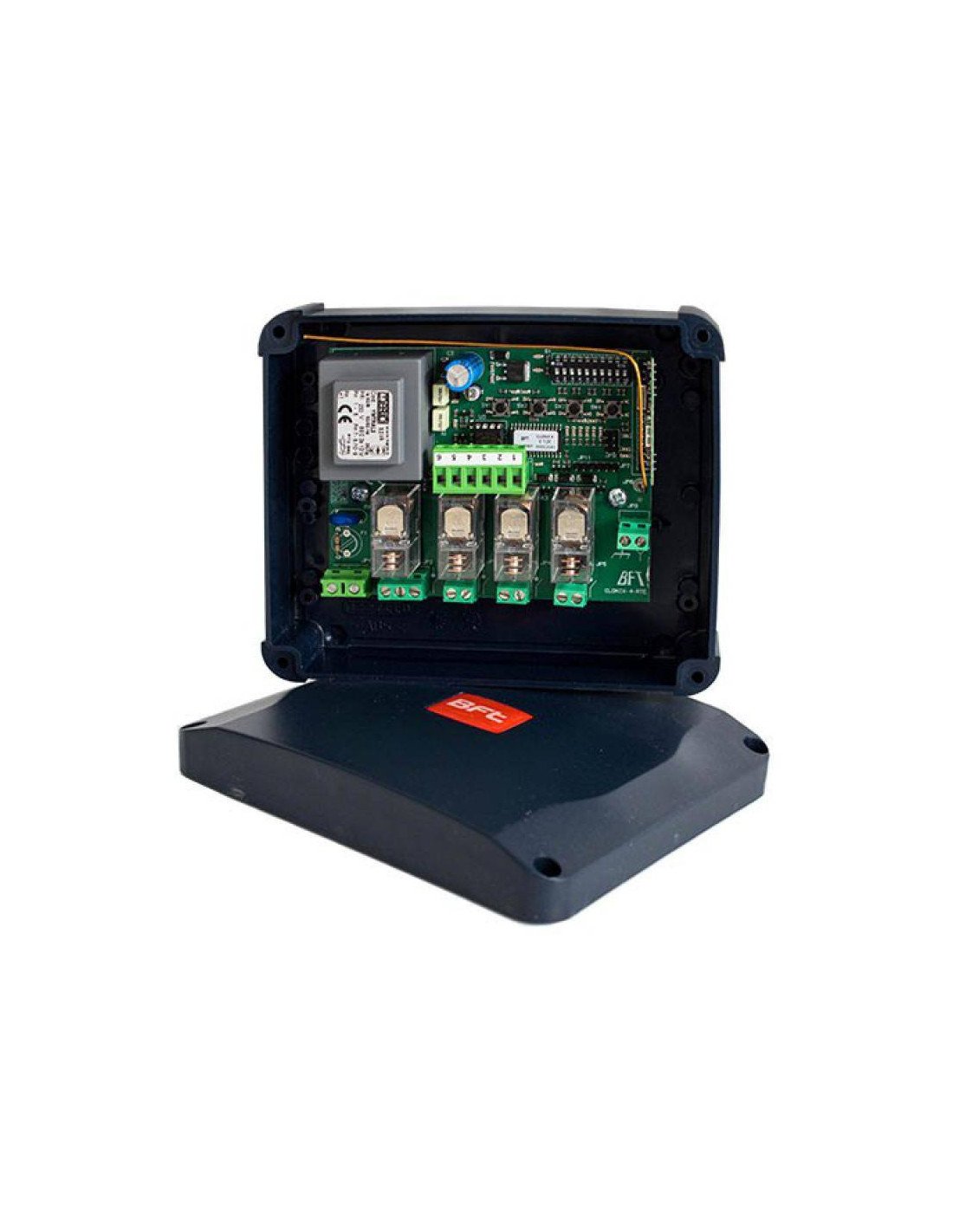

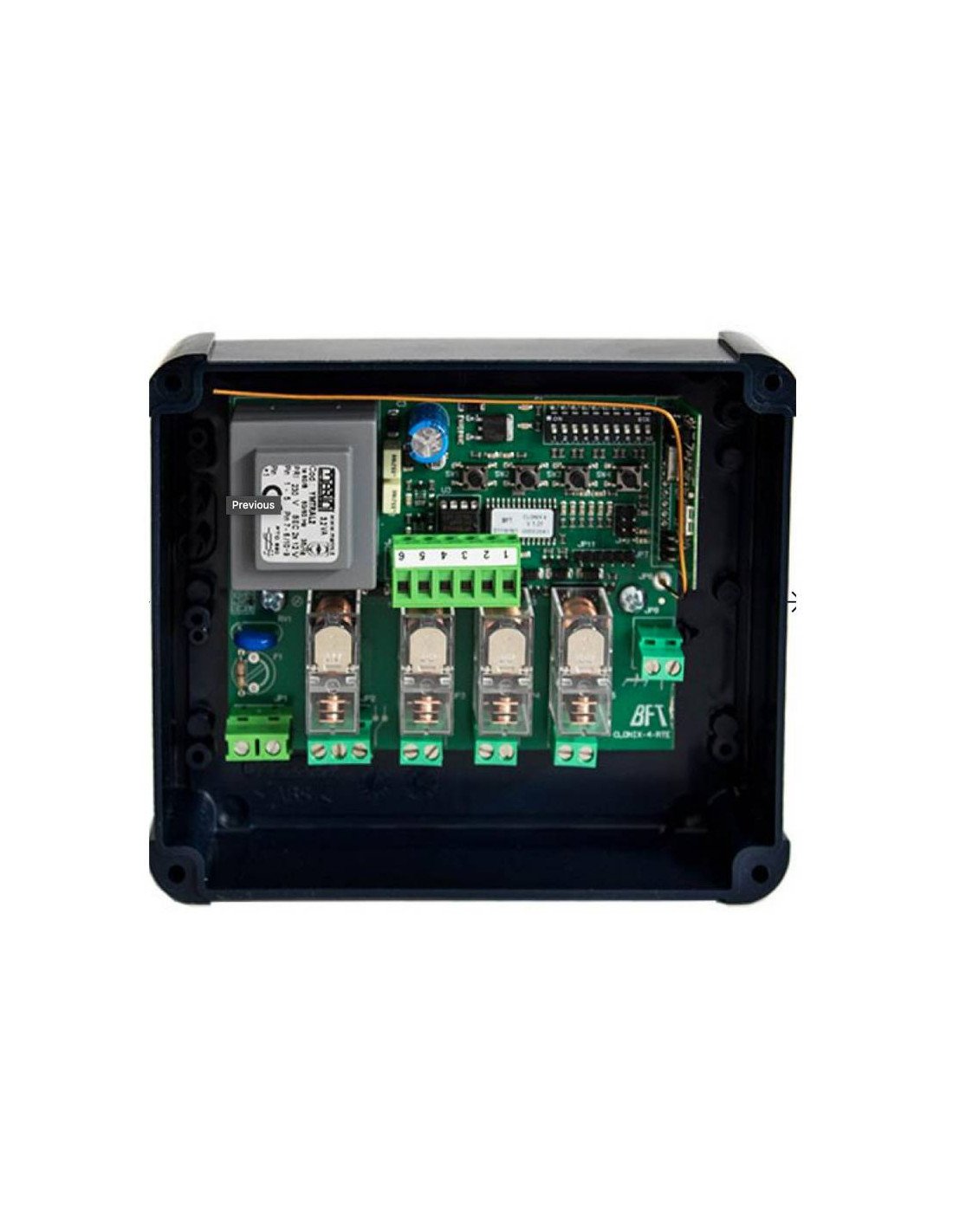

Receiver BFT "CLONIX 4 RTE" 230V RollingCode 4-channel 433 MHz.

CHARACTERISTICS

• Power supply: 230 V

• 16 A power relay outputs

• 4 Independent Channels

• Working frequency 433.92 MHz

• Capacity for 250 transmitters

GENERAL INFORMATION

The CLONIX 4 RTE receptor is characterized by:

• Outputs with isolated relay contacts (1 output with switching contact, 3 outputs with N.O.contacts).

• Programming of outputs as monostable, bistable, timed.

• Extreme security thanks to rolling code.

• Radio programming of transmitters.

• Ready to receive transponder cards and codes via numeric keypad (standard wiegand 26).

• Cloning of transmitters.

Cloning a transmitter means generating a transmitter capable of automatically entering the list of transmitters stored in the receiver, adding or replacing a particular transmitter.

It will therefore be possible to program, remotely and without intervening in the receiver, a large number of transmitters, adding them or replacing transmitters that, for example, have been lost.

Cloning by substitution makes it possible to create a new transmitter that takes the place, in the receiver, of a transmitter previously memorized; This will remove the lost transmitter from memory and cannot be used again.

The use of clones when there is more than one recipient (as in the case of collectivities) and, especially, when it is necessary to distinguish between clones to be added or replaced in individual or collective recipients could be quite difficult; the collective cloning system of the CLONIX 4 RTE receptor is particularly simple and solves the memorization of clones up to 250 individual receptors.

MANUAL

Instruction manual BFT CLONIX 4 RTE
