Outdoor receiver V2 Wally-U 1, 2 and 4 channels 433 and 868 MHz

Outdoor receiver V2 WALLY-U of 1, 2 or 4 channels at 433 and 868 MHz

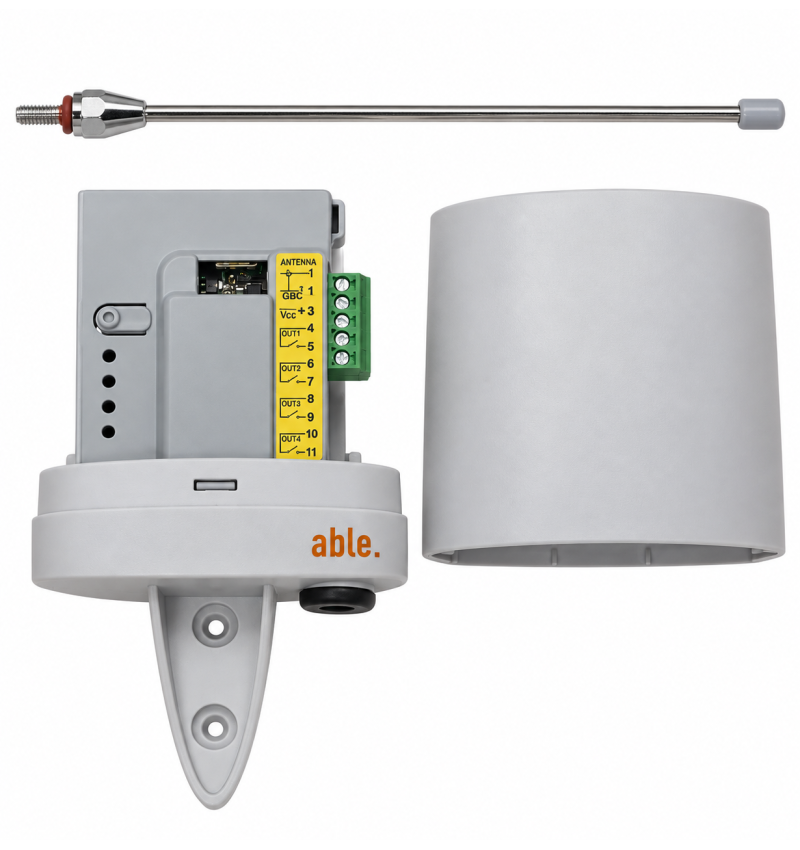

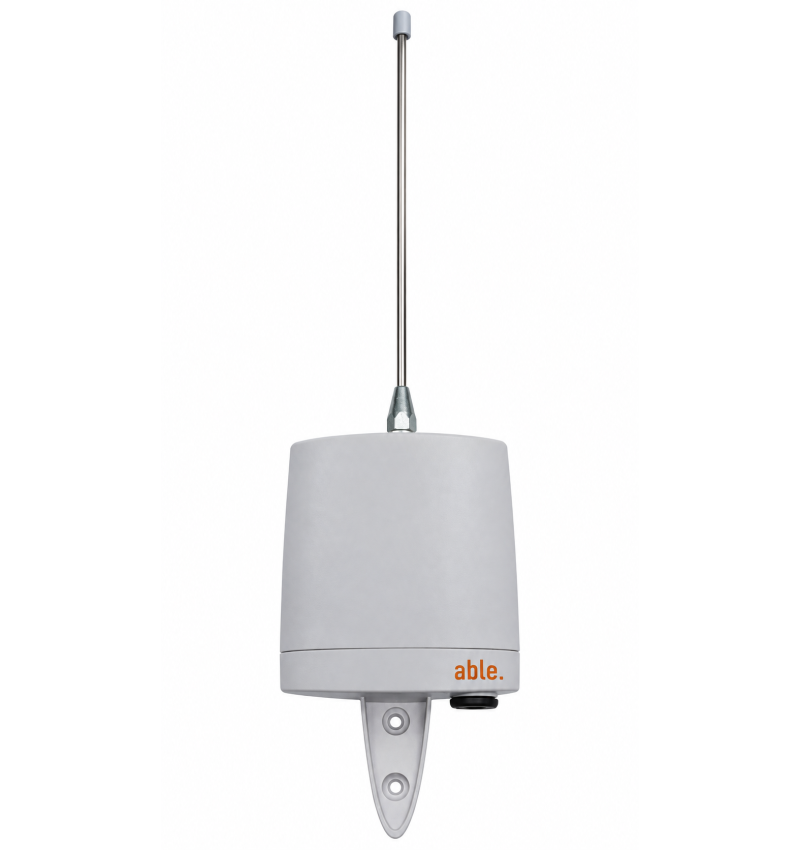

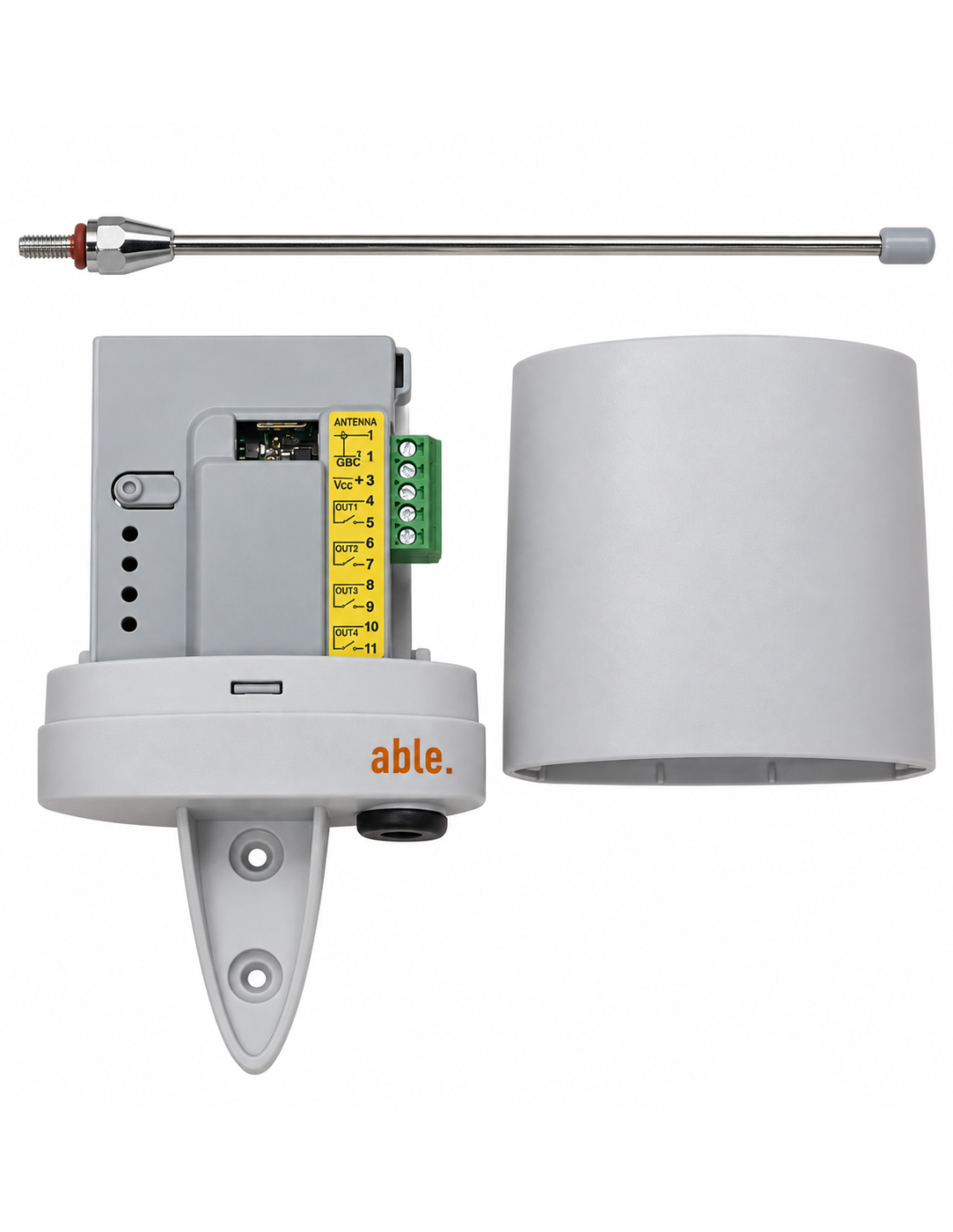

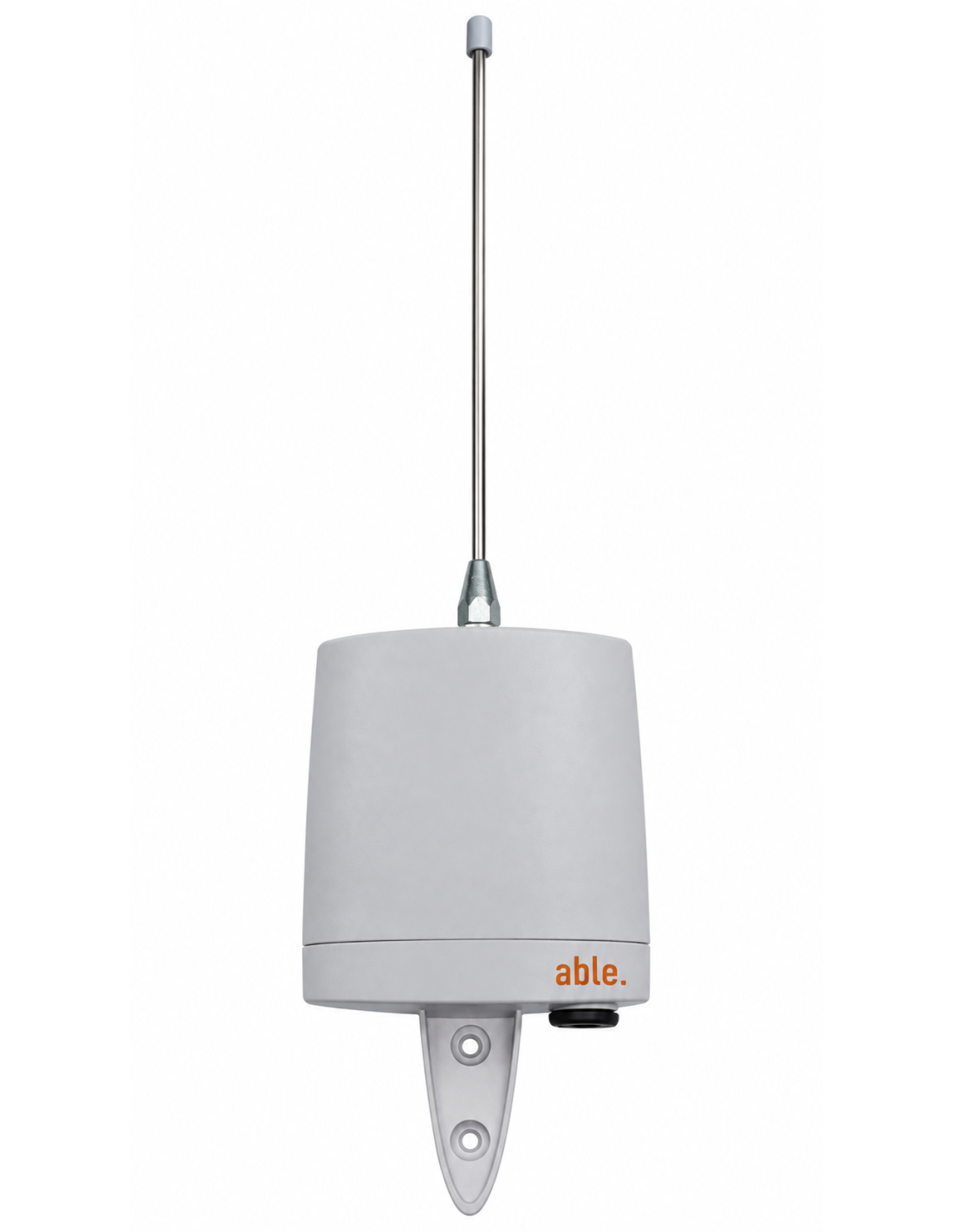

The V2 WALLY-OR is an outer radio receiver designed for control of automatic doors, cancelas, barriers, lighting and other electrical systems by compatible remote controls.

Is available in versions of 1, 2 and 4 channels, with frequencies of 433,92 MHz or 868.30 MHz, according to the selected model.

Incorporates configurable relay outputs with operation monostable, bistable or timed, allowing each channel to adapt to the needs of the installation.

It is compatible with issuers V2 Royal and Personal Pass of the corresponding frequency. In the Personal System PASS allows you to memorize up 1,008 different codes.

Thanks to his housing with iP55 protection, is indicated for outdoor installations where a separate receiver of the electronic automation center is needed.

Select the desired reference in the drop-down according to the number of channels and the frequency of the controls that you are going to use.

The Wally-U receiver allows to use systems issuers V2 Royal V2 Personal Pass.

Royal: fixed code radio system.

Personal Pass: system with individual memorization of emitters and possibility of enabling the Rolling Code function.

Important: the first command that is memorized determines the receiver's operating system. To change between Royal and Personal Pass it is necessary to make a complete deletion of the memory.

✓ Outside radio receiver V2 WALLY-OR.

✓ Available in versions of 1, 2 and 4 channels.

✓ Frequencies of 433,92 MHz and 868.30 MHz.

✓ Compatible with controls Royal and Personal Pass.

✓ 12-24VAC or 12-36VDC.

✓ Relay contacts up 1A / 30VDC.

✓ monostable, bistable or timed.

✓ Configurable timing up 7.5 minutes.

✓ Ability up 1,008 codes in Pass Pass mode.

✓ Memorization of controls by push button P1.

✓ Learning new issuers via radio in Pass Pass mode.

✓ Possibility of managing substitute issuers.

✓ ROLLING CODE Activable or deactivable in Pass Pass mode.

✓ Advanced programming through Prog2 and Winppcl.

✓ Full memory warning through 15 flares.

✓ Strike of removable connection terminals.

✓ Housing with protection degree IP55.

Configuration of NA / NC CONTACTS

The contacts of the relays are configured as normally open (NA).

The relay allows you to select contact normally open or normally closed by jumper J1.

In the relays 2, 3 and 4, modification at normally closed contact requires physically intervening on the printed circuit, according to the manufacturer's instructions.

Important information before the order

Frequency: the controls must use the same frequency and coding system as the selected receiver.

Royal / Personal Pass: these two systems can not be used simultaneously in the same receiver. To change system, you must delete the memorized codes.

Relay outputs: more than two relays can not be activated simultaneously in a bistable or timed mode.

Electric loads: the contacts are limited to 1A / 30VDC. To activate upper loads or equipment fed directly to 230V, an adequate auxiliary interface or relay must be used.

The receiver can be used with controls V2 Royal or Personal Compatible Pass, depending on the frequency and the selected radio system.

Advanced programming can be done through the programmer V2 PROG2 and the software WINPPCL.

The remote controls and the programming team are supplied separately.

Download instruction manual V2 WALLY-U in PDF

■ 1 × outdoor receiver V2 WALLY-OR, in the frequency version and number of selected channels. Remote controls not included.
