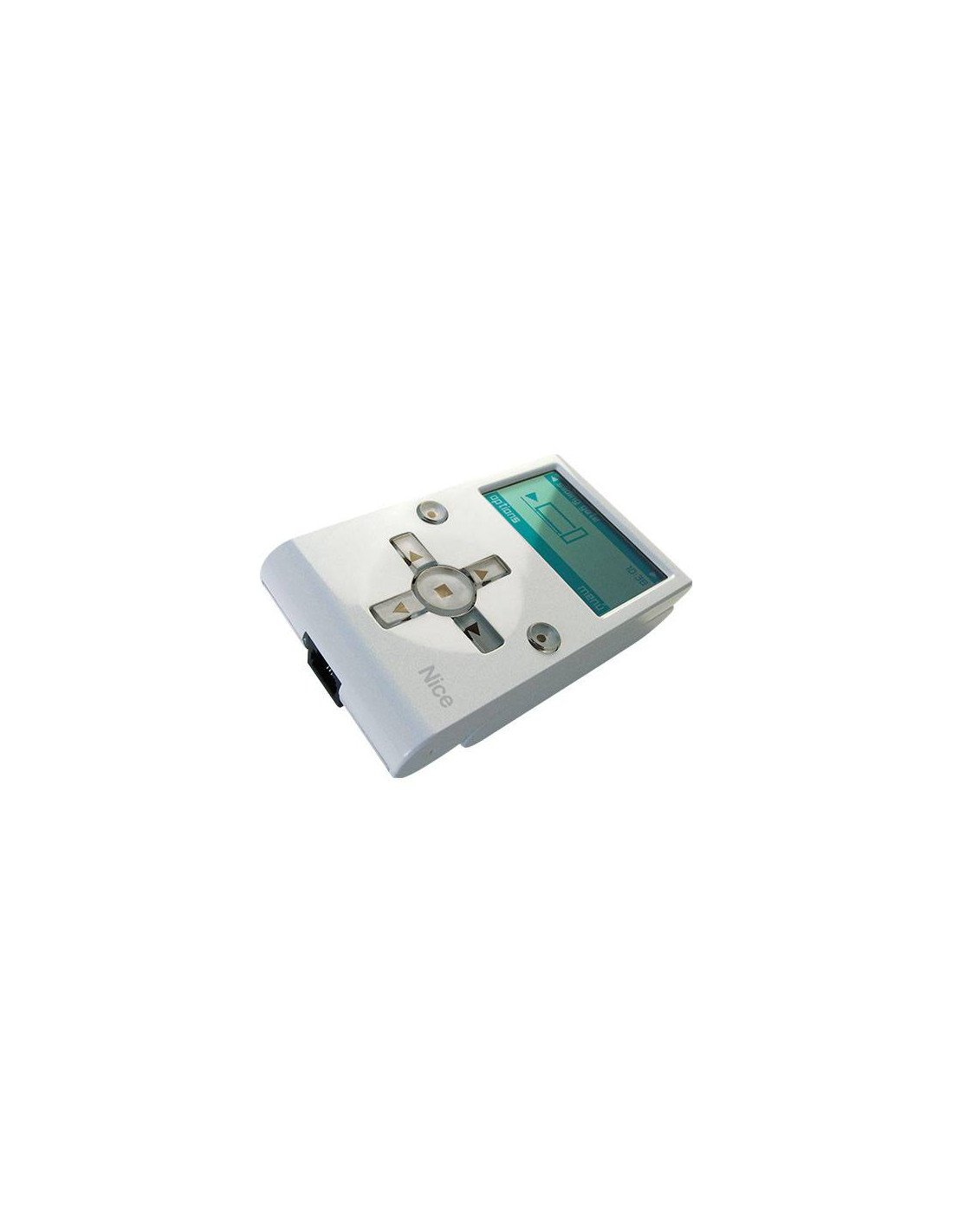

Control, programming and diagnostics unit for devices with the T4 BUS connection, on-site or remotely via GPRS via connection to your PDA, smartphone or PC.

Advanced management: O-View is connected to the compatible control panel via the IBT4N interface and the T4 BUS cable (included in the package), to allow access to all the parameters of the control panel to adapt the system to all requirements.

By permanently connecting O-View to a control panel or a group of control units via T4 BUS, a network can be created for centralized management - local or remotely.

Programmable: The built-in clock (with integrated battery backup) allows orders to be sent at the set time, for example to automate openings and closings of complex industrial and commercial facilities or to create scenarios.

Convenient wall mount provided.

A simple mode of programming: with intuitive menus, without consulting specific instructions.

O-View is powered by automatically recognising all the equipment in the network, highlighting only the characteristic parameters of the equipment to be intervened.

In the case of multiple computers on the network, the T4 BUS routing is recognized with a freely customizable text label, to allow rapid recognition of the associated computer.

Secure: Two levels of password protection (for the user and the installer).

Practical: O-View is your portable office, pluggable during programming or intervention or permanently installable on-site to enjoy the benefits of local or remote centralized management.

SPECIFICATIONS

• Graphical interface: LCD display 128x64 dots (46x29 mm); 2,2"
• Joypad Operator Input Device with 5 + 2 Keys
• Screen/Key Lighting White Light
• Calendar watch With battery backup (minimum duration 10 years)
• Maximum number of hourly orders 64
• Timeline of events Ability to log 400 events
• Length of connection cable (m) 2 (cable provided); 700 (other cable)
• Feeding With the equipment present on the T4 BUS
• Absorbed Current (mA) Maximum 20 (without accessories)
• Class III Insulation
• Enclosure protection rating (IP) 20
• Operating Temp. (min/max °C) -20° to +55°
• Dimensions (mm) 107x61x20 h (with wall mount: 125x70x32 h)
• Weight (g) 75 (without cable)
