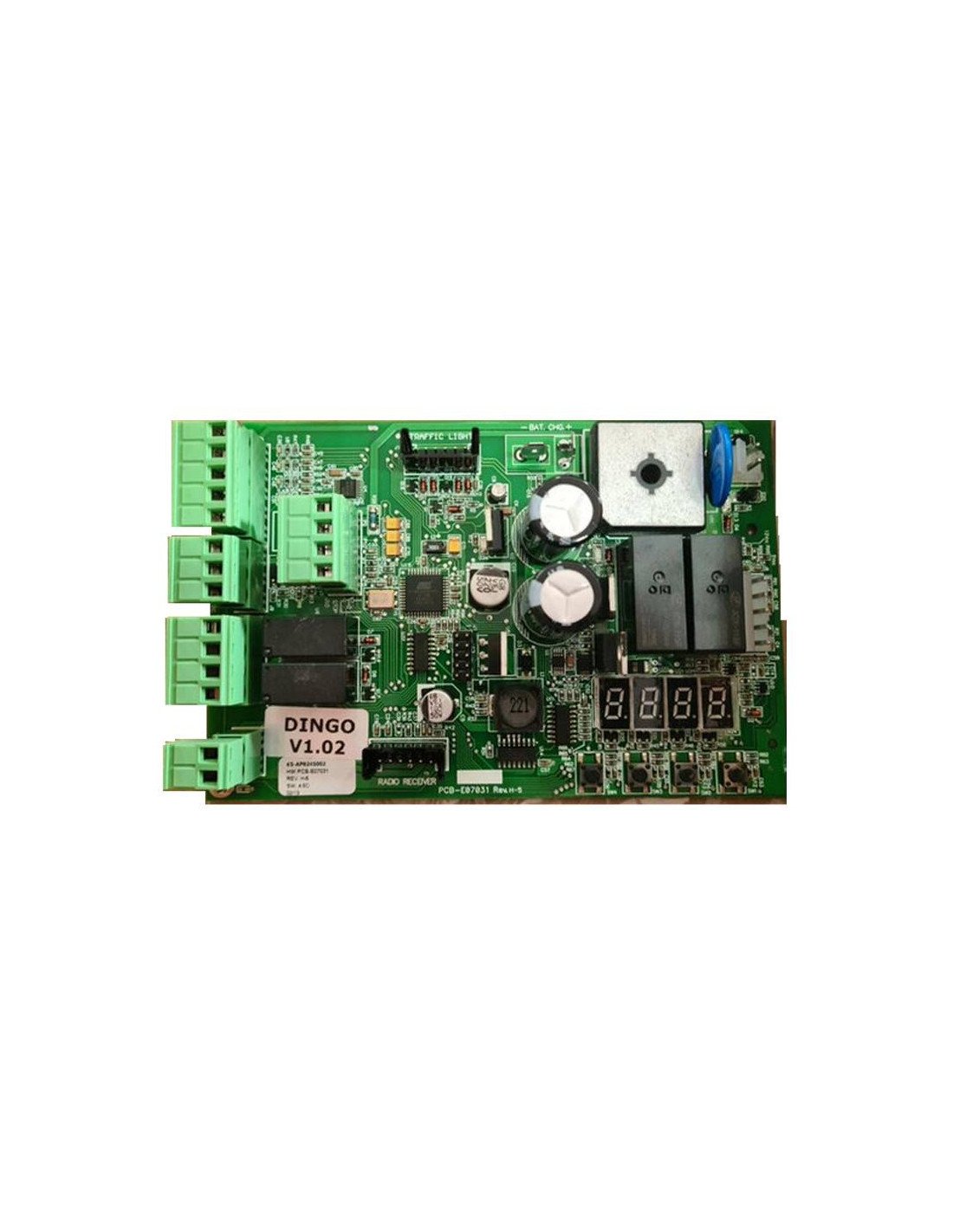

Integrated electronic board for sliding motor Erreka DINGO.

CHARACTERISTICS

■ Programming via 4 pushbuttons and 4-digit display with 7 segments

■ Garage / Courtesy Light Outlet with Dimmable Time

■ Power supply for a 24Vdc DC sliding motor

■ Input for ADO01 (LINCE and DOLFIN) and ADN01 (DINGO) emergency battery charger

■ Obstacle detection function with amperometric sensor with programmable threshold

■ Total Operating Cycle Counter

■ Connector for IRRE2 / IRRE2-250 radio receiver or RSD (Built-in Fixed Code Decoding)

■ Soft start and stop of the leaves in the opening and closing phase to prevent noisy openings and closings and bouncing

■ Management for pedestrian start and start via radio

■ Display of input status via display and LED

■ Connector for traffic light management card

■ Manoeuvring speed and adjustable soft stop

■ Voltage-free signal lamp output for use in flashing lamps)

■ Entrance, security, closing and safety opening

■ Encoder operation Testing of safety devices before each opening

SPECIFICATIONS

• Power supply (Vac/Hz) 230V-50/60Hz
• Max Load Motors (W) 100W
• Voltage / Current max accessories (V/A) 24Vdc / 0.315A
• Voltage/Current L. Signalling(V/A) Free / 5A
• Voltage/Power L. Courtesy (V/A) Free / 5A
• Standby Time Regulation (s) 3 ÷ 240s
• Time Regulation Court(s) 3 ÷ 240s
• Operating Temperature (°C) -20 ÷ +60
