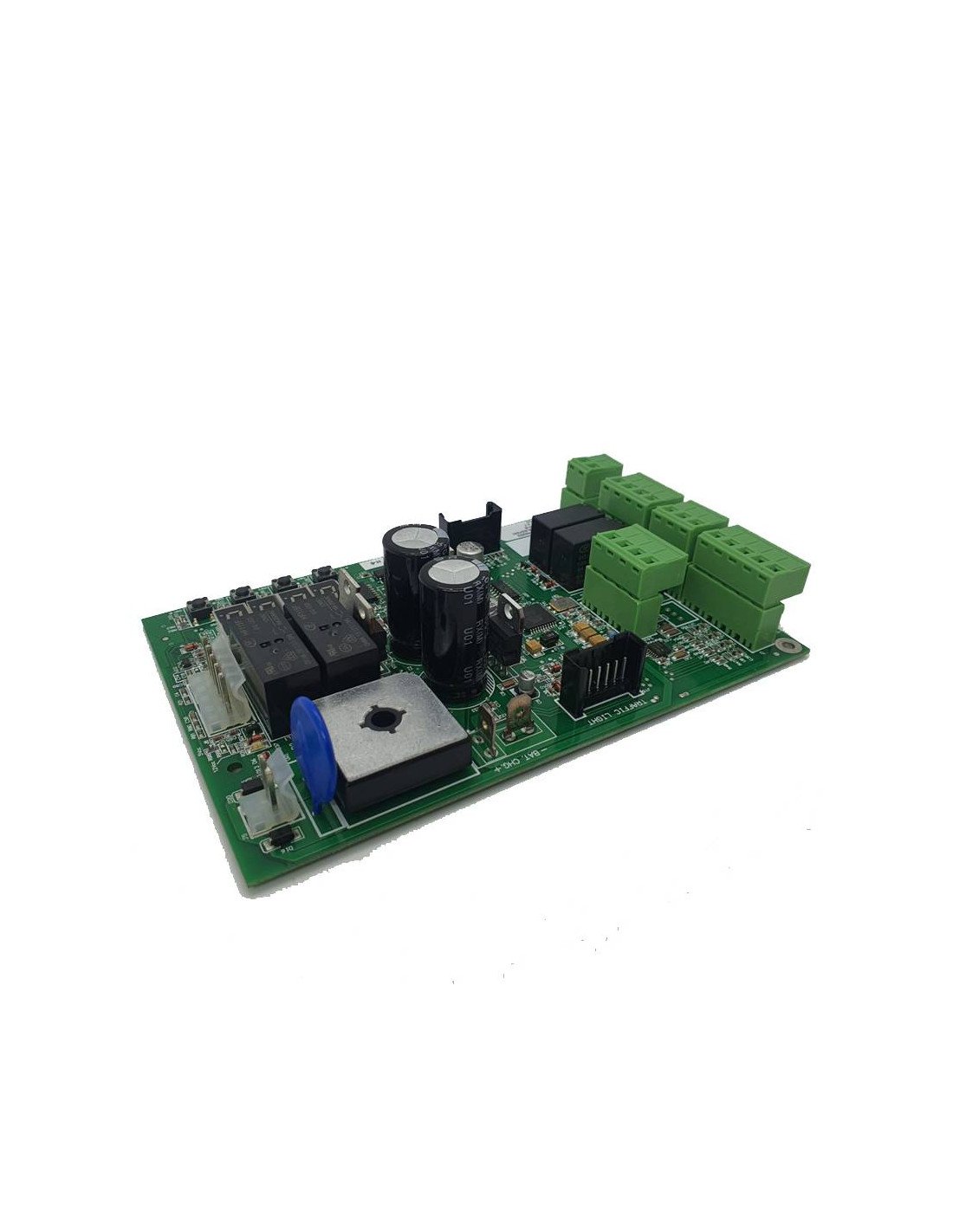

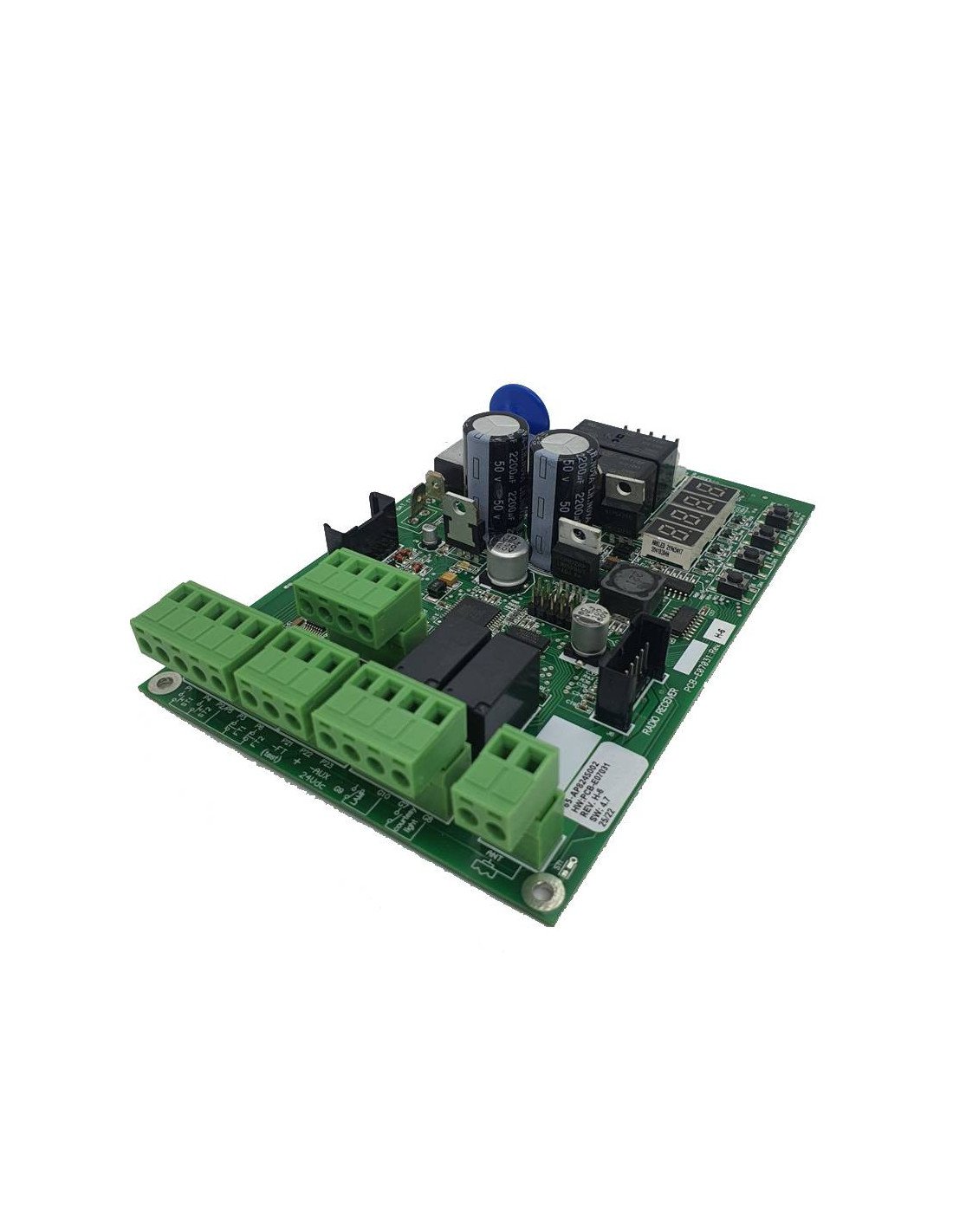

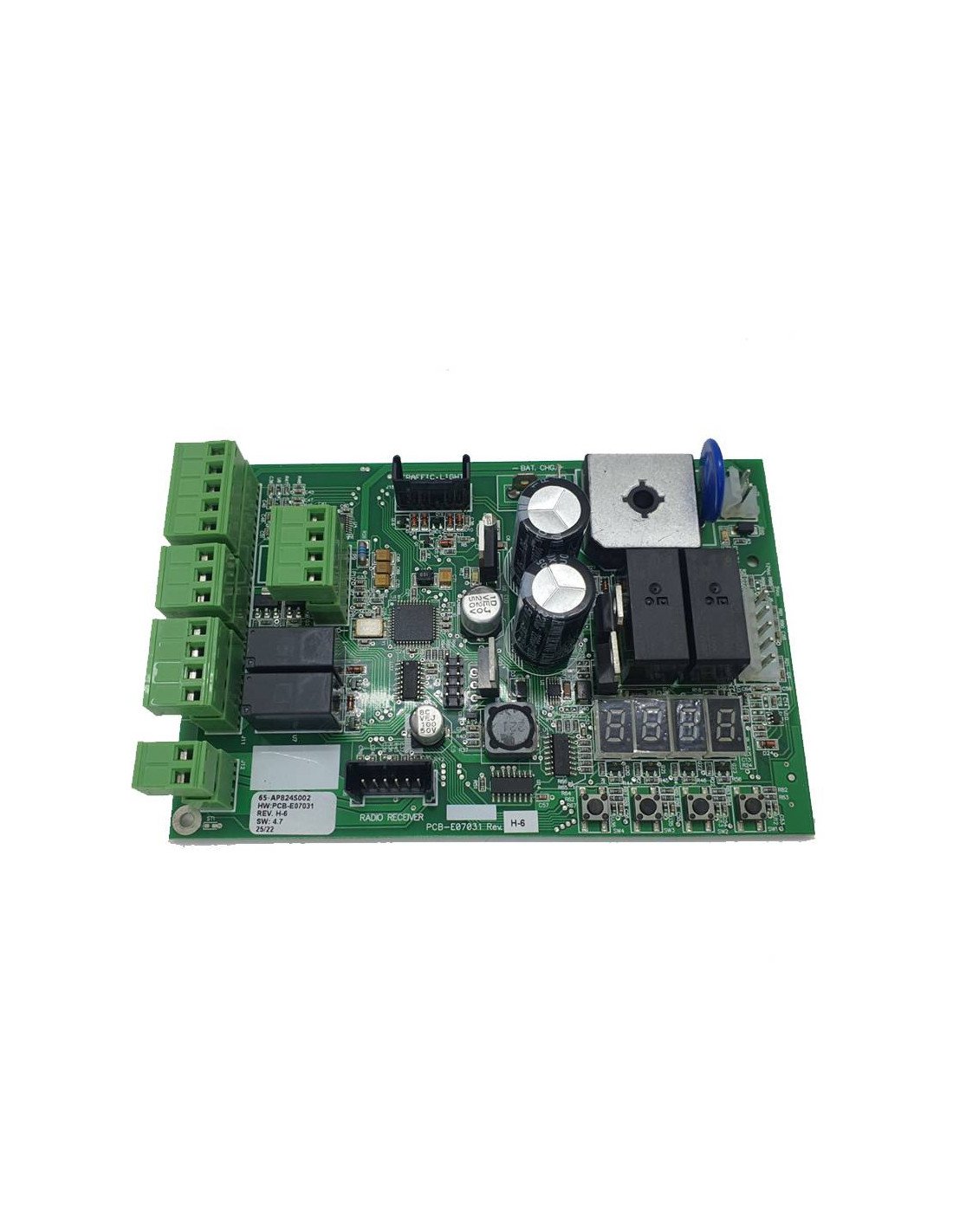

Electronic plate Erreka LINCE ideal for use as a replacement for the slide motor Erreka The lynx.

CHARACTERISTICS

• Programming by means of 4 buttons and 4-digit screen of 7 segments.
• Outlet for garage light / courtesy with adjustable time.
• Power supply for a 24 V DC sliding motor.
• Input for emergency battery charger ADO01 (LINCE) and ADN01 (DINGO).
• Obstruction detection function with amperometric sensor with programmable threshold.
• Operating cycle counter.
• Connector for the radio receiver IRRE2 / IRRE2-250 or RSD (fixed code decoding incorporated)
• Soft start and stop of the blades in the opening and closing phase to prevent noisy opening and closing and bouncing
• Management for start and pedestrian start via radio
• Display of status of inputs by screen and LED
• Connector for traffic light management card
• Adjustable manoeuvring speed and soft stop
• Output for voltage-free signalling lamp for use in intermittent lamps
• Entry security closure and security opening
• Operation with encoder Test of safety devices before each opening
