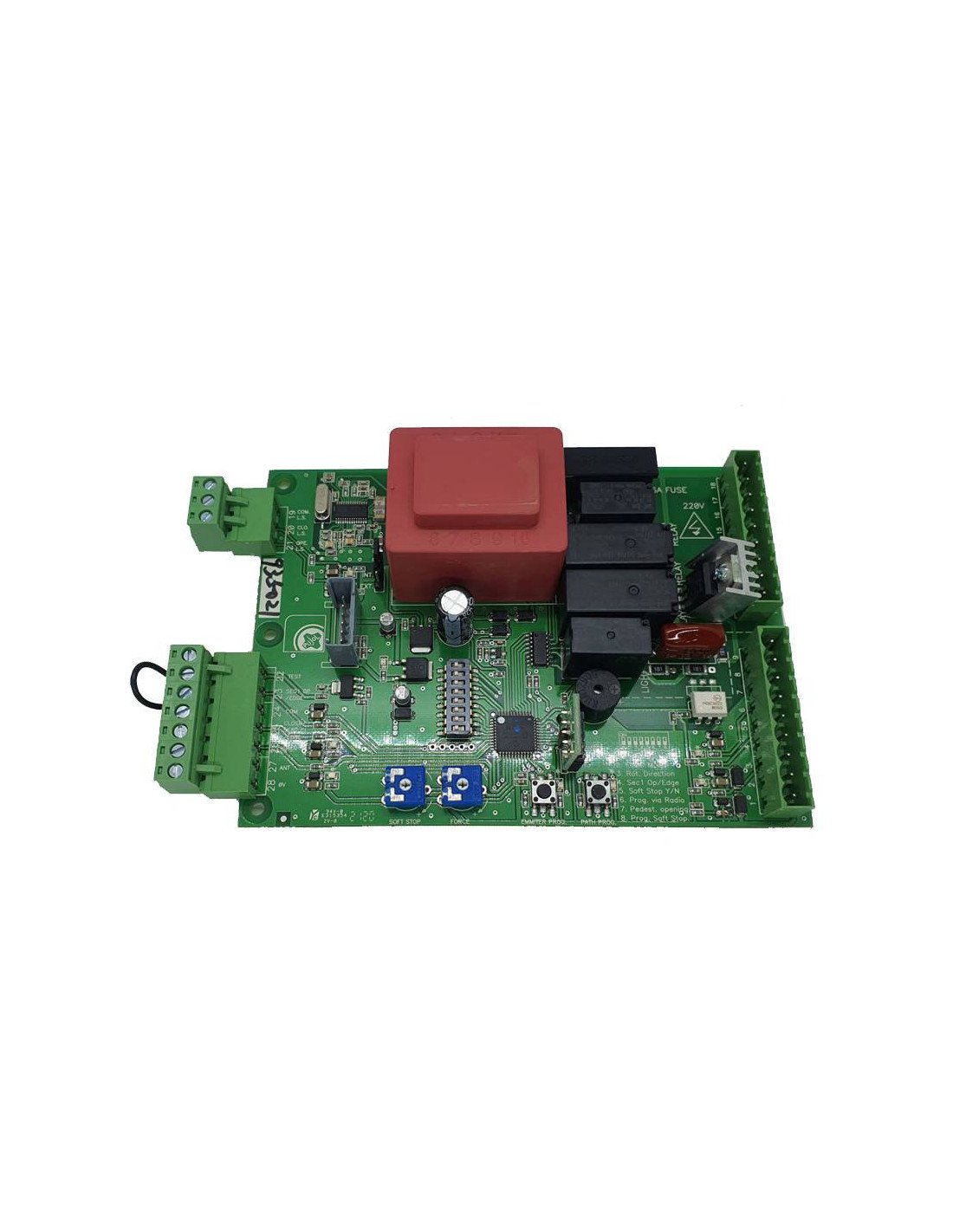

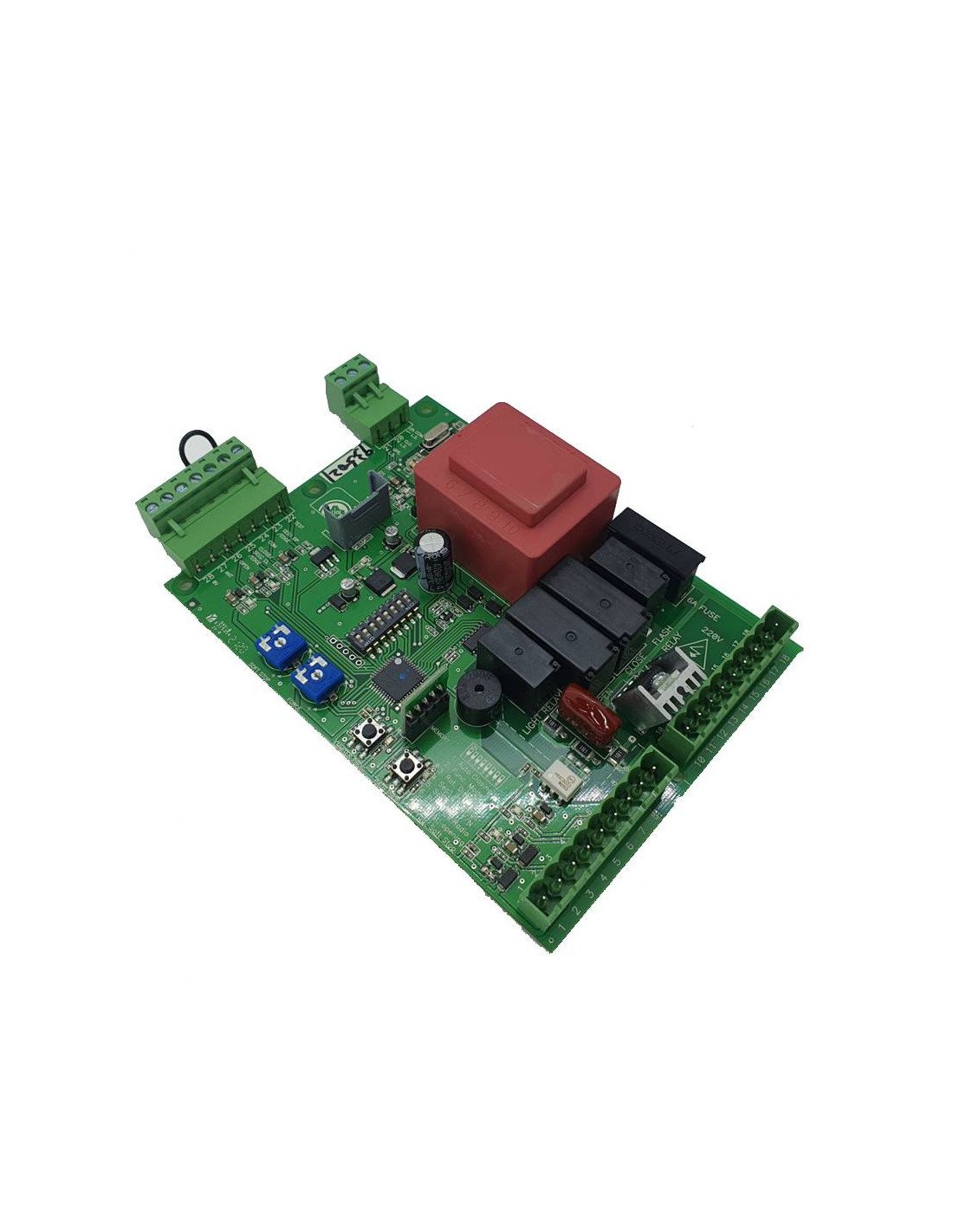

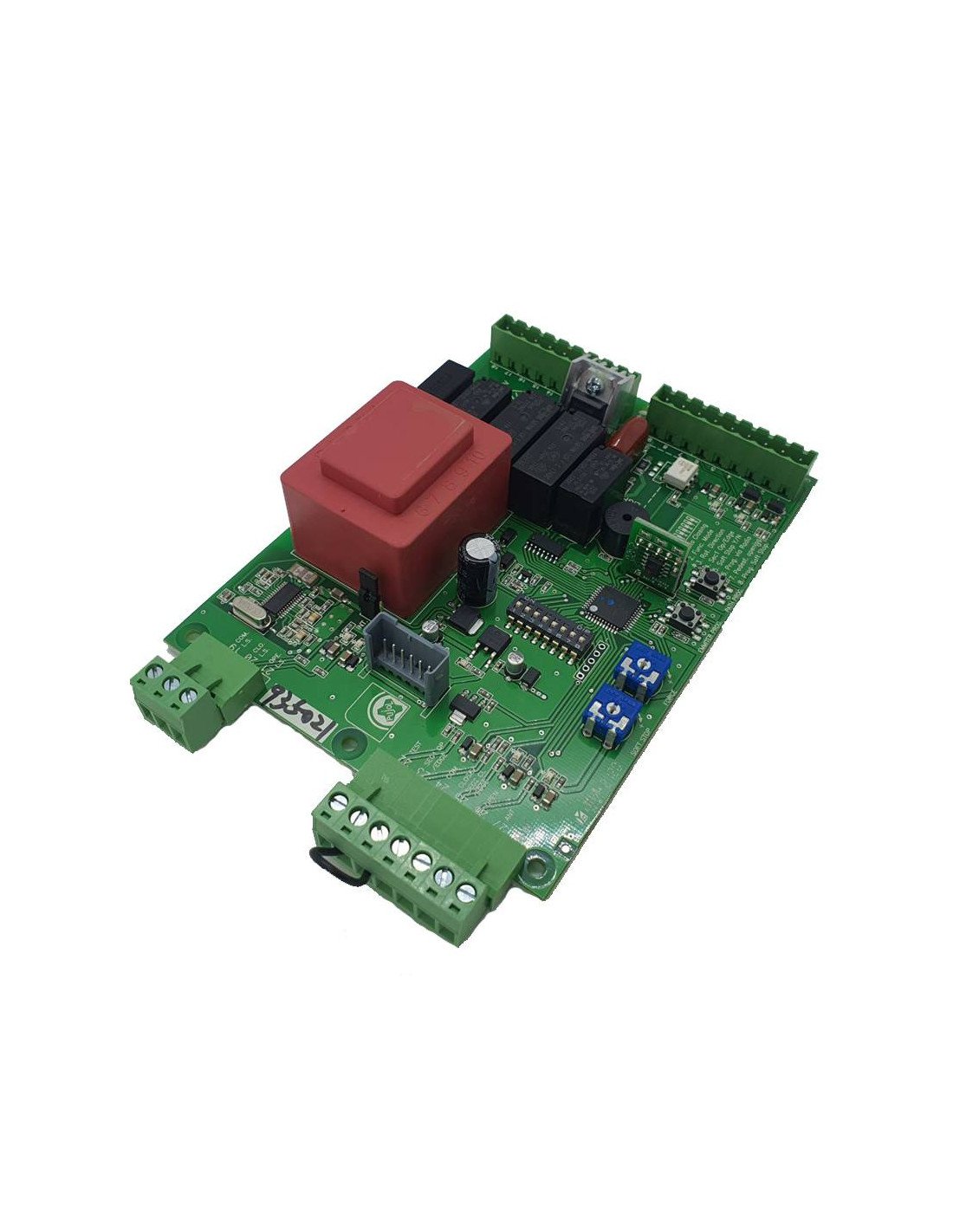

Electronic board Pujol Marathon II (previous version 04/2012) with built-in Rollingcode 433 MHz receiver.

CHARACTERISTICS

· Manoeuvring and safety in the face of obstacles

· 6A protection fuse. controlled by Hall sensor and microprocessor

· Built-in magnetic limit switches

· Engine acceleration and braking ramps. the actuator.

· Display of the status of pushbuttons, photocell and · Output shaft speed 48.3 r.p.m.

Limit switches with LEDs. · Gate speed: 10.6 m/min.

· Activating/deactivating the timer · Output sprocket module M5-17 teeth M4-14 self-closing. teeth.

· Self-closing digital timer · Service factor: 40%. (minimum 2 sec. and maximum 120 sec.) · Max. door weight: 1000 Kg.

· Choice between two types of manoeuvre (A/B). · Max. pulling force: 50 Kg.

· Maximum manoeuvring time limited to 2 min · Starting torque: 14.7 Nm.

· Built-in receiver 433.92Mhz.(Vario · Power supply 230 V +-10% code) · Engine power: 0.2CV /0.15Kw

· Memory card for 255 codes. · Intensity: 0.6 Amp.

· Radio Card Connector · Working temperature : -10º C to +40ºC.

· Voltage-free relay contact for · Maintenance: no greasing required.

flashes (maximum load 16 Amp. at 230 V.).

· Auxiliary lights with 230V output for 3 min.

(max 10 Amp.).

· 12 V auxiliary output. dc 150 mA.

· Input for 8.2 Kohm resistive band.

MANUAL

Instruction manual Marathon II 2012 electronic board
