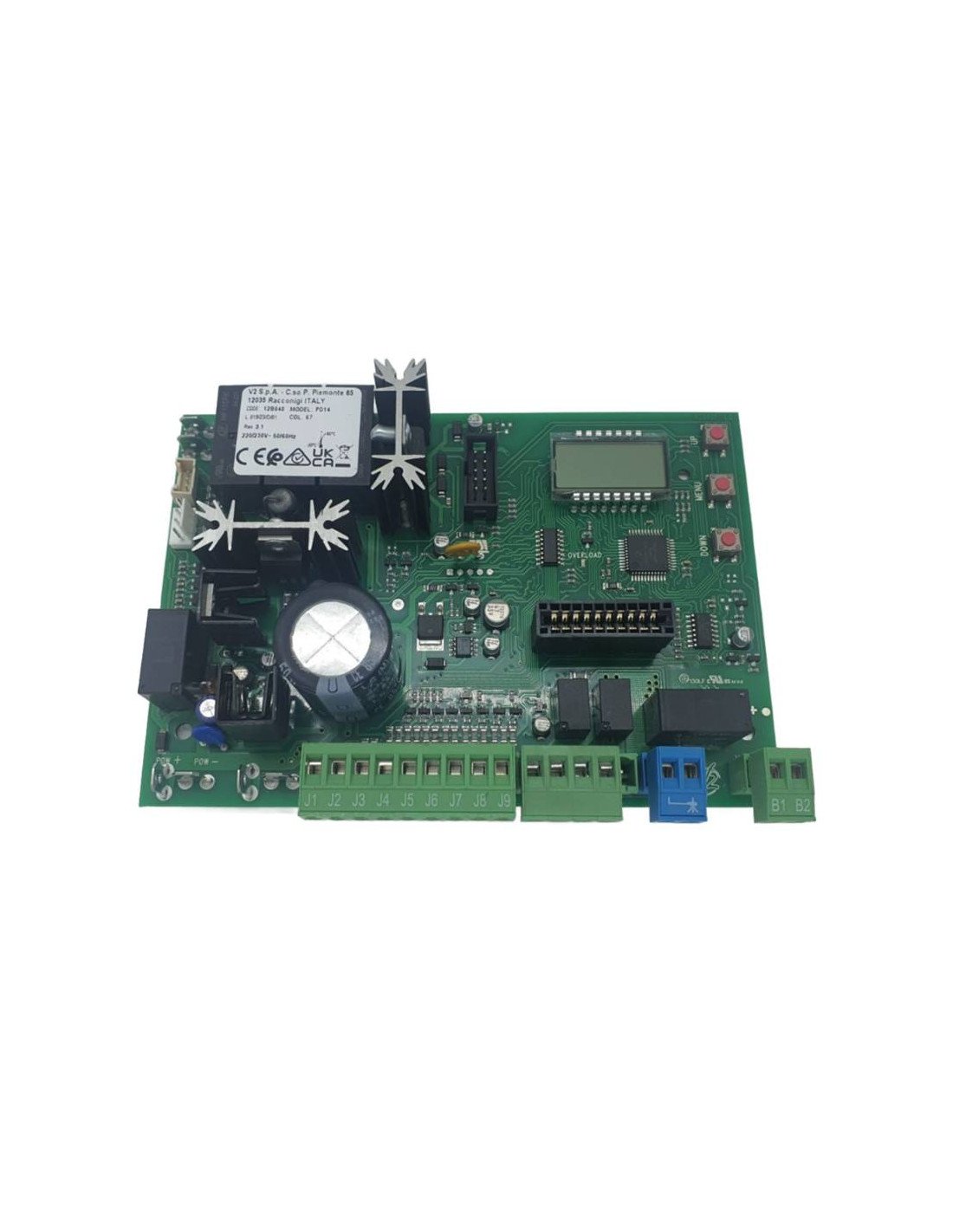

Electronic board "PD14" is ideal for use as spare parts in the sliding motors V2 AYROS 24V.

The PD14 is equipped with a display which allows, in addition to easy programming, the constant visualization of the status of the tickets; In addition, the menu-driven structure allows for simple programming of working times and operating logics.

Important: the MR2 radio frequency receiver is not included, so if you need it as well as the controls, you can find it below in the accessories of the product.

CHARACTERISTICS

• Power supply with short-circuit protection inside the control unit for motors and connected accessories.

• Power regulation with partial current deliveries.

• Detection of obstacles by monitoring the current of the motors (ampermeter and encoder).

• Machine learning of the position of limit switches.

• Testing of safety devices (photocells and safety strips) before each opening.

• Disabling the security inputs via the programming menu: it is not necessary to bypass the terminals referring to the uninstalled security, it is enough to disable the function in the corresponding menu.

• Possibility of operation in the absence of mains voltage by means of optional battery pack (code 161212).

• Low-voltage output can be used by a pilot lamp or a 24 V flashing light.

• Auxiliary relay with programmable logic for courtesy lights, turn signals or other use.

• ENERGY SAVING function

• Synchronised operation of two motors using the optional SYNCRO module.

MANUAL

Complete instruction manual V2 AYROS
