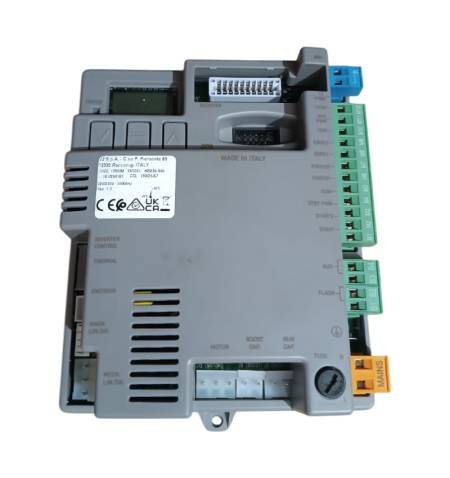

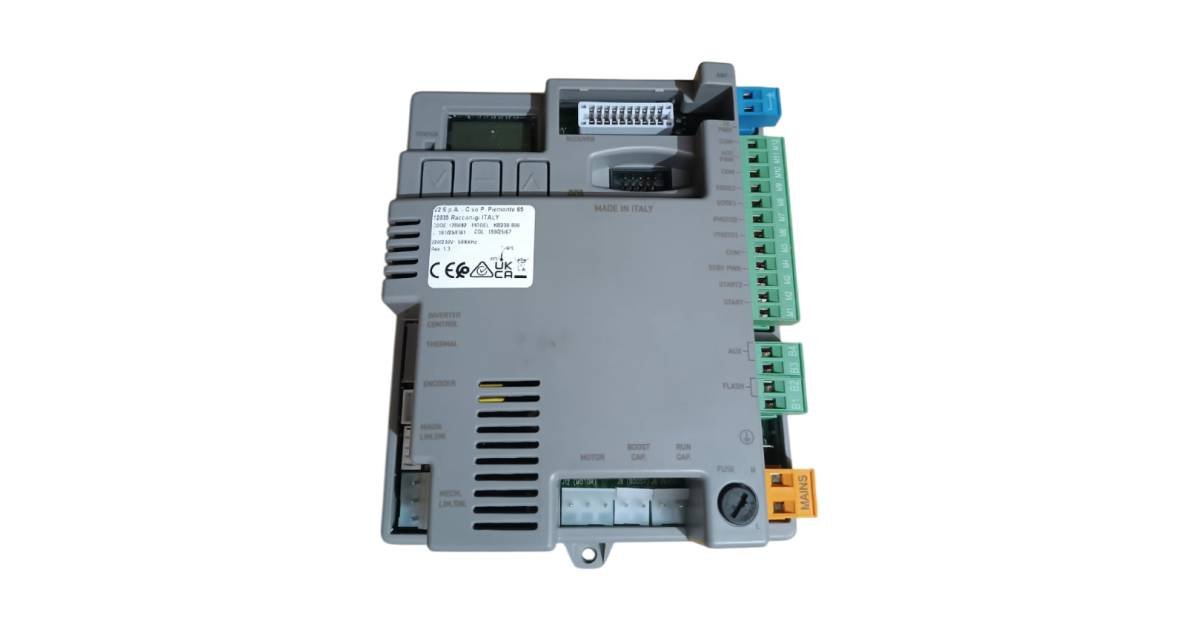

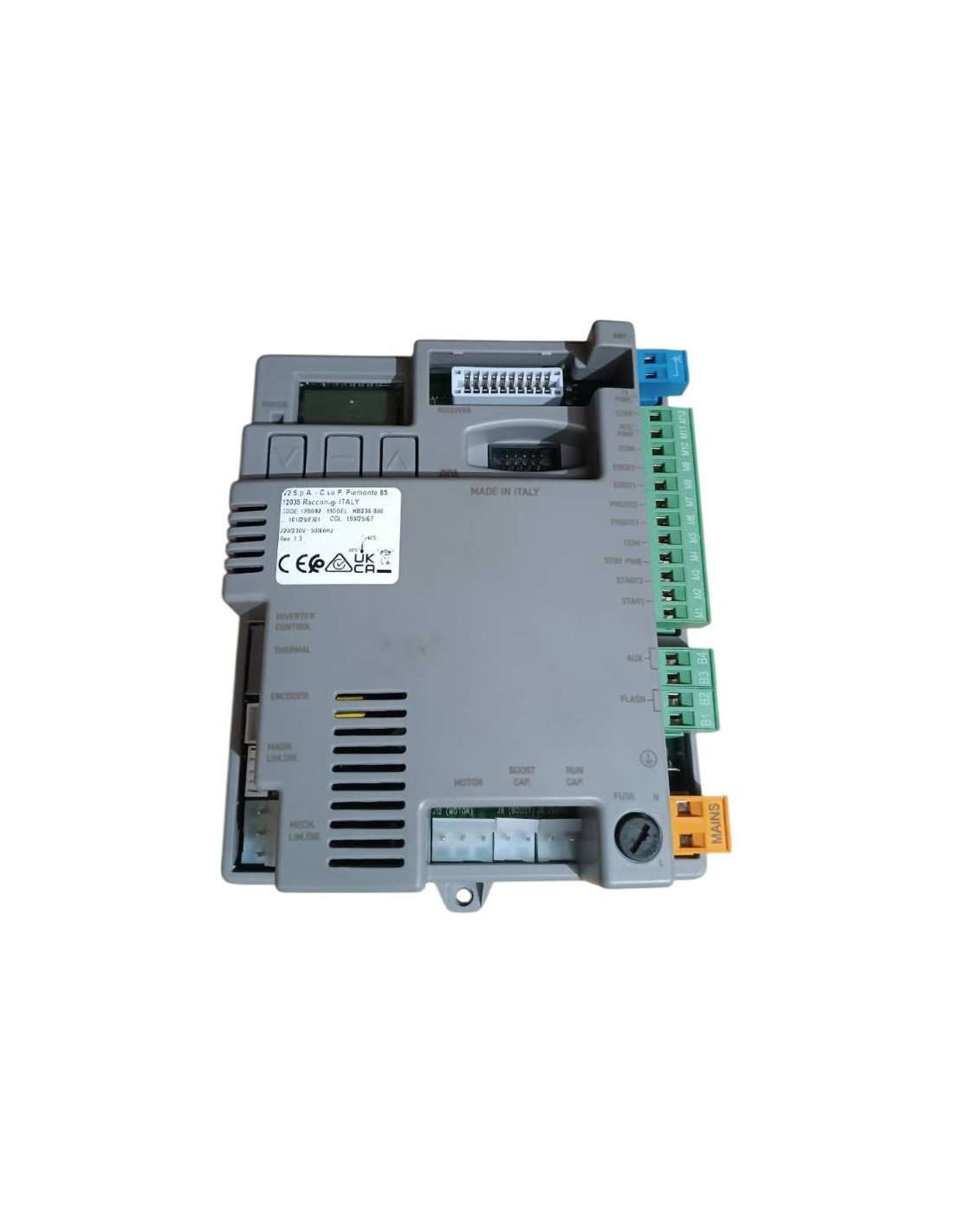

Electronic Board V2 KB230-800

The KB230 is equipped with a display which allows, in addition to easy programming, the constant visualization of the input status; furthermore, the menu structure allows simple programming of working times and operating logic.

In compliance with the European regulations on electrical safety and electromagnetic compatibility (EN 60335-1, EN 50081-1, and EN 50082-1), the KB230 is characterized by the complete electrical isolation of the low voltage circuit (including the motors) from the mains voltage.

Features V2 KB230-800

• Obstacle detection function.
• Automatic learning of working times.
• Testing of safety devices (photocells, strip, and triac) before each opening.
• Deactivation of the safety inputs through the programming menu: it is not necessary to bridge the terminals related to the uninstalled safety devices, it is enough to disable the function in the corresponding menu.
• Automatic shutdown of all peripherals when the control unit is not operating the gate, in order to keep the power consumption in stand-by below 500 mW.
• Synchronized operation of two motors using the optional SYNCRO module.

Wiring Diagram V2 KB230-800
