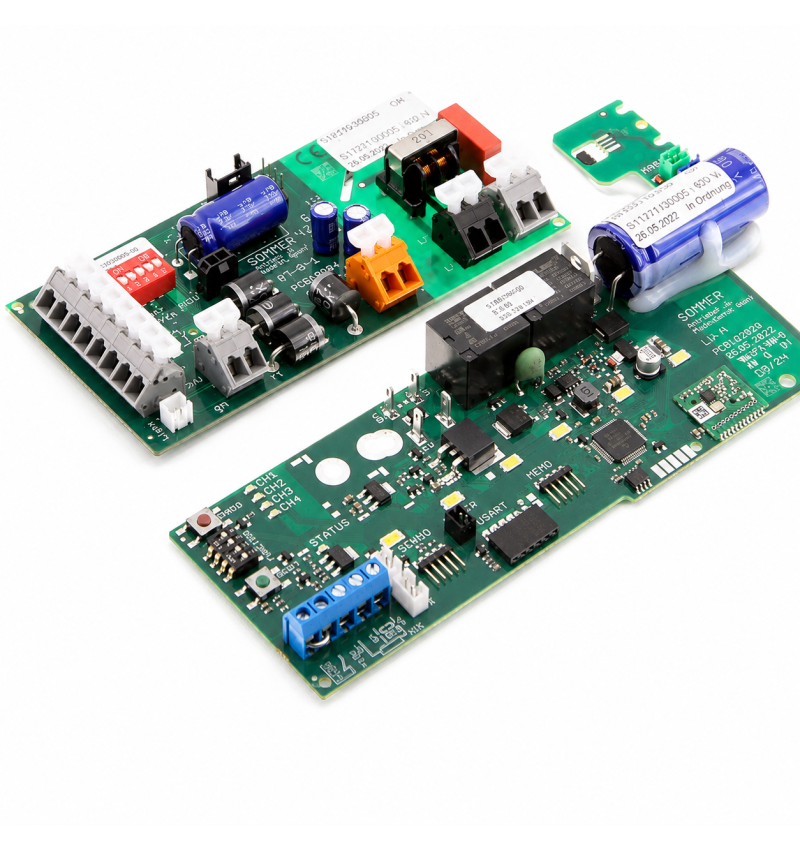

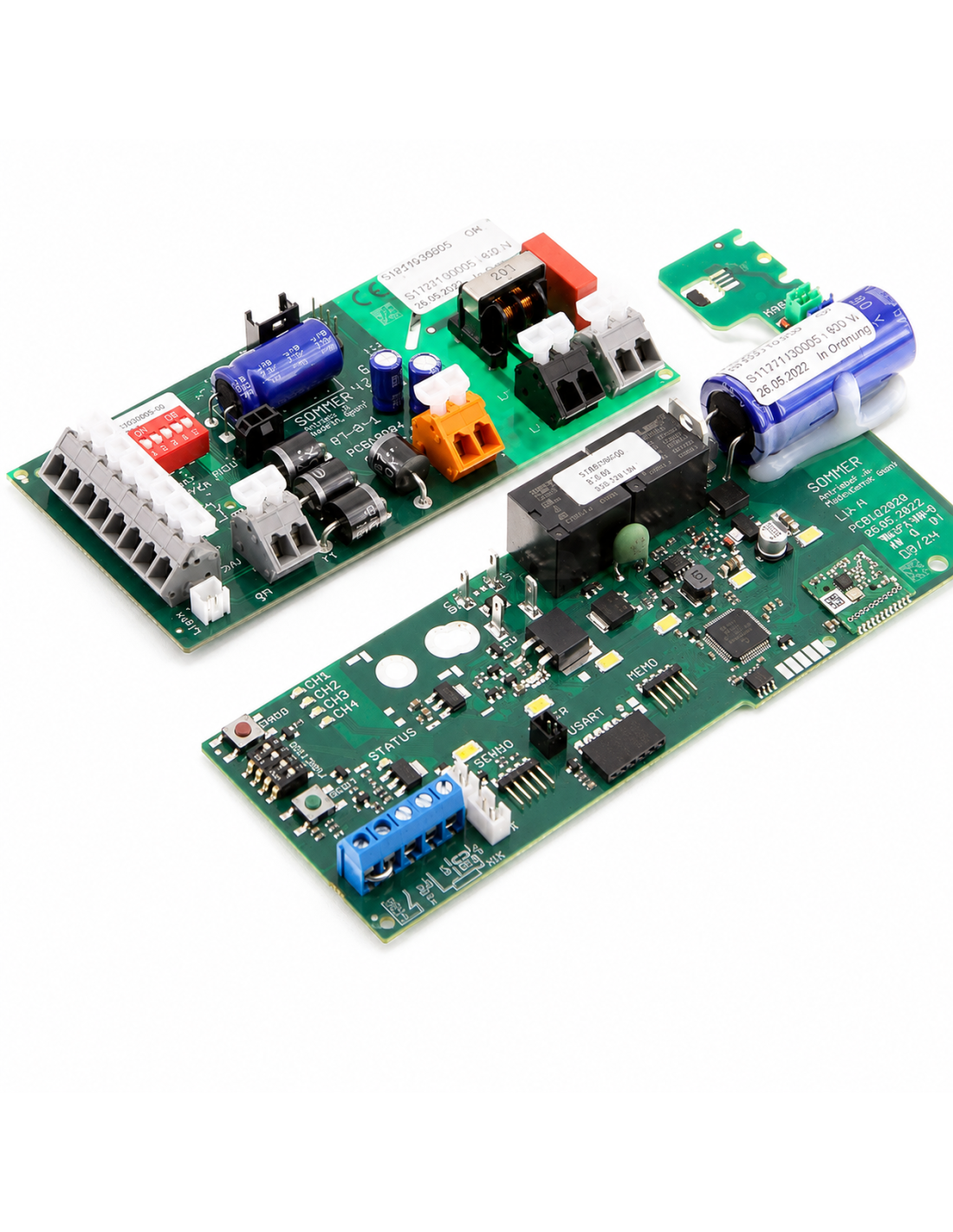

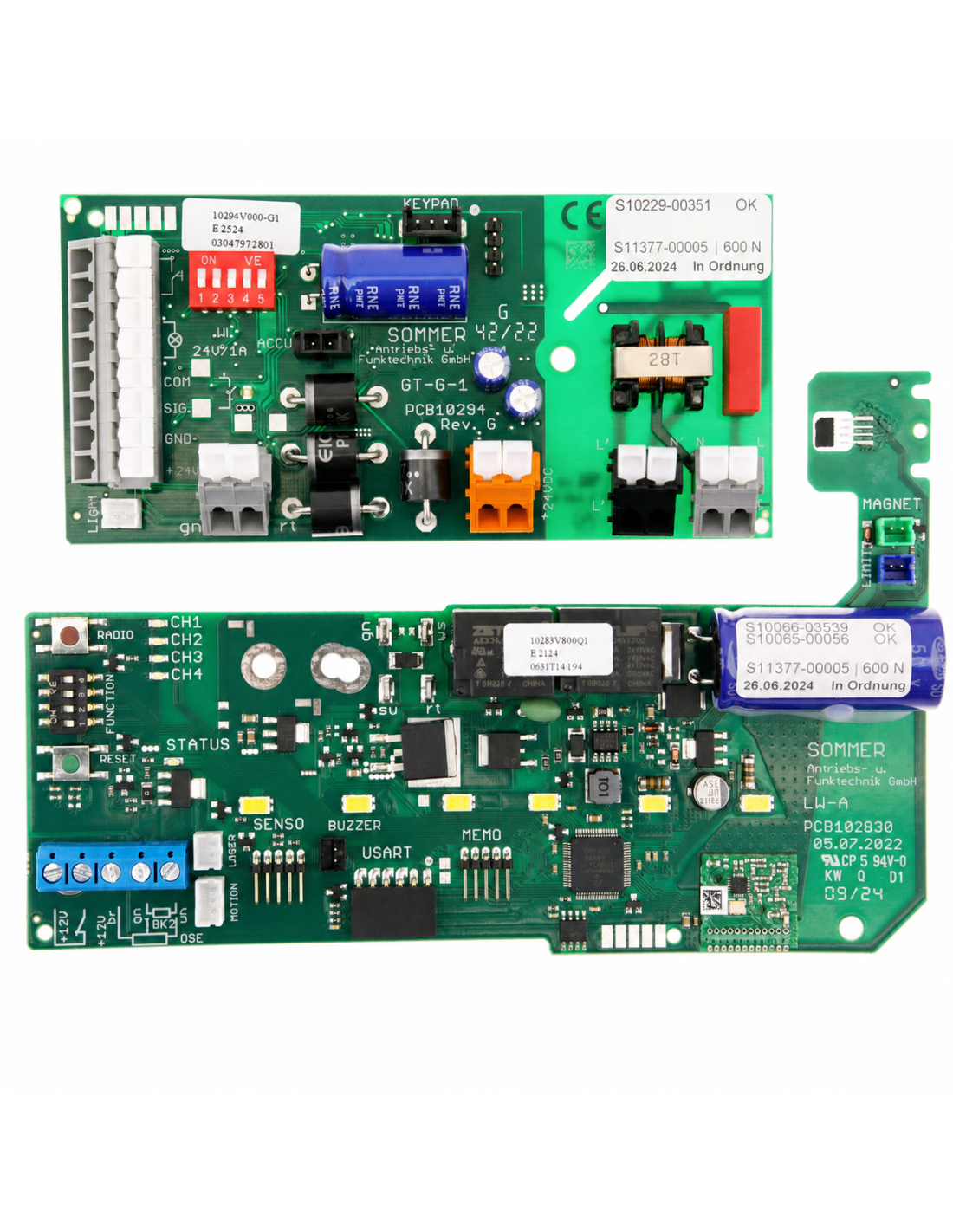

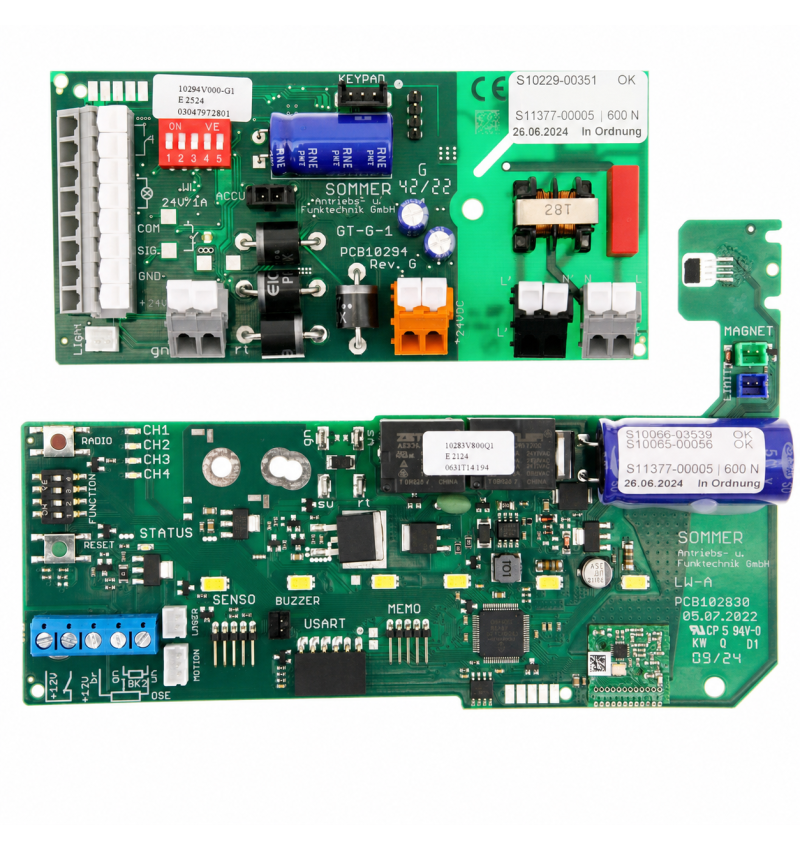

PCB SOMMER S9060 Base + and Pro + 868 MHz Base
YS11377-00005
€147.00
VAT excluded
177,87 €
Tax incl.
PCB SOMMER YS11377-00005 plaque set It is an original electronic spare part for the engines for garage doors Sommer S9060.
This set allows to replace the electronic plaques of the automation when they have a fault, electrical damage or communication and functioning problems.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
PCB SOMMER YS11377-00005 plaque set It is an original electronic spare part for the engines for garage doors Sommer S9060.
This set allows to replace the electronic plaques of the automation when they have a fault, electrical damage or communication and functioning problems.
Original reference Sommer: Ys11377-00005
Product: PCB Electronic Plates Set for Sommer S9060 Motor.
Compatibility of Sommer plaques game
Confirmed compatibility:
- Sommer S9060 Base +
- SOMMER S9060 PRO +
- Automatisms Sommer S9060 600 n
- Radio system Somloq2 of 868.95 MHz
The reference Ys11377-00005 It is specifically configured for the electronics and the power of the SOMMER S9060 engine.
Attention: This plaque game is not compatible with engines Sommer S9080 Ni Sommer S9110. These models use different references due to the electronic power and configuration of each automation.
Main features
- Original replacement Sommer.
- Designed for Sommer S9060 garage door engines.
- Specific electronic configuration for the 600 N version.
- Compatible with the Somloq2 radio system.
- Frequency of operation of 868.95 MHz.
- It allows to repair automatism without replacing the full engine.
- Connectors and dimensions prepared for the compatible equipment.
Characteristic table
| Manufacturer | Sommer |
| Reference | Ys11377-00005 |
| Type of product | PCB Electronic Plates Set |
| Compatible engine | Sommer S9060 |
| Compatible versions | S9060 Base + and S9060 Pro + |
| Automation force | 600 n |
| Radio system | Somloq2 |
| Frequency | 868.95 MHz |
| Spare type | Original Sommer Electronics |
Electronic set functions
Electronic plaques manage the main functions of automation:
- Control of the opening and closing of the door.
- Communication between the control unit and the motor carriage.
- Travel and the strength management of automatism.
- Reception and processing of orders of controls.
- Control of accessories and connected devices.
- Supervision of security functions.
When should it be replaced?
The substitution of the plates may be necessary when an electronic fault and automation are diagnosed with any of these problems:
- The engine does not respond to opening or closing orders.
- The plant does not turn on properly.
- There are communication failures between the components.
- The plate has suffered an overvoltage or electrical damage.
- Electronic components burned or deteriorated are observed.
- The technical service confirms a fault in the set of plates.
Correct replacement identification
The replacement should not be selected solely by the code printed on the PCB.
Internal codes as Pcb10294 They may appear in different versions of the Sommer range. To confirm the compatibility, the complete model of the engine and the original reference assigned by the manufacturer should be checked.
Supply content
- PCB Sommer Electronic Plates Set.
- Reference: Ys11377-00005.
Checks before the order
Before making the order, it is recommended to check:
- That automatism is a Sommer S9060.
- The identification label of the engine.
- The reference of the electronic set installed.
- The appearance and connections of the original plates.
Important: Electronic components should not be connected or disconnected while automatism is fed.
Installation recommendations
The substitution must be carried out with the automatism completely disconnected from the electrical network. If the engine has an emergency battery, you must also disconnect before handling the plates.
After installing the new electronic set it may be necessary to repeat the learning of the route, review the configuration of the automatism and memorize the remote controls again.
Because it is an electronic component, we recommend that the installation and programming be performed by a professional self-catering professional.
