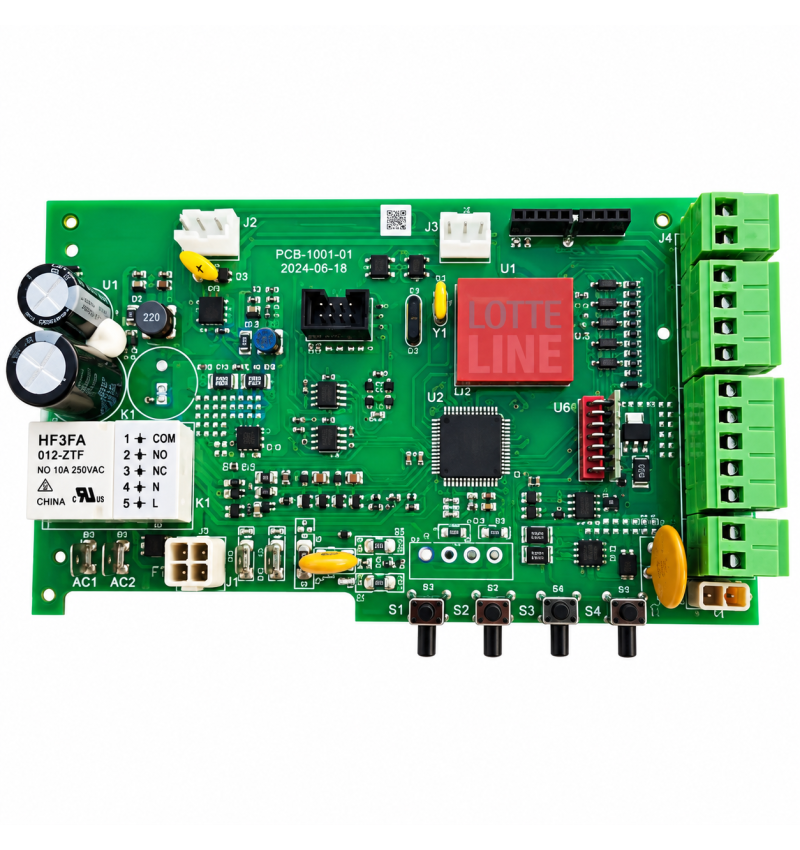

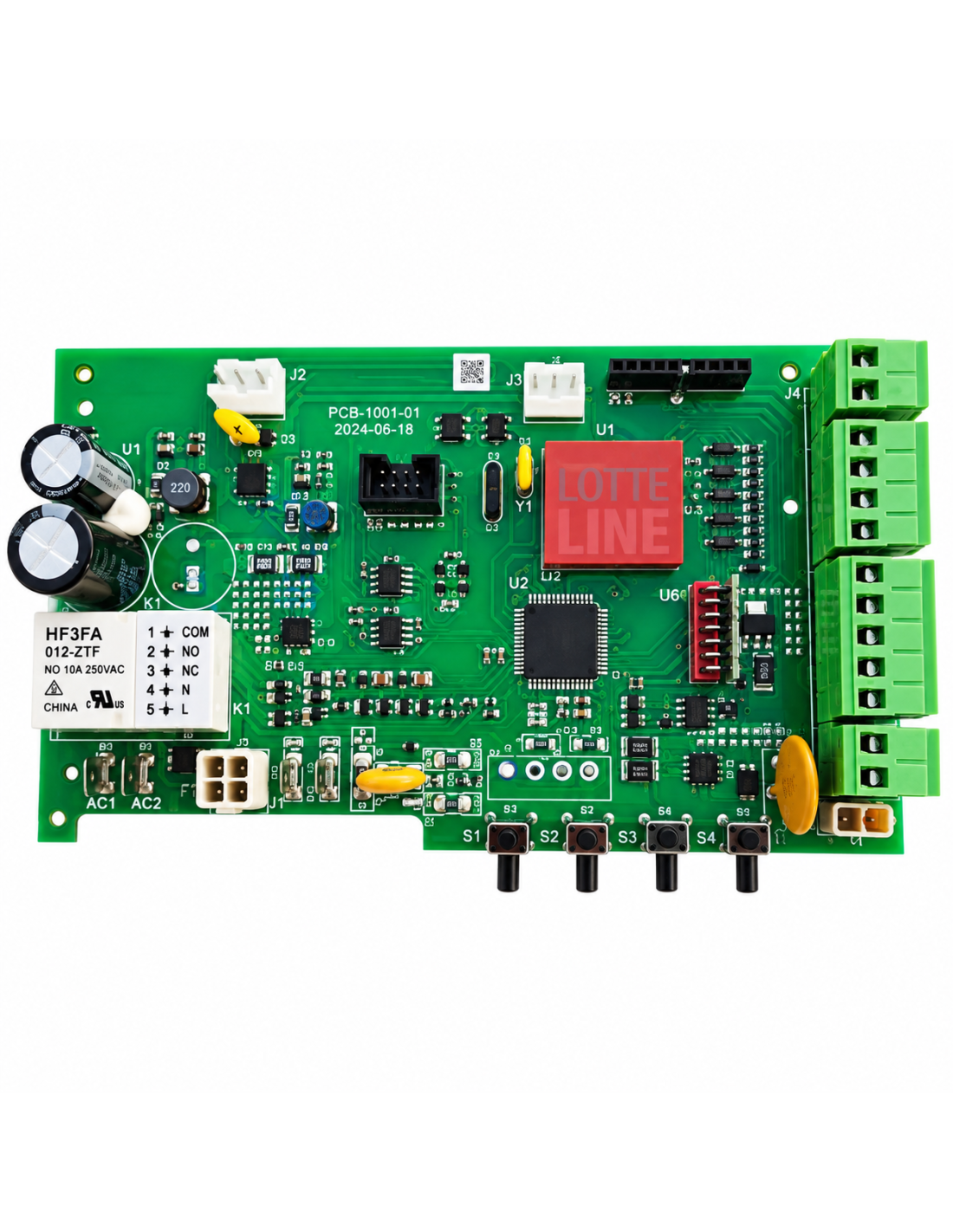

Electronic plate Disec Lcu50DC for ION4B and ION6B engines
NC6LCU50DC
€179.00
VAT excluded
216,59 €
Tax incl.
The DITEC NC6LCU50DC It is the spare electronics Lcu50dc Used to control the automatisms of sliding doors DITEC ION4B E ion6b. It is intended to replace the original plant when it has a fault or malfunction.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
Electronic plate Disec Lcu50DC for ION4B and ION6B engines
The DITEC NC6LCU50DC It is the spare electronics Lcu50dc Used to control the automatisms of sliding doors DITEC ION4B E ion6b. It is intended to replace the original plant when it has a fault or malfunction.
Reference of the replacement: Nc6lcu50dc
Plate model: Lcu50dc
Compatibility: DITEC ION4B E ion6b
Description of the electronic plate
The LCU50DC plant manages the operation of the 24 V DC engine, the control devices and the security elements connected to the automatism. Your screen and navigation buttons allow you to make the configuration, learning of the route and adjustment of the operating parameters.
Control for 24 V DC Engines
Manage the movement and functions of compatible DITEC sliding automatisms.
Screen programming
It has a setup menu and navigation buttons to adjust the automation.
Management of controls and assurance
It includes connections for opening orders, partial opening, stop and safety devices.
Compatibility
| Automation | Compatibility |
|---|---|
| DITEC ION4B | Compatible |
| DITEC ION6B | Compatible |
Important: Check that the plate installed on your motor is identified as Lcu50dc. It should not be confused with centrals used in previous versions of the DITEC ion range.
Main functions
- Control of the DITEC engine of 24 V DC.
- Configuration via screen and navigation buttons.
- Learning and management of the door travel.
- Regulation of strength, speed and decelerations.
- Adjusting the automatic closure and the pedestrian partial opening.
- Step by step control input.
- Tickets for stop and safety devices.
- 24 V output for accessory feed.
- Configurable output for lamp or other compatible signaling.
- Connections for receiver, antenna and accessories provided by the manufacturer.
Technical characteristics
| Product data | |
|---|---|
| Manufacturer | Ditec |
| Reference | Nc6lcu50dc |
| Central model | Lcu50dc |
| Engine type | 24 V DC sliding motor |
| Output | 24 V DC / 0.3 to Maximum |
| Configurable output | 24 V DC / 25 W maximum |
| Programming | Screen and navigation buttons |
| Compatible models | Ion4b and ion6b |
Supply content
- 1 Electronic plate DITEC LCO50DC.
Note: The plug-in radio receiver, controls, battery, Wi-Fi module and other accessories are not included, unless expressly indicated in the product offer.
Do you have doubts about compatibility? Send us a photograph of the installed plate and the engine label. We will help you confirm whether the NC6LCU50DC reference is suitable for your automatism.
Replacement and commissioning
After replacing the electronic power plant, it will be necessary to make the connections, configure the parameters and carry out the travel learning according to the technical manual of the automation. Installed controls and accessories may require a new programming.
Security: Fully disconnect the power before handling the plate. The installation, connection and programming must be performed by qualified personnel.
