Intrabox Prox

Hands-free proximity reader with remote access control for automatic or pedestrian doors, with hands-free openings thanks to its high-powered locks, allowing us to open doors from a metre away. It is ideal for pedestrian doors, automatic doors or office entrances.

• Remote aperture from 1 m away to a maximum of 5 m.

• To control an insulated door, automatic doors, office doors, etc.

• Allows you to create, modify or remove a keychain remotely with the built-in SIM card and unlimited for 10 years.

• Configuration and management will always be done via a web portal in the cloud which can be managed remotely.

• No need for a programmer. The activation or deactivation of keys shall be carried out on the web portal.

FUNCTIONS

• Opening hours
• Registration of events
• Compatible with key switches and transmitters using MIFARE technology
• Maximum number of keys: 3000
• Technical alerts by e-mail
• Annual clock

TECHNICAL CHARACTERISTICS

• Power supply 12/24Vcc 1A
• Cable reader: 4 threads (2 pairs braided) - Ø 8/10e - Maximum distance: 200 m
• GPRS module cabling: 4 wires (2 twisted pairs) - Ø 8/10e - Maximum distance: 200 m
• Dimensions reader: 130 x 130 x 40 mm
• Dimensions Central unit: 74 x 59 x 18 mm
• GPRS dimensions are as follows: 162 x 96 x 53 mm
• Operating temperature: from -20oC to +70oC
• Protection class IP54

CONNECTION SCHEME

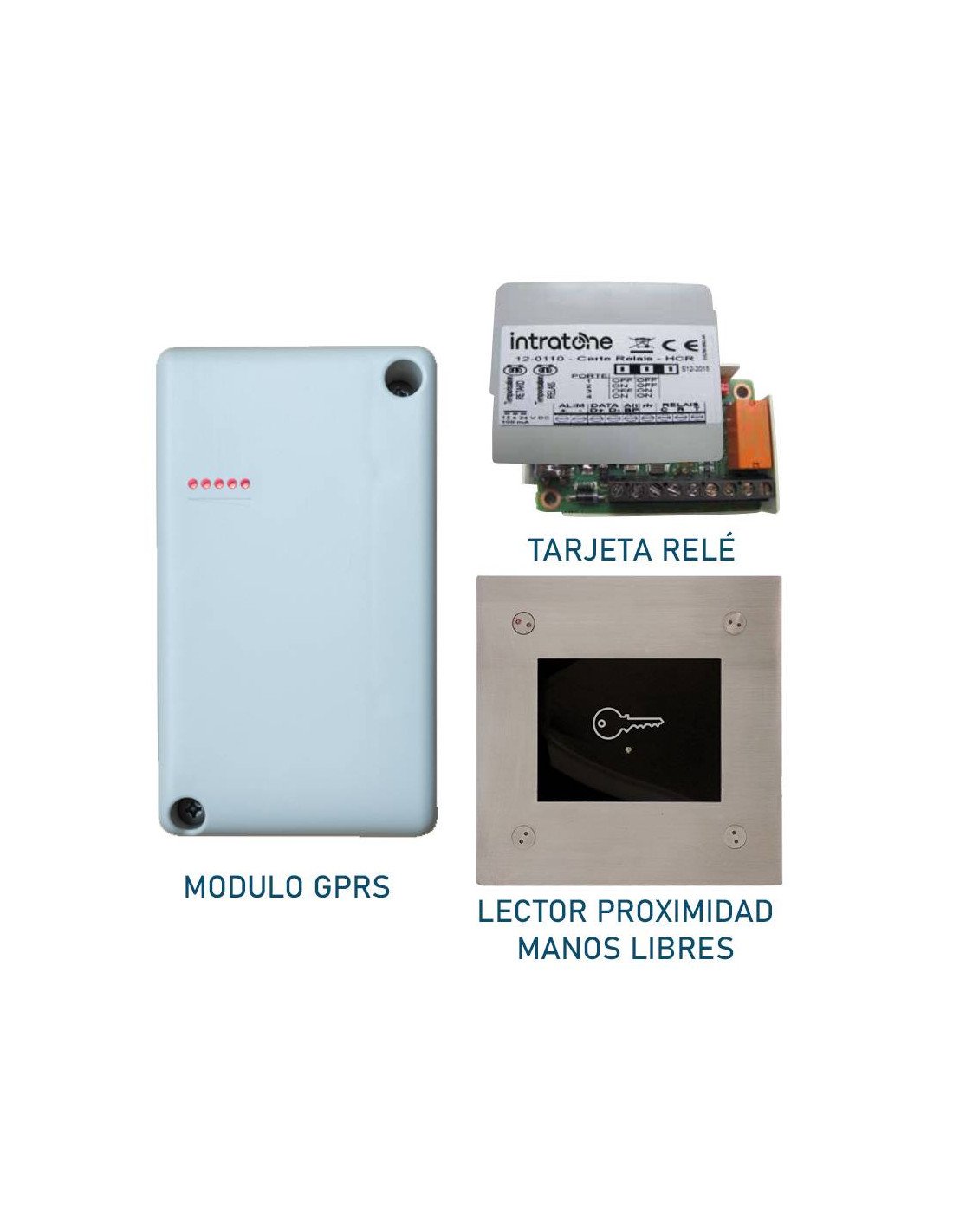

CONTENT OF THE INTRABOX PROX KIT:

• 1 hands free proximity reader (04-0108)
• 1 relay card (12-0110) + 1 transmission
• Module with unlimited data and synchronization for 10 years.
