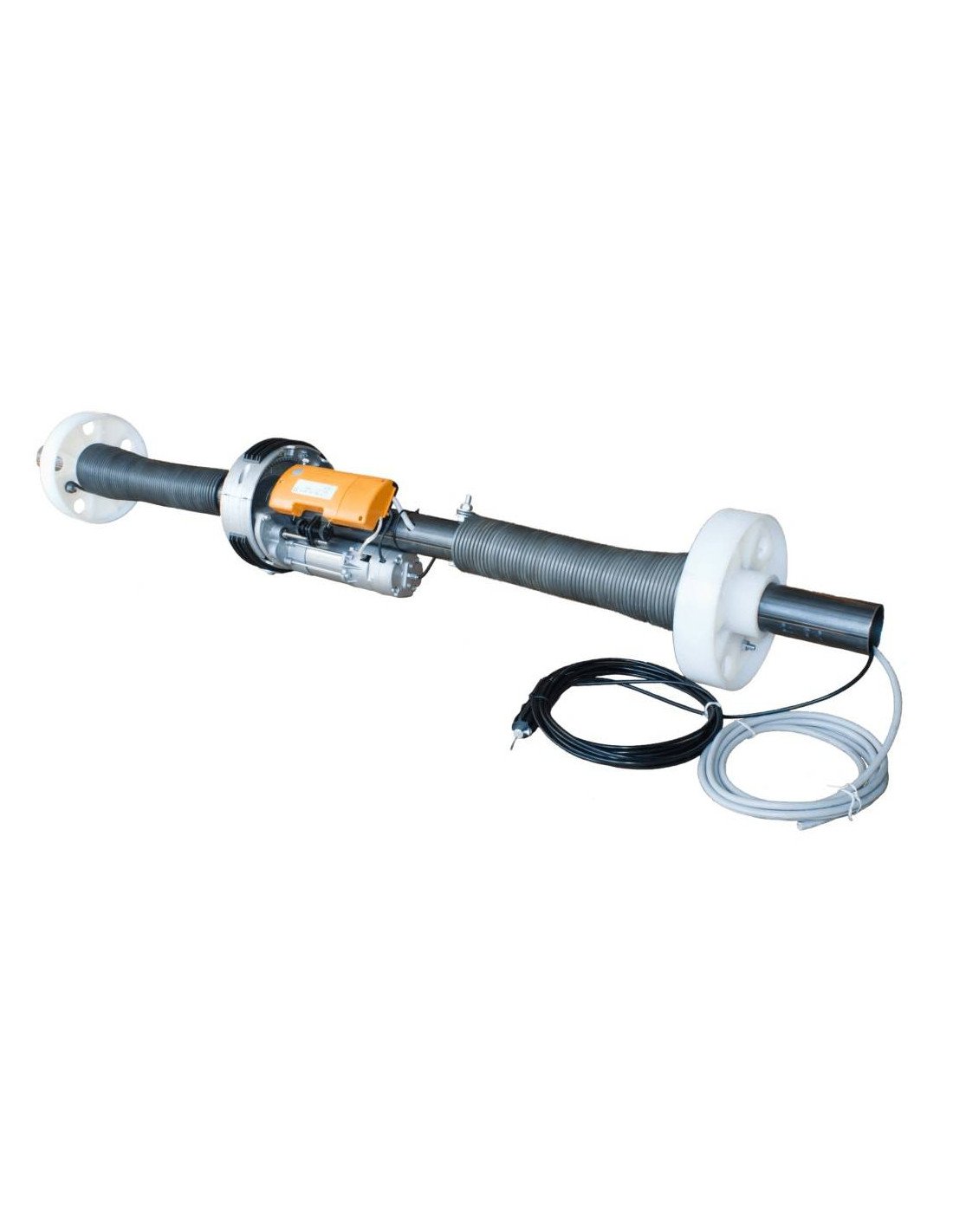

Motor centre axle ACM for use in the manufacture of products falling within heading 8528, ideal for powering commercial doors or private garages.

Do not allow the engine to lock when the door is stopped or left closed, if there is no electricity, you can climb by hand. It is recommended to use in places where there is NO alternative access to the shop/garage or an external brake unlocker cannot be installed, as when there is no electric current it can be operated manually.

Notes: it is important to use safety devices (locks) to block the blind when closed.

The engine ACM it gives us the possibility of machines and apparatus for the manufacture of semiconductor wafers with remote controls.

TECHNICAL CHARACTERISTICS

• Powerful engine of 170 Nm. of 630 W at 10 rpm.
• To operate shutters up to A hundred and seventy pounds.
• Machinery for making pulp of fibrous cellulosic material
• AC power supply at 220Vac
• Equipped for 200/220 pulleys with corresponding adapters.
• To operate blinds up to 9m square.
• Mechanical race finishes with simple programming

" IN AXLES LESS THAN 42 MM IN DIAMETER (DUE TO THEIR SMALL THICKNESS) THEIR INSTALLATION IS NOT RECOMMENDED. ANYWAY IN THE PRODUCT ACCESSORIES YOU CAN FIND SHAFT ADAPTERS "

• Aluminium body and crown pressurised in steel grates
• Slip of the crown on roller bearing
• Transmission shaft on double ball bearings
• Asynchronous motor at 4 in. it's about 1400 rpm.
• Insulation class: B
• Thermal protection in the engine: 160°C.
• Easily adjustable screw cap
• Maximum height of the metal closure: 6 metres
• Power cable: 4x1 mm2 for Unititan
• Temperature for operation: -20°C. + 85 degrees.
• Preparation for the application of the P-PBM-P115 electrobrake.

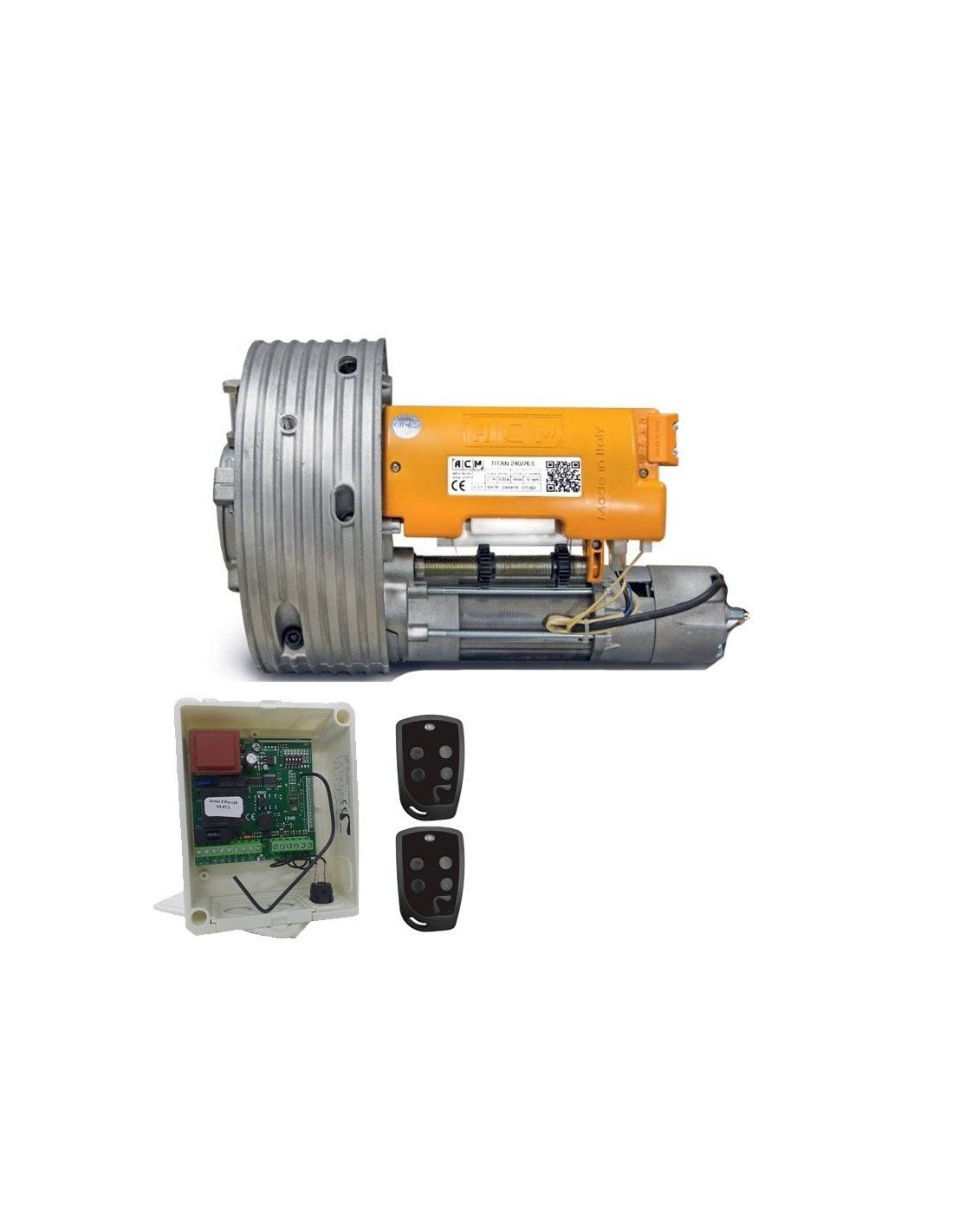

THE KIT INCLUDES:

• Engine ACM other, of circular cross-section
• Manoeuvre table with built-in receiver at 433,92 MHz
• 2 Controls Pujol Rollingcode at 433.92 MHz

MANUAL

Installation manual ACM Titanium 170 Kg
