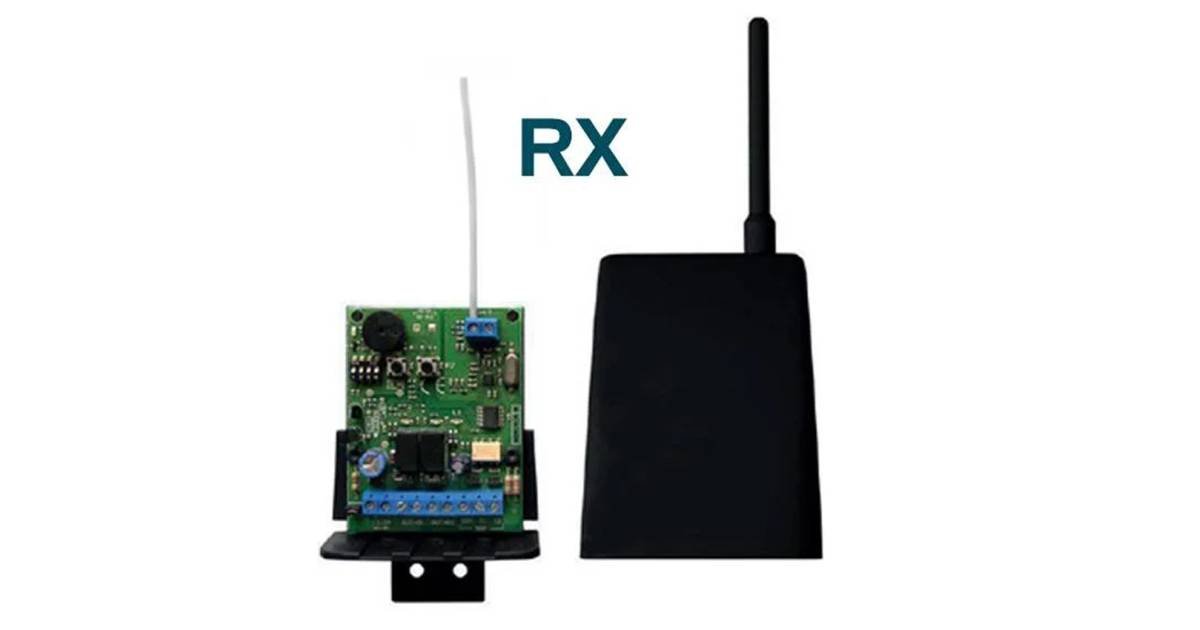

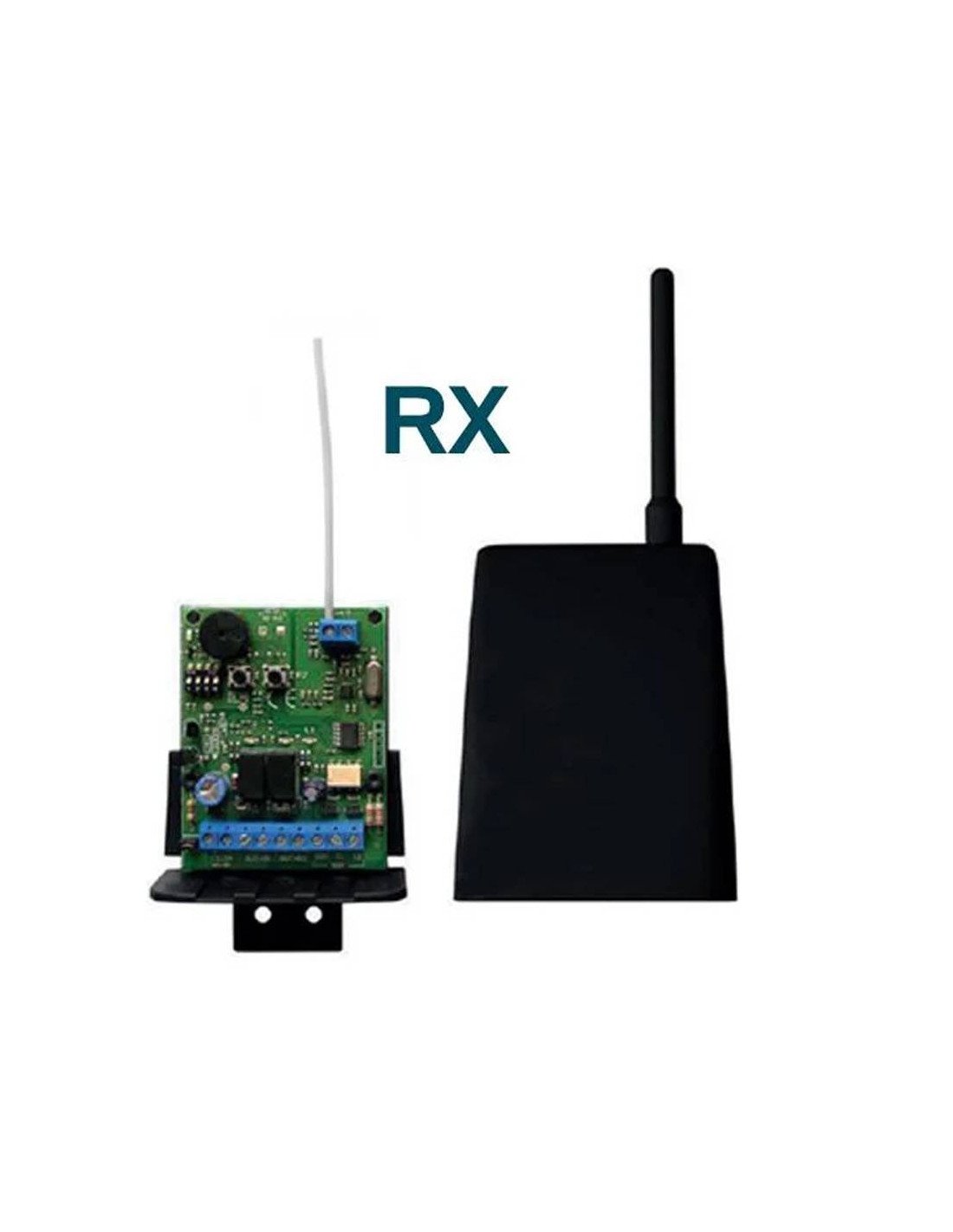

V2 WES Sensor is the Emisor used for radio control of safety bands, which will allow us to install the anti-crush rubber wirelessly thanks to the radio frequency transmitter-receiver.

It is necessary from the Base (Receiver) to be able to function. We have the Base + Sensor Kit.

CHARACTERISTICS

• WES (Wireless Edge System) is the new V2 which allows radio control of security bands.
• The system consists of a base directly connected to the manoeuvring frame and one or more sensors (up to 8 per base) connected to the safety belts.
• The base is fed by the maneuver board and constantly checks the status of the connected sensors.
• Up to 8 sensors can be connected to each base.
• The system is compatible with traditional N.C contact safety belts and resistive safety belts (8,2 kohm).
• The system is compatible with any maneuver board.
• As an alternative to the WES base, the additional modules of the WES-ADI and WES-EASY manoeuvre charts may be used.

TECHNICAL CHARACTERISTICS

MANUAL

Instruction manual for the WES-SENSOR
