Kit Wireless Safety System Cardin RadioShield 868 MHz for Sensible Band 8k2

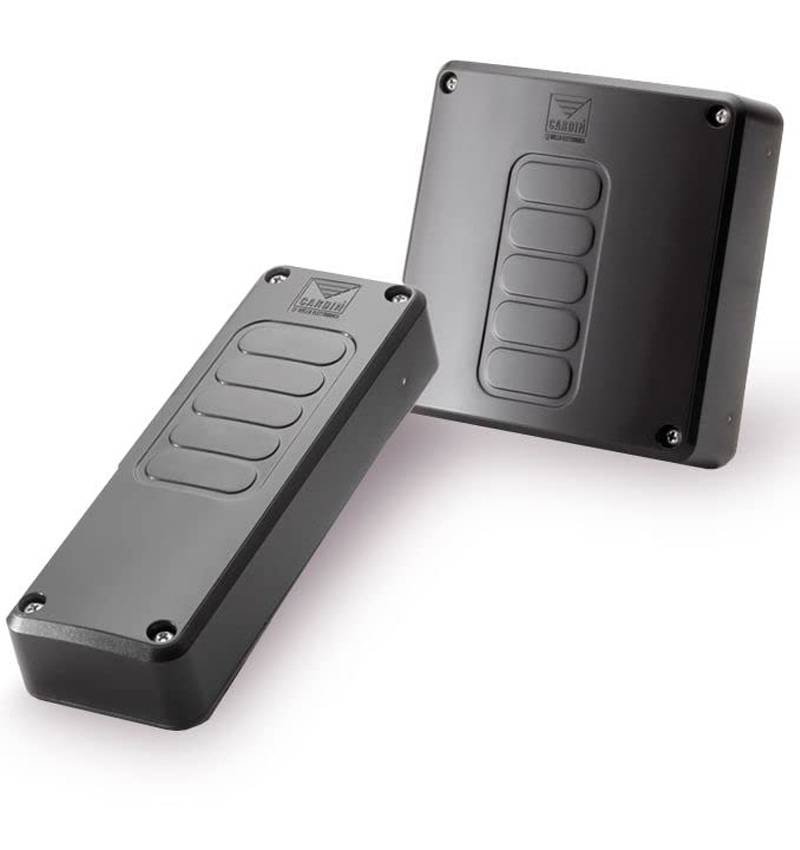

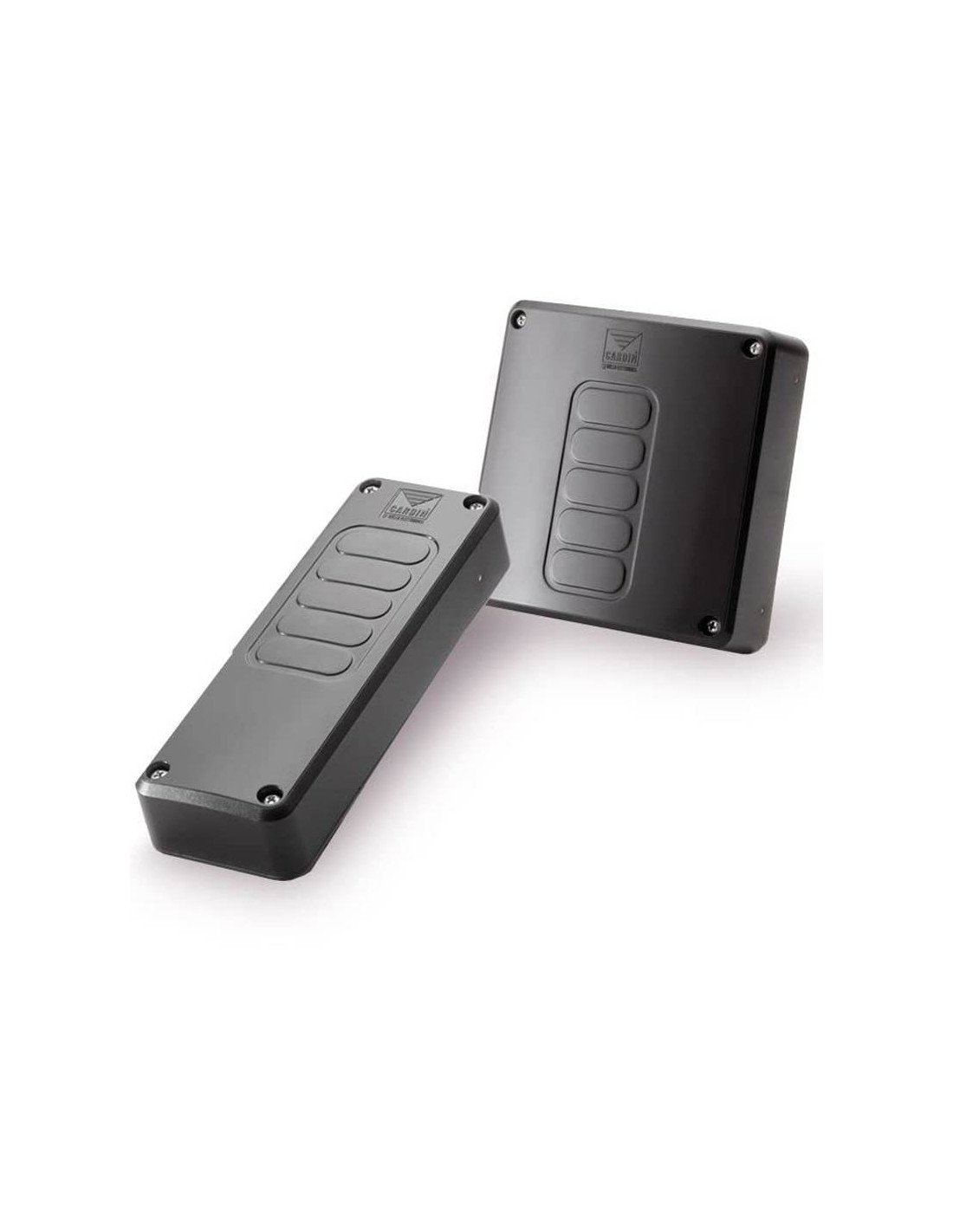

The Kit Radioshield 868 MHz is composed of a wireless emitter and a safety receiver, designed to connect a Resistive sensitive band 8.2 kohm No need to install mobile wiring between the door and the maneuver box.

This system allows transmitting the safety signal of the sensitive band by radio, being a specially useful solution in Rolling doors, industrial doors, sliding doors, cancelas and automatisms where it is not practical to get wiring.

Thanks to its operation in 868 MHz, the system offers a stable and reliable communication between the emitter installed on the mobile part of the door and the receiver connected to the maneuvering box.

Kit content

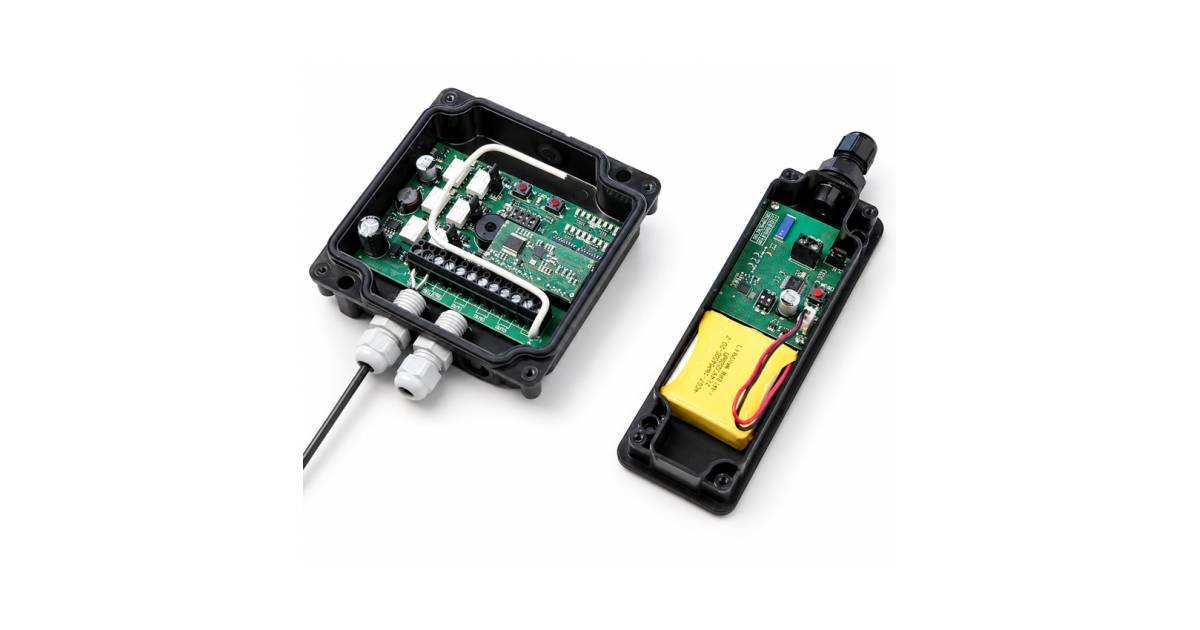

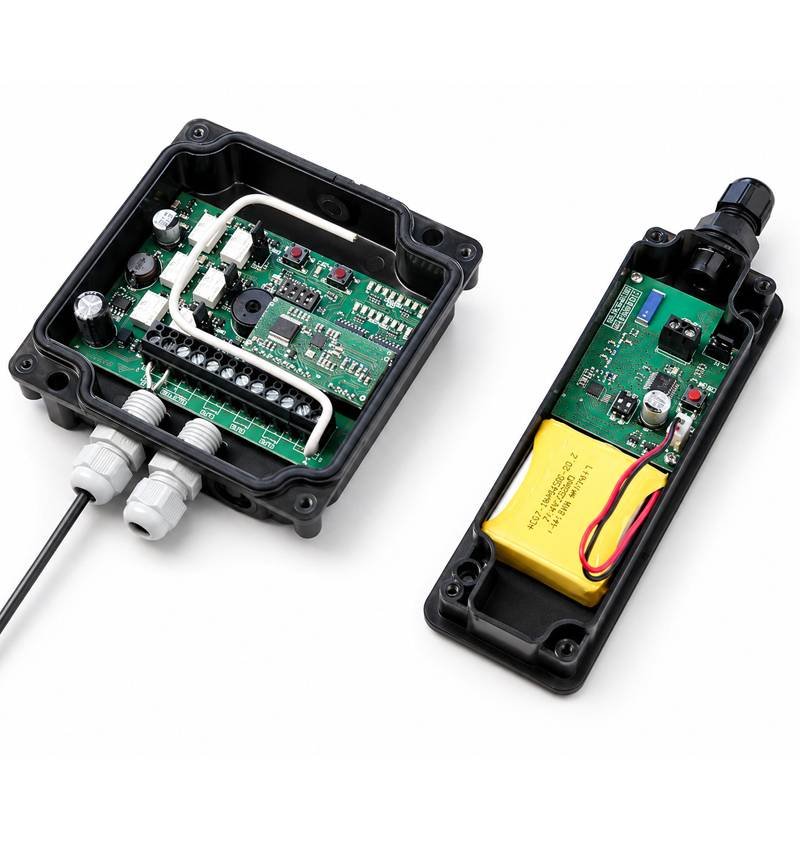

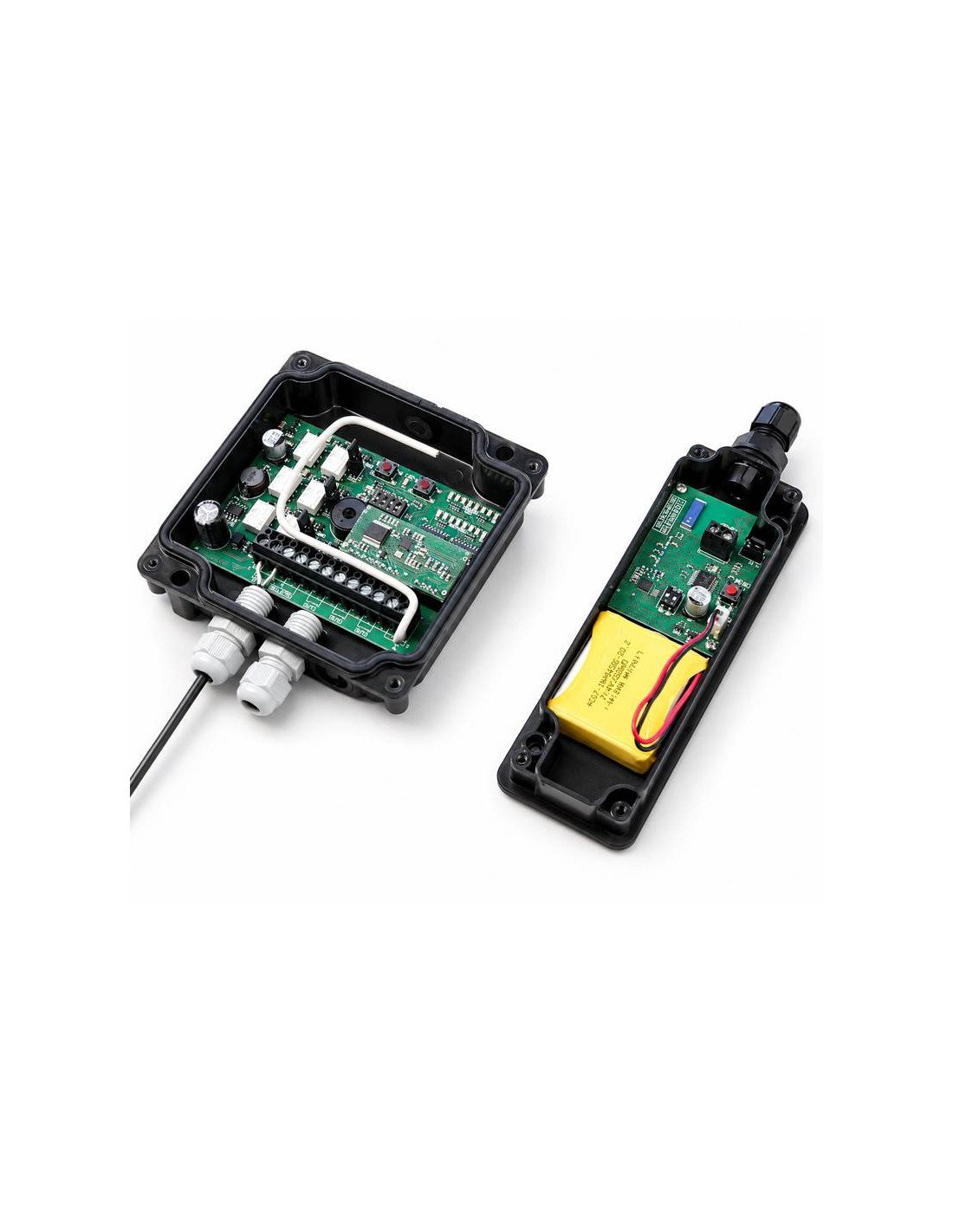

• 1 868 MHz wireless emitter For sensitive band connection 8.2 kohm.
• 1 Safety Receiver 868 MHz for connection to the maneuver box.

Operation of the system

The issuer is installed on the moving part of the door and connected directly to the 8k2 resistive sensitive band. When the band detects an obstacle or a pressure, the emitter transmits the radius security signal to the receiver.

The receiver It is installed next to the maneuver box and delivered the safety signal by contact, allowing to stop or reverse the maneuver according to the configuration of the central.

In this way, the use of spiral cables, cable chains or exposed mobile connections, achieving a cleaner, safe and reliable installation.

Main advantages

• Complete Kit Emitter + Receiver For wireless sensitive band.
• Frequency 868 MHz For a stable and safe communication.
• Compatible with resistive sensitive bands 8.2 kohm.
• Ideal for roller and industrial doors where you can not pass mobile cable.
• Bidirectional system For more reliable safety supervision.
• Approximate maximum range of 20 meters.
• Degree of protection IP65, Suitable for abroad installations.
• Low battery warning In the issuer.
• Simple installation and reduced maintenance.

Recommended applications

• Automatic roller doors.
• Industrial doors.
• Motorized sliding doors.
• Automatic cancels.
• Facilities where mobile wiring can not be passed up to the safety band.
• Automatisms that need a 8k2 wireless sensitive band.

Compatibility with maneuver frames

This kit can be used with maneuver boxes that have Safety entrance for sensitive band 8k2 o Safety entry configurable by contact, depending on the type of receiver and the configuration of the box.

Is an adequate solution for rolling doors centers such as Rpqblackt 868 MHz, provided that the security entry is configured correctly to work with the receiver signal.

Installation recommendation

For proper operation, the sensitive band must be connected to the emitter installed on the mobile part of the door. The receiver must be connected to the maneuver box in the corresponding safety entry. Once installed, it should be checked that by pressing the sensitive band the door stops or invests the maneuver according to the configuration of the automation.

This system is especially recommended when you need to meet a security function at the door, but you do not want to install a mobile wiring from the sheet or blind to the maneuver box.
