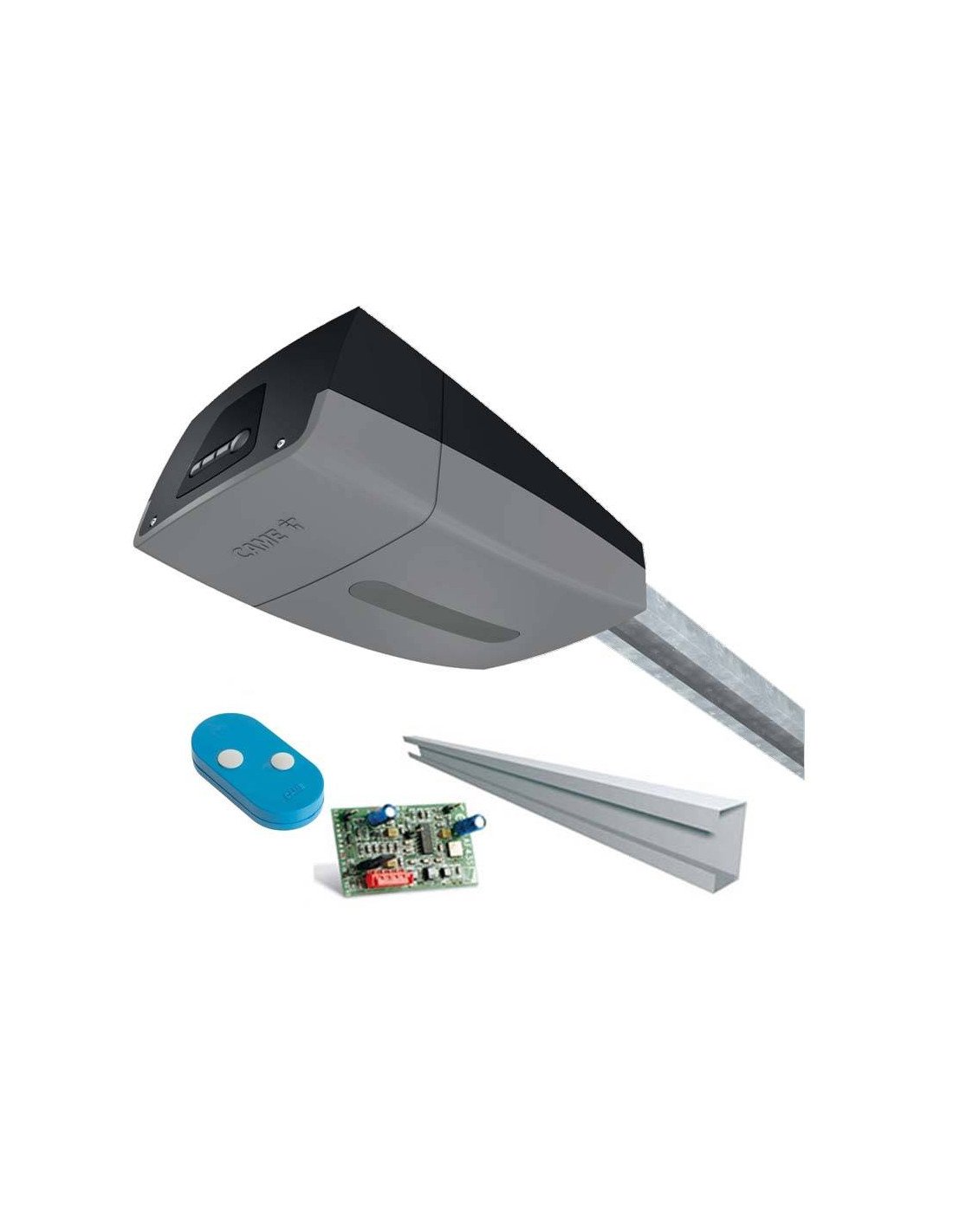

Kit CAME VER06 motor from 600N to 24V for sectional doors up to 9m² with chain guide and a Rollingcode Emitter.

The ideal solution for sectional and overhead doors for residential use:

■ Attachment of automation directly to the transmission guide

■ Electronic board with separate terminals for easy wiring. Memorization of up to 250 different users

■ External display buttons to facilitate commissioning and diagnostics phases

■ Radio Decoding, Rolling Code and Key Code (Twin) built-in R700 accessory

■ Silent and reliable sliding guides with strap and chain and external release with string applicable to the door handle-lock system

■ Possibility of emergency operation in the event of a power failure

THE KIT CONTAINS

■ 801MV-0050: Engine with control panel with encoder.

■ 001AF43S: AF43S 433 MHz pluggable radio frequency card.

■ 806TS-0121: TOPD4RBS Quad-channel dual-frequency rolling code transmitter.

■ 119RV826: Indication Plate

■ 001V06001: Chain guide 3002mm/3520mm/4002mm

SPECIFICATIONS

• Degree of protection (IP) 20
• Power supply (V - 50/60 Hz) 230 AC
• Power supply for motor (V) 24 DC
• Stand-by consumption (W) 4.5
• Max. power accessories (W) 20
• Max. power (W) 90
• Manoeuvring speed (m/min) 6.5
• Tensile force (N) 600
• Sound pressure LpA (dBA) ≤70
• Cycles/hour 10 Operating temperature (°C) -20 ÷ +55
• Apparatus Class II
• Weight (kg) 4.9
