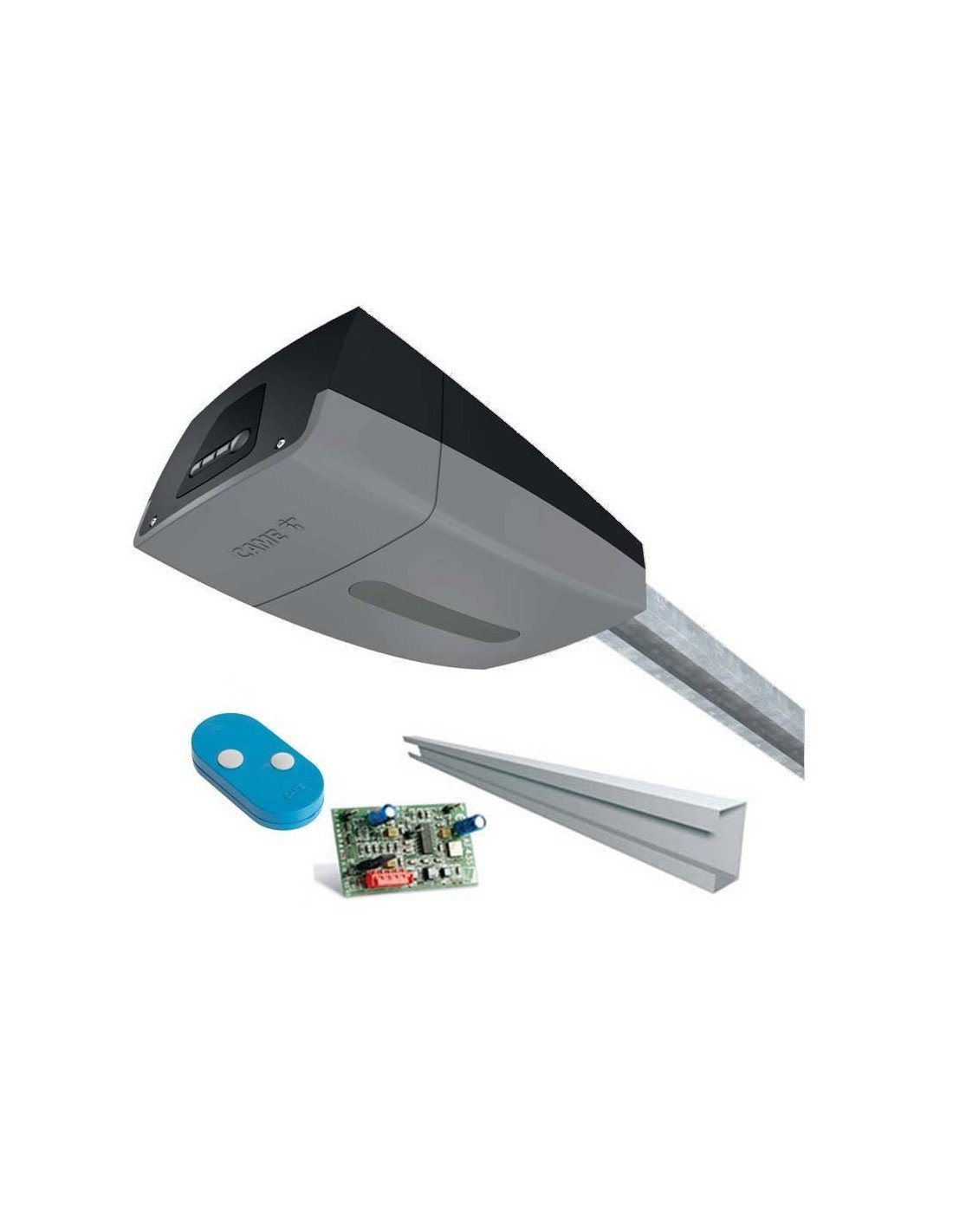

Motor kit CAME Ver13plus from 1300N at 24V for sectional doors up to 21m2 with belt guide and Rollingcode Emitter.

The ideal solution for sectional and tilting doors for residential use

■ Fixing of automation directly to the transmission guide

■ Electronic card with separate terminals for easy wiring. Memory for up to 250 different users

■ External display pushers to facilitate start-up and diagnosis

■ Radio decoding Rolling Code and Key Code (Twin) built into the R700 accessory

■ Silent and reliable strap and chain sliding guides and external cord unlock applicable to the door handle-lock system

■ Possibility of emergency operation in the event of power failure

THE KIT CONTAINS:

■ 801MV-0020: Engine with gearbox with encoder.

■ 806TS-0121: TOPD4RBS Rolling Code emitter with dual four channel frequency.

■ 001AF43S: AF43S Plug-in radio frequency card 433 MHz

■ 119RV826: Indication plate

■ 001V0685: Leashed guide

TECHNICAL CHARACTERISTICS

• Protection degree (IP) 40
• Power supply (V - 50/60 Hz) 230 AC
• Power supply to engine (V) 24 DC
• Standby consumption (W) 7
• Maximum power of fittings (W) 40
• Maximum power (W) 280
• In the case of vehicles of categories M1 and N2 with a maximum mass exceeding 2000 kg:
• In the case of vehicles of categories M1 and N2
• Sound pressure LpA (dBA) ≤ 70
• Cycles/hour 10 Operating temperature (°C) -20 ÷ +55
• Weight (kg)
