Roof motor Clemsa AS60 (600N) or AS120 (1000N) for sectional doors up to 15m2
Roof motor Clemsa AS60 (600N) or AS120 (1000N) for sectional doors up to 15m2
Roof motor Clemsa AS60 (600N) or AS120 (1000N) for sectional doors up to 15m2
Roof motor Clemsa AS60 (600N) or AS120 (1000N) for sectional doors up to 15m2

Roof motor Clemsa AS60 (600N) or AS120 (1000N) for sectional doors up to 15m2

KIT AS CLEMSA
€174.00
VAT excluded

210,54 €

Tax incl.

Electromechanical operator Clemsa AS60 (600N) or AS120 (1000N) for sectional doors up to 15m2 with built-in frame. Optimized installation times thanks to its patented three-step assembly. Courtesy light built in.

The KIT consists of a 230Vac electromechanical actuator with built-in box, RNE248U receiver and 2 NT2S emitters at 433 MHz.

The guide can be chosen at the choice of the customer according to their needs in our deployable.

KIT AS CLEMSA
THE AS60/120 GUIDE



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain Except bulky



Electromechanical operator Clemsa AS60 (600N) or AS120 (1000N) for sectional doors up to 15m² with built-in frame. Optimized installation times thanks to patented three-step assembly. Built-in courtesy light.

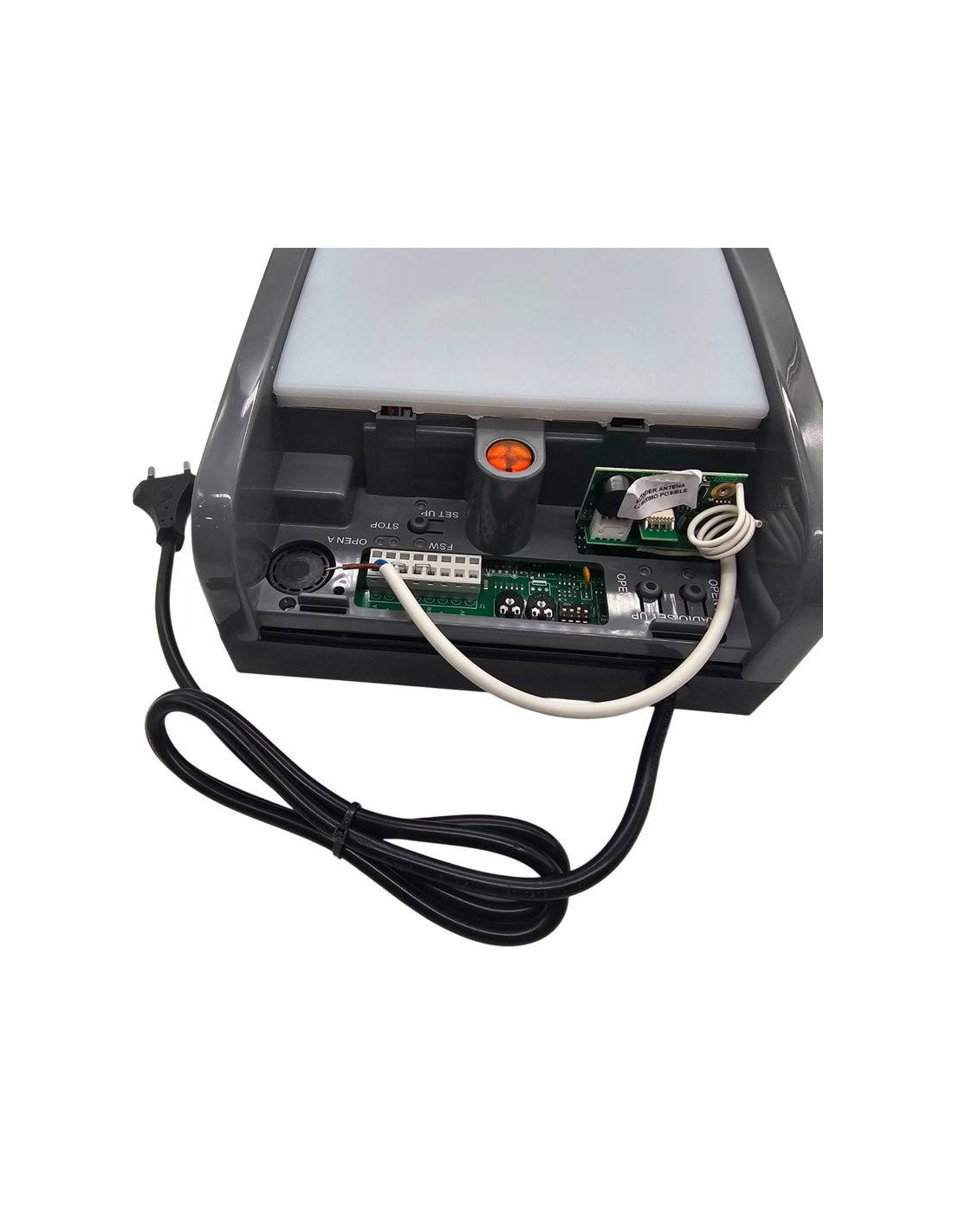

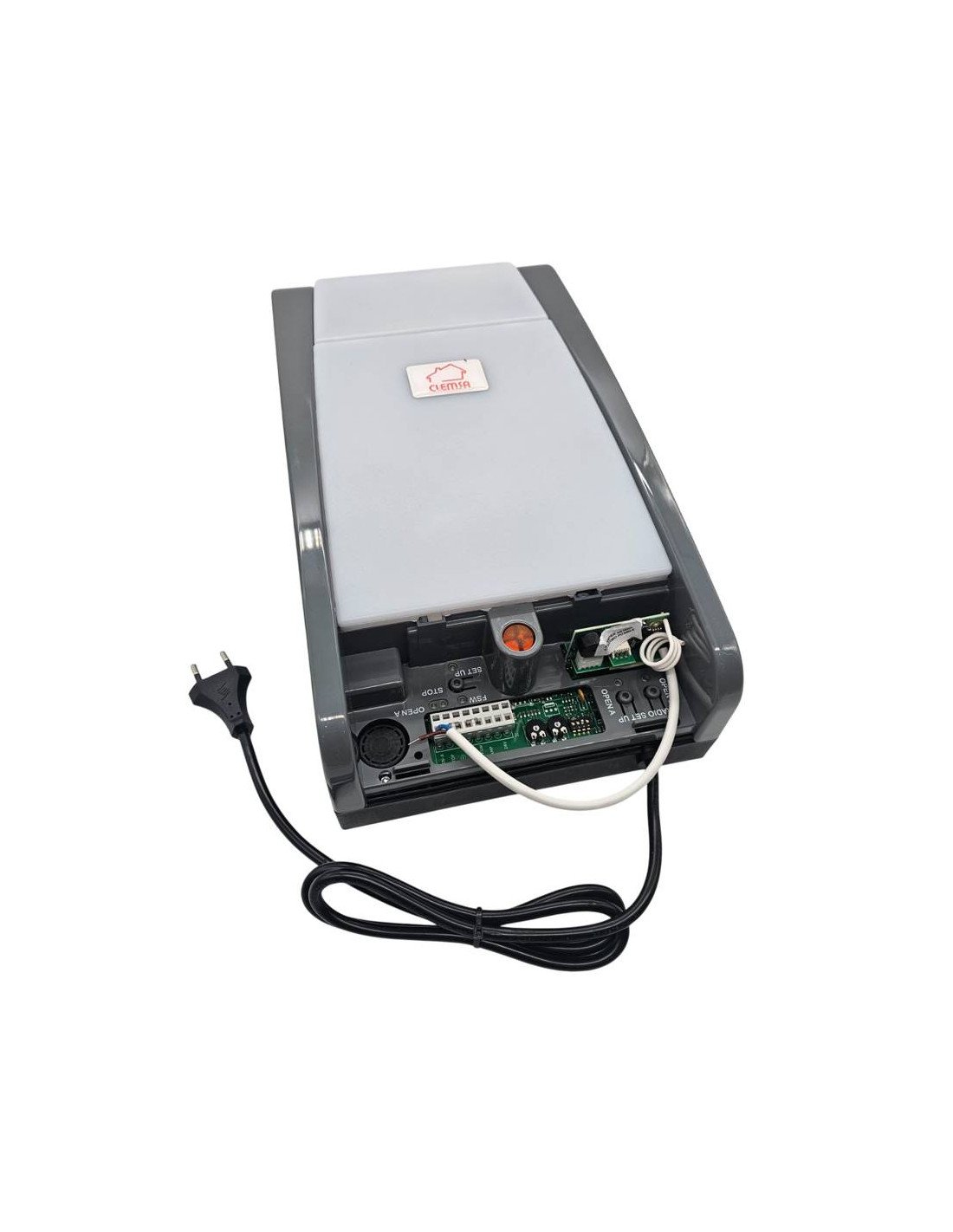

The KIT consists of a 230Vac electromechanical actuator with built-in panel, RNE248U receiver and 2 NT2S emitters at 433 MHz.

The guide can be chosen at the customer's choice according to their needs in our drop-down menu.

AS 60 Drive 600 N

Electromechanical drive. 600 N. Frame included CLAS 600. Up to 5×2.5 m (WxH). 230 Vac.

Electromechanical drive for sectional doors up to 5.00×2.50 m, and 3.00×2.50 m spring baud doors. Courtesy light. Three-step assembly (Patented). Thrust 600 N. Power 220 W. Maximum number of consecutive cycles 30. No-load carriage speed 6.6 m/min. CLAS 600 control panel included. 230 Vac. Operating temperature from -20ºC to +55ºC.

AS 120 Drive 1,000 N

Electromechanical drive. 1000 N. Frame included CLAS 1000. Up to 5×3.10 m (WxH). 230 Vac.

Electromechanical drive for sectional doors up to 5.00×3.10 m, and spring bake doors of 3.00×3.10 m. Courtesy light. Three-step assembly (Patented). Thrust 1000 N. Power 350 W. Maximum number of consecutive cycles 30. No-load carriage speed 6.6 m/min. CLAS 1000 control panel included. 230 Vac. Operating temperature from -20ºC to +55ºC.

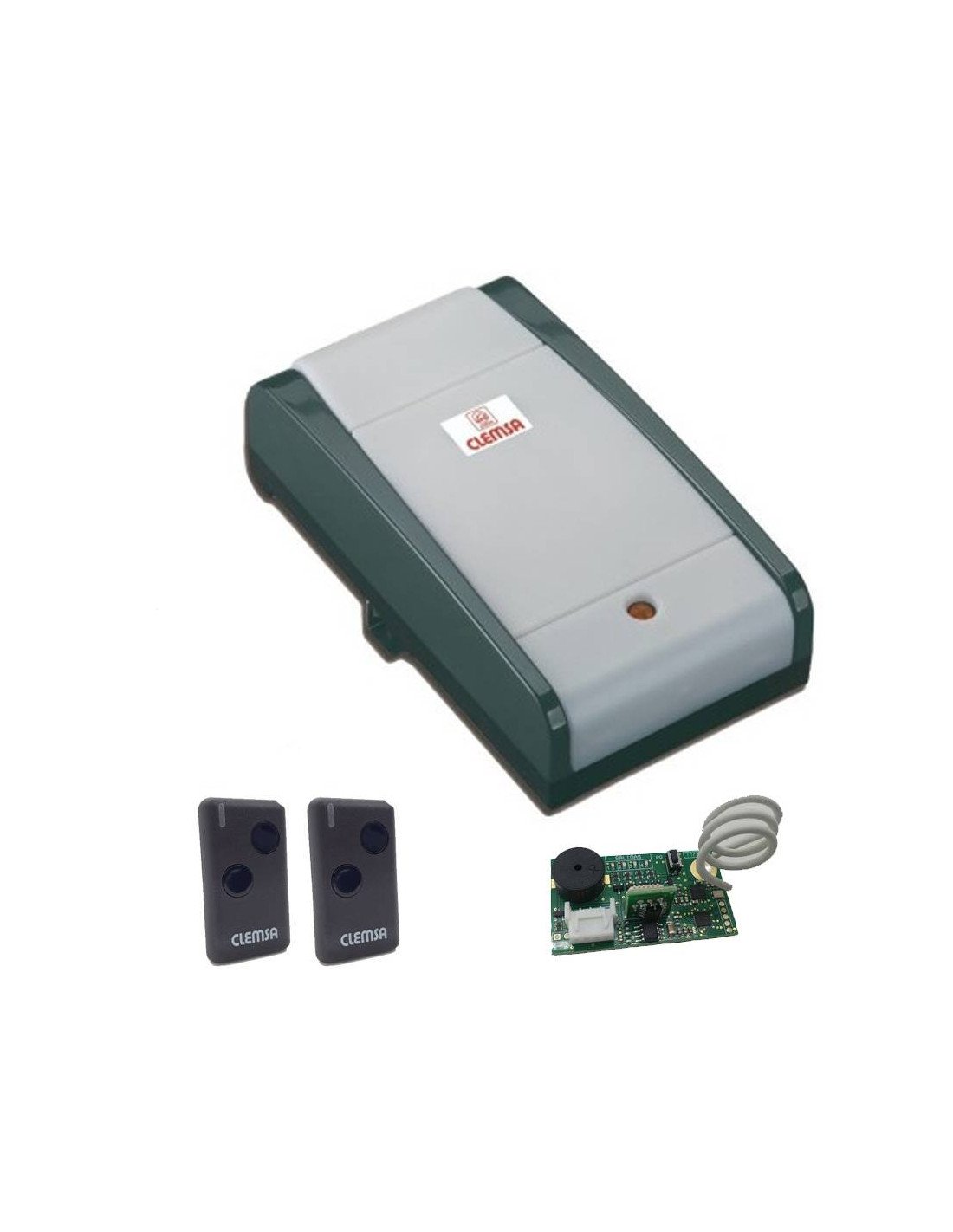

THE AS60 KIT INCLUDES (340000600568):

  • 1 pc 350000002587: AS 60 sectional motor with built-in frame
  • 1 unit 120000002904: RNE 248 receiver card with capacity for 400 users
  • 2 pcs 110000002740: NT2S Mutan-II RollingCode 433 MHz transmitter

THE AS120 KIT INCLUDES (340001200572):

  • 1 pc 350000002586: AS 120 sectional motor with built-in frame
  • 1 unit 120000002904: RNE 248 receiver card with capacity for 400 users
  • 2 pcs 110000002740: NT2S Mutan-II RollingCode 433 MHz transmitter

MANUALS

Force (N)
1,000N
From 600N to 700N
Maximum door area (m2)
from 10m² to 13m²
from 14m² to 17m²
