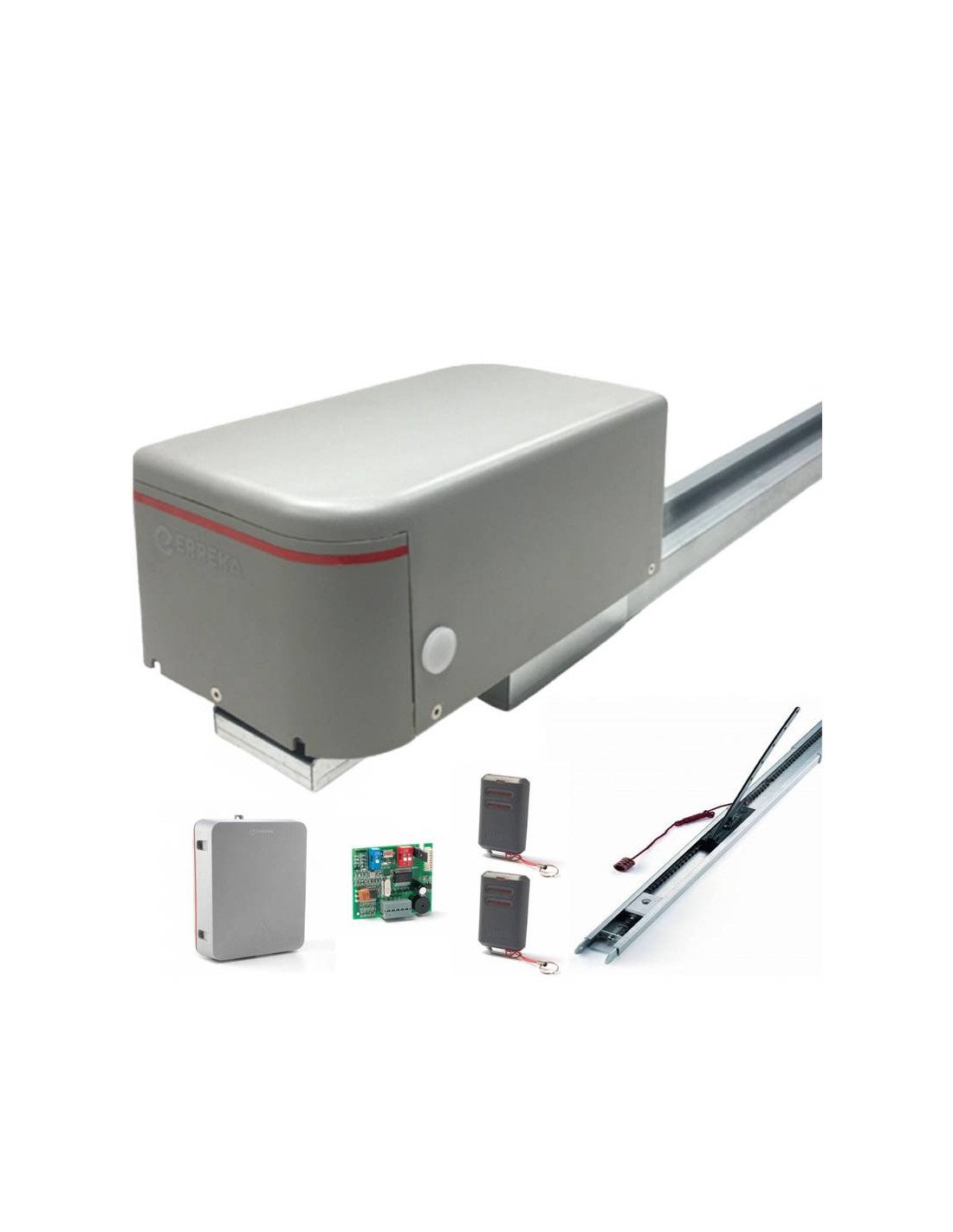

KIT Roof motor Erreka MAXI 24V Intensive use 1200N for sectional doors up to 18m2. What. It has coding for self-learning of the route, anti-crush system and an independent maneuver board.

CHARACTERISTICS

• Intensive use
• Self-learning of the path to encode
• Programmable opening/closing speed
• Electronic soft stop start
• Built-in anti-lock system
• Easy unlocking with lock option
• Galvanized sheet guide with chain drag system
• Battery operation (In the case of vehicles of categories M1 and N2)

TECHNICAL CHARACTERISTICS

• Food: -
• Power absorbed 73 W
• Intensity: 10 TO
• For the purposes of this Regulation, the following definitions apply: -
• Power supply to engine: 24 Vdc
• Power: 1200 N
• Speed is: 12-19 cm/s
• Lockdown: Yes , I did
• End of the race: Yes , I did
• Encoding: No, not at all
• Pinot: 1/2x1/8”-Z10
• Working cycles: Intensive use
• Degree of protection: IP20
• The service temperature: -20 to 60 oC
• Engine weight: 9 kg
• Pack size: 18x18x25 cm
• Maximum door area: 18 m2

THE MAXI11 KIT CONTAINS:

• 1 unit MXS120: Electromechanical engine 1200 Nm.
• 1 unit LIVE-D203This is the manoeuvre chart.
• 1 unit IRE2: Card receiver FixCode 433 MHz.
• 1 unit AMX03: 3.3m guide in 3 pre-assembled pieces.
• 2 unid OF WHICH:: FixCode transmitter KUMA 433 MHz with two channels.

THE MAXI12 KIT CONTAINS:

• 1 unit MXS120: Electromechanical engine 1200 Nm.
• 1 unit LIVE-D203This is the manoeuvre chart.
• 1 unit IRE2: Card receiver FixCode 433 MHz.
• 1 unit AMX04: 4.4m guide in 4 pre-assembled pieces.
• 2 unid OF WHICH:: FixCode transmitter KUMA 433 MHz with two channels.

MANUALS

• Speed guide to the MAXI engine 2.77 MB
• Speed guide to the MAXI engine lane 316.40 KB
