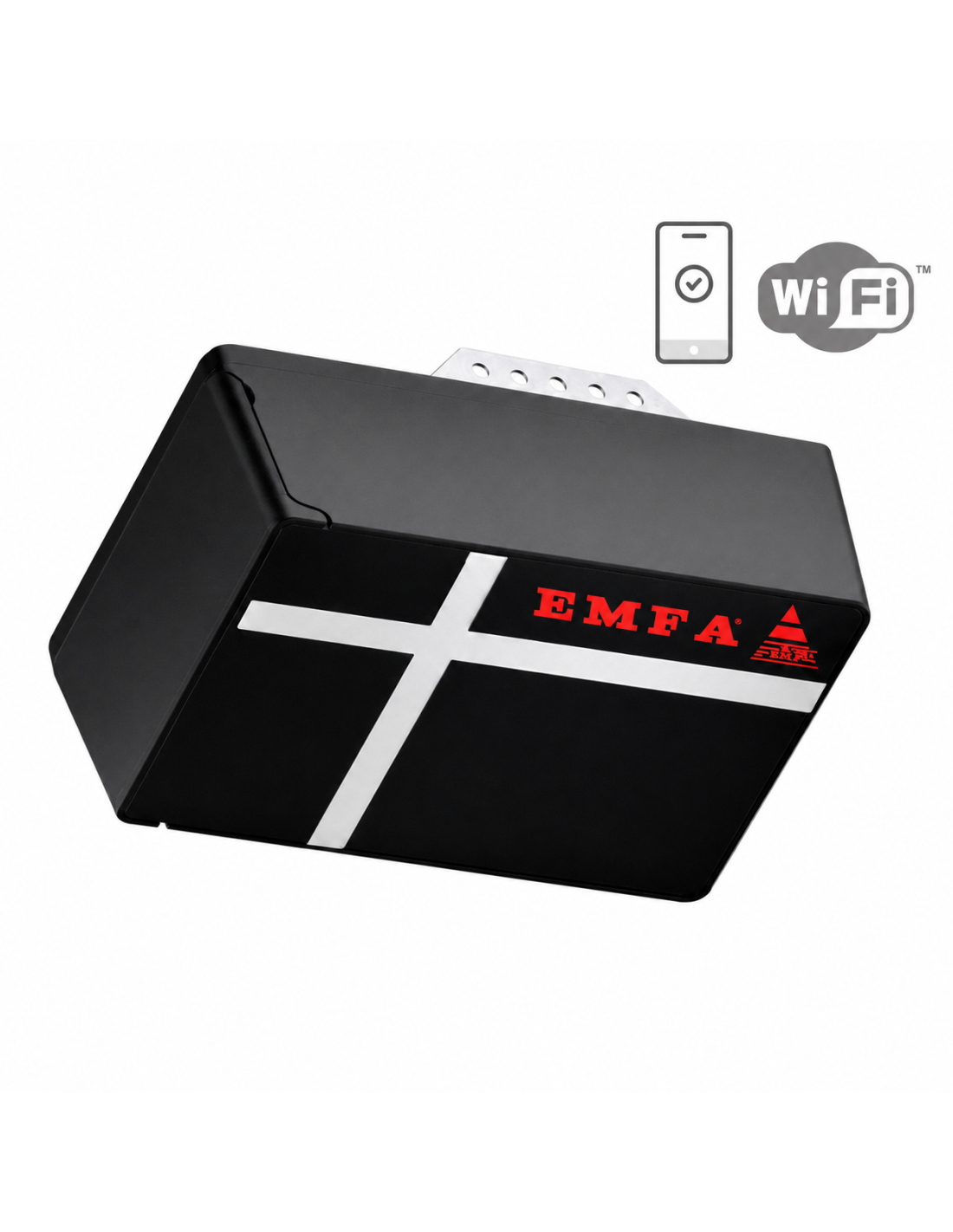

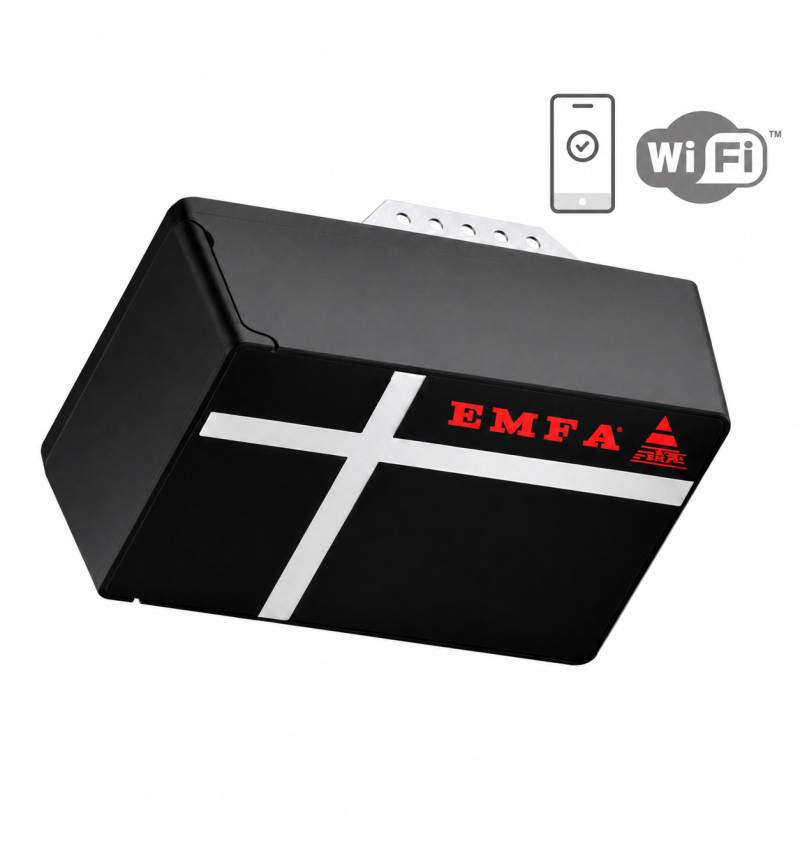

Engine head EMFA MTCH NEW WIFI 800N and 1000N without a guide

Engine head EMFA MTCH New WiFi 800N and 1000N

The engine head EMFA MTCH New WiFi It is intended to replace the engine of an installation EMFA Existing MTCH, allowing us to take advantage of the Transmission guide and compatible controls That the client already has installed.

This product includes only the Engine head with electronic picture, radio receiver and built-in WiFi connection. The guide is not supplied, the controls or the wall button.

Substitution engine for installations EMFA Mtch

The new head maintains compatibility with the guides used by previous engines EMFA MTCH, so it is an adequate solution when the engine or electronics present a fault, but the iron guide, the belt and the rest of the mechanical installation are in good condition.

Is available in versions of 800 N and 1,000 N, allowing to select the proper power according to the weight and dimensions of the door.

Main features

• Electromechanical motor head for sectional doors and swinging springs.
• Available in versions of 800 N and 1,000 N.
• Internal motor 24 V DC.
• Feeding 230 V AC.
• Compatible with the range strap guides EMFA Mtch.
• Integrated wifi To control the door from the mobile phone.
• Operation by application Smart GDO.
• Radio receiver 433 MHz incorporated.
• Start and stop soft.
• Self-learning of travel and power control.
• Detection of obstacles with movement investment.
• Programmable automatic closing function.
• Possibility of connecting security photocells.
• Input for alternative pushbutton.
• Connection for flashing lamp and safety devices.
• Unlocking manual in case of power failure.

Models available

Product content

• 1 motor head EMFA MTCH New WiFi of 800 N or 1,000 N, according to the selected option.
• Electronic control of incorporated control.
• Radio receiver of 433 MHz built-in.
• Integrated WiFi module.

This product does not include

• Iron Guide or Transmission Rail.
• Strap, trawl or accessories belonging to the existing guide.
• Remote controls.
• Wireless wall knob.
• Safety photocells.
• General installation accessories.

Checks before buying

• Verify that the installed guide corresponds to the range EMFA Mtch.
• Check that the strap, the car and the mechanical elements are in good condition.
• Select the same power from the existing motor: 800 N or 1,000 N.
• Check the compatibility of the existing controls with the receiver of the new head.
• The compatible controls should be memorized again in the new engine receiver.

In case of doubt: We recommend sending us a photograph of the engine, the feature label and the existing controls before placing the order.
