Motorline Rosso Evo 1200N | 24V Silent Sectional Motor for garage doors up to 18 m²

Motorline Rosso Evo 1200N | 24V Silent Sectional Motor for garage doors up to 18 m²

Name: Motorline Rosso Evo 1200N | 24V Silent Sectional Motor for garage doors up to 18 m²
Brand: Motorline
SKU: ROSSO EVO 120
Price: 201 EUR
Availability: InStock

Reference ROSSO EVO 120

€201.00

VAT excluded

243,21 €

Tax incl.

Roof motor Motorline ROSSO EVO 1200N for sectional doors up to 18m2. What. It has a modern and innovative design, standing out in any environment.

GUIDANCE RED EVO

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain Except bulky

Description
Product Details

Sectional engine Motorline Rosso Evo 1200

Power and technology for your garage door

The Motorline Rosso Evo is a sectional engine of the latest generation designed for the automation of sectional garage doors up to 18m² both for residential and industrial. With an innovative design, advanced technology and exceptional performance, guarantees soft, safe and silent opening and closing.

Featured features

✓ Powerful and efficient: High performance motor with capacity for doors up to 18m².

✓ Silent performance: Belt transmission system for a fluid and noise opening.

✓ High strength: With the chain transmission system we will achieve greater strength and durability especially if our use is intensive.

✓ Advanced security: Includes obstacle detection system and manual unlocking in case of emergency.

✓ SMART technology: Compatible with remote control, buttons and home automation for smarter control.

✓ Integrated LED lighting: Provides greater visibility and energy efficiency.

✓ Easy installation and maintenance: Fast mounting system with detailed manual.

Why choose Rosso Evo?

Its combination of power, technology and security makes it the best option for those seeking a reliable and lasting garage door automation. Buy now and enjoy maximum comfort and safety in your garage!

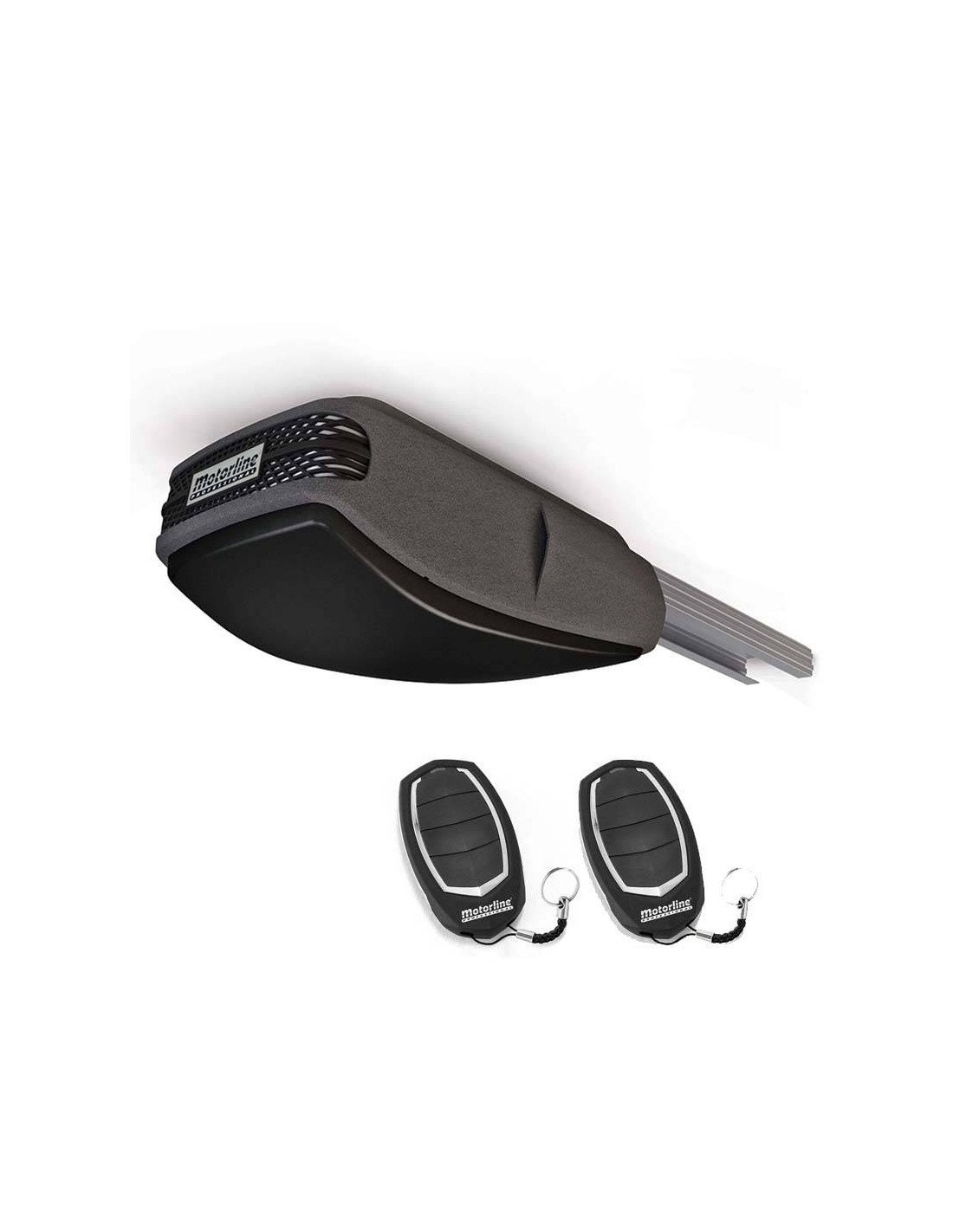

Engine content Motorline Rosso Evo:

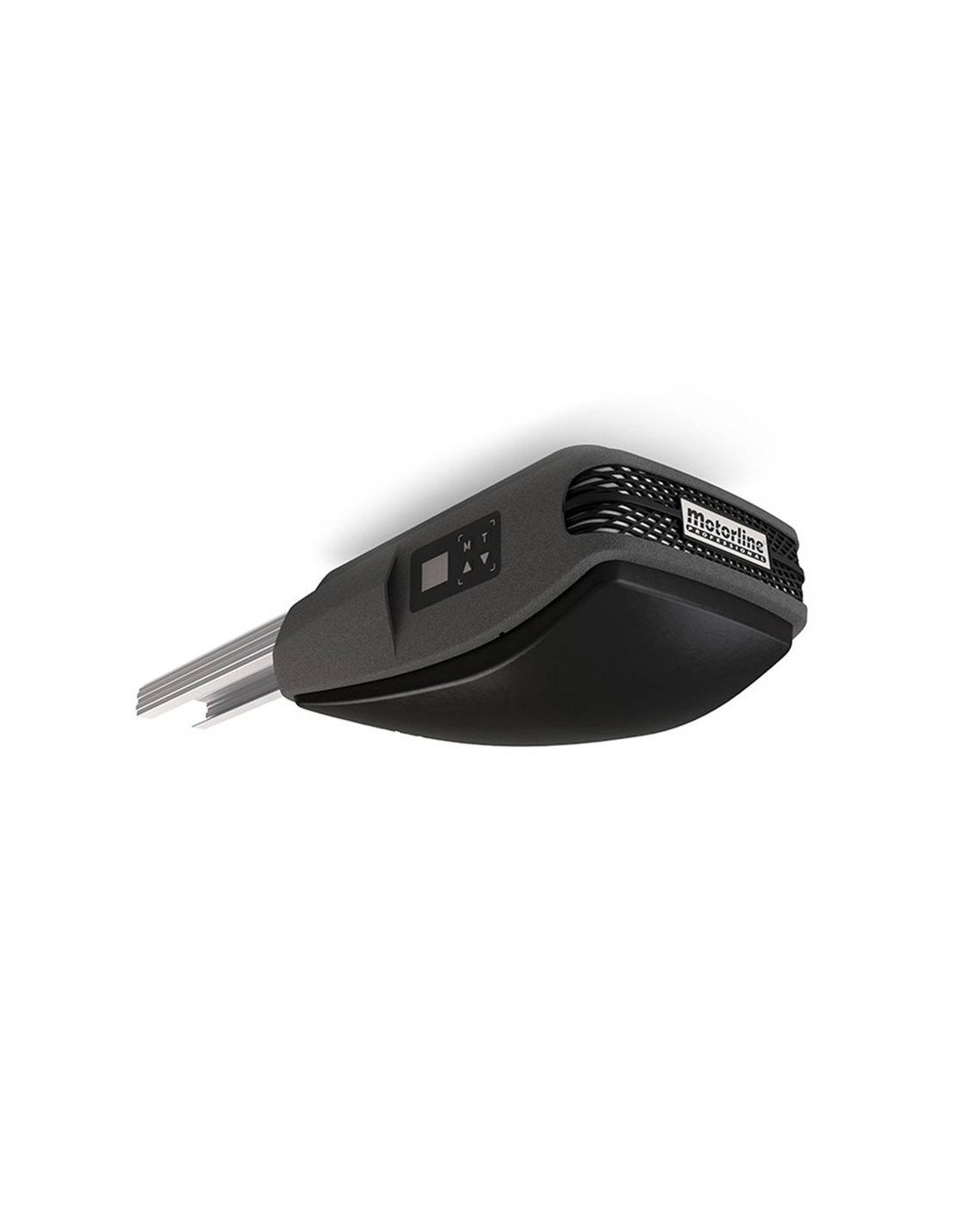

1 pc Rosso Evo 120: 1200N Section Engine with Display Programming.
2pc FALK: RollingCode Emitter 4 channels 433.92 MHz.

Content of the guide for Rosso Evo:

1 pc Full guide Chain or strapAccording to selected length in the drop-down.

Important note: The 1-piece guides of 3600mm and 4000mm have a higher price due to its dimensions. We recommend choosing the 2-piece guide to benefit from the reduced price.

Technical characteristics - Rosso Evo

	Rosso Evo 60	Rosso Evo 100	Rosso Evo 120
Feed	230VAC 50 / 60Hz	230VAC 50 / 60Hz	230VAC 50 / 60Hz
Engine	24VDC - 100W	24VDC - 120W	24VDC - 160W
Speed	140 mm / sec	140 mm / sec	140 mm / sec
Noise	LPA ≤ 56 dB (A)	LPA ≤ 56 dB (A)	LPA ≤ 56 dB (A)
Strength	600 nm	1000 nm	1200 nm
Operating temperature	-25 ° C ~ + 55 ° C	-25 ° C ~ + 55 ° C	-25 ° C ~ + 55 ° C
Thermal protection	120 ° C	120 ° C	120 ° C
Level of protection	Ip20	Ip20	Ip20
Labor	80%	80%	80%
Courtesy light	3 minutes	3 minutes	3 minutes
Maximum area of the door	10 m²	15 m²	18 m²
Memory	30 controls	30 controls	30 controls
Code type	Rolling code	Rolling code	Rolling code
Radio frequency	433,92 MHz	433,92 MHz	433,92 MHz
