Engine FAAC D600 for sectional door 600N up to 9m2

Engine FAAC D600 for sectional door 600N up to 9m2

Engine FAAC D600 for sectional door 600N up to 9m2

Engine FAAC D600 for sectional door 600N up to 9m2

Engine FAAC D600 for sectional door 600N up to 9m2

Reference 10566515

€192.00

VAT excluded

232,32 €

Tax incl.

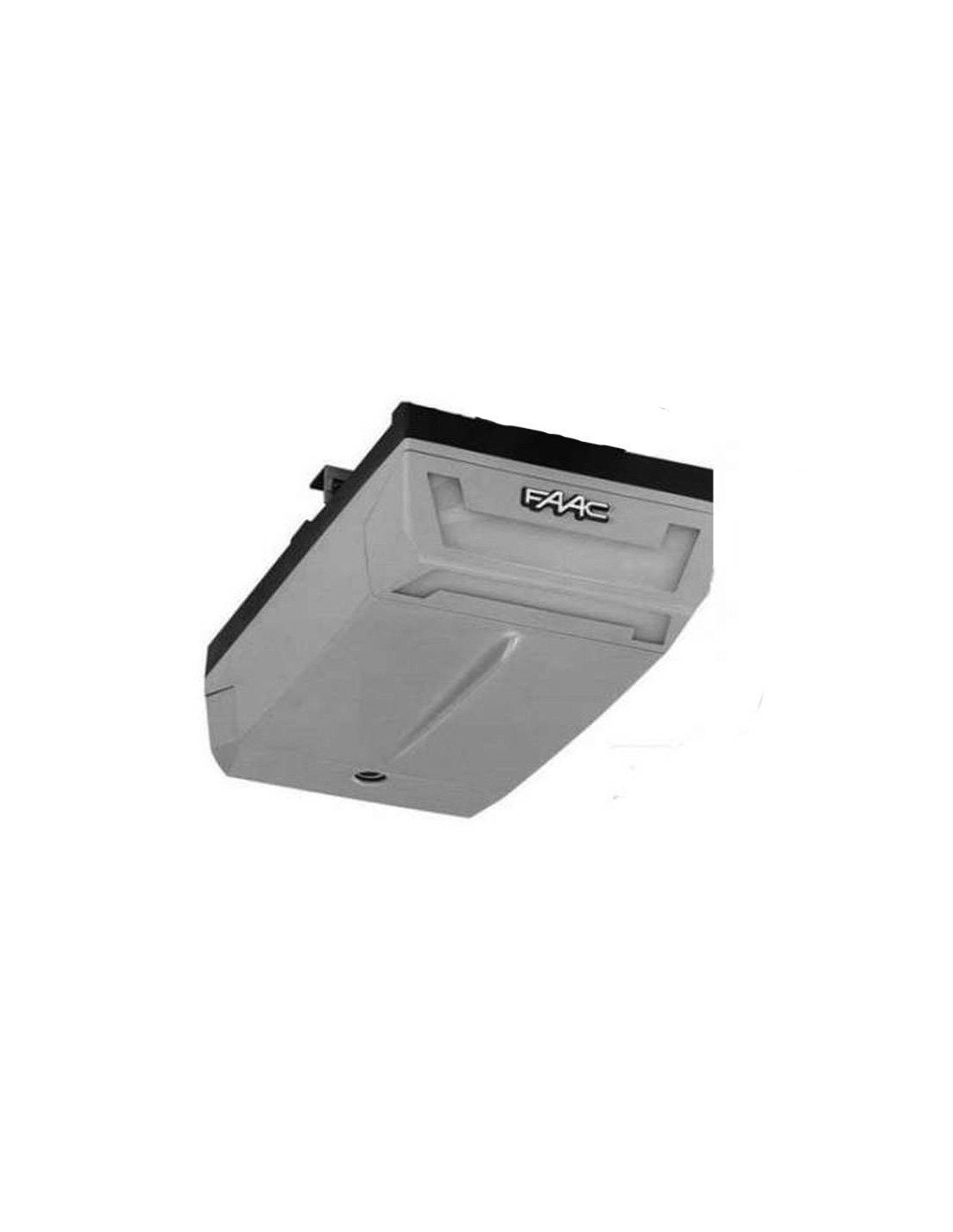

Driving FAAC D600 electromechanical 24 V by drawing for doors other, of circular cross-section and spring swings and counterweights for residential use.

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain Except bulky

Description
Product Details

Driving FAAC D600 electromechanical 24 V by drawing for doors other, of circular cross-section and spring swings and counterweights for residential use.

Quick and simple installation thanks to pre-mounted rail and fixing
Anti-sabotage lock: prevents the installation of locks and bolts
Electronic deceleration at the end of regulated course.

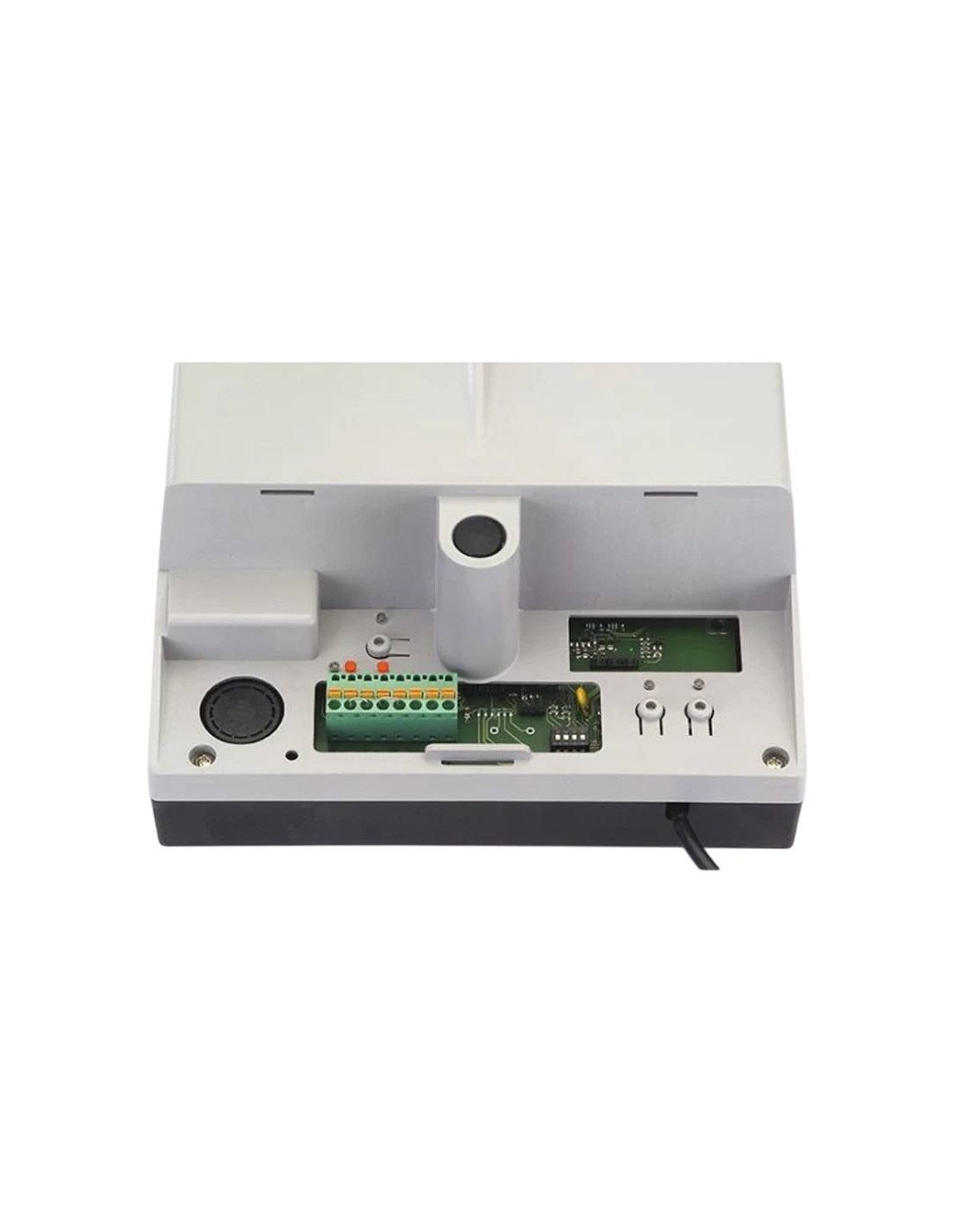

Including electronic control card FAAC XT-2 868 MHz

CHARACTERISTICS

Power supply: 220-240V
Electric motor: with 24V brushes
Maximum power: 220 W
In the case of vehicles of categories M1 and N2
Minimum height of lintel: 35 mm
Courtesy light: 230V to 40W
Light timing courtesy: 120 s
Standard speed of empty wagon: 6,6 m/min
Reduced speed of wagon empty: 1,3 m/min
Sound level at standard speed: 45 dBa
Encoder: electric
Intra-security device: series
Degree of protection: for indoor use only (IP20)
Weight: 6.2kg
Size: 360x200x145mm
Electronic card: incorporated
Frequency of use: continuous

MANUAL

Manual engine FAAC D600

Force (N): From 600N to 700N
Maximum door area (m2): from 6m² to 9m²
