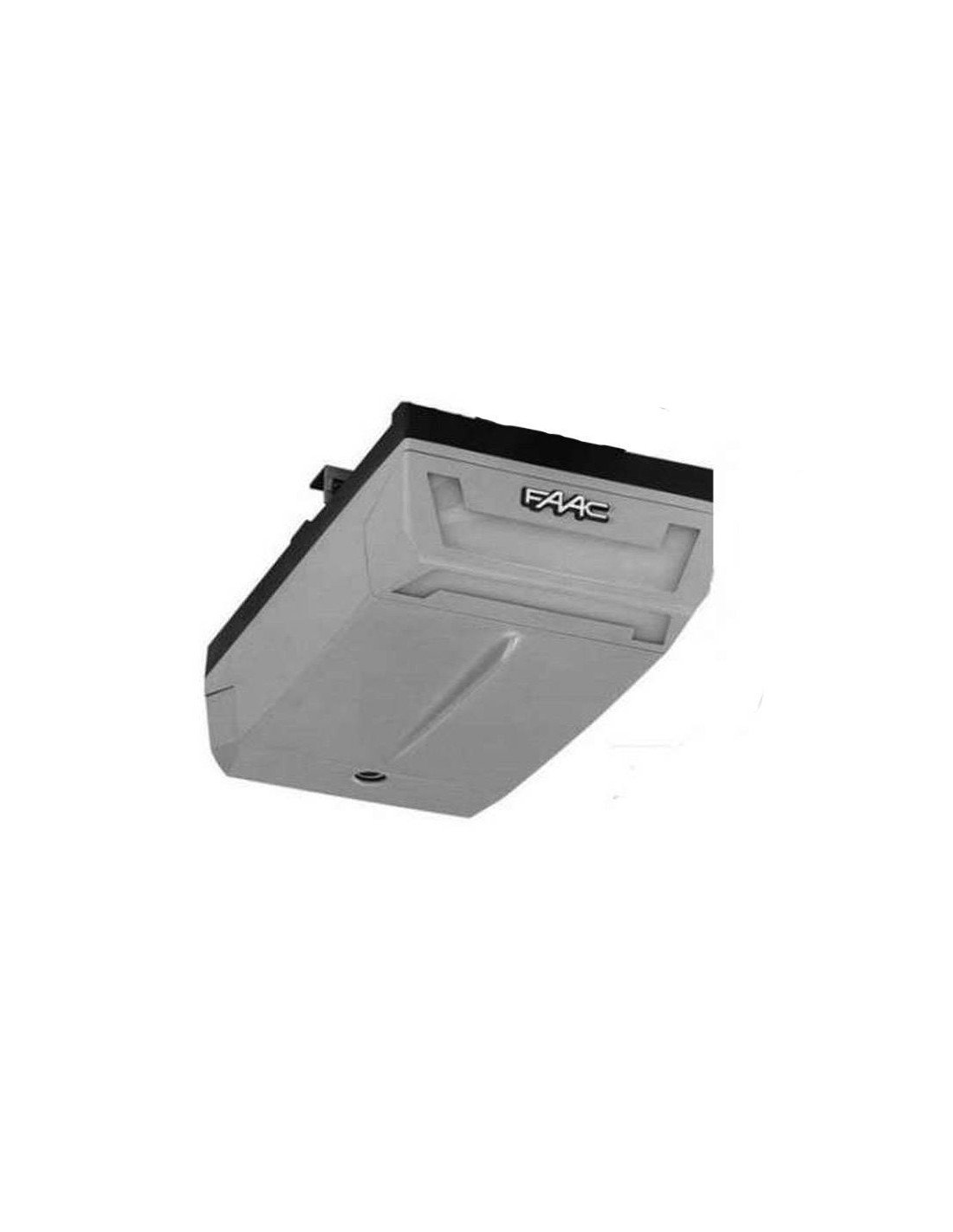

Engine FAAC D1000 for sectional door 1000 N up to 12m2
10566615
€231.00
VAT excluded
279,51 €
Tax incl.
Driving FAAC D1000 electromechanical 24 V by drawing for doors other, not further worked than hot-rolled and spring swings and counterweights for residential use.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
Driving FAAC D1000 electromechanical 24 V by drawing for doors other, not further worked than hot-rolled and spring swings and counterweights for residential use.
- Quick and simple installation thanks to pre-mounted rail and fixing
- Anti-sabotage lock: prevents the installation of locks and bolts
- Electronic deceleration at the end of regulated course.

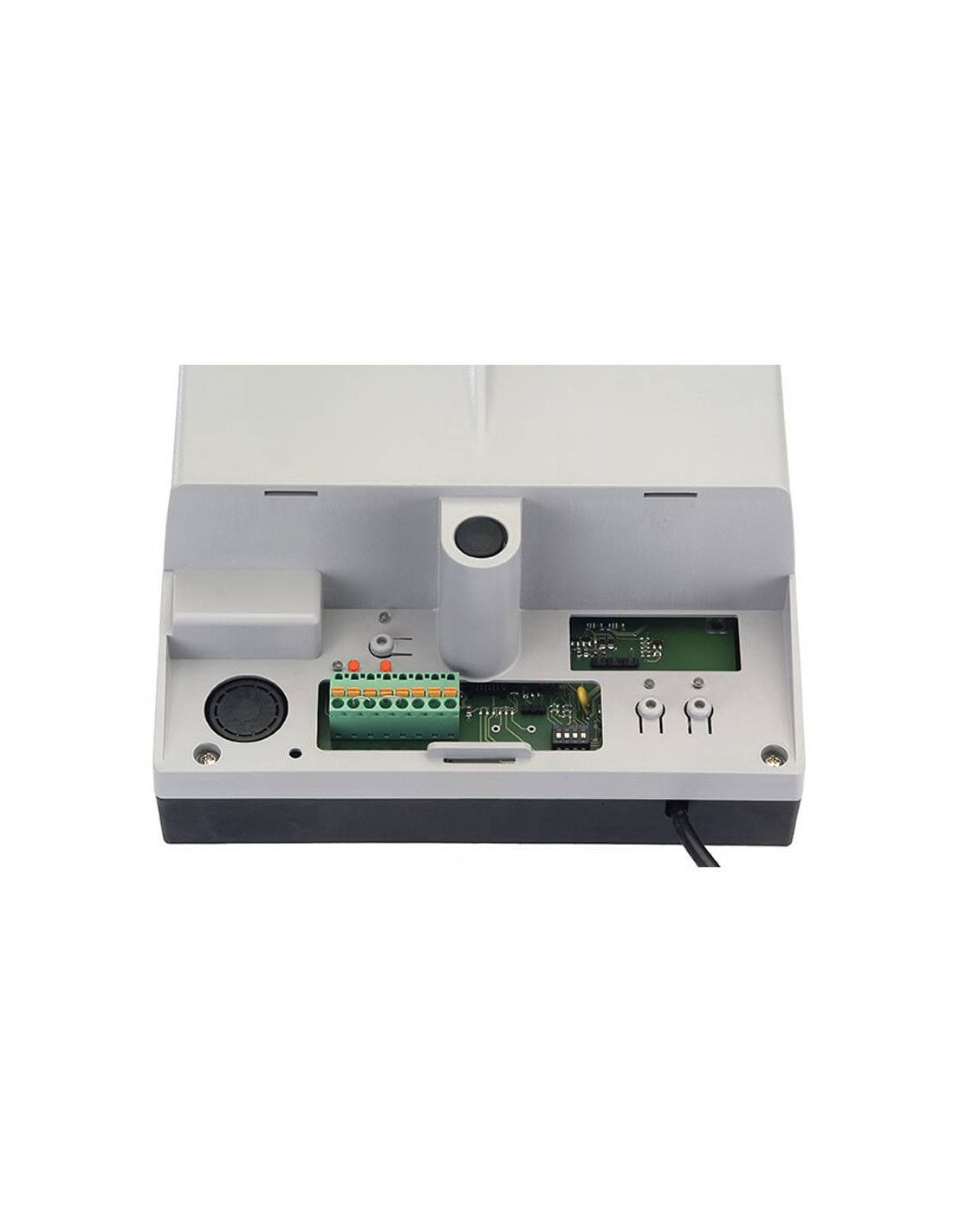

- Including electronic control card FAAC XT-2 868 MHz
CHARACTERISTICS
- Power supply: 220-240V
- Electric motor: with 24V brushes
- Maximum power: 350 W
- In the case of vehicles of categories M1 and N2
- Minimum height of lintel: 35 mm
- Courtesy light: 230V to 40W
- Light timing courtesy: 120 s
- Standard speed of empty wagon: 6,6 m/min
- Reduced speed of wagon empty: 1,3 m/min
- Sound level at standard speed: 45 dBa
- Encoder: electric
- Intra-security device: series
- Degree of protection: for indoor use only (IP20)
- Weight: 6.4 kg
- Size: 360x200x145mm
- Electronic card: E1000 included
- Frequency of use: continuous
MANUAL
- Force (N)
- From 600N to 700N
- Maximum door area (m2)
- from 10m² to 13m²
