MATIKGATE LOKI - Axis Traction Motor for Sectional Doors up to 16m2
MATIKGATE LOKI - Axis Traction Motor for Sectional Doors up to 16m2

MATIKGATE LOKI - Axis Traction Motor for Sectional Doors up to 16m2

02K-LOKI150
€360.00
VAT excluded

435,60 €

Tax incl.

MATIKGATE LOKI - Axis Motor for Sectional Doors

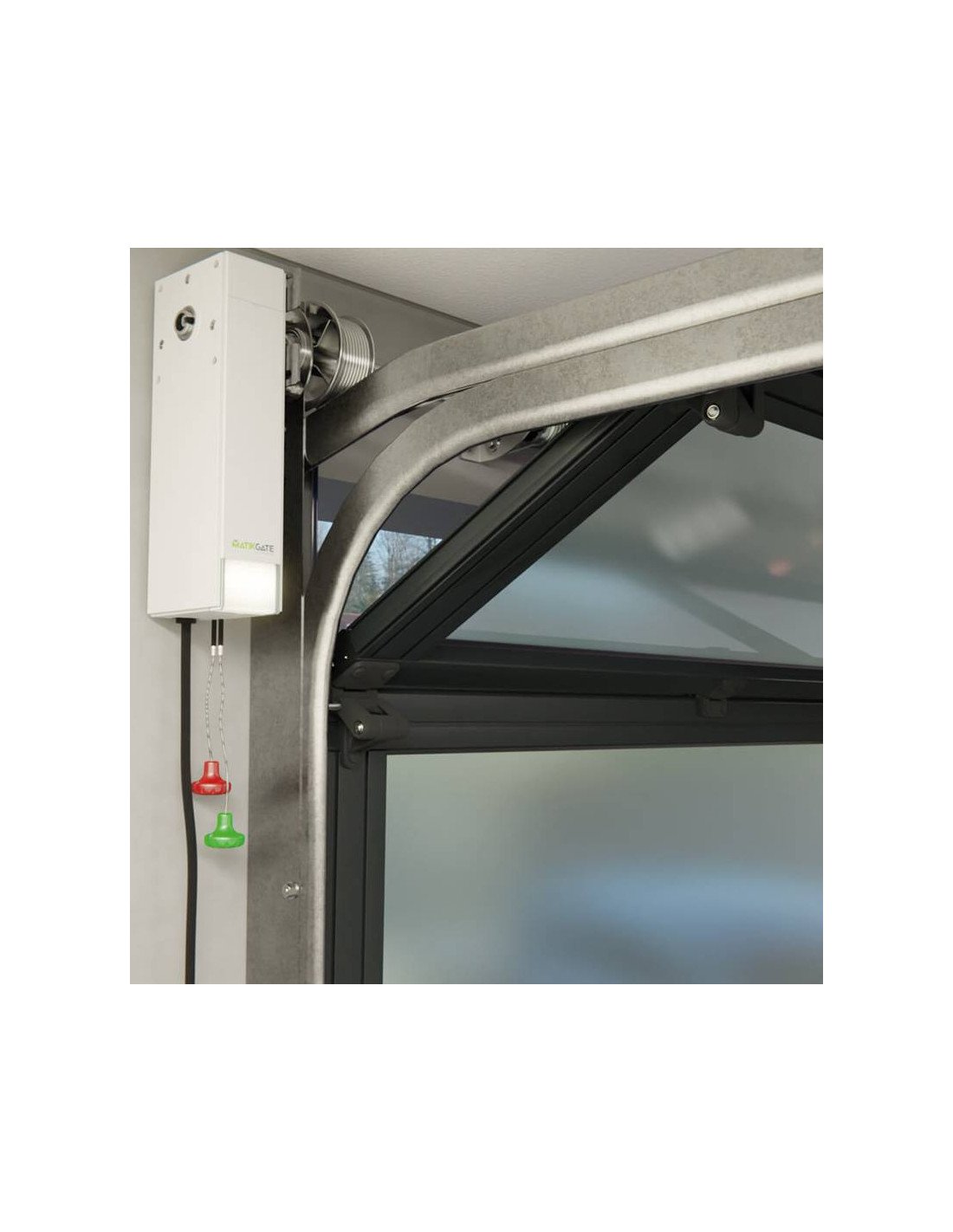

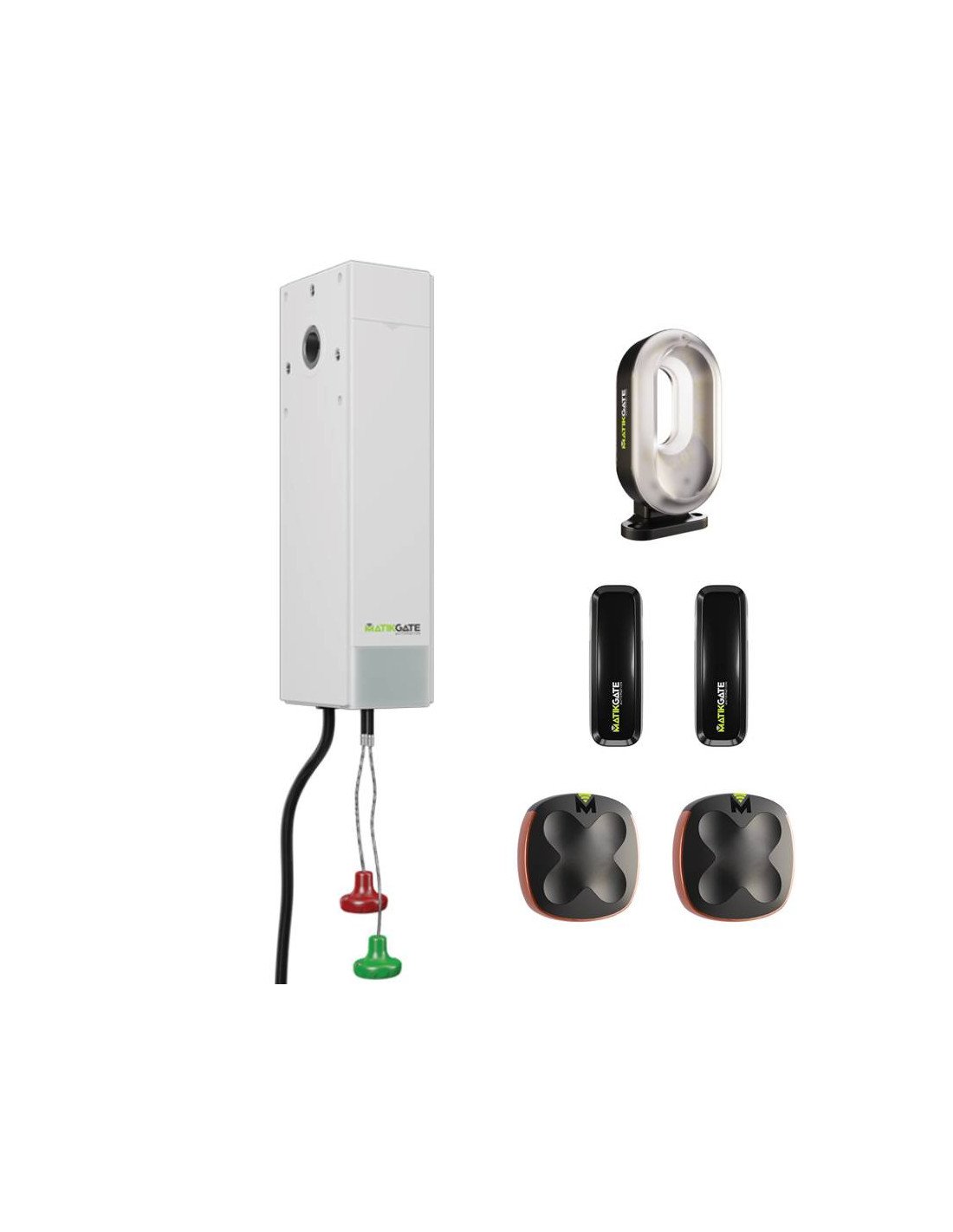

LOKI is a 24V DC axis engineØ25.4mm for sectional doors in residential environments. With 150W power, you can move a max surface of 16m2. This solution can be integrated with equipment: flashing, photocell, electric lock.

La built-in central with Bluetooth connection allows parameterization and remote function control.



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain Except bulky



MATIKGATE LOKI - Axis Motor for Sectional Doors

LOKI is a 24V DC axis engine Ø25.4mm for sectional doors in residential environments. With 150W power, you can move a max surface of 16m2. This solution can be integrated with equipment: flashing, photocell, electric lock.

La built-in central with Bluetooth connection allows parameterization and remote function control.

Technical specifications MatikGate LOKI

  • Food: 230Vac 50Hz
  • Motor: 24Vdc
  • Power: 150W
  • Force: 25N
  • Axis diameter: 25.4mm Ø
  • Operating temperature: -25 / +55 oC
  • Speed: 25 RPM
  • Protection class: IP54
  • Maximum surface: 16m2

Sectional motor measurements Aje LOKI

Type of engine
Electromechanical 24V
Force (N)
Up to 500N
Maximum door area (m2)
from 14m² to 17m²
