Engine Erreka Star for industrial sectional doors up to 60 m²

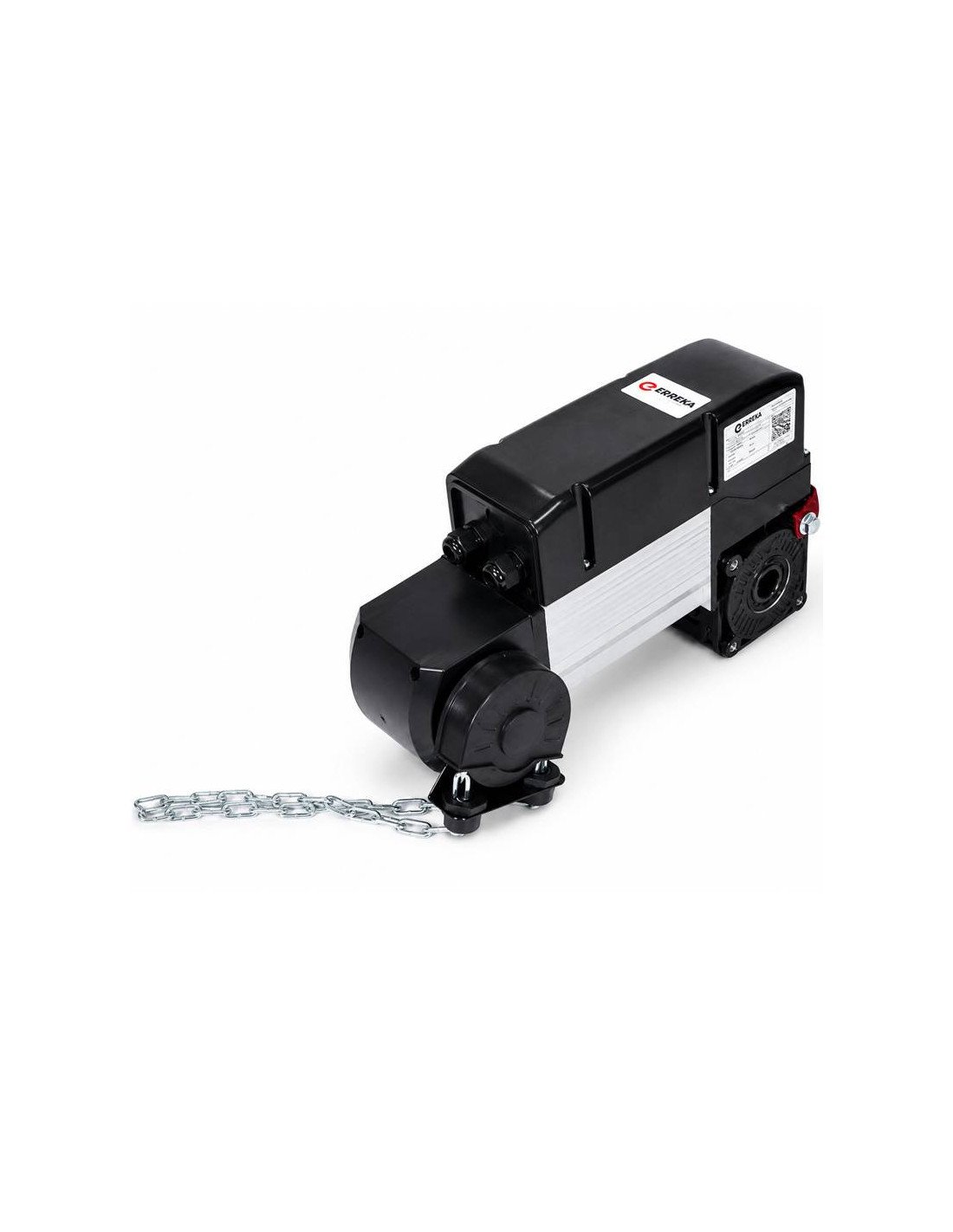

The engine Erreka STAR is an electromechanical actuator designed for the automation of industrial sectional doors. It is available in single-phase and three-phase versions, with suitable models for doors up 30 m², 50 m² or 60 m², according to the selected reference.

The STAR range is designed for industrial facilities that require a robust, reliable and prepared motor to work directly on the section of the sectional door. Models St910c and St1530c they have direct attack to axis of 25.4 mm, while the model St2030c incorporates axis output 32 mm adapter 25.4 mm.

These engines incorporate end of Electromechanical Race, unlocking manual by chain and reducing in oil bath, offering a resistant solution for sectional doors of industrial use.

Main features

• Electromechanical motor for industrial sectional doors.
• Available in single-phase version 230 VAC and three-phase versions 230/400 VAC.
• Models for doors up to 30, 50 or 60 m², according to reference.
• End of Electromechanical Race with opening and closing adjustment.
• Unlocking manual by chain, useful in case of lack of power supply.
• Reducing in oil bath, for robust and durable performance.
• High degree of protection IP54, suitable for industrial environments.
• No-encoder, operation by means of race end.
• Vertical or horizontal assembly, according to the needs of the installation.

Models available

Technical characteristics

Measures

Recommended use

The motor Erreka STAR it is recommended for industrial sectional doors installed in ships, warehouses, parking, workshops, communities or accesses where a direct actuator to a shaft, resistant and with manual chain unlock is needed.

To select the correct model, it is important to take into account the door surface, the available power type, the diameter of the axis and the intensity of use of the installation.

Recommended tables and accessories

• St910c: recommended with compatible single-phase picture, such as Vivo-M101pt.
• ST1530C and ST2030C: recommended with compatible three-phase picture, such as Vivo-T101.
• Compatible receiver: Irre2.
• Compatible issuer: Ku02.
• Recommended photocells: Ft06.
• Accessory AST01: additional chain by meters, useful if more chain length is needed.

Installation recommendations

• Check that the sectional door is balanced correctly before installing the engine.
• Verify the diameter of the door shaft to select the appropriate model.
• Install the motor in vertical or horizontal position according to the conditions of the door.
• Adjust correctly the opening and closing strokes correctly.
• Use a maneuver box compatible with the selected motor power and power.
• Install safety devices, such as photocells and flashing lamp, according to regulations and installation needs.

Note on transport

Logistics note: Due to the weight of the actuator, especially in three-phase models, this product may require specific transport conditions according to model, destination and quantity requested.
