Motor kit Erreka Star of Axis Attack for Industrial Sectional Doors

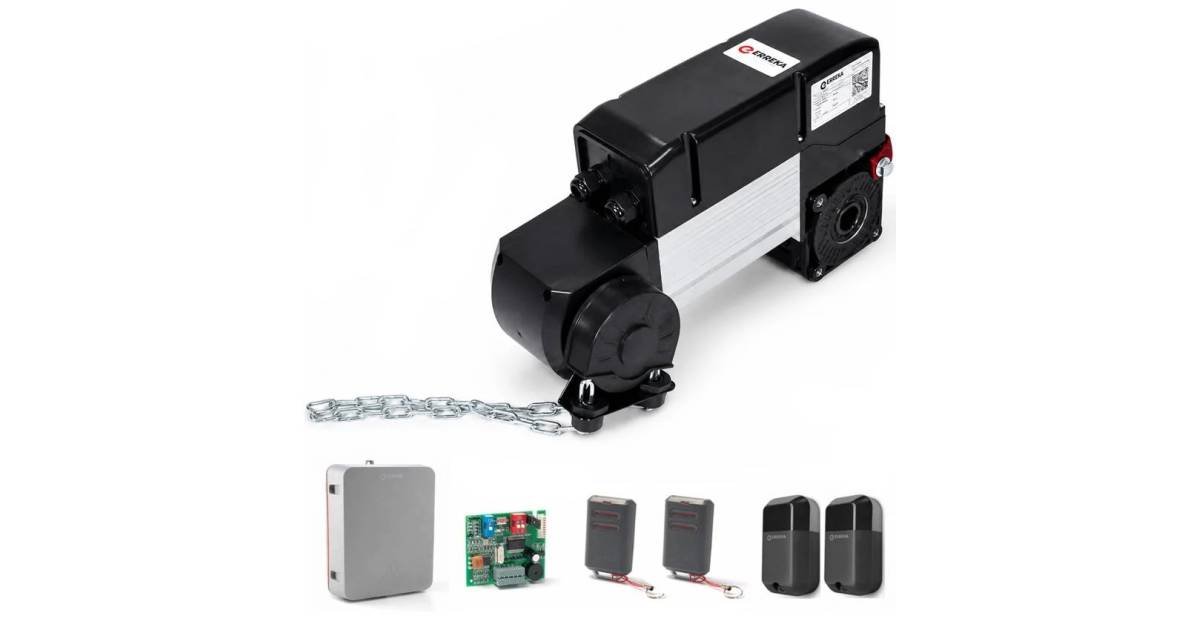

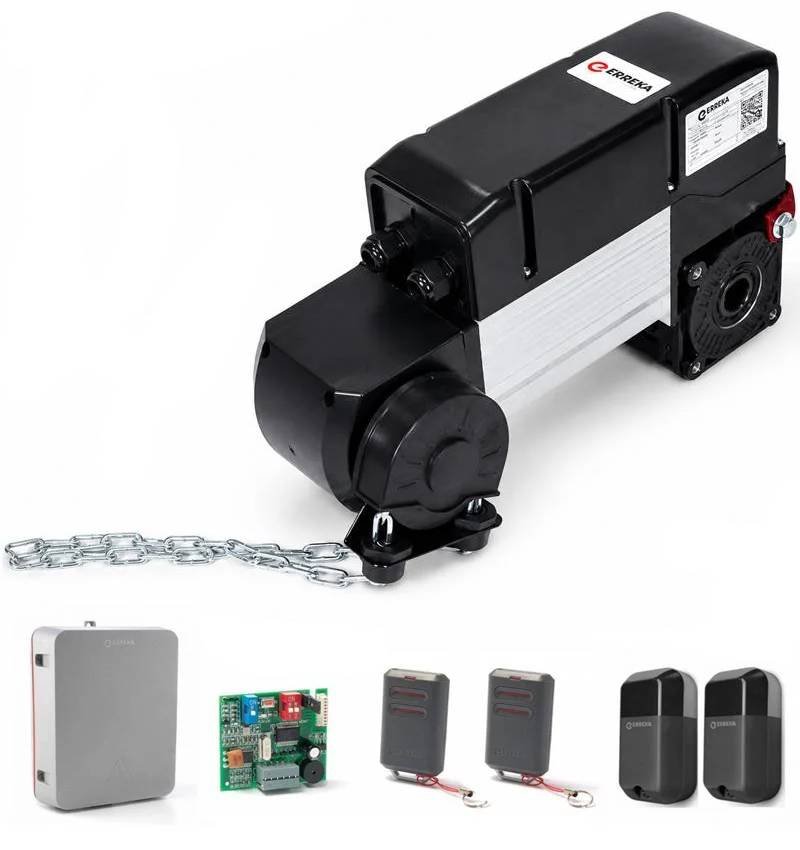

The motor kit Erreka STAR is designed for automation of industrial sectional doors, incorporating the engine, maneuver frame and accessories necessary for a complete installation.

This product is supplied in 3 Versions of Kit, which can be selected from the drop-down product according to the area of the door, the available power type and the necessary power.

The motors of the range Erreka STAR they are electromechanical actuators for direct mounting on the axis of the sectional door. Incorporate end of Electromechanical Race, , unlocking manual by chain and reducing in oil bath, offering a robust solution for sectional doors of industrial use.

Select the kit in the drop-down

Before adding the product to the cart, select the kit you need in the drop-down:

• Star1: kit with Singaphase ST910C motor for doors up to 30 m².
• Star2: kit with three-phase ST1530C motor for doors up to 50 m².
• Star3: kit with three-phase ST2030C motor for doors up to 60 m².

Content of each kit

Differences between kits

Main features

• Full kit to automate industrial sectional doors.
• 3 Versions available depending on the door size and power supply.
• Electromechanical motor with reducing in oil bath.
• End of Electromechanical Race for opening and closing adjustment.
• Unlocking manual by chain, useful in case of lack of power supply.
• Maneuvering box included according to the version of the selected Kit.
• Includes receiver, 2 emitters and security photocells.
• Degree of protection IP54, suitable for industrial installations.
• Vertical or horizontal assembly, according to the needs of the installation.

Technical characteristics of the engines

What kit to choose from?

• Star1: recommended for smaller industrial sectional doors, with single-phase 230 vacuum power.
• Star2: recommended for larger industrial sectional doors, when three-phase feeding is available.
• Star3: recommended for large industrial sectional doors or installations where more motor torque is needed.

Recommended use

This kit is recommended for industrial sectional doors installed in ships, warehouses, parking, workshops, communities or accesses where a direct motor to axle, robust and with manual chain unlock is needed.

To correctly select the kit, it is important to check the door surface, the type of power available, the shaft diameter and the intensity of use of the installation.

Installation recommendations

• Check that the sectional door is correctly balanced before installing the engine.
• Check the diameter of the door shaft before selecting the kit.
• Select the appropriate kit according to the available power: single-phase or three-phase.
• Adjust correctly the opening and closing strokes correctly.
• Install the safety photocells included in the kit.
• Perform the installation following the manufacturer's instructions and the current regulations.

Documentation

Information Erreka STAR

Manual Erreka STAR

Manual Erreka Live-m101

Instruction Manual Erreka Live-t101
