Engine Motorline KVM105 axle traction for...
Engine Motorline KVM105 axle traction for sectional doors up to 35m2

Engine Motorline KVM105 axle traction for sectional doors up to 35m2

KVM105
€465.00
VAT excluded

562,65 €

Tax incl.

Engine Motorline KVM105 is a drive shaft automatic, for automation of industrial sectional doors of up to 35m2, with the possibility of horizontal or vertical application. The ease of installation, configuration and maintenance makes it ideal for all types of sectional doors.



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain Except bulky



TECHNICAL CHARACTERISTICS

  • Power supply: 230Vac 50 Hz
  • Frequency of work: 25%
  • Power: 650 W
  • Power: 70 N
  • Type of lubricant:
  • In the case of vehicles of categories M1 and N2
  • Type of current: standard current
  • Maximum final speed: 20 engine revolutions
  • The axle hole diameter: Ø25,4 mm
  • Operating temperature: -20 °C to 45 °C
  • Protection level: IP54
  • The temperature is 120oC
  • RPM of the engine: 1400 RPM
  • RPM reducer: 24 RPM
  • Weight: 20 kg

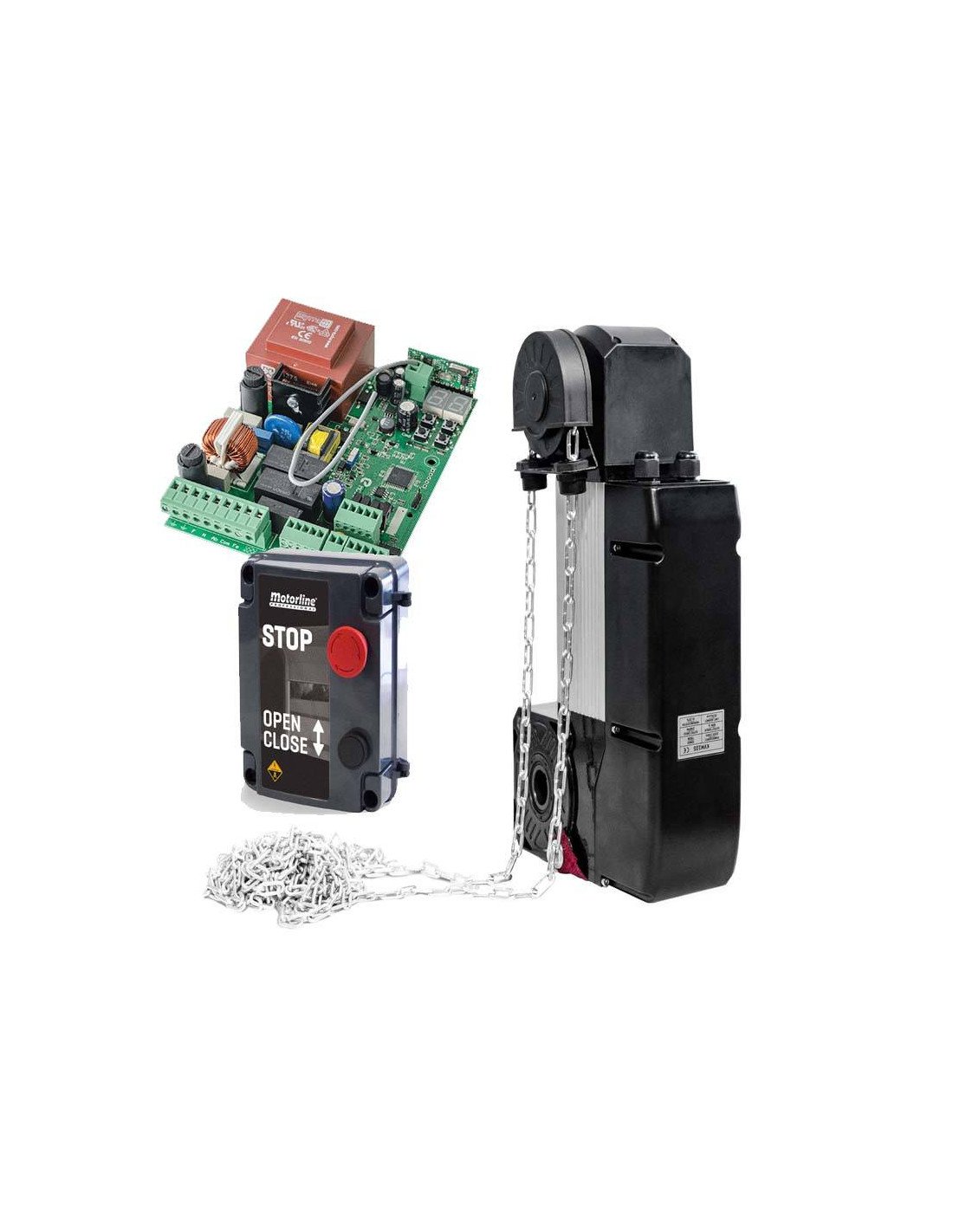

THE KIT CONTAINS:

  • 1 Axis traction motor of 90Nm 230Vac by chain forwarding
  • 5 m of chain
  • 1 central MC50SE
  • Mounting accessories

MEASURES

MANUAL

Instruction manual Motorline OTHER

VIDEO KVM105

Maximum door area (m2)
of a thickness of

Product accessories
