24V DINGO Erreka motor designed for lightweight residential sliding doors up to a maximum of 400 kg. Adaptable sprocket to adapt to any type of rack.

CHARACTERISTICS

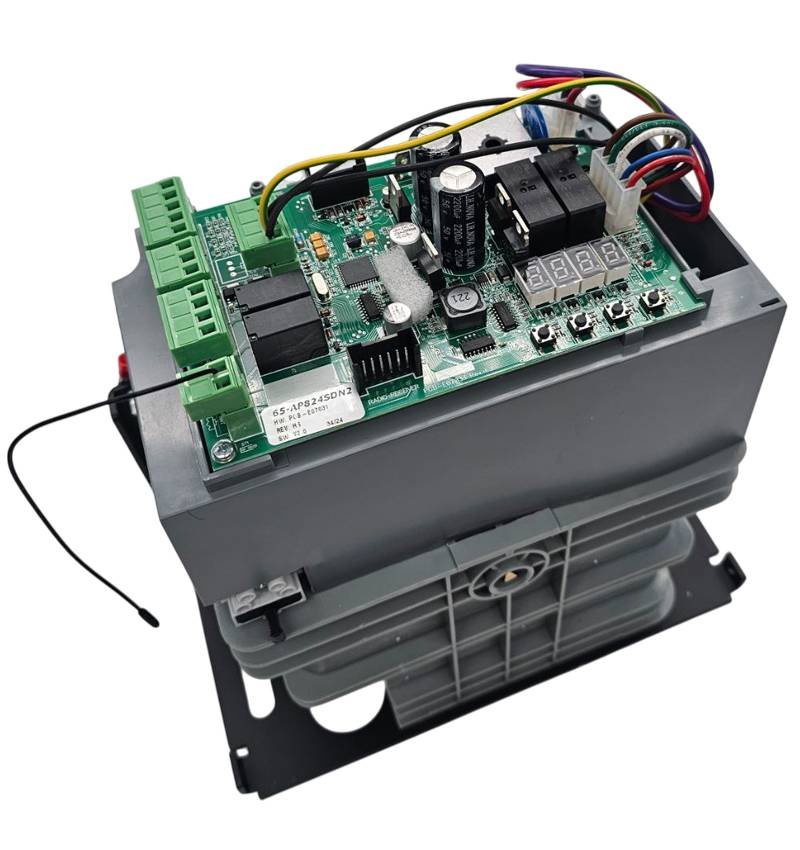

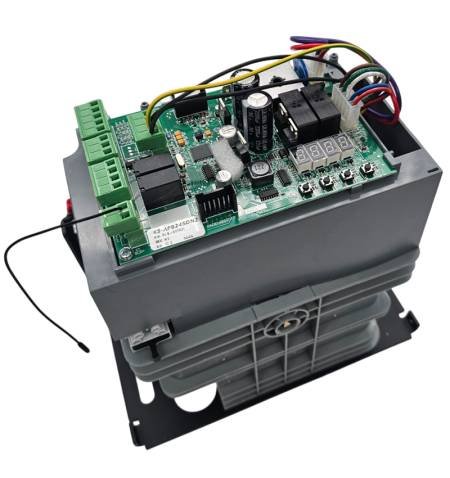

DINGO actuators are built to be part of a sliding door automation system. This actuator, with a built-in control panel, has a soft stop function that reduces the speed at the end of the opening and closing manoeuvres, in order to avoid impacts and bounces on the door. This actuator makes it possible to meet the requirements of EN 12453 without the need for peripheral elements.

• Sprocket adaptable to rack and pinion variations.
• Quiet operation.
• Built-in anti-entrapment system.
• Display programming.
• No end-of-the-races.
• Easy unlocking.
• Travel control via encoder • Variable pinion height
• Adjustable speed
• Adjustable maximum force
• Adjustable waiting time in automatic cycle
• Terminal blocks for opening and closing safety devices (photocells or safety strips)
• Plug-in receiver connector
• Traffic Light Card Connector (AEPS1-001)
• 24Vdc terminal block for peripheral connection
• Emergency Battery Input
• Compatible with 6-pin IRRE2 receiver card

SPECIFICATIONS

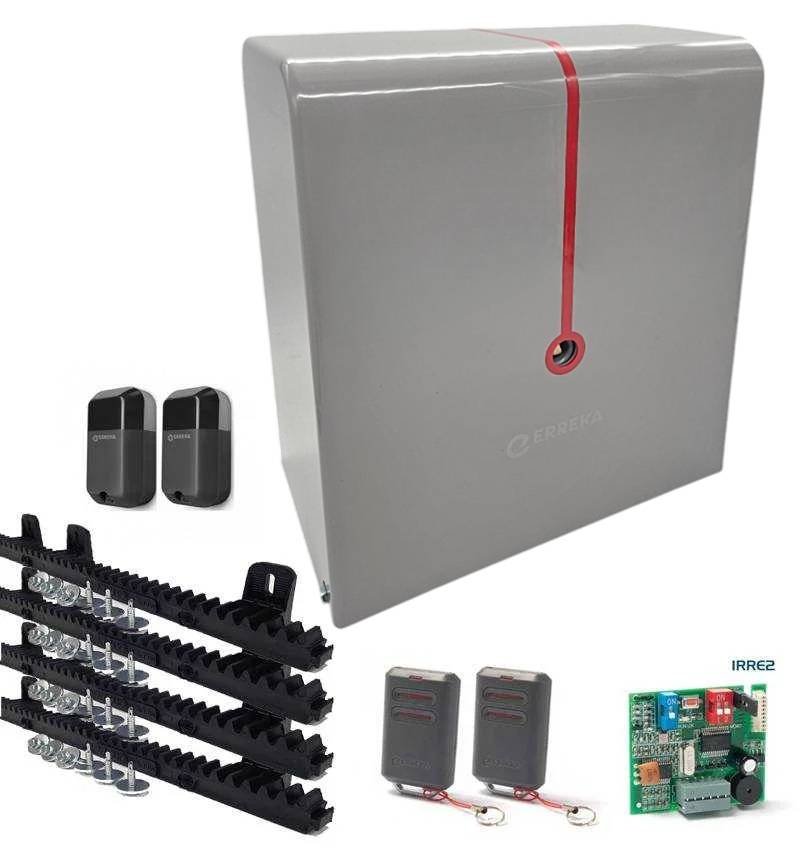

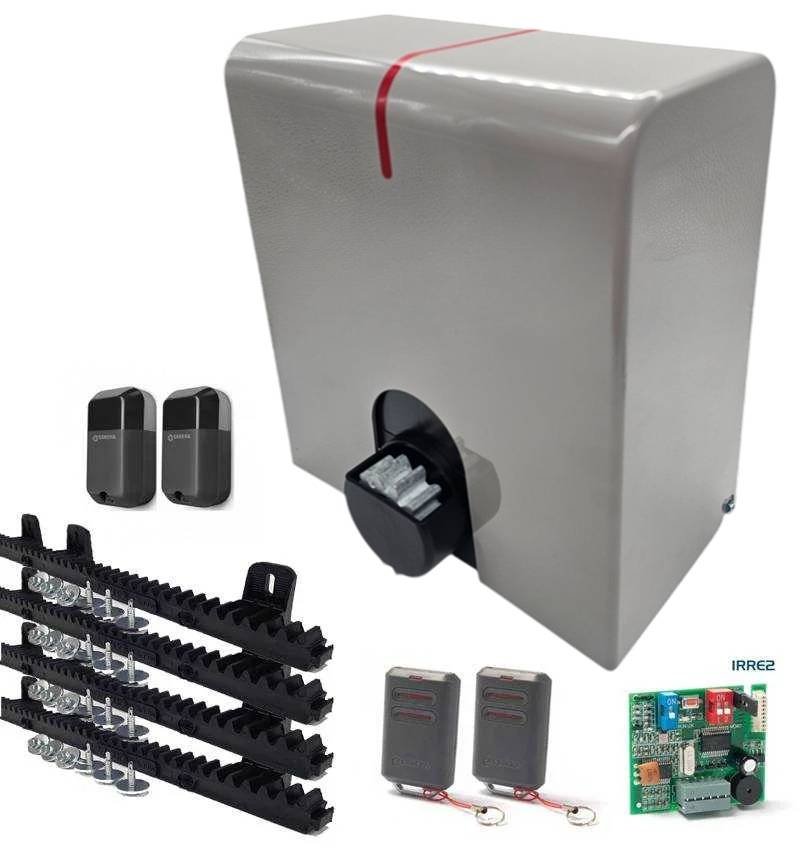

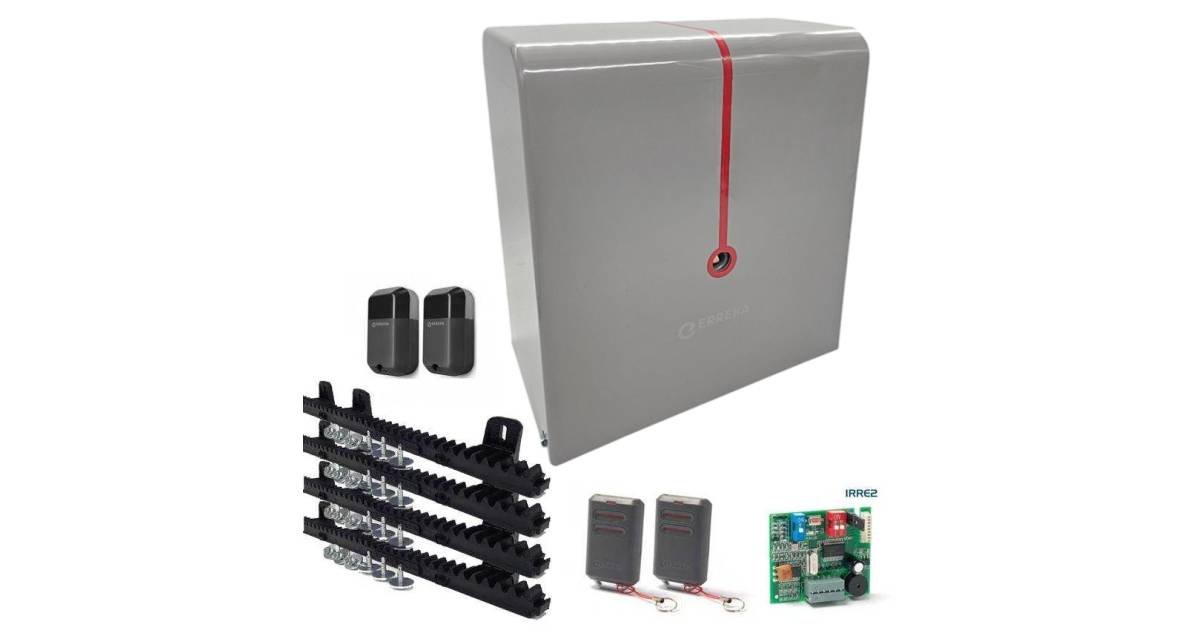

THE KIT CONTAINS

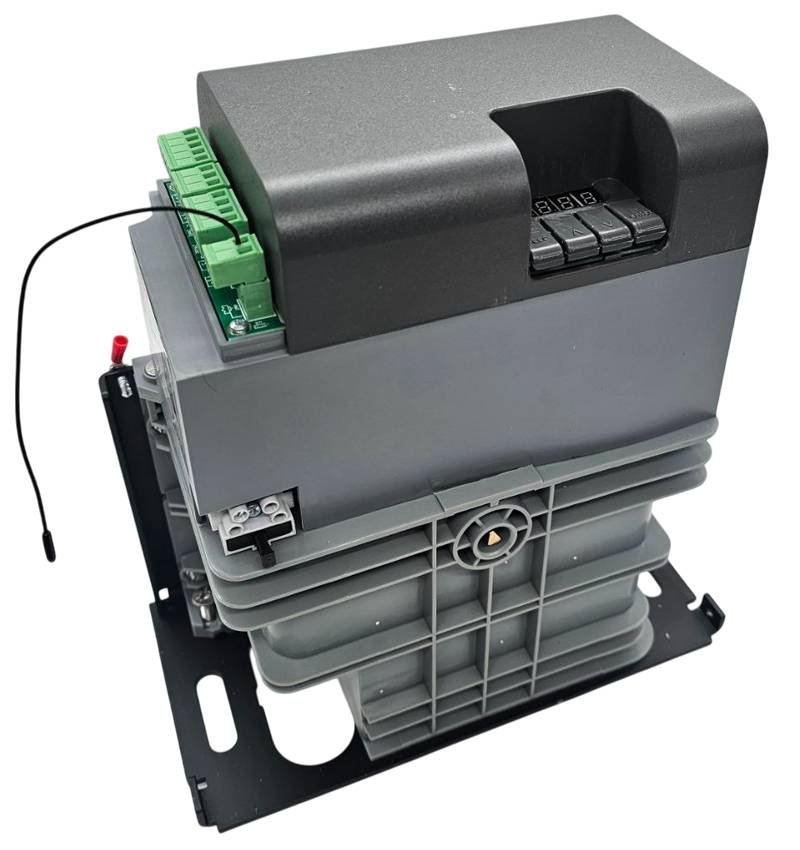

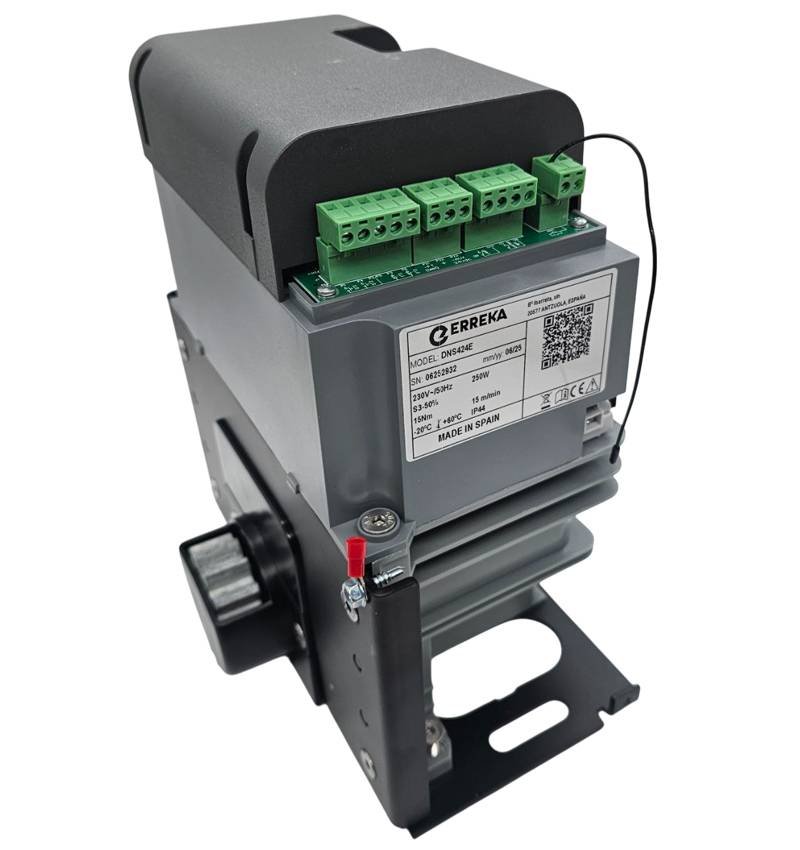

• 1 pc DNS424E: DINGO electromechanical motor with built-in frame.
• 1pc IRRE2: FixCode 433 MHz Plug-in Receiver Card
• 2 pcs KU02: FixCode KUMA transmitter 2 channels 433 MHz
• 1pc FT06: Pair of Transmitter-Receiver Safety Photocells
• 4pc N2113: Nylon Zipper 28x201000mm

MANUALS

• Dingo Engine Data Sheet 906.25 KB
• DINGO Engine Manual 2.99 MB
• DINGO Engine Quick Guide 4.24 MB

DEMO VIDEO
