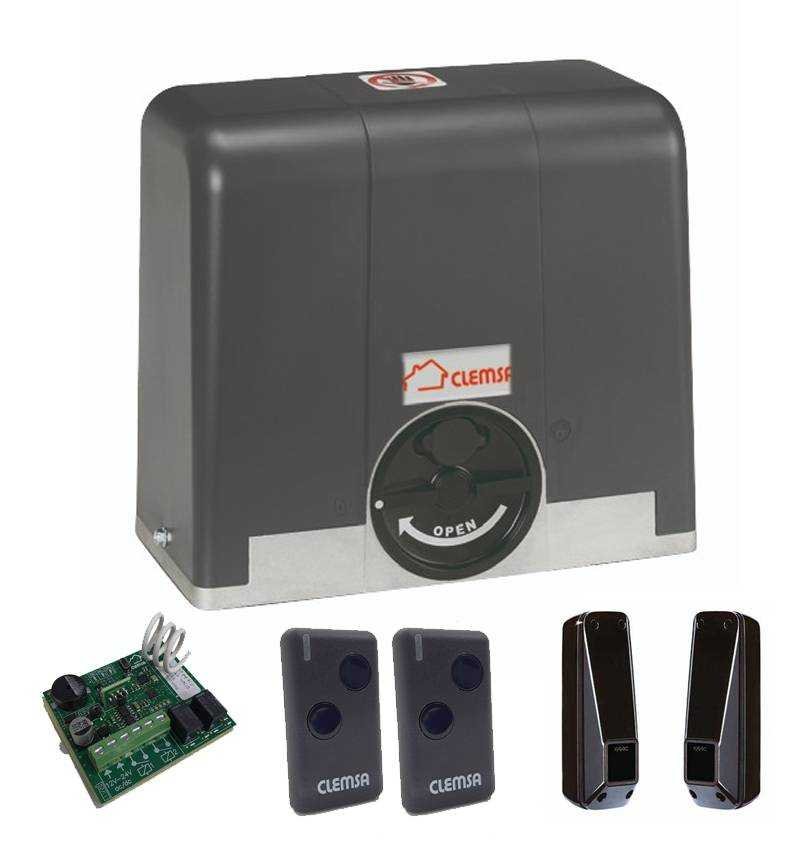

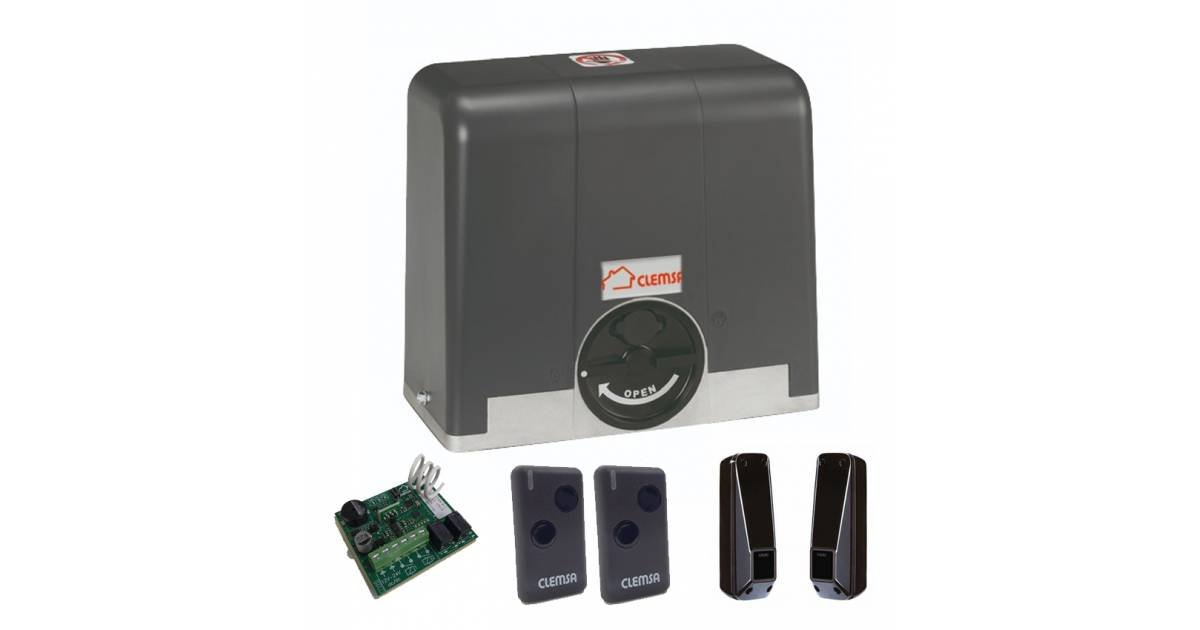

KIT AC424N INCLUDES:

• 1 unit 3500002669: AC424N sliding motor for doors up to 400 kg heavy duty 24V
• 1 unit 737000: foundation plate
• 1 unit 120000002903: Universal receiver RNE248U two channel Mutan-II
• 2 unid 110000002740: 2 channel emitter Mutant NT2S black
• 1 unit 785104: Security photocell FAAC XP20W
• 1 unit 400006785148It shall be so designed that it can be used in a wide range of applications

TECHNICAL CHARACTERISTICS AC862N

• Control panel incorporatedThe Sprint M24
• Food230 VAC 50 to 60 Hz
• Electric motor: 24 Vdc
• Power: 140 W
• Par max.: 310 N
• Push on pinion40 Dan
• Type of pinionThe Z16 mod. 4
• Maximum weight cancel: 400 KG
• Velocity: 12 m/min
• Use: continuous
• DimensionsThe following: 256x228x170
• Operating weight: 7 KG
• Degree of protection: IP44

CHARACTERISTICS MANEUVER BOARD
