Amortizer with magnet and regulation Medva "CIL3095" designed to cushion the closures of industrial sliding doors
A14007.00
€135.00
VAT excluded
163,35 €
Tax incl.

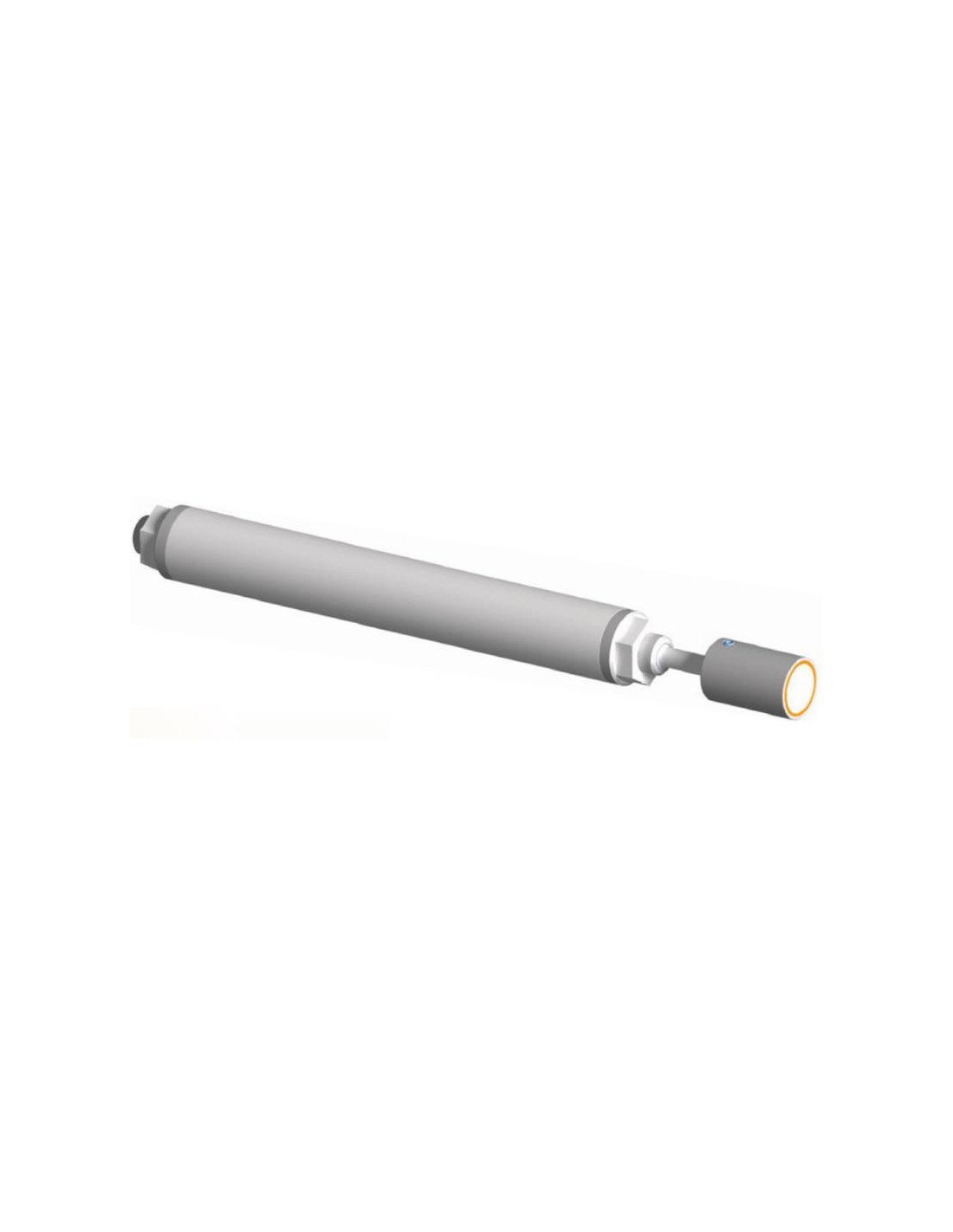

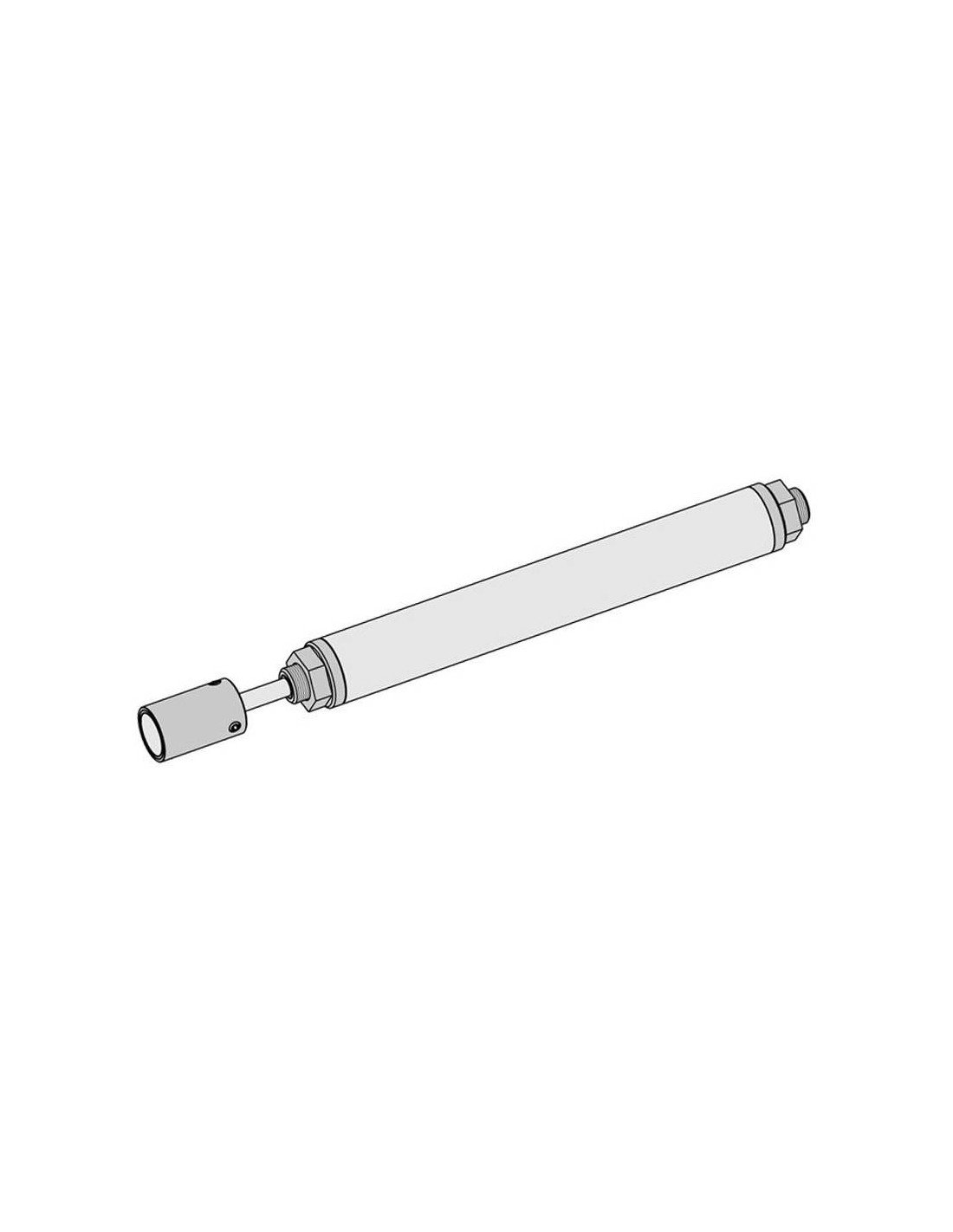

Damper with regulation and magnet Medva"CIL3095" with 95mm stroke designed to dampen the closures of industrial sliding doors.
The linear damper CIL3095 – CIL30120 reduces the speed of the door during the final stretch of the tour, avoiding sudden knocks and personal injury. The speed can be adjusted according to the need of the installation. The shock absorber is automatically charged by the neodymium magnet each time the door is opened, being operational for the subsequent closing cycle.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
Damper with regulation and magnet Medva"CIL3095" with 95mm stroke designed to dampen the closures of industrial sliding doors.
The linear damper CIL3095 – CIL30120 reduces the speed of the door during the final stretch of the tour, avoiding sudden knocks and personal injury. The speed can be adjusted according to the need of the installation. The shock absorber is automatically charged by the neodymium magnet each time the door is opened, being operational for the subsequent closing cycle.
MEASUREMENTS AND CHARACTERISTICS
Installation and adjustment of shock absorbers
The shock absorber shall be positioned at the edge of the door and parallel to the force of impact. (Figure 3)
The damping regulation is performed with the stem fully extended and, exerting pressure on the rotation of the stem.
-In a clockwise direction, we're lowering the damping. (Fig.4)
-Anti-clockwise we increase the damping. (Fig.5)
VIDEO PRESENTATION CIL3095
