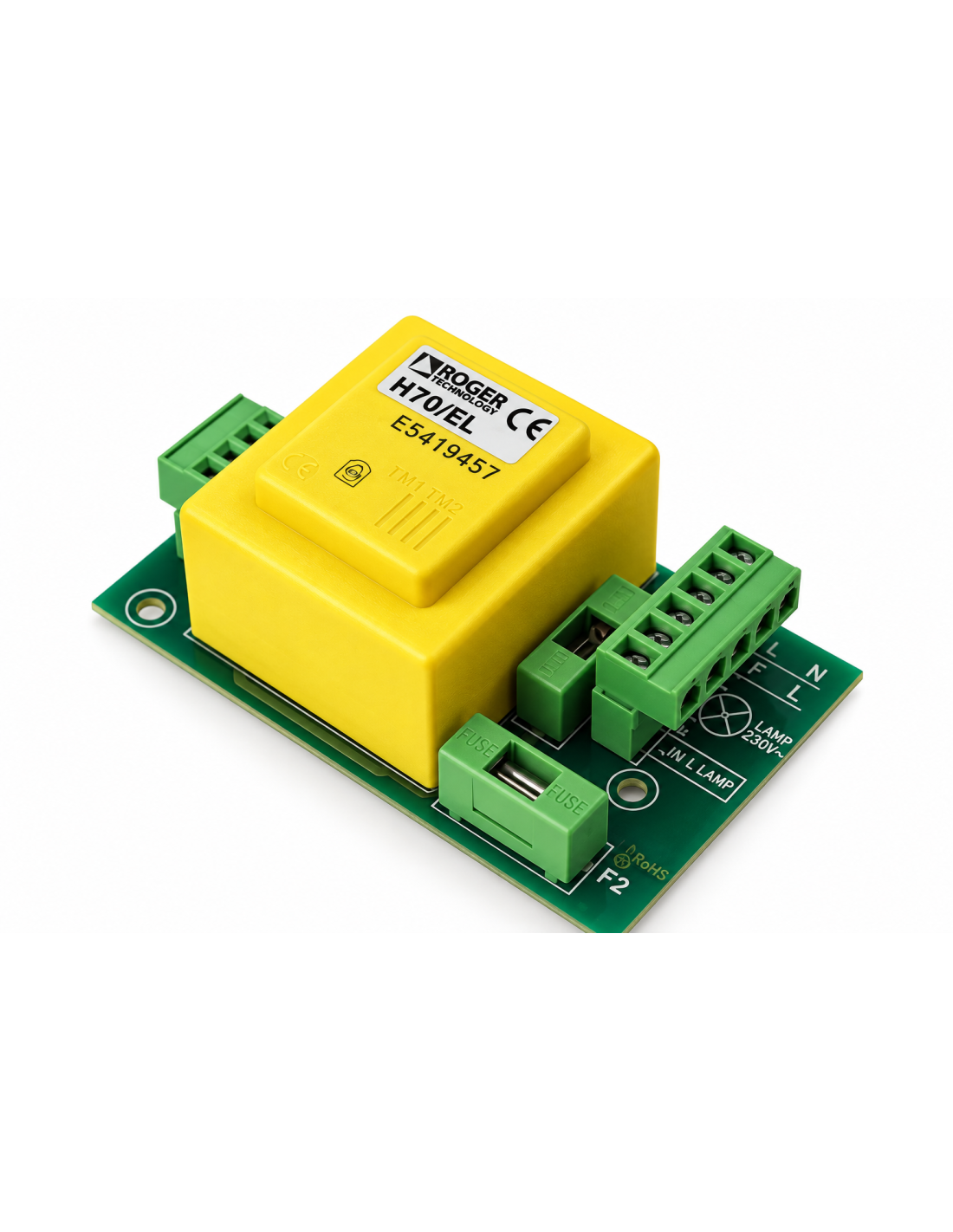

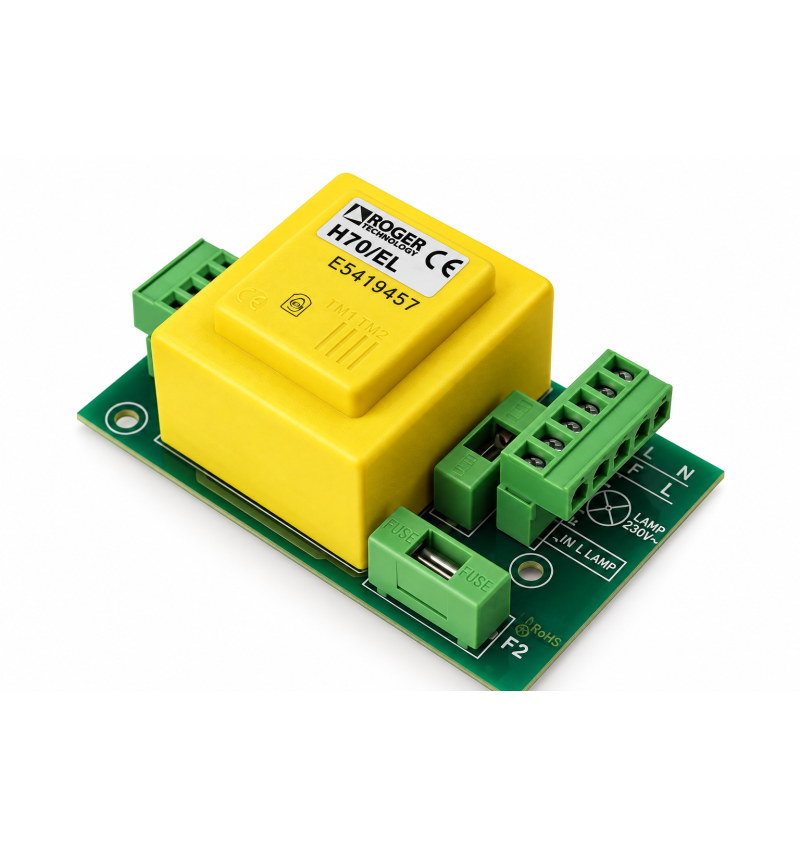

Electronerating Module Roger Technology H70 / 12V for H70 Central

Electroconing Module Roger Technology H70 / 12V

The Roger Technology H70 / El is an electronic module designed to allow the connection of a 12VAC Electronement In compatible Roger Technology maneuver power plants.

Is especially suitable for swing door installations where it is necessary to operate a electric lock During the opening maneuver.

The module is compatible with the plants H70 / 104AC, H70 / 105AC and H70 / 200Ac and also has an exit for a connection of a 230VAC flashing light.

Compatible central

✓ Roger Technology H70 / 104ac

✓ Roger Technology H70 / 105ac

✓ Roger Technology H70 / 200ac

The module H70 / the Allows you to add a specific output to be added to a compatible power station 12VAC Electronement.

The output admits a maximum power of 16 VA, so the consumption of the electric lock that you want to connect previously must be prior.

The module also incorporates an output for Intermittent light at 230VAC, with a maximum power of 40 W.

✓ Module for 12VAC Electronement.

✓ Compatible with Roger Technology Central Series H70.

✓ Maximum power electrolyber: 16 VA.

✓ Eating module to 230VAC 50/60 Hz.

✓ Exit for 230VAC flashing light.

✓ Maximum power of intermittent light: 40 W.

✓ Indicated for expansion or repair of compatible Roger Technology installations.

IMPORTANT: Check the electronement

The output for electric lock of the H70 module / ES is 12VAC with a maximum power of 16 VA. Before connecting an electrocker, check that your voltage and consumption are compatible with these values.

Check the center before order

The module Roger Technology H70 / El It is designed specifically for the plants H70 / 104AC, H70 / 105AC and H70 / 200Ac. Check the installed electronic plant model before placing the order.

■ 1 × Electronerating Module Roger Technology H70 / The.
