Engine Aprimatic Wave 1024 to 24V for sliding...

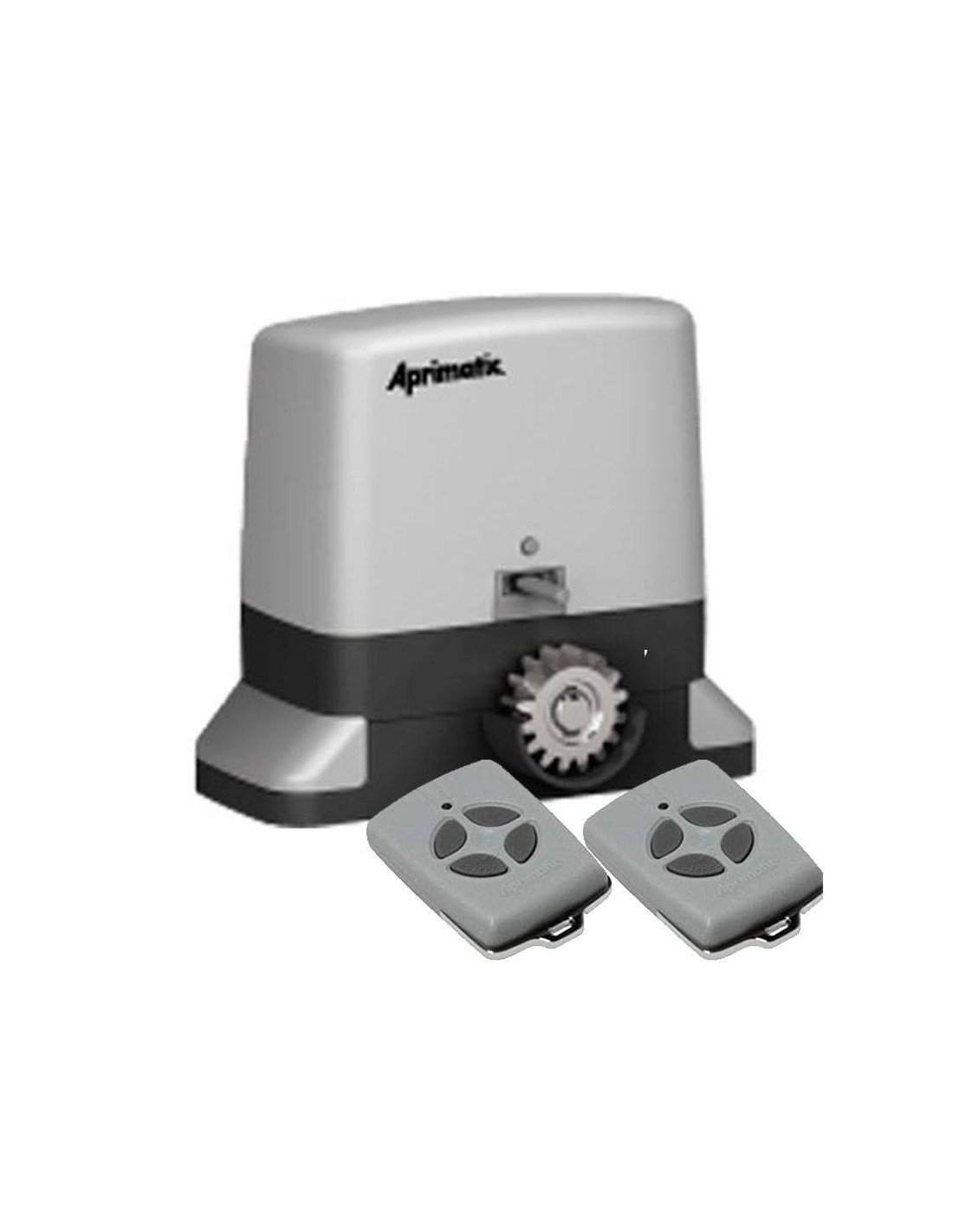

Engine Aprimatic Wave 1024 to 24V for sliding doors up to 1000 kg

Engine Aprimatic Wave 1024 to 24V for sliding doors up to 1000 kg

KT021024
€415.00
VAT excluded

502,15 €

Tax incl.

Engine Aprimatic Wave 1024 to 24V for sliding doors up to 1000 kg.Ideal for residential doors of intensive use.

Operator at 24 Vcc for sliding door up to 1000 kg. Intensive use. It incorporates the maneuver board, with anti-crush system to reverse the maneuver in case of detection of obstacles. Personalized lock unlock in case of power failure.



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain Except bulky



Engine Aprimatic Wave 1024 to 24V for sliding doors up to 1000 kg.Ideal for residential doors of intensive use.

Operator at 24 Vcc for sliding door up to 1000 kg. Intensive use. It incorporates the maneuver board, with anti-crush system to reverse the maneuver in case of detection of obstacles. Personalized lock unlock in case of power failure.

CHARACTERISTICS

■ Quiet and reliable operator.

■ Investment through obstacle detection.

■ Self-learning of all work parameters.

■ Optional battery kit.

TECHNICAL CHARACTERISTICS

  • Power supply: 230Vac / 50 Hz
  • Power: 80W
  • Consumption: 3A
  • Maximum leaf weight: 1000 kg
  • Blade speed: 10 m/min
  • Service factor: 100%
  • Protection degree: IP44
  • The temperature range is -20 oC/+55 oC
  • Cycles per hour: 50 c/h

DIMENSIONS

MANUAL

Technical data sheet Aprimatic WAVE 1024

Maximum door weight
Between 900 and 1000 kg
Type of engine
Electromechanical 24V
Type of door
Community portal
Residential door

Product accessories
