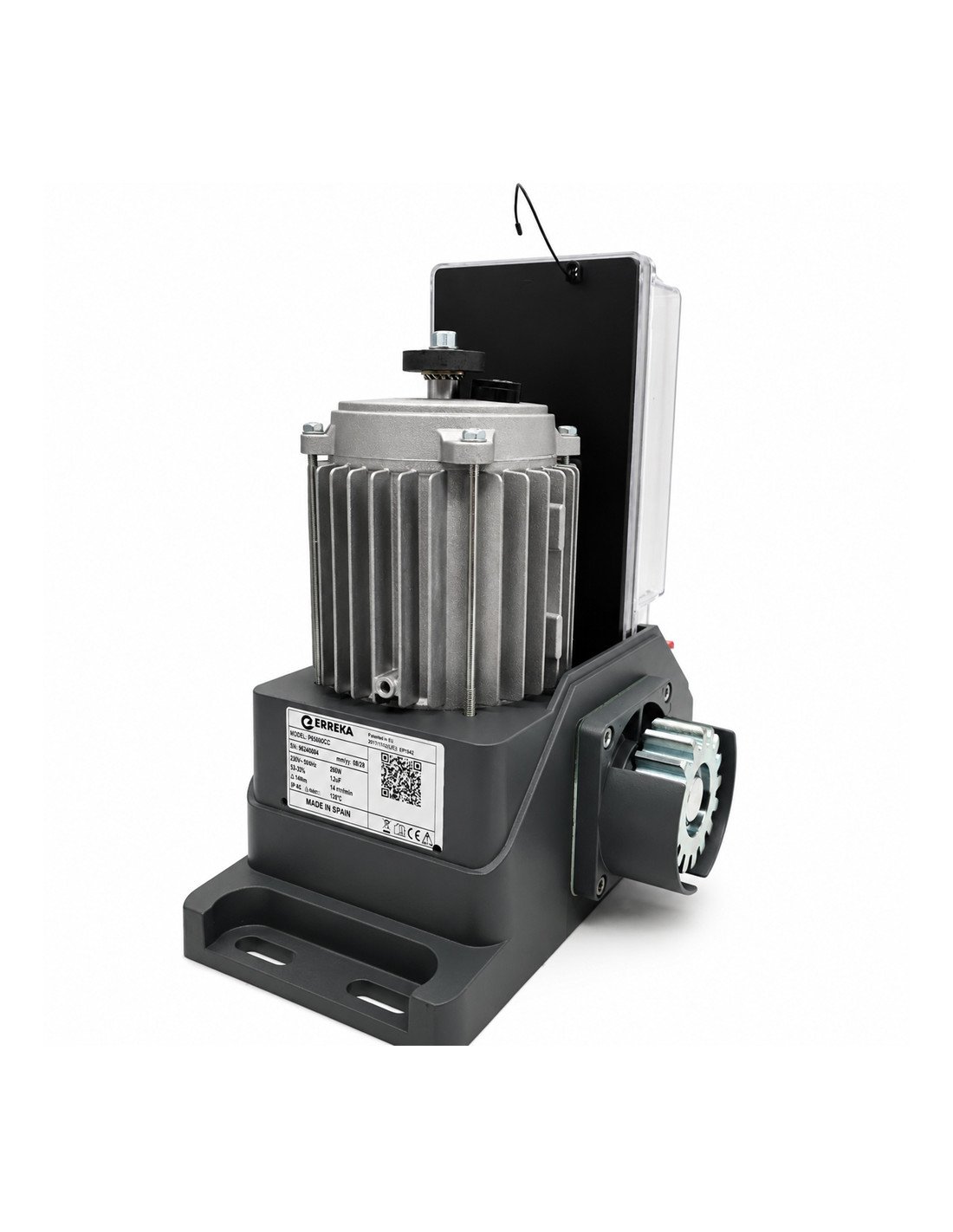

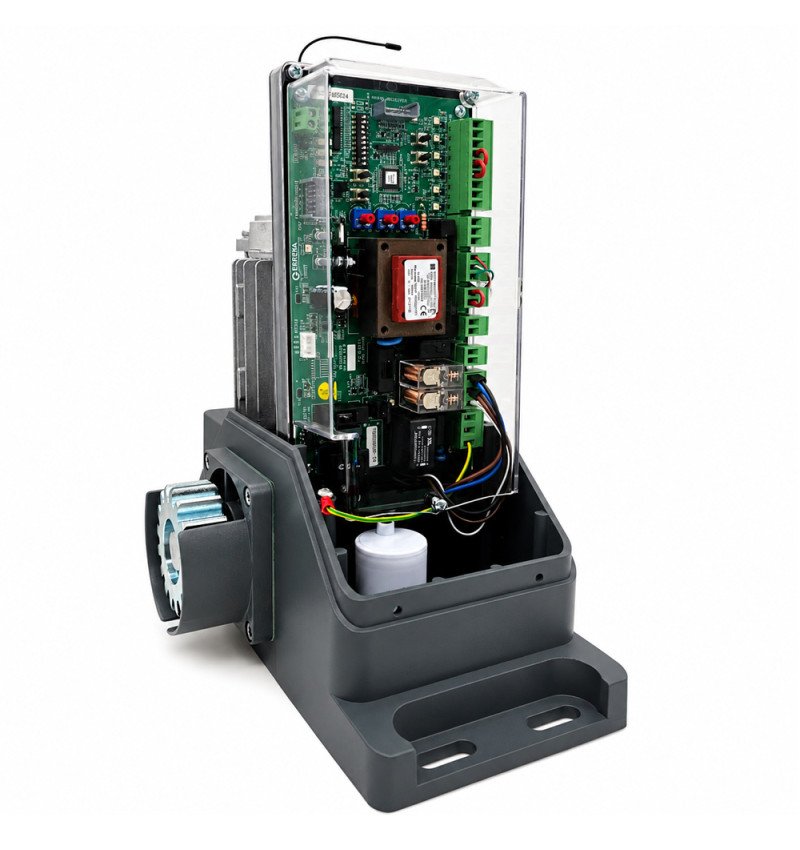

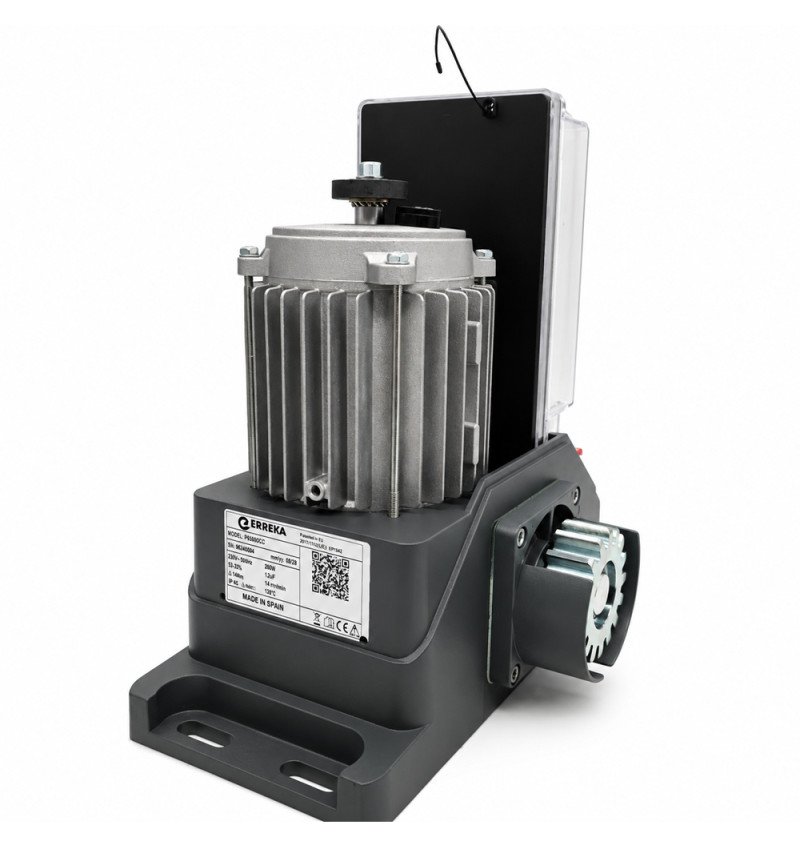

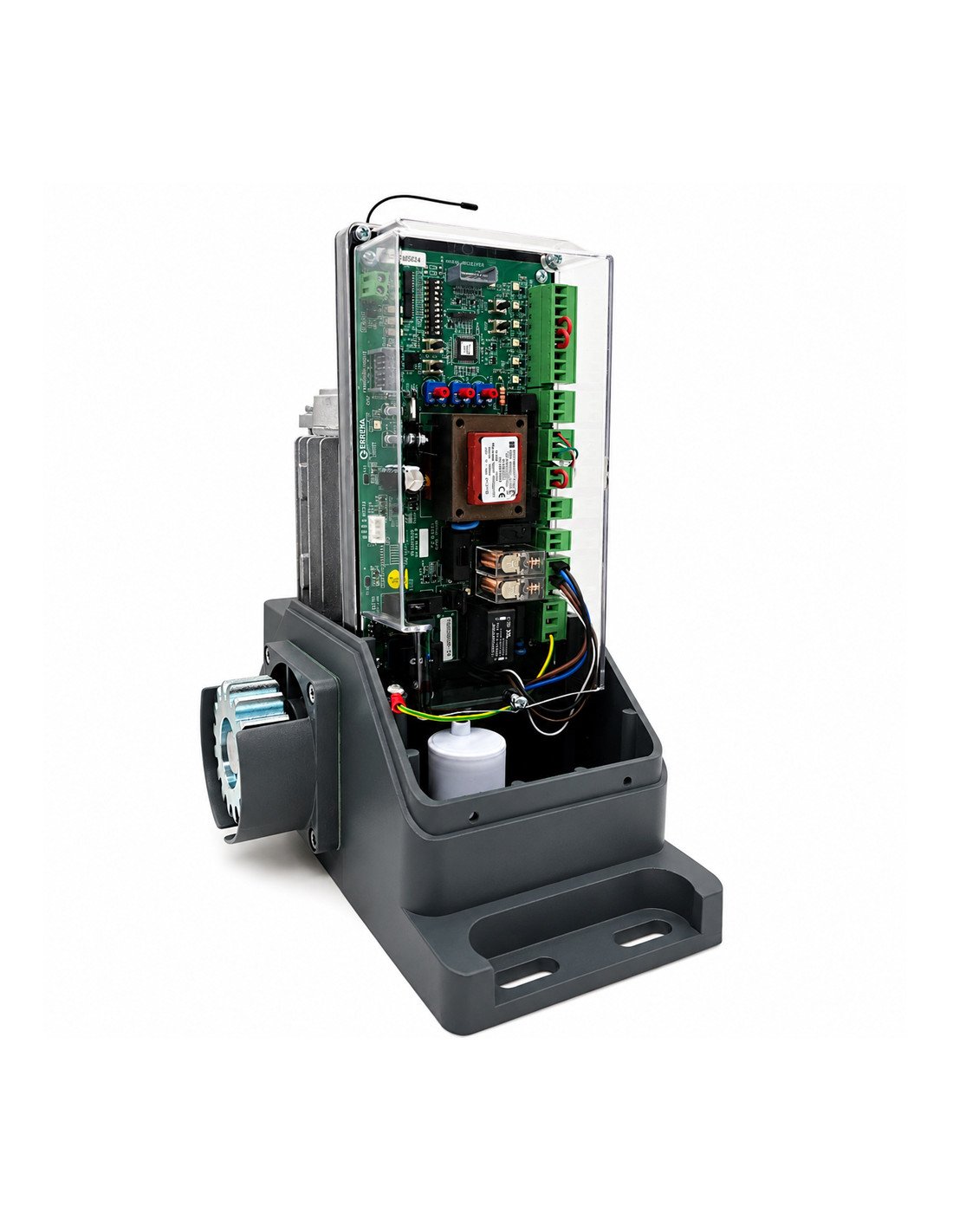

Motor kit Erreka Electromechanical Rhine 230V for sliding doors up to 600 kg
KIT RINO600
€618.00
VAT excluded
747,78 €
Tax incl.
230VAC Electromechanical Motor Kit Erreka Rhine for sliding doors, with built-in box, Ideal to install on residential, community or industrial doors.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
230VAC Electromechanical Motor Kit Erreka Rhine for sliding doors, with built-in box, Ideal to install on residential, community or industrial doors.
Rino features
- Drive for sliding doors of 600 kg (Ris600ec)
- Security. Obstacle detection
- Accurate performance with encoder
- Magnetic
- Soft electronic unemployment
| Ris600ec | Ris1000ec | |
|---|---|---|
| Food (VAC / HZ) | 230 / 50-60 | |
| Absorbed power (W) | 280 | 368 |
| Intensity (a) | 1,2 | 1,4 |
| Capacitor (μF) | 12 | 12 |
| Motor feed (VAC / HZ) | 230 / 50-60 | |
| Pair (nm) | 20.4 | 27.0 |
| Speed (m / min) | 11.4 | |
| Block | Yes | |
| Run-up | Yes | |
| Encoder | Yes | |
| Pinion | M4-z16 | |
| Work cycles | S3-30% | S3-40% |
| Degree | Ip44 | |
| Service temperature (° C) | -20 / +55 | |
| Actual weight (kg) | 13 | 14.5 |
| Dimensions Packaging (cm) | 31.5 × 26 × 33,5 | |
| Max door weight (kg) | 600 | 1000 |

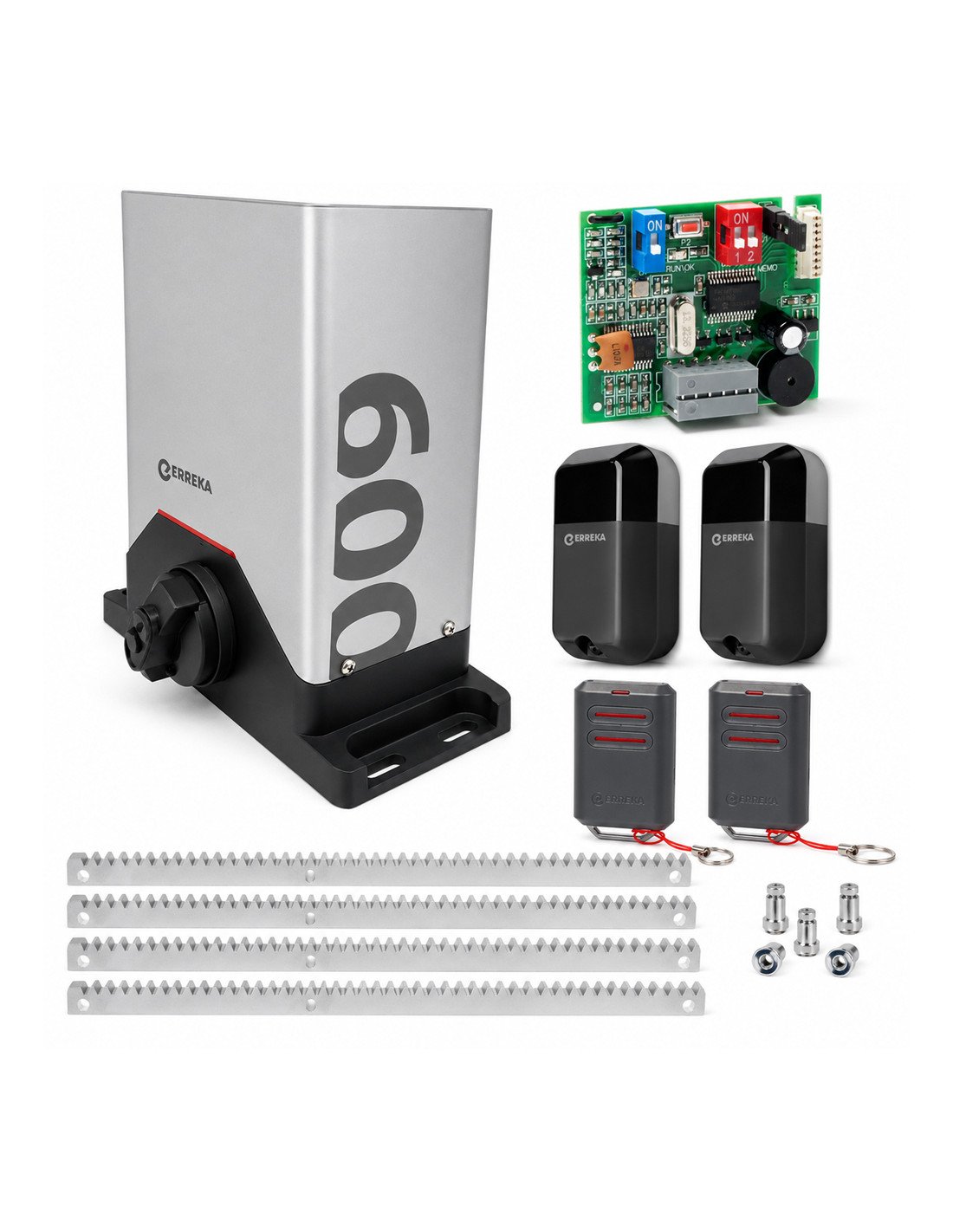

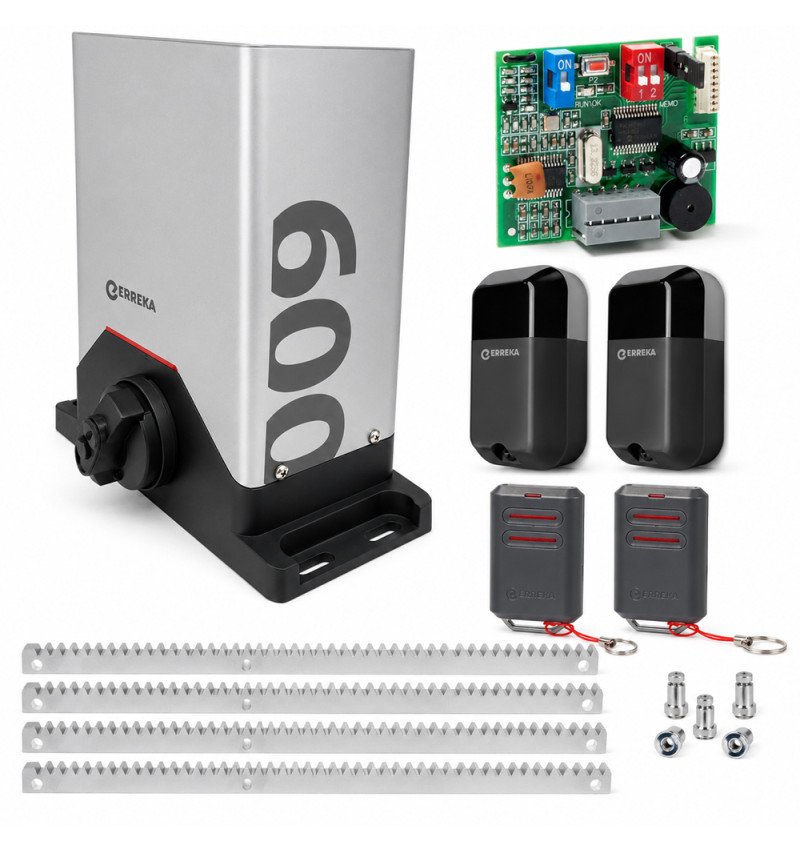

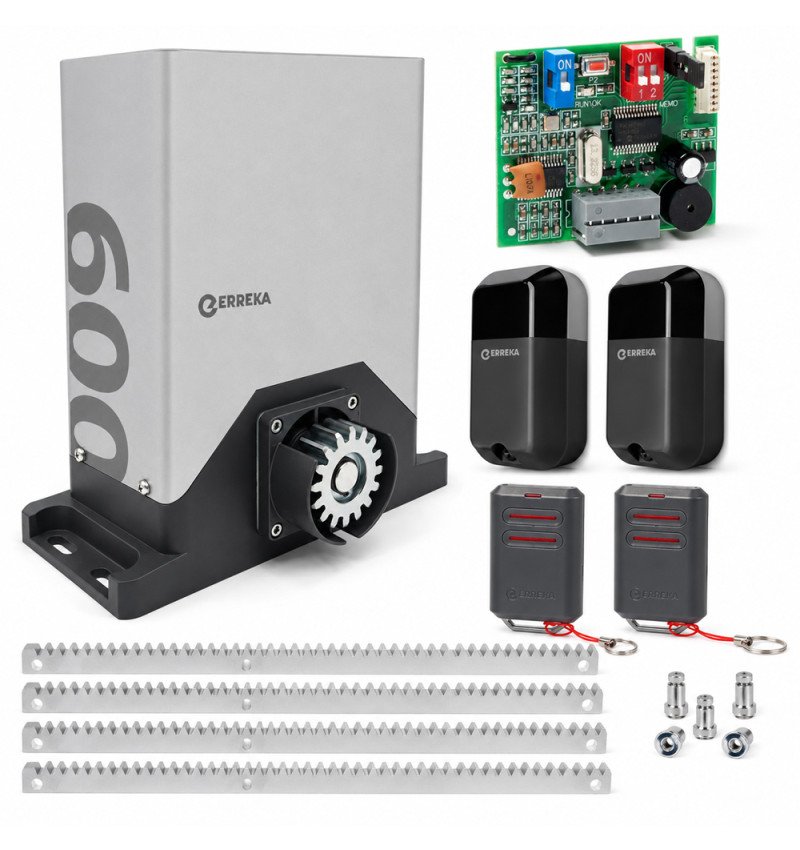

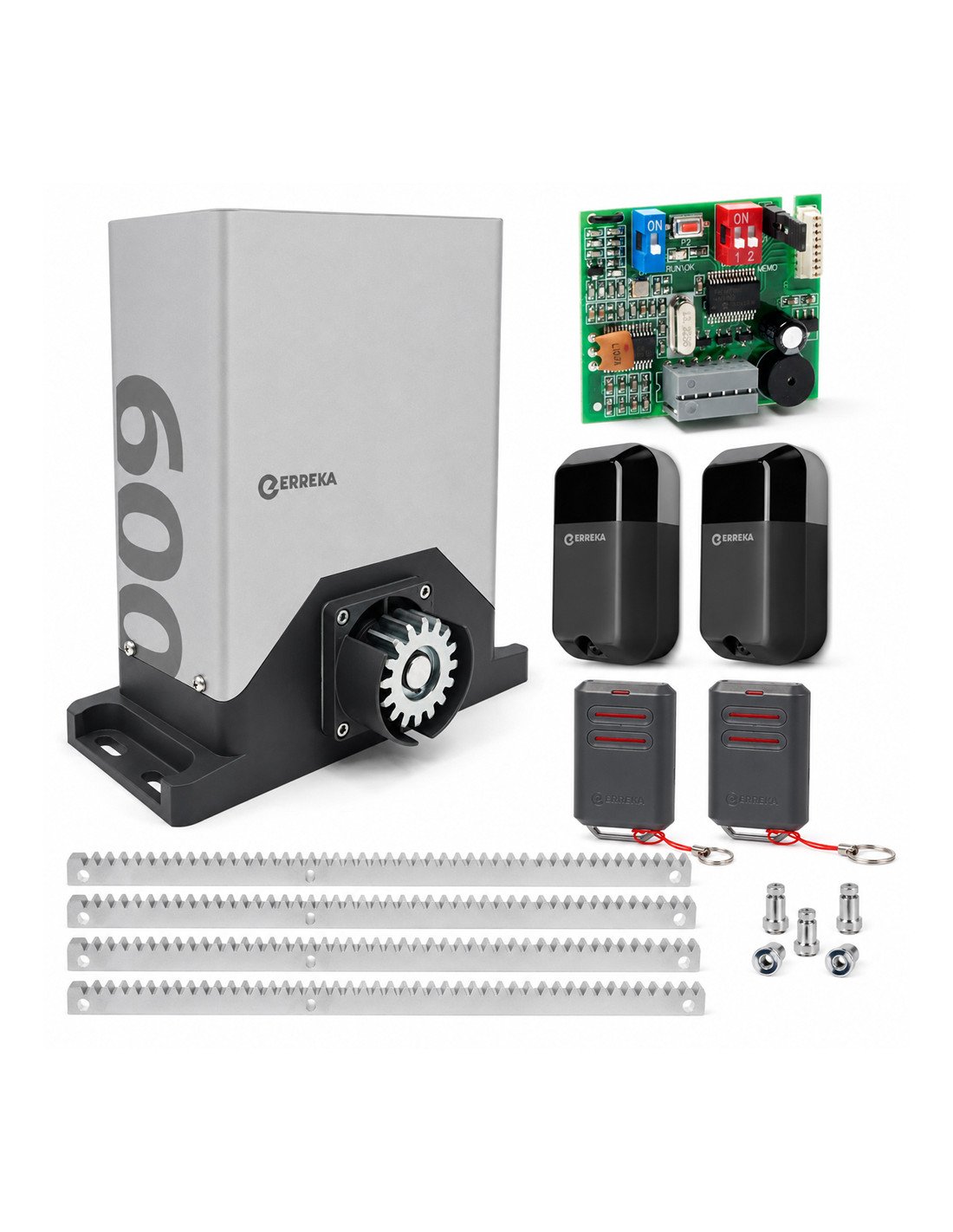

Kit content
- 1 pc Ris600ec: Actuator with built-in box and soft stop 230Vac up to 600 kg.
- 4pc N2120: Zipper in 6x12x1000mm steel (total 4 meters).
- 2pc Ku02: Issuer 2 fixed code channels 433 MHz.
- 1 pc Irre2: Plug-in receiver FIXO CODE 433.92 MHz.
- 1 pc Ft06: Pair of emitter-receiving safety photocells.
Manuals
- Rino Motor Technical Tab 2.57 MB
- Rino Motor Manual 4.67 MB
- Quick guide Motor Rino in ES, FR, EN, PT, DE, PL, RO, RU, BG, AR 6.22 MB
k
- Maximum door weight
- Between 500 and 650 kg
Between 900 and 1000 kg - Type of engine
- Electromechanical 230V
- Type of door
- Community portal
Industrial gate
Residential door
